NCP150R-BEMRKT (2013)
Toyota Yaris/Vios/Limo

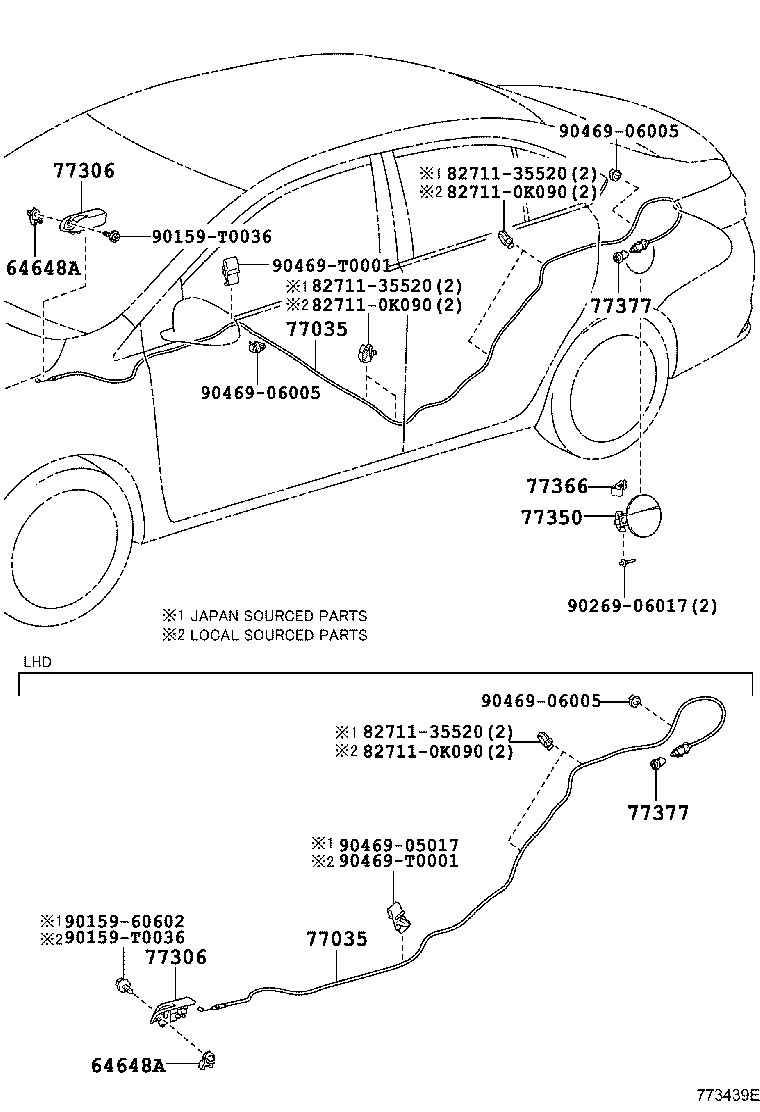

ILLUST NO. 3 OF 3(1304-1801)C ; (1304-1901)B ; (1901- )TH..B
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-0D020 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 64648-0D020 |
NCP15#..C |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-0D020 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 64648-0D020 |
NCP15#..C |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D320 |
NCP15#..RHD..(GEN,TH)..B |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D320 |
NCP15#..RHD..(GEN,TH)..B |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-0D140 |
NCP15#,NSP150,151..RHD..B |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-0D140 |
NCP15#,NSP150,151..RHD..B |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52011 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77366-52011 |
NCP15#..C |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77377-0D080 |
NCP15#..C |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D080 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77377-0D080 |
NCP15#..C |
1 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 82711-35520 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-05017 | ||||
| 90469-06005 | ||||
| 90469-T0001 | ||||

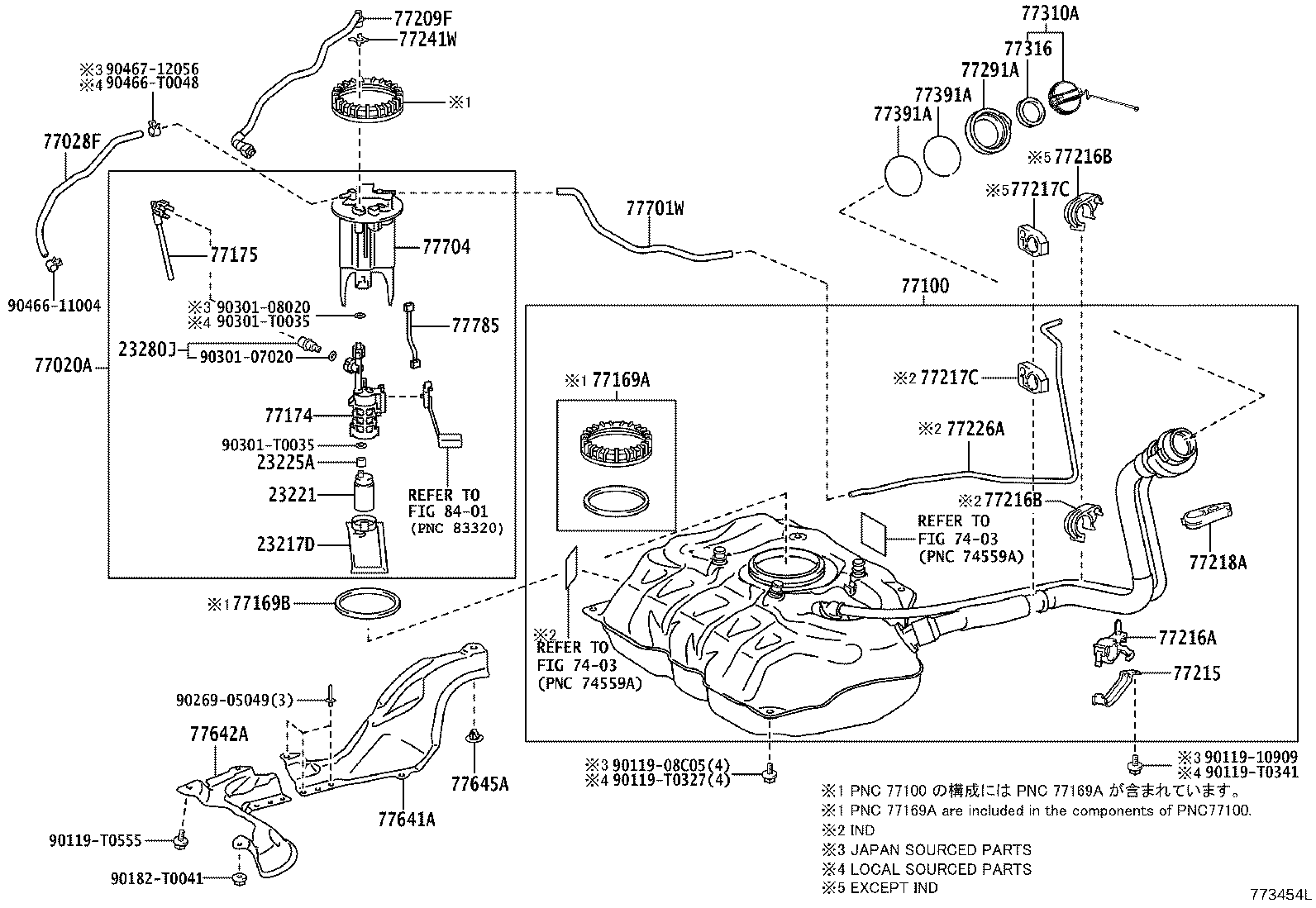

ILLUST NO. 1 OF 3(1304- )NCP15#,NSP152..GCC,GEN,IDN,TH..A,B
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0Y050 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23221-0Y050 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0V030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23225-0V030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D190 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77020-0D190 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 | ||||
| 77028-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77028-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D271 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77001-0D271 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77001-0D270 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77001-0D270 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
NCP15#..C |
1 | ||
| 77169-52040 |
NCP15#..C |
1 | ||
| 77169-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77169-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0D100 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77174-0D100 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-0D050 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77175-0D050 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77209-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77219-0D070 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77219-0D070 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0D150 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216-0D150 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77216-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77217-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77217-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0D050 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77218-0D050 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77241-33011 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77241-33011 |
NCP15#..C |
1 | ||
| 77241-33011 |
NCP15#..C |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77291-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K010 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77300-0K010 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77300-52030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77300-52030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77316-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77316-52040 |
NCP15#..C |
1 | ||
| 77316-52040 |
NCP15#..C |
1 | ||
| 77316-0K020 |
NCP15#..(GCC,GEN,TH)..B (L) |
1 | ||
| 77316-0K020 |
NCP15#..(GCC,GEN,TH)..B (L) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77641-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77642-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-0D030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77645-0D030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77701-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-0D110 |
NCP15#..C |
1 | ||
| 77704-0D110 |
NCP15#..C |
1 | ||
| 77704-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77704-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77785-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| Common parts | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90119-T0327 | ||||
| 90119-T0341 | ||||
| 90119-T0555 | ||||
| 90182-T0041 | ||||
| 90269-05049 | ||||
| 90301-07020 | ||||
| 90301-08020 | ||||
| 90301-T0035 | ||||
| 90466-11004 | ||||
| 90466-T0048 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||

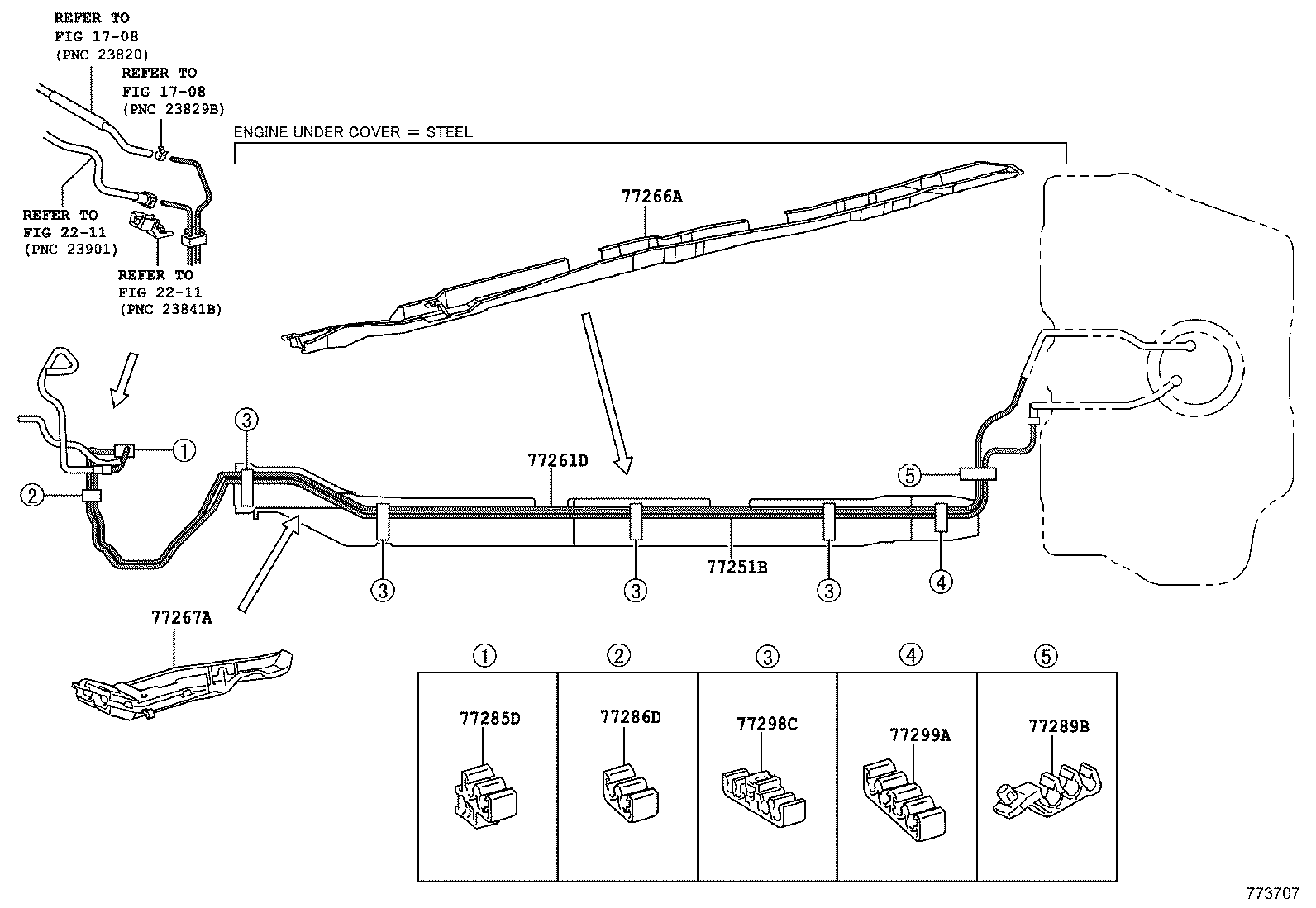

ILLUST NO. 2 OF 3(1304- )NCP15#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D340 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0D280 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-0D060 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0D110 |
NCP15#..(GCC,GEN,TH)..B |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0D070 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

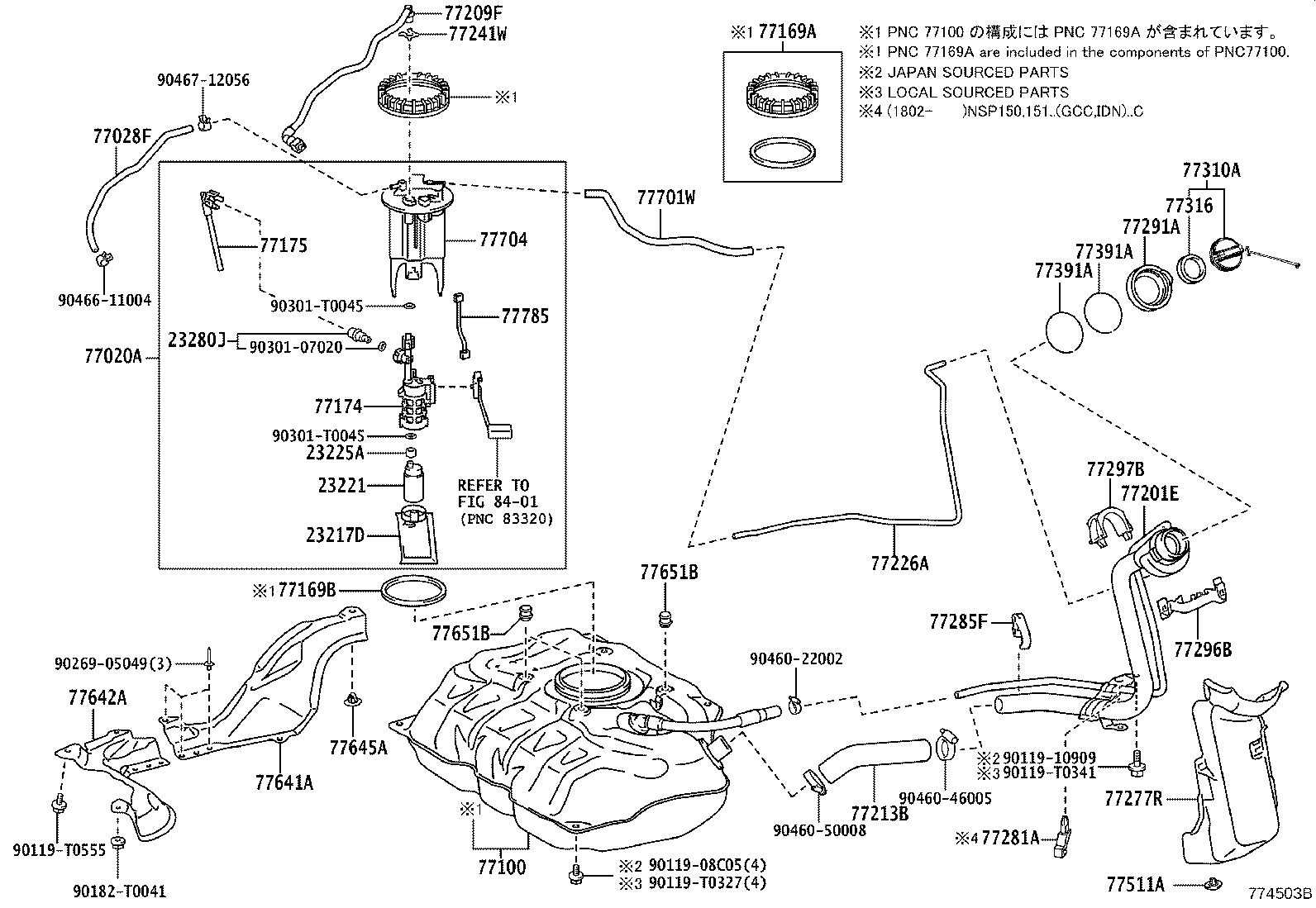

ILLUST NO. 1 OF 3(1312- )C
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 23217-0Y030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0Y050 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0V030 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 23280-22010 |
1NZFE,2NZFE..NCP15#..C |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D190 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 | ||||
| 77028-0D140 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D271 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77001-0D270 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
NCP15#..C |
1 | ||
| 77169-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0D100 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-0D050 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77241-33011 |
NCP15#..C |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D160 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K010 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77300-52030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77316-52040 |
NCP15#..C |
1 | ||
| 77316-0K020 |
NCP15#..(GCC,GEN,TH)..B (L) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 77391-02020 |
NCP15#..C |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-0D030 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D090 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-0D110 |
NCP15#..C |
1 | ||
| 77704-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0D110 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| Common parts | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90119-T0327 | ||||
| 90119-T0341 | ||||
| 90119-T0555 | ||||
| 90182-T0041 | ||||
| 90269-05049 | ||||
| 90301-07020 | ||||
| 90301-T0045 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-11004 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
