NCP150R-BEMDKT (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Mar 2016
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

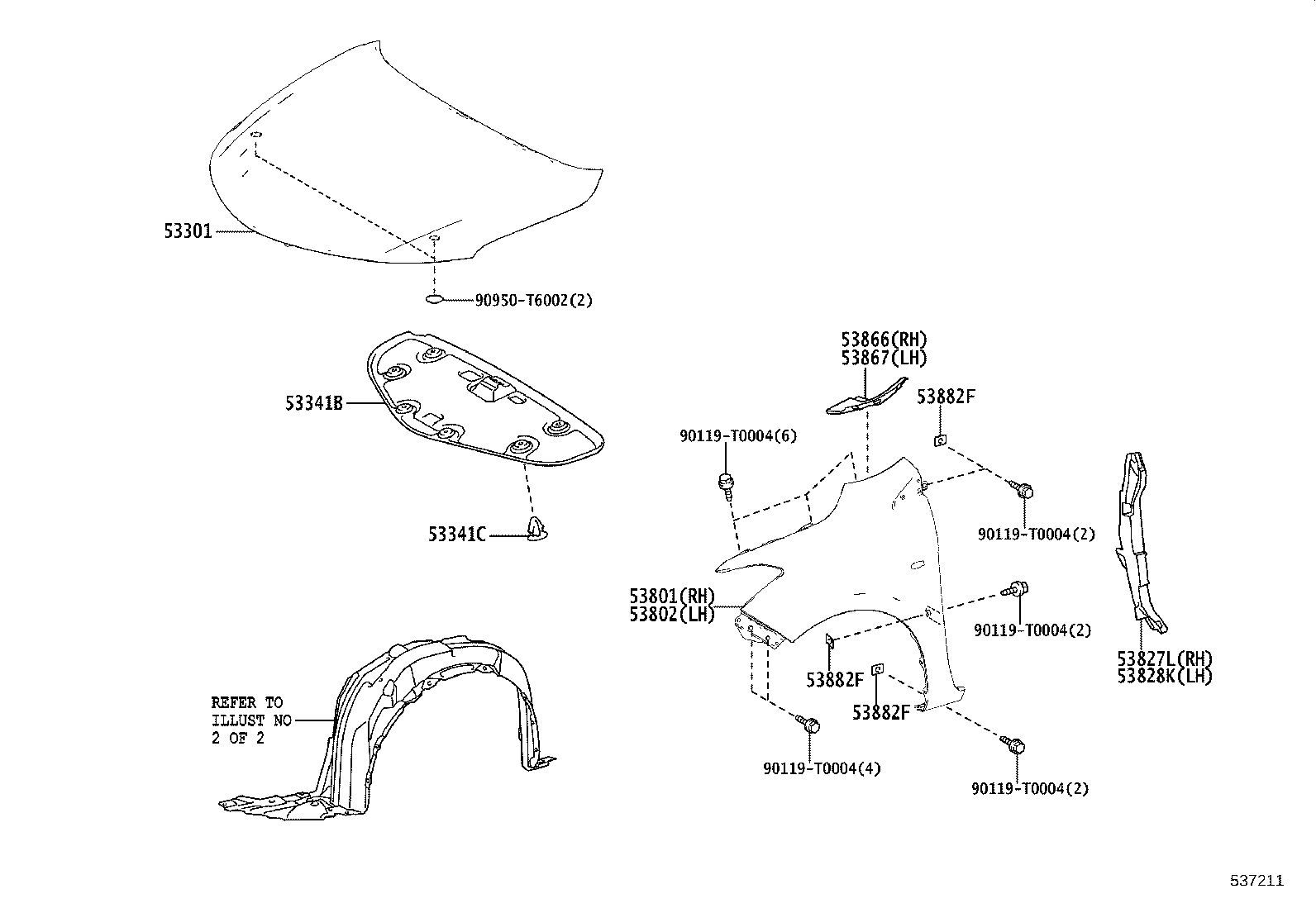

ILLUST NO. 1 OF 2(1304- )NCP15# ; (1601-1801)NSP150,151..C ; (1604- )NSP150,151..GCC,GEN,PH,TA

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53801 53802 53827L 53828K 53866 53867 53882F 53882F 53882F 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90950T6002
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0D160

NCP15#..(GCC,GEN,TH)..B

 1
53341B - INSULATOR, HOOD
53341-0D190

NCP15#..(GCC,GEN,TH)..(G,R,V)..B

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

NCP15#..(GCC,GEN,TH)..(G,R,V)..B

(J)

 6
90467-T0014

NCP15#..(GCC,GEN,TH)..(G,R,V)..B

(L)

 6
53801 - FENDER SUB-ASSY, FRONT RH
53811-K0020

NCP150..5F..TH..D..B

BRUNEI SPEC

 1
53811-K0010

NCP150..TH..R..B;NCP150..TH..D..C

 1
53811-K0020

NCP150..TH..R..B

 1
53811-K0020

NCP15#..GCC..G..C;NCP150..RHD..(G,R)..C

 1
53811-K0010

NCP150..(GEN,TH)..D..B;NCP150..(GCC,GEN)..R..B;NCP151..(GCC,GEN)..(D,R)..B

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-K0010

NCP150..TH..R..B;NCP150..TH..D..C

 1
53812-K0020

NCP150..TH..R..B

 1
53812-K0010

NCP150..(GEN,TH)..D..B;NCP150..(GCC,GEN)..R..B;NCP151..(GCC,GEN)..(D,R)..B

 1
53812-K0020

NCP150..5F..TH..D..B

BRUNEI SPEC

 1
53812-K0020

NCP15#..GCC..G..C;NCP150..RHD..(G,R)..C

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D120

NCP15#..(GCC,GEN,TH)..B

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D120

NCP15#..(GCC,GEN,TH)..B

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0D120

NCP15#..(GCC,GEN,TH)..B

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0D120

NCP15#..(GCC,GEN,TH)..B

 1
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..(GCC,GEN,TH)..B

 6
53882-33060

NCP15#..C

 6
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..(GCC,GEN,TH)..B

 6
53882-33060

NCP15#..C

 6
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..(GCC,GEN,TH)..B

 6
53882-33060

NCP15#..C

 6
Common parts
90119-T0004
90950-T6002

ILLUST NO. 2 OF 2(1304- )NCP15# ; (1601-1801)NSP150,151..C ; (1604- )NSP150,151..GCC,GEN,PH,TA

Click highlighted areas on diagram

FENDER LINER

diagram 47749D 5102 53851D 53852B 53875A 53875C 53875P 53876A 53879A 53879R 9015960488 90159T0033 9018906013 9018906230 9046705128 9046707214
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58010

NCP15#..C

 2
47749-58010

NCP15#..(GCC,GEN,TH)..B

 2
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0D090

NCP150..5F..TH..D..B

BRUNEI SPEC&ABS-WITH(W/BRAKE ASSIST)

 1
53851-0D090

NCP150..GEN..D;NCP151..(GCC,GEN)..B;NCP150..(GCC,GEN,TH)..(G,R,V)..B

 1
53851-0D090

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0D050

NCP150..GEN..D;NCP151..(GCC,GEN)..B;NCP150..(GCC,GEN,TH)..(G,R,V)..B

 1
53852-0D050

NCP150..5F..TH..D..B

BRUNEI SPEC&ABS-WITH(W/BRAKE ASSIST)

 1
53852-0D050

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 1
53875A - LINER, FRONT FENDER, RH
53875-0D320

NCP15#..(GCC,GEN,TH)..(G,R,V)..B

 1
53875-0D230

NCP15#..(GCC,GEN,TH)..D..B

 1
53875C - CLIP, FRONT FENDER LINER
90467-05114

NCP15#,NSP150,151..B,C

 2
53875P - SCREW, NO.1
90159-T0033

NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

 2
53876A - LINER, FRONT FENDER, LH
53876-0D320

NCP15#..(GCC,GEN,TH)..(G,R,V)..B

 1
53876-0D230

NCP15#..(GCC,GEN,TH)..D..B

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

NCP150..5F..TH..D..B

BRUNEI SPEC&ABS-WITH(W/BRAKE ASSIST)

 4
53879-17020

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

 4
53879-17020

NCP150..GEN..D;NCP151..(GCC,GEN)..B;NCP150..(GCC,GEN,TH)..(G,R,V)..B

 4
53879R - RETAINER, FRONT FENDER LINER
53879-58010

NCP15#..(GCC,GEN,TH)..B

 2
53879-58010

NCP15#..C

 2
Common parts
90159-60488
90159-T0033
90189-06013
90189-06230
90467-05128
90467-07214
Linked diagrams
5102
