NCP150L-BEPGKM (2013)

Toyota Yaris/Vios/Limo

Production Jul 2013 - Jun 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1307- )NCP15#..LHD..GCC,GEN,PH,VN ; (1307-)NSP150,151..LHD..GCC,GEN,PH,VN..

Click highlighted areas on diagram

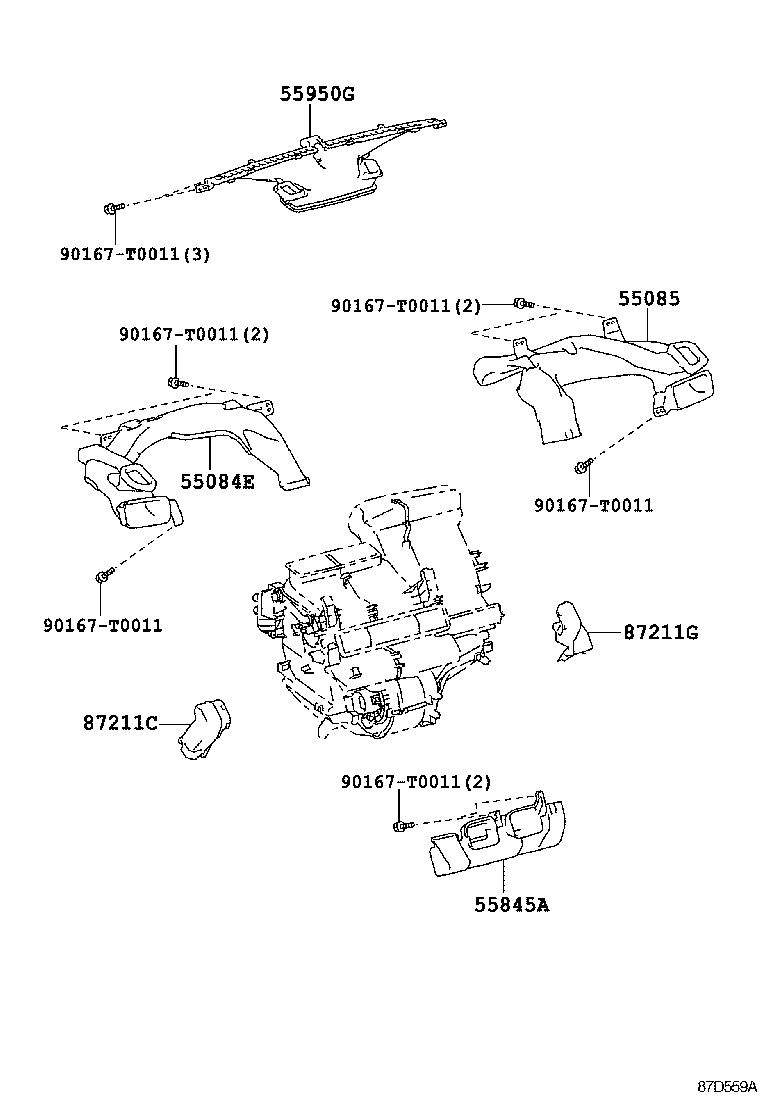

AIR DUCT

diagram 55084E 55085 55845A 55950G 87211C 87211G 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-0D110

NCP15#..PH

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-0D080

NCP15#..PH

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0D170

NCP15#..PH

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D180

NCP15#..PH

 1
87211C - DUCT, AIR, NO.4
87211-0D330

NCP15#..PH

 1
87211G - DUCT, AIR, NO.5
87211-0D340

NCP15#..PH

 1
Common parts
90167-T0011

ILLUST NO. 2 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55845A 55950G 87211C 87211G 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-0D110

NCP15#..PH

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-0D080

NCP15#..PH

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0D170

NCP15#..PH

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D180

NCP15#..PH

 1
87211C - DUCT, AIR, NO.4
87211-0D330

NCP15#..PH

 1
87211G - DUCT, AIR, NO.5
87211-0D340

NCP15#..PH

 1
Common parts
90167-T0011

ILLUST NO. 3 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

SENSOR

diagram 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
Linked diagrams
8714

ILLUST NO. 1 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

HEATER CONTROL

diagram 55900 55900A 55900A 55902C 55902H 55904A 55906A 55908A 55909C 55921A 55921A 55921A 55921A 55921B 55921B 55921B 81942A 81942B 9046710201 9356054010 9356054010
Part # Description Qty Price
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0D430

NCP15#..PH

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-0D430

NCP15#..PH

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-0D240

NCP15#..PH

 1
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-10203

NCP15#..PH

 4
90467-10203

NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D120

NCP15#..PH

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0D140

NCP151..C;NCP150..(D,R)..C;NCP150..GCC..G..C

 1
55908-0D140

NCP15#..PH

 1
55921A - RETAINER, HEATER CONTROL
55921-0D020

NCP15#..PH

 1
55921A - RETAINER, HEATER CONTROL
55921-0D020

NCP15#..PH

 1
55921A - RETAINER, HEATER CONTROL
55921-0D020

NCP15#..PH

 1
55921A - RETAINER, HEATER CONTROL
55921-0D020

NCP15#..PH

 1
55921B - RETAINER, HEATER CONTROL
55922-0D020

NCP15#..PH

 1
55921B - RETAINER, HEATER CONTROL
55922-0D020

NCP15#..PH

 1
55921B - RETAINER, HEATER CONTROL
55922-0D020

NCP15#..PH

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-0D610

NCP15#..PH

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-0D620

NCP15#..PH

 1
Common parts
90467-10201
93560-54010
