NCP150L-BEPGKM (2013)

Toyota Yaris/Vios/Limo

Production Jul 2013 - Jun 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1307- )LHD

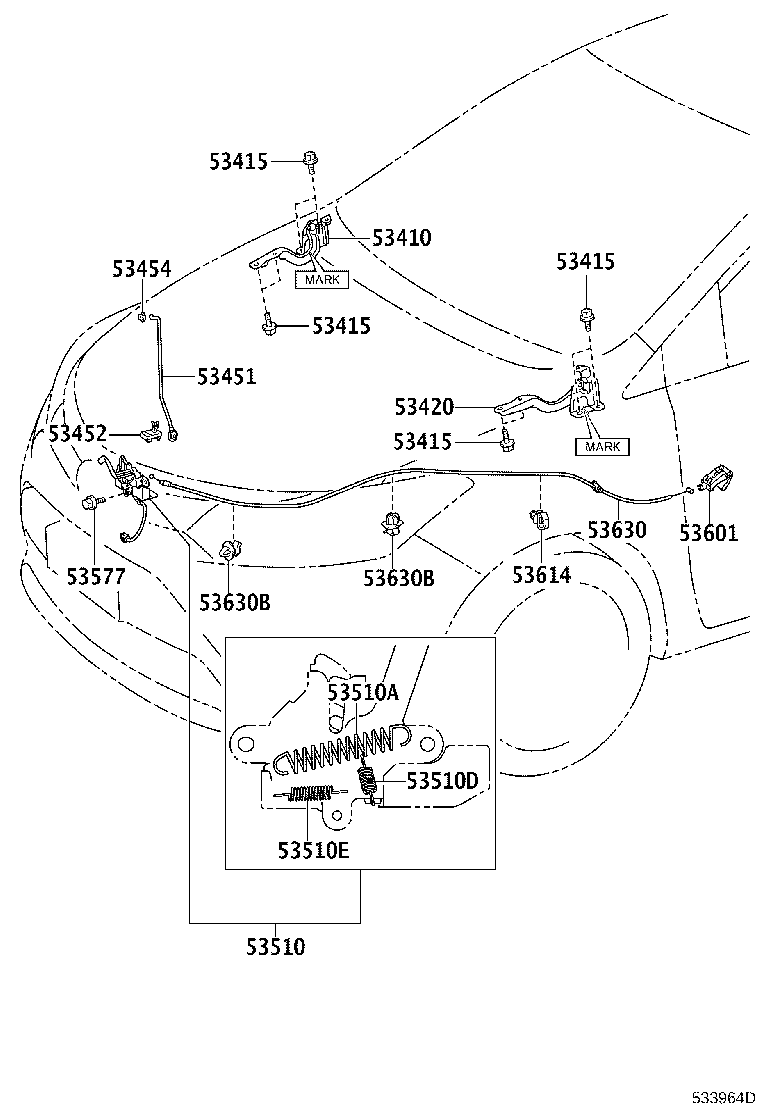

Click highlighted areas on diagram

diagram 53410 53415 53415 53415 53415 53420 53451 53452 53454 53510 53510A 53510D 53510E 53577 53601 53614 53630 53630B 53630B
Part # Description Qty Price
53415 - BOLT, HOOD HINGE
90105-T0120

NCP15#..PH

 8
90105-T0120

NCP15#..C

 8
53415 - BOLT, HOOD HINGE
90105-T0120

NCP15#..PH

 8
90105-T0120

NCP15#..C

 8
53415 - BOLT, HOOD HINGE
90105-T0120

NCP15#..PH

 8
90105-T0120

NCP15#..C

 8
53415 - BOLT, HOOD HINGE
90105-T0120

NCP15#..PH

 8
90105-T0120

NCP15#..C

 8
53420 - HINGE ASSY, HOOD, LH
53420-0D490

NCP15#..PH

 1
53451 - ROD, HOOD SUPPORT
53440-0D170

NCP15#..PH

 1
53452 - HOLDER, HOOD STAY
53452-0D090

NCP15#..PH

 1
53454 - CLIP, HOOD SUPPORT ROD
90480-T0009

NCP15#..PH

 1
90480-T0009

NCP15#..C

 1
53510 - LOCK ASSY, HOOD
53510-0D490

NCP15#..PH..(G,R)

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

NCP15#..PH

WD=1.6,CW=12

 1
90506-16077

NCP15#..C

WD=1.6,CW=12

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

NCP15#..PH

WD=1.2,CW=8.5

 1
90506-T0004

NCP15#..C

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

NCP15#..PH

WD=0.9,CW=21

 1
90506-T0005

NCP15#..C

WD=0.9,CW=21

 1
53577 - BOLT, HOOD LOCK
90119-T0273

NCP15#..C

 3
90119-T0273

NCP15#..PH

 3
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02030A1

NCP15#..PH

IVORY,TRIM0#

 1
53601-02030A1

NCP151..C;NCP150..(G,R)..C;NCP150..TH..D..C

IVORY,TRIM0#

 1
53601-02030C0

NCP15#..PH

BLACK,TRIM2#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
82711-16790

NCP15#..PH

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0D200

NCP15#..PH

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NCP15#..PH

 2
90469-06005

NCP15#..C

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NCP15#..PH

 2
90469-06005

NCP15#..C

 2
