NCP150L-BEPGKM (2013)

Toyota Yaris/Vios/Limo

Production Jul 2013 - Jun 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1307- )LHD..4FC

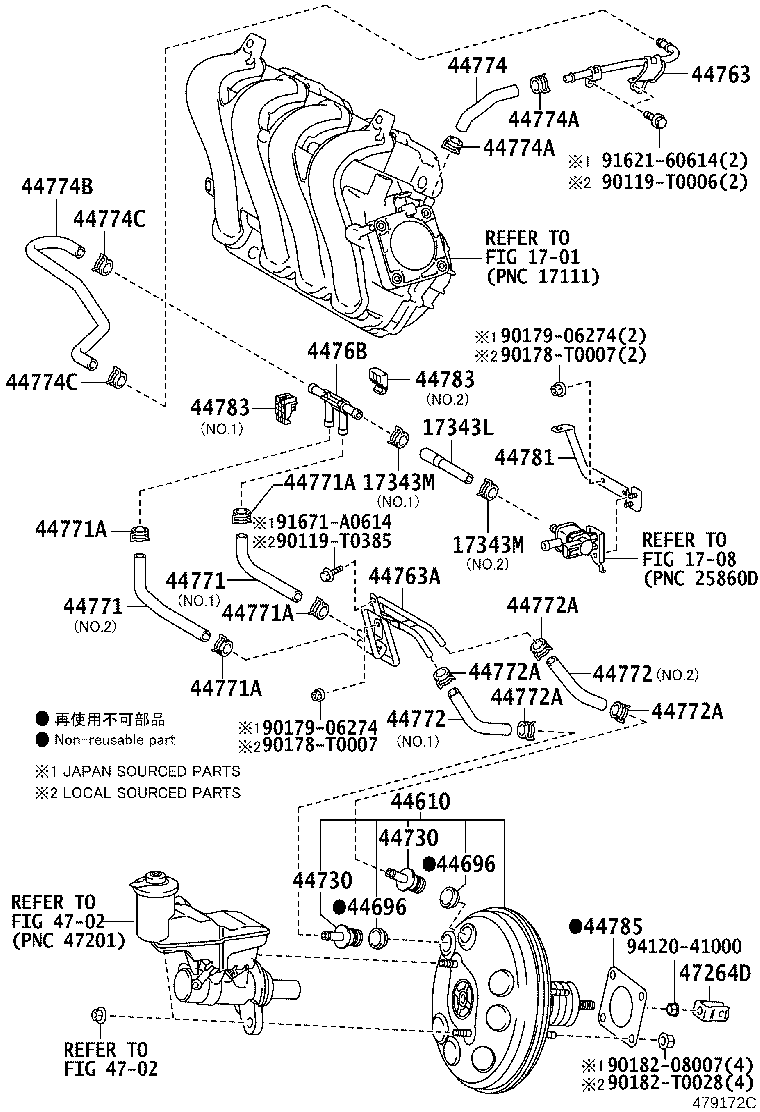

Click highlighted areas on diagram

diagram 1701 1708 17343L 17343M 17343M 44610 44696 44696 44730 44730 44763 44763A 4476B 44771 44771 44771A 44771A 44771A 44771A 44772 44772 44772A 44772A 44772A 44772A 44774 44774A 44774A 44774B 44774C 44774C 44781 44783 44783 44785 4702 4702 47264D 90119T0006 90119T0385 90178T0007 90178T0007 9017906274 9017906274 9018208007 90182T0028 9162160614 91671A0614 9412041000
Part # Description Qty Price
17343L - HOSE, AIR, NO.3
17343-0M010

1NZFE,2NZFE..NCP15#..4FC..C

 1
17343-0M010

1NZFE,2NZFE..NCP15#..4FC..PH

 1
17343M - CLIP(FOR AIR HOSE NO.3)
90467-16014

1NZFE,2NZFE..NCP15#..4FC

NO.1:REFER ILLUST.

 1
96132-41500

1NZFE,2NZFE..NCP15#..4FC

NO.2:REFER ILLUST.

 1
17343M - CLIP(FOR AIR HOSE NO.3)
90467-16014

1NZFE,2NZFE..NCP15#..4FC

NO.1:REFER ILLUST.

 1
96132-41500

1NZFE,2NZFE..NCP15#..4FC

NO.2:REFER ILLUST.

 1
44610 - BOOSTER ASSY, BRAKE
44610-0D460

NCP150..4FC..PH

 1
44696 - GROMMET, CHECK VALVE
90016-AT003

NCP15#..4FC..PH

 2
90016-AT003

NCP15#..4FC..C

 2
44696 - GROMMET, CHECK VALVE
90016-AT003

NCP15#..4FC..PH

 2
90016-AT003

NCP15#..4FC..C

 2
44763 - TUBE, BOOSTER VACUUM
44763-0D080

NCP150..PH

 1
44763-0D080

NCP150..C

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D170

NCP15#..4FC..PH

 1
4476B - EJECTOR, BRAKE BOOSTER VACUUM
4476B-48010

NCP15#..4FC..C

 1
4476B-48010

NCP15#..4FC..PH

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-0D030

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44771-0D040

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-0D030

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44771-0D040

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D180

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44772-0D190

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D180

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44772-0D190

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 4
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 4
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 4
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 4
44774 - HOSE, UNION TO CONNECTOR TUBE
95446-09130

NCP15#..PH

 1
95446-09130

NCP15#..C

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0018

NCP150..GCC,GEN,IDN,MA,PH,TH,VN

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0018

NCP150..GCC,GEN,IDN,MA,PH,TH,VN

 2
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-0D080

NCP15#..4FC..PH

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NCP15#,NSP150,151..(ATM,CVT)..(B,C)

 2
44781 - BRACKET, HOSE
44781-0D020

NCP15#..4FC..PH

 1
44783 - CLAMP, VACUUM HOSE
44783-0D020

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44783-0D030

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44783-0D030

NCP15#..4FC..C

NO.2:REFER ILLUST.

 1
44783-0D020

NCP15#..4FC..C

NO.1:REFER ILLUST.

 1
44783 - CLAMP, VACUUM HOSE
44783-0D020

NCP15#..4FC..PH

NO.1:REFER ILLUST.

 1
44783-0D030

NCP15#..4FC..PH

NO.2:REFER ILLUST.

 1
44783-0D030

NCP15#..4FC..C

NO.2:REFER ILLUST.

 1
44783-0D020

NCP15#..4FC..C

NO.1:REFER ILLUST.

 1
44785 - GASKET, BRAKE BOOSTER
44785-0D020

NCP15#..PH

 1
44785-0D020

NCP15#..C

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D040

NCP15#..PH

 1
47264-0D040

NCP15#..C

 1
Common parts
90119-T0006
90119-T0385
90178-T0007
90179-06274
90182-08007
90182-T0028
91621-60614
91671-A0614
94120-41000
Linked diagrams
1701
1708
4702
