NCP150L-BEPGK (2013)
Toyota Yaris/Vios/Limo

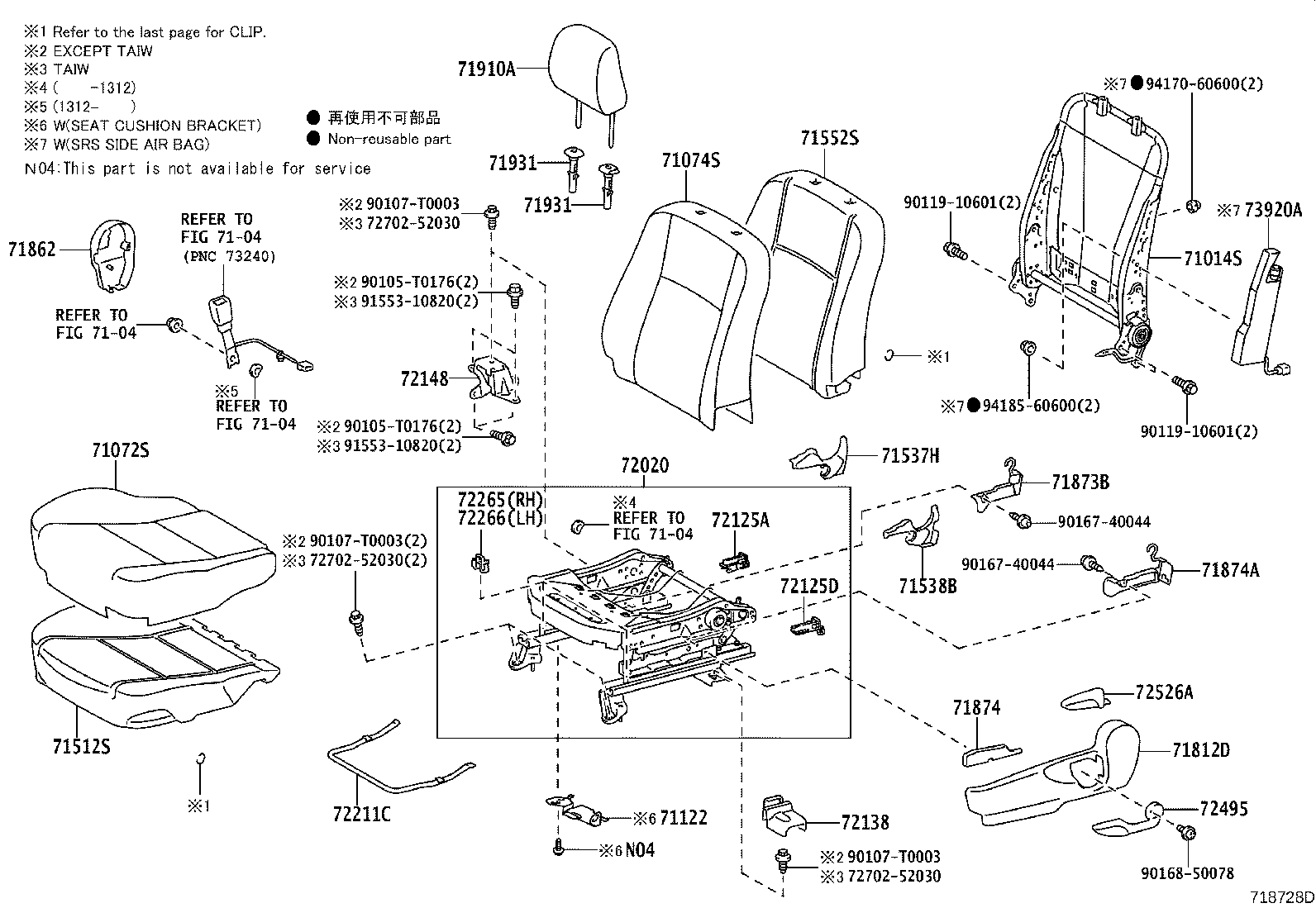

ILLUST NO. 1 OF 2(1304-1911)A ; (1304- )B,C,D,E,F,I
LH SEAT,W(VERTICAL ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0DC10A0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71074-0DC10C0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D250 |
NCP15#..LHD..(GCC,GEN)..(G,R) |
1 | ||
| 71512-0D300 |
NCP15#..LHD..(GCC,GEN)..D |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0D110A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71537-0D110C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0D100C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71538-0D100A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D290 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..(D,G,R)..B |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D270A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71812-0D270C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D200A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71862-0D200C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-06510 |
NCP151..RHD..D;NCP150..GEN..(G,R);NCP150..(GCC,TH)..B;NCP151..(GCC,GEN)..(G,R)..B |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0D360 |
NCP15#..LHD..(GCC,GEN)..(G,R)..B |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
NCP151..RHD..D;NCP150..GEN..(G,R);NCP150..(GCC,TH)..B;NCP151..(GCC,GEN)..(G,R)..B |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DA30A1 |
NCP150,NSP151..GEN..D..B;NCP151,NSP150..(GCC,GEN)..B;NCP150,NSP151..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71910-0DA30C2 |
NCP150,NSP151..TH..(G,R)..B;NCP15#,NSP150,151..(GCC,GEN)..G..B BLACK/BLUE,TRIM2# |
2 | ||
| 71910-0DA30C3 |
NSP150..GCC..R..B;NCP151..LHD..GEN..D;NCP15#,NSP151..GCC..(D,R)..B;NSP150..LHD..(GCC,GEN)..D..B;NCP151,NSP150..RHD..(D,R)..B;NCP150,NSP151..(GEN,TH)..D..B BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0D471 |
NCP15#..RHD..(GEN,TH)..B;NCP15#..LHD..(GCC,GEN)..D..B |
1 | ||
| 72020-0D520 |
NCP15#..LHD..(GCC,GEN)..(G,R) |
1 | ||
| 72020-0D521 |
NCP15#..LHD..(GCC,GEN)..(G,R)..B |
1 | ||
| 72020-0D470 |
NCP15#..RHD..(GEN,IDN,TH);NCP15#..LHD..(GCC,GEN)..D |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D090C0 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B BLACK,TRIM2# |
1 | ||
| 72138-0D090A0 |
NSP151..GEN..D..B;NSP150..(GCC,GEN)..B;NCP150..(GEN,TH)..D..B;NCP151..(GCC,GEN,PH)..B;NCP150,NSP151..(GCC,GEN,IDN,PH,TH,VN)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D090 |
NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D160 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 72526-0D260A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

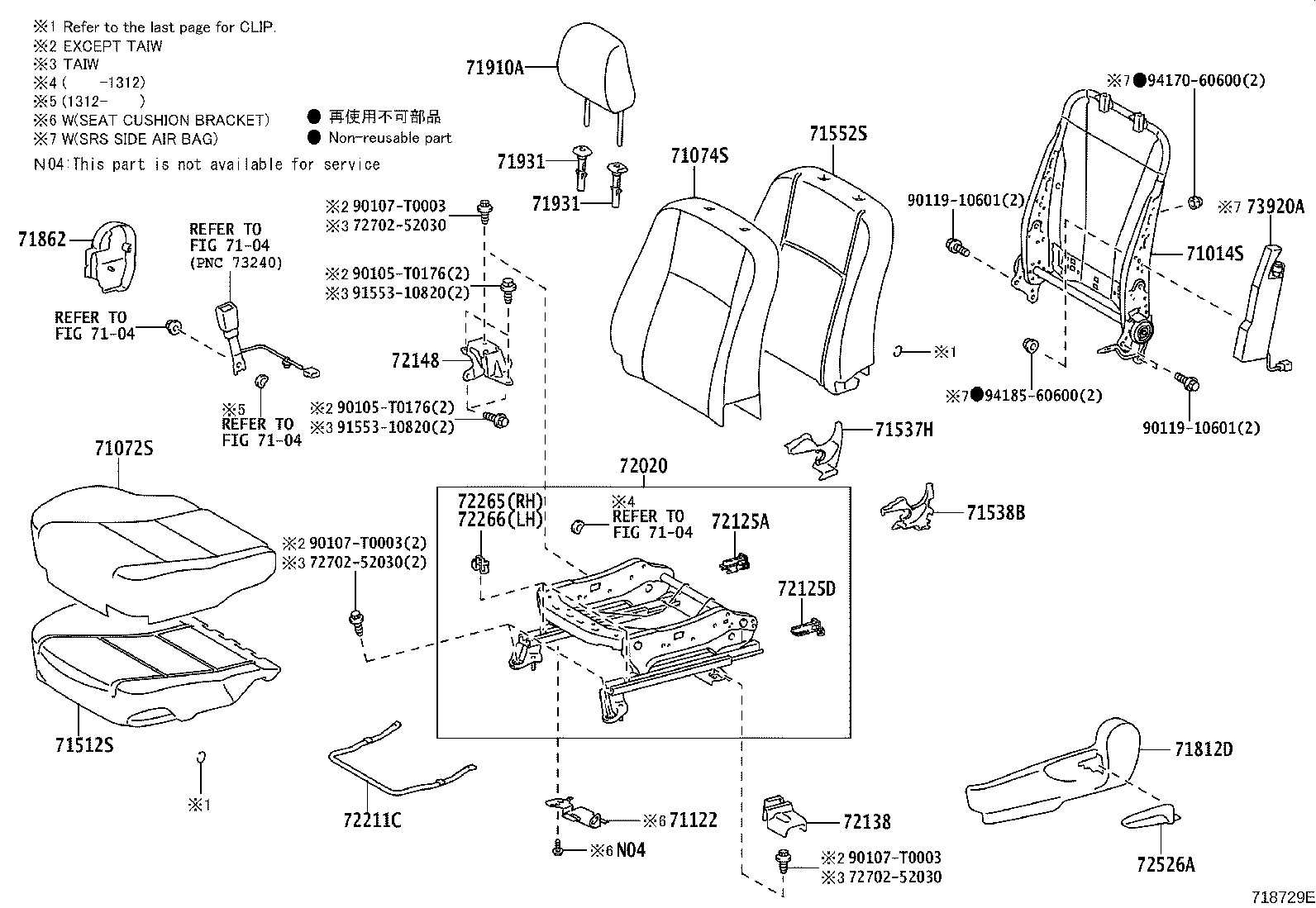

ILLUST NO. 1 OF 2(1304-1911)A ; (1304- )B,C,D,E,F,I
LH SEAT,W/O(VERTICAL ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0DC10A0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71074-0DC10C0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D250 |
NCP15#..LHD..(GCC,GEN)..(G,R) |
1 | ||
| 71512-0D300 |
NCP15#..LHD..(GCC,GEN)..D |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0D110A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71537-0D110C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0D100C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71538-0D100A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D290 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..(D,G,R)..B |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D270A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71812-0D270C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D200A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| 71862-0D200C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DA30A1 |
NCP150,NSP151..GEN..D..B;NCP151,NSP150..(GCC,GEN)..B;NCP150,NSP151..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71910-0DA30C2 |
NCP150,NSP151..TH..(G,R)..B;NCP15#,NSP150,151..(GCC,GEN)..G..B BLACK/BLUE,TRIM2# |
2 | ||
| 71910-0DA30C3 |
NSP150..GCC..R..B;NCP151..LHD..GEN..D;NCP15#,NSP151..GCC..(D,R)..B;NSP150..LHD..(GCC,GEN)..D..B;NCP151,NSP150..RHD..(D,R)..B;NCP150,NSP151..(GEN,TH)..D..B BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0D471 |
NCP15#..RHD..(GEN,TH)..B;NCP15#..LHD..(GCC,GEN)..D..B |
1 | ||
| 72020-0D520 |
NCP15#..LHD..(GCC,GEN)..(G,R) |
1 | ||
| 72020-0D521 |
NCP15#..LHD..(GCC,GEN)..(G,R)..B |
1 | ||
| 72020-0D470 |
NCP15#..RHD..(GEN,IDN,TH);NCP15#..LHD..(GCC,GEN)..D |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D090C0 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B BLACK,TRIM2# |
1 | ||
| 72138-0D090A0 |
NSP151..GEN..D..B;NSP150..(GCC,GEN)..B;NCP150..(GEN,TH)..D..B;NCP151..(GCC,GEN,PH)..B;NCP150,NSP151..(GCC,GEN,IDN,PH,TH,VN)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D090 |
NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D160 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
NSP150..LHD..(GCC,GEN,VN)..D..B;NCP15#,NSP151..LHD..(GCC,GEN)..D..B;NCP15#,NSP150,151..RHD..(GEN,IDN,TH)..B BLACK,TRIM2# |
1 | ||
| 72526-0D260A0 |
NCP151,NSP150..RHD..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..(IDN,TH)..(G,R)..B;NCP151,NSP150,151..LHD..(GCC,GEN)..D..B IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1304-1911)A ; (1304- )B,C,D,E,F,I
RH SEAT,W(VERTICAL ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0DF40A0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71073-0DF40C0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-0D110C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0D100C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D370 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..(D,G,R)..B |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D270C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D220C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-06510 |
NCP151..RHD..D;NCP150..GEN..(G,R);NCP150..(GCC,TH)..B;NCP151..(GCC,GEN)..(G,R)..B |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06480 |
NCP151..RHD..D;NCP150..GEN..(G,R);NCP150..(GCC,TH)..B;NCP151..(GCC,GEN)..(G,R)..B |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DA30A1 |
NCP150,NSP151..GEN..D..B;NCP151,NSP150..(GCC,GEN)..B;NCP150,NSP151..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71910-0DA30C2 |
NCP150,NSP151..TH..(G,R)..B;NCP15#,NSP150,151..(GCC,GEN)..G..B BLACK/BLUE,TRIM2# |
2 | ||
| 71910-0DA30C3 |
NSP150..GCC..R..B;NCP151..LHD..GEN..D;NCP15#,NSP151..GCC..(D,R)..B;NSP150..LHD..(GCC,GEN)..D..B;NCP151,NSP150..RHD..(D,R)..B;NCP150,NSP151..(GEN,TH)..D..B BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0D480 |
NCP15#..LHD..(GCC,GEN) |
1 | ||
| 72010-0D481 |
NCP15#..LHD..(GCC,GEN)..B |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D100A0 |
NSP151..GEN..D..B;NSP150..(GCC,GEN)..B;NCP150..(GEN,TH)..D..B;NCP151..(GCC,GEN,PH)..B;NCP150,NSP151..(GCC,GEN,IDN,PH,TH,VN)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 72137-0D100C0 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D080 |
NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D160 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
NCP150..IDN..D..B;NCP151,NSP150..LHD..B;NCP150..(GCC,GEN,VN)..B;NSP151..(GCC,GEN,PH)..B BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1304-1911)A ; (1304- )B,C,D,E,F,I
RH SEAT,W/O(VERTICAL ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0D120 |
NCP15#..(GCC,GEN,TH)..B |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0DF40A0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 71073-0DF40C0 |
NCP151,NSP150..G..B;NCP150,NSP151..GCC..G..B;NCP151,NSP150..LHD..GEN..R..B;NCP150,NSP151..(GEN,IDN,TH)..(G,R)..B BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-0D110C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0D100C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D370 |
NCP15#,NSP150,151..(GCC,GEN,IDN,TH)..(D,G,R)..B |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D270C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D220C0 |
NCP150..IDN..D..B;NSP151..(GCC,GEN)..B;NCP15#,NSP150..LHD..(GCC,GEN,VN)..B BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DA30A1 |
NCP150,NSP151..GEN..D..B;NCP151,NSP150..(GCC,GEN)..B;NCP150,NSP151..(GCC,GEN,IDN,TH)..(G,R)..B IVORY/IVORY,TRIM0# |
2 | ||
| 71910-0DA30C2 |
NCP150,NSP151..TH..(G,R)..B;NCP15#,NSP150,151..(GCC,GEN)..G..B BLACK/BLUE,TRIM2# |
2 | ||
| 71910-0DA30C3 |
NSP150..GCC..R..B;NCP151..LHD..GEN..D;NCP15#,NSP151..GCC..(D,R)..B;NSP150..LHD..(GCC,GEN)..D..B;NCP151,NSP150..RHD..(D,R)..B;NCP150,NSP151..(GEN,TH)..D..B BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02130C0 |
NCP151,NSP150..B,C;NSP151..(IDN,TAIW)..D..(B,C);NSP151..(GCC,GEN,PH,TH)..(B,C);NCP150..GCC,GEN,IDN,TAIW,TH,VN W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-02370A2 |
NSP151..GEN..D..B;NCP150..(GEN,TH)..D..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,IDN,TH)..(G,R)..(B,C);NCP150..(GCC,GEN,IDN,PH,TAIW,TH)..(G,R) W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0D480 |
NCP15#..LHD..(GCC,GEN) |
1 | ||
| 72010-0D481 |
NCP15#..LHD..(GCC,GEN)..B |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D100A0 |
NSP151..GEN..D..B;NSP150..(GCC,GEN)..B;NCP150..(GEN,TH)..D..B;NCP151..(GCC,GEN,PH)..B;NCP150,NSP151..(GCC,GEN,IDN,PH,TH,VN)..(G,R)..B IVORY,TRIM0# |
1 | ||
| 72137-0D100C0 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D080 |
NCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D160 |
NCP15#..(GCC,GEN,TH)..B |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
NCP150..IDN..D..B;NCP151,NSP150..LHD..B;NCP150..(GCC,GEN,VN)..B;NSP151..(GCC,GEN,PH)..B BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1304- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
