NCP150L-BEPGK (2013)

Toyota Yaris/Vios/Limo

Production Aug 2013 - Mar 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )NCP15# ; (1601-1801)NSP150,151..C ; (1604- )NSP150,151..GCC,GEN,PH,TA

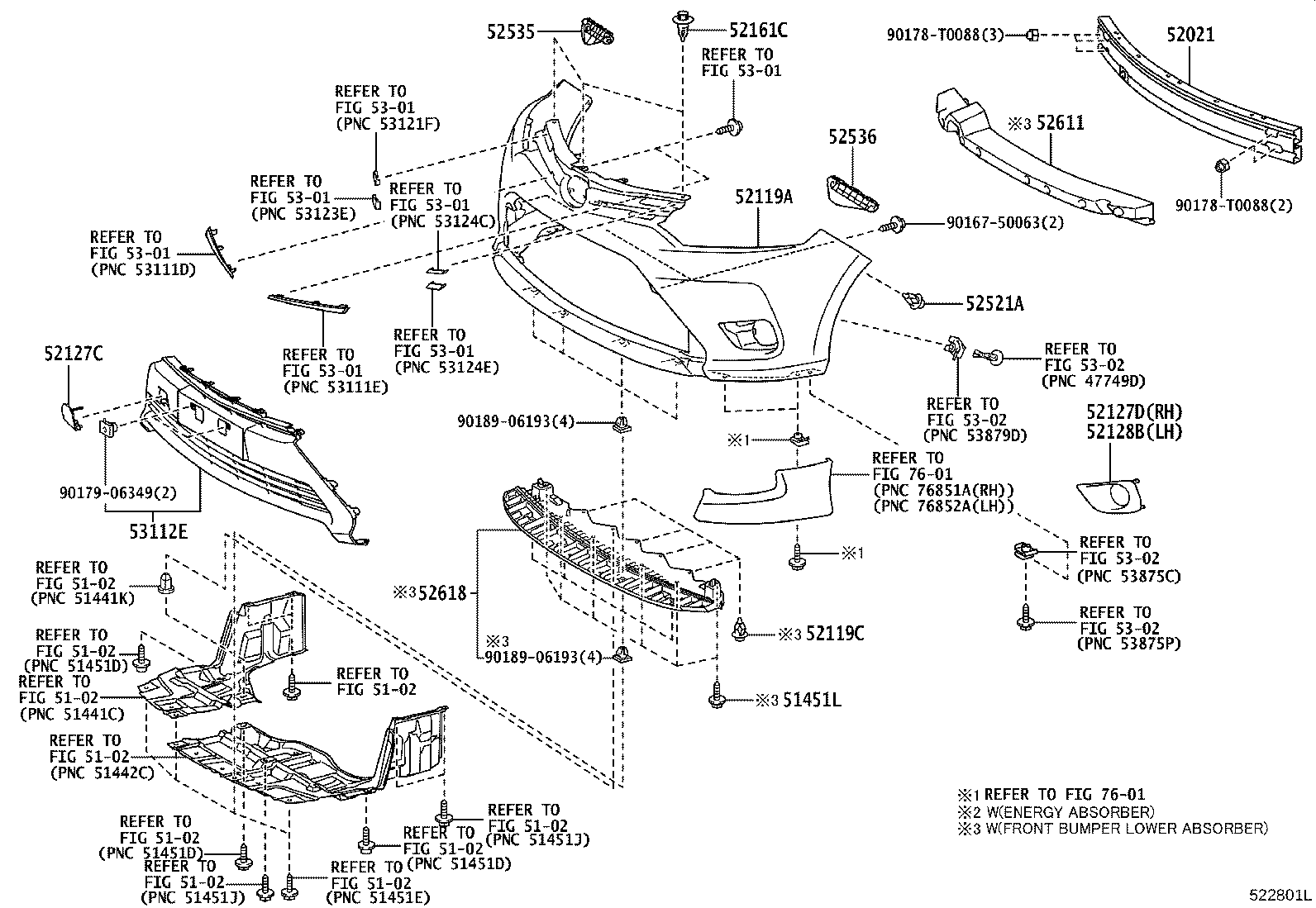

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 51451L 52021 52119A 52119C 52127C 52127D 52128B 52161C 52521A 52535 52536 52611 52618 5301 5301 5301 5301 5301 5301 5301 5302 5302 5302 5302 53112E 7601 7601 9016750063 90178T0088 90178T0088 9017906349 9018906193 9018906193
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D140

NCP15#..(GCC,GEN,TH)..B

 1
52021-0D140

NCP15#..C

 1
52119A - COVER, FRONT BUMPER
52119-0U913

NCP15#..(GCC,GEN,TH)..B

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52721-0D080

NCP15#..(GCC,GEN,TH)..B

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D360

NCP150..TH..(D,G,R)..B;NCP15#..(GCC,GEN)..(D,R)..B

 1
52127-0D370

NCP150..TH..V;NCP15#..(GCC,GEN)..G..B

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D190

NCP150..TH..V;NCP15#..(GCC,GEN)..G..B

 1
52128-0D180

NCP150..TH..(D,G,R)..B;NCP15#..(GCC,GEN)..(D,R)..B

 1
52161C - PIECE, FRONT BUMPER
52161-0K040

NCP15#..C

 3
52161-0K040

NCP15#..(GCC,GEN,TH)..B

 3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170

NCP15#,NSP150,151..B,C

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D140

NCP15#..(GCC,GEN,TH)..B

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D140

NCP15#..(GCC,GEN,TH)..B

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D300

NCP15#..(GCC,GEN,TH)..B

NO PAINT REQ.

 1
Common parts
90167-50063
90178-T0088
90179-06349
90189-06193
Linked diagrams
5102
5301
5302
7601
