GGV15L-AWTGKA (2012)
Toyota Venza

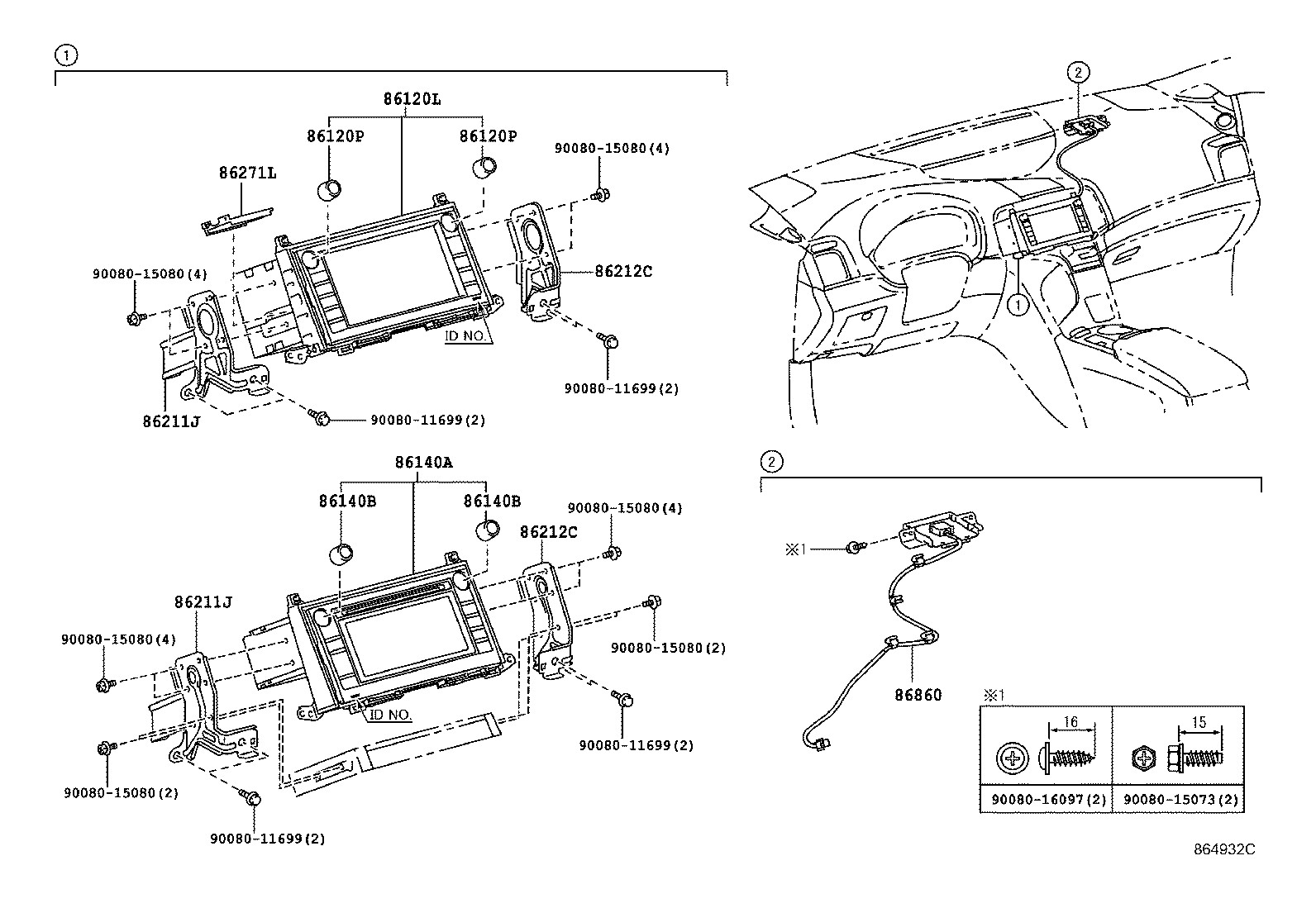

(1205-1408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T030 |
AGV10,GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86804-0T040 |
AGV1#,GGV1# PANASONIC,ID=510020,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T020 |
AGV1#,GGV1# DENSO,ID=E7042,CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T030 |
GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86804-0T010 |
AGV1#,GGV1# DENSO,ID=E7038,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T050 |
AGV1#,GGV1# PANASONIC,ID=510021,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0T010 |
AGV10,GGV15 PANASONIC,ID=57042,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86140-0T050 |
AGV1#,GGV1# PANASONIC,ID=57046,CANADA SPEC&AUDIO-DISP JBL 13SPEAKER VOICE |
1 | ||
| 86140-0T030 |
AGV1#,GGV1# PANASONIC,ID=57044,CANADA SPEC&AUDIO-DISP DLX EXTSN 6SPEAKER VOICE |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-AVN JBL 13SPEAKER |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042 |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86140-0T020 |
AGV1#,GGV1# PANASONIC,ID=57043,AUDIO-DISP DLX EXTSN 6SPEAKER VOICE |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-AVN JBL 13SPEAKER |
1 | ||
| 86140-0T120 |
AGV10,GGV15 PANASONIC,ID=510018,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86140-0T131 |
AGV1#,GGV1# PANASONIC,ID=510019,AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86140-0T130 |
AGV1#,GGV1# PANASONIC,ID=510019,AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018 |
1 | ||
| 86140-0T040 |
AGV1#,GGV1# PANASONIC,ID=57045,AUDIO-DISP JBL 13SPEAKER VOICE |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 86128-0T060 |
AGV1#,GGV1# |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T060 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T090 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 86128-0T060 |
AGV1#,GGV1# |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T060 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T090 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86211-0T040 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86211-0T030 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86211-0T040 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86211-0T030 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0T010 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212-0T040 |
AGV1#,GGV1# |
1 | ||
| 86212-0T010 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86212-0T010 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0T010 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212-0T040 |
AGV1#,GGV1# |
1 | ||
| 86212-0T010 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86212-0T010 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-06062 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06060 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06081 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86271-06062 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06061 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06081 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86271-06061 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-0T010 |
AGV1#,GGV1# EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86860-73010 |
AGV1#,GGV1# AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86860-0T010 |
AGV1#,GGV1# EMV & NAVIGATION SYSTEM-EXTENSION BOX |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15080 | ||||
| 90080-16097 | ||||

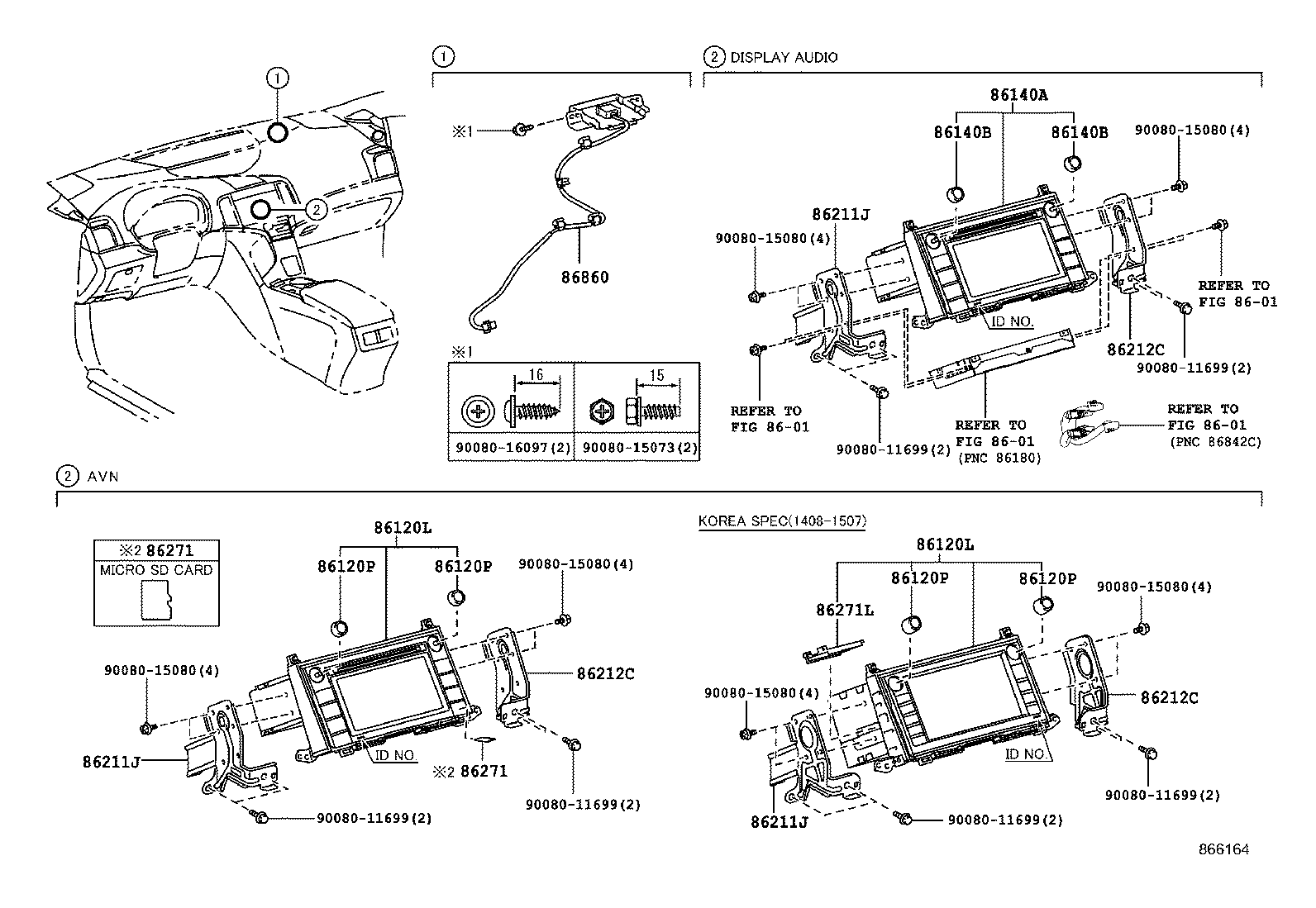

(1408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T030 |
AGV10,GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86804-0T040 |
AGV1#,GGV1# PANASONIC,ID=510020,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T020 |
AGV1#,GGV1# DENSO,ID=E7042,CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T030 |
GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86804-0T010 |
AGV1#,GGV1# DENSO,ID=E7038,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T050 |
AGV1#,GGV1# PANASONIC,ID=510021,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T030 |
AGV10,GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86804-0T040 |
AGV1#,GGV1# PANASONIC,ID=510020,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86120-0T060 |
GGV1# DENSO, ID=E7021,CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86804-0T020 |
AGV1#,GGV1# DENSO,ID=E7042,CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T030 |
GGV15 DENSO,ID=E8054,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86804-0T010 |
AGV1#,GGV1# DENSO,ID=E7038,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86804-0T050 |
AGV1#,GGV1# PANASONIC,ID=510021,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 86128-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
2 | ||
| 86128-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T050 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0T010 |
AGV10,GGV15 PANASONIC,ID=57042,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86140-0T050 |
AGV1#,GGV1# PANASONIC,ID=57046,CANADA SPEC&AUDIO-DISP JBL 13SPEAKER VOICE |
1 | ||
| 86140-0T030 |
AGV1#,GGV1# PANASONIC,ID=57044,CANADA SPEC&AUDIO-DISP DLX EXTSN 6SPEAKER VOICE |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-AVN JBL 13SPEAKER |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042 |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86140-0T020 |
AGV1#,GGV1# PANASONIC,ID=57043,AUDIO-DISP DLX EXTSN 6SPEAKER VOICE |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-AVN JBL 13SPEAKER |
1 | ||
| 86140-0T120 |
AGV10,GGV15 PANASONIC,ID=510018,KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86140-0T131 |
AGV1#,GGV1# PANASONIC,ID=510019,AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86140-0T130 |
AGV1#,GGV1# PANASONIC,ID=510019,AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86140-0T010 |
AGV1#,GGV1# PANASONIC,ID=57042,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018 |
1 | ||
| 86140-0T040 |
AGV1#,GGV1# PANASONIC,ID=57045,AUDIO-DISP JBL 13SPEAKER VOICE |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86140-0T120 |
AGV1#,GGV1# PANASONIC,ID=510018,AUDIO-13CY AVN 6SP (T3) |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 86128-0T060 |
AGV1#,GGV1# |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T060 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T090 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 86128-0T060 |
AGV1#,GGV1# |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T060 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86128-0T090 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
2 | ||
| 86128-0T090 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
2 | ||
| 86128-0T060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86211-0T040 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86211-0T030 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86211-0T040 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86211-0T030 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-0T050 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86211-0T040 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86211-0T030 |
AGV1#,GGV1# |
1 | ||
| 86211-0T050 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0T010 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212-0T040 |
AGV1#,GGV1# |
1 | ||
| 86212-0T010 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86212-0T010 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0T010 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212-0T040 |
AGV1#,GGV1# |
1 | ||
| 86212-0T010 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86212-0T010 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-0T010 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86212-0T040 |
AGV1#,GGV1# |
1 | ||
| 86212-0T010 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86212-0T010 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-73010 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86271-0E184 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-73010 |
AGV1#,GGV1# CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86271-0E183 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-0E182 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271-0E182 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-0E184 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271-0E183 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-73010 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86271-0E184 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-73010 |
AGV1#,GGV1# CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86271-0E183 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-0E182 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271-0E182 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3),MICRO SD CARD |
1 | ||
| 86271-0E184 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271-0E183 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4),MICRO SD CARD |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-06062 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06060 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06060 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06081 |
AGV10,GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER |
1 | ||
| 86271-06062 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06061 |
AGV1#,GGV1# AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86271-06081 |
GGV15 KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION) |
1 | ||
| 86271-06061 |
AGV1#,GGV1# CANADA SPEC&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-0T010 |
AGV1#,GGV1# EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION) |
1 | ||
| 86860-73010 |
AGV1#,GGV1# AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 86860-0T010 |
AGV1#,GGV1# EMV & NAVIGATION SYSTEM-EXTENSION BOX |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY DA DLX 6SP (T2) |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY AVN JBL 13SP (T4) |
1 | ||
| 86860-0T020 |
AGV1#,GGV1# AUDIO-13CY AVN 6SP (T3) |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15080 | ||||
| 90080-16097 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
