GGV15L-AWTGKA (2012)
Toyota Venza

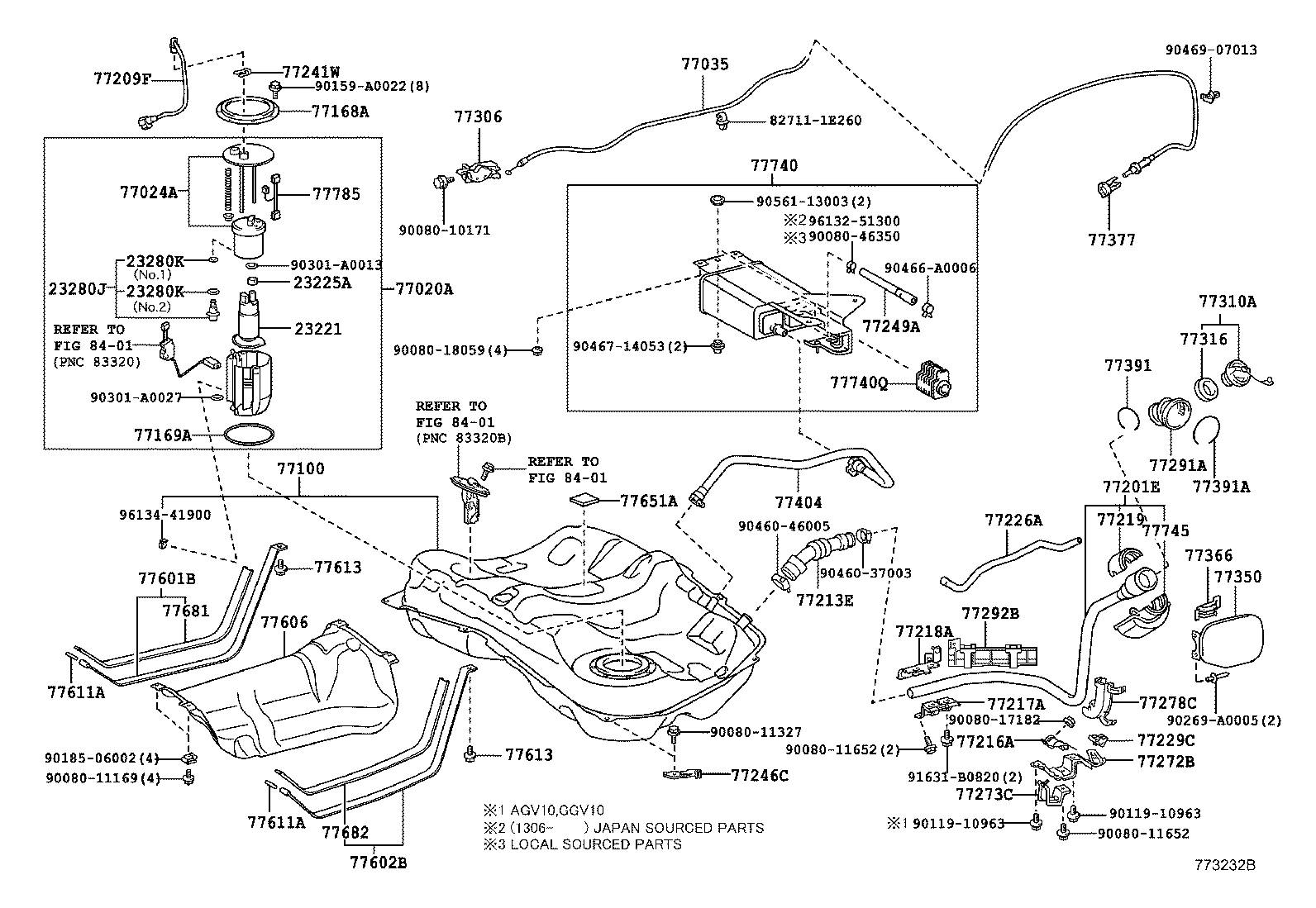

ILLUST NO. 1 OF 2(1205- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0P090 |
2GRFE..GGV1# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
1ARFE,2GRFE..AGV1#,GGV1# |
1 | ||
| 23225-21020 |
1ARFE,2GRFE..AGV1#,GGV1# |
1 | ||
| 23225-0V010 |
1ARFE,2GRFE..AGV1#,GGV1# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ARFE,2GRFE..AGV1#,GGV1# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ARFE,2GRFE..AGV1#,GGV1# NO.1 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGV1#,GGV1# NO.1 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGV1#,GGV1# NO.2 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGV1#,GGV1# NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ARFE,2GRFE..AGV1#,GGV1# NO.1 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGV1#,GGV1# NO.1 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGV1#,GGV1# NO.2 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGV1#,GGV1# NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0T020 |
GGV1# |
1 | ||
| 77020-0T020 |
GGV1# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0T010 |
AGV1#,GGV1# |
1 | ||
| 77024-0T010 |
AGV1#,GGV1# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0T010 |
AGV1#,GGV1# |
1 | ||
| 77035-0T010 |
AGV1#,GGV1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0T010 |
AGV1#,GGV1# |
1 | ||
| 77001-0T010 |
AGV1#,GGV1# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
AGV1#,GGV1# |
1 | ||
| 77168-52020 |
AGV1#,GGV1# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
AGV1#,GGV1# |
1 | ||
| 77169-52010 |
AGV1#,GGV1# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0T030 |
AGV1#,GGV1# |
1 | ||
| 77201-0T031 |
AGV1#,GGV1# |
1 | ||
| 77201-0T010 |
AGV1#,GGV1# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0T010 |
AGV1#,GGV1# |
1 | ||
| 77209-0T010 |
AGV1#,GGV1# |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0T010 |
AGV1#,GGV1# |
1 | ||
| 77213-0T010 |
AGV1#,GGV1# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0T011 |
AGV1#,GGV1# |
1 | ||
| 77216-0T010 |
AGV1#,GGV1# |
1 | ||
| 77216-0T010 |
AGV1#,GGV1# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0E020 |
AGV1#,GGV1# |
1 | ||
| 77217-0E020 |
AGV1#,GGV1# |
1 | ||
| 77217-0T010 |
AGV1#,GGV1# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0E020 |
AGV1#,GGV1# |
1 | ||
| 77218-0E020 |
AGV1#,GGV1# |
1 | ||
| 77218-0T010 |
AGV1#,GGV1# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-21010 |
AGV1#,GGV1# |
1 | ||
| 77219-0E010 |
AGV1#,GGV1# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0T020 |
AGV1#,GGV1# |
1 | ||
| 77226-0T010 |
AGV1#,GGV1# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
AGV1#,GGV1# |
1 | ||
| 77229-48030 |
AGV1#,GGV1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
AGV1#,GGV1# |
1 | ||
| 77241-06020 |
AGV1#,GGV1# |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-06010 |
AGV1#,GGV1# (L) |
1 | ||
| 77246-33020 |
AGV1#,GGV1# (J) |
1 | ||
| 77246-06010 |
AGV1#,GGV1# (L) |
1 | ||
| 77246-33020 |
AGV1#,GGV1# (J) |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-0T020 |
AGV1#,GGV1# |
1 | ||
| 77249-0T010 |
AGV1#,GGV1# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0T020 |
AGV1#,GGV1# |
1 | ||
| 77272-0T021 |
AGV1#,GGV1# |
1 | ||
| 77273C - SUPPORT, BREATHER TUBE, NO.2 | ||||
| 77273-0E010 |
AGV1#,GGV1# |
1 | ||
| 77273-0T010 |
AGV1#,GGV1# |
1 | ||
| 77273-0E010 |
AGV1#,GGV1# |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-48010 |
AGV1#,GGV1# |
1 | ||
| 77278-48010 |
AGV1#,GGV1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0T010 |
AGV1#,GGV1# |
1 | ||
| 77291-0T010 |
AGV1#,GGV1# |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-0T010 |
AGV1#,GGV1# |
1 | ||
| 77292-0T010 |
AGV1#,GGV1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-02021 |
AGV1#,GGV1# |
1 | ||
| 77306-02021 |
AGV1#,GGV1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-07030 |
AGV1#,GGV1# |
1 | ||
| 77300-06040 |
AGV1#,GGV1# |
1 | ||
| 77300-07010 |
AGV1#,GGV1# MARK = A |
1 | ||
| 77300-06040 |
AGV1#,GGV1# MARK = J |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
AGV1#,GGV1# |
1 | ||
| 77316-06070 |
AGV1#,GGV1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0T010 |
AGV1#,GGV1# |
1 | ||
| 77350-0T010 |
AGV1#,GGV1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33030 |
AGV1#,GGV1# |
1 | ||
| 77360-33030 |
AGV1#,GGV1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-AA020 |
AGV1#,GGV1# |
1 | ||
| 77377-AA020 |
AGV1#,GGV1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02041 |
AGV1#,GGV1# |
1 | ||
| 77391-02041 |
AGV1#,GGV1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-06010 |
AGV1#,GGV1# |
1 | ||
| 77391-06010 |
AGV1#,GGV1# |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-0T020 |
AGV1#,GGV1# |
1 | ||
| 77404-0T020 |
AGV1#,GGV1# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-0T010 |
AGV1#,GGV1# |
1 | ||
| 77601-0T010 |
AGV1#,GGV1# |
1 | ||
| 77601-0T012 |
AGV1#,GGV1# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0T010 |
AGV1#,GGV1# |
1 | ||
| 77602-0T010 |
AGV1#,GGV1# |
1 | ||
| 77602-0T012 |
AGV1#,GGV1# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0T010 |
AGV1#,GGV1# |
1 | ||
| 77606-0T010 |
AGV1#,GGV1# |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AGV1#,GGV1# |
2 | ||
| 90250-08019 |
AGV1#,GGV1# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AGV1#,GGV1# |
2 | ||
| 90250-08019 |
AGV1#,GGV1# |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90080-11267 |
AGV1#,GGV1# |
2 | ||
| 90119-A0267 |
AGV1#,GGV1# (L) |
2 | ||
| 90119-10971 |
AGV1#,GGV1# (J) |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90080-11267 |
AGV1#,GGV1# |
2 | ||
| 90119-A0267 |
AGV1#,GGV1# (L) |
2 | ||
| 90119-10971 |
AGV1#,GGV1# (J) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AGV1#,GGV1# |
8 | ||
| 77651-20090 |
AGV1#,GGV1# |
8 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-0T010 |
AGV1#,GGV1# |
1 | ||
| 77681-0T010 |
AGV1#,GGV1# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0T010 |
AGV1#,GGV1# |
1 | ||
| 77682-0T010 |
AGV1#,GGV1# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0T010 |
AGV1#,GGV1# |
1 | ||
| 77740-0T020 |
AGV1#,GGV1# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF004 |
AGV1#,GGV1# |
1 | ||
| 90910-AF006 |
AGV1#,GGV1# |
1 | ||
| 90910-AF002 |
AGV1#,GGV1# |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-0E010 |
AGV1#,GGV1# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02030 |
AGV1#,GGV1# |
1 | ||
| 77785-0R010 |
AGV1#,GGV1# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90080-10171 | ||||
| 90080-11169 | ||||
| 90080-11327 | ||||
| 90080-11652 | ||||
| 90080-17182 | ||||
| 90080-18059 | ||||
| 90080-46350 | ||||
| 90119-10963 | ||||
| 90159-A0022 | ||||
| 90185-06002 | ||||
| 90269-A0005 | ||||
| 90301-A0013 | ||||
| 90301-A0027 | ||||
| 90460-37003 | ||||
| 90460-46005 | ||||
| 90466-A0006 | ||||
| 90467-14053 | ||||
| 90469-07013 | ||||
| 90561-13003 | ||||
| 91631-B0820 | ||||
| 96132-51300 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 8401 | ||||
