GGV15L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

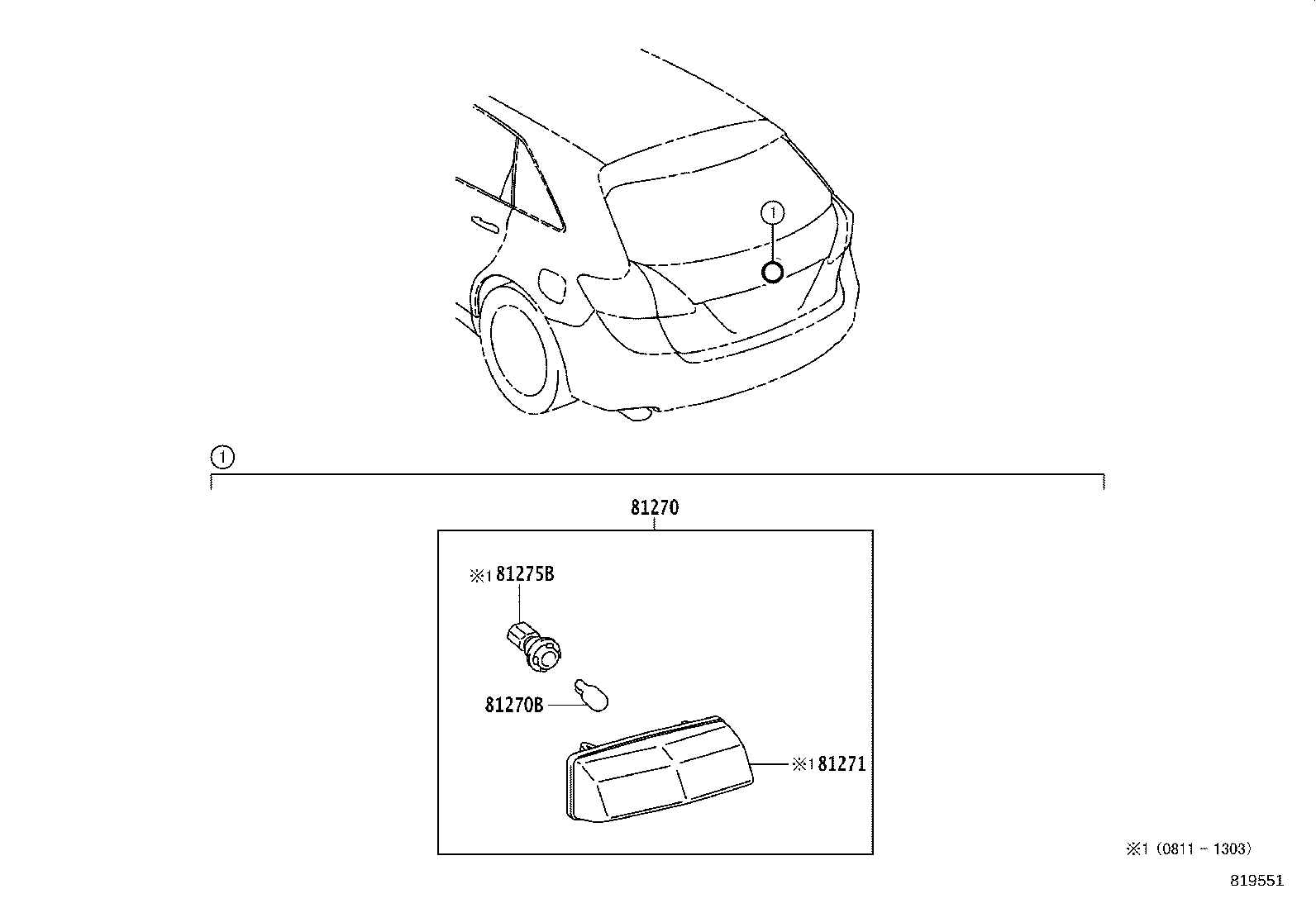

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275B
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-53011

AGV1#,GGV1#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AGV1#,GGV1#

12V 5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-53011

AGV1#,GGV1#

 1
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-99011

AGV1#,GGV1#

 1
