GGV15L-AWTGKA (2008)
Toyota Venza

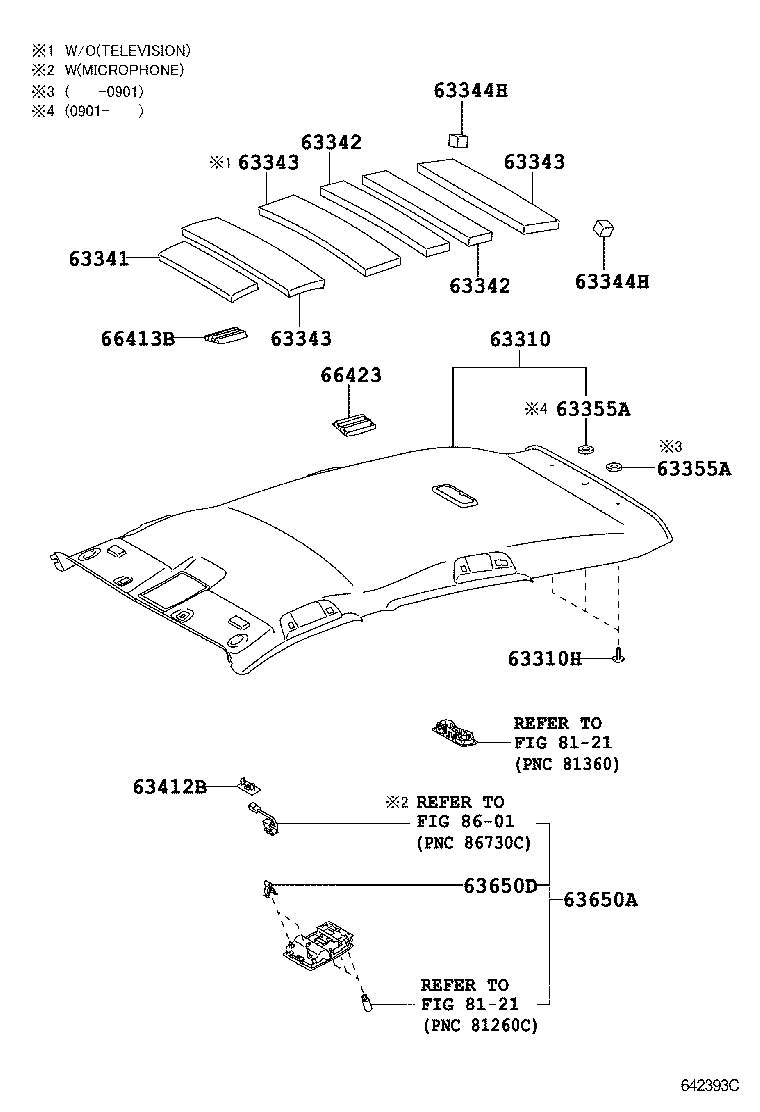

ILLUST NO. 1 OF 2(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T010B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T011A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T011B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T031A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T021A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T031B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T041B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T022B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T031A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T031B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T032A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T022A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T032A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T012A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T022A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T021B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T012B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T021B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T022B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T041A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T032B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T042A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T042B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T021A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T032B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164A0 |
AGV1#,GGV1# IVORY,TRIM0# |
3 | ||
| 90467-05164B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63344-0T020 |
AGV1#,GGV1# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0T020 |
AGV1#,GGV1# |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0T020 |
AGV1#,GGV1# |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63344-0T010 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V) |
2 | ||
| 63344-0T010 |
AGV1#,GGV1# |
3 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63344-0T010 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V) |
2 | ||
| 63344-0T010 |
AGV1#,GGV1# |
3 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63344-0T010 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V) |
2 | ||
| 63344-0T010 |
AGV1#,GGV1# |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-0T040 |
AGV1#,GGV1# |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH |
2 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-0T040 |
AGV1#,GGV1# |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH |
2 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63355-0T010 |
AGV1#,GGV1# |
1 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63355-0T010 |
AGV1#,GGV1# |
1 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-33010 |
AGV1#,GGV1# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T050B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T010B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63650-0T010B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63650-0T050A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T011A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T011B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90468-05125 |
AGV1#,GGV1# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0T010 |
AGV1#,GGV1# |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0T010 |
AGV1#,GGV1# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||

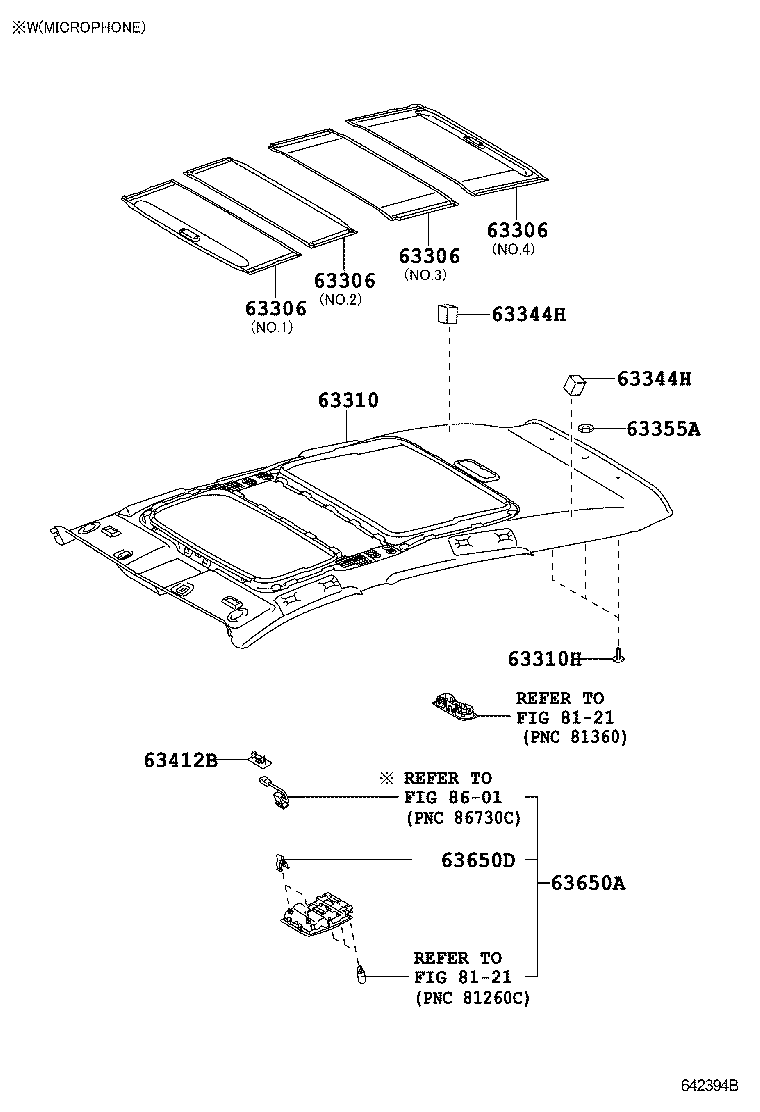

ILLUST NO. 2 OF 2(0901- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0T010A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.1 |
1 | ||
| 63306-0T020B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.2 |
1 | ||
| 63306-0T030B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.3 |
1 | ||
| 63306-0T010B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.1 |
1 | ||
| 63306-0T020A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.2 |
1 | ||
| 63306-0T040A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.4 |
1 | ||
| 63306-0T030A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.3 |
1 | ||
| 63306-0T040B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.4 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0T010A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.1 |
1 | ||
| 63306-0T020B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.2 |
1 | ||
| 63306-0T030B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.3 |
1 | ||
| 63306-0T010B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.1 |
1 | ||
| 63306-0T020A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.2 |
1 | ||
| 63306-0T040A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.4 |
1 | ||
| 63306-0T030A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.3 |
1 | ||
| 63306-0T040B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.4 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0T010A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.1 |
1 | ||
| 63306-0T020B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.2 |
1 | ||
| 63306-0T030B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.3 |
1 | ||
| 63306-0T010B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.1 |
1 | ||
| 63306-0T020A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.2 |
1 | ||
| 63306-0T040A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.4 |
1 | ||
| 63306-0T030A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.3 |
1 | ||
| 63306-0T040B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.4 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0T010A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.1 |
1 | ||
| 63306-0T020B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.2 |
1 | ||
| 63306-0T030B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.3 |
1 | ||
| 63306-0T010B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.1 |
1 | ||
| 63306-0T020A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.2 |
1 | ||
| 63306-0T040A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.4 |
1 | ||
| 63306-0T030A0 |
AGV1#,GGV1# MOON ROOF-WITH,IVORY,TRIM0#,NO.3 |
1 | ||
| 63306-0T040B0 |
AGV1#,GGV1# MOON ROOF-WITH,GRAY,TRIM1#,NO.4 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T010B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T011A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T011B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T031A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T021A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T031B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T041B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T022B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T031A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T031B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T032A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T022A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T032A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T012A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63310-0T022A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63310-0T021B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,GRAY,TRIM1# |
1 | ||
| 63310-0T012B0 |
AGV1#,GGV1# GRAY,TRIM1# |
1 | ||
| 63310-0T021B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T022B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T041A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T032B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310-0T042A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),IVORY,TRIM0# |
1 | ||
| 63310-0T042B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&WITH(POWER OUTLET:120V),GRAY,TRIM1# |
1 | ||
| 63310-0T021A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63310-0T032B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164A0 |
AGV1#,GGV1# IVORY,TRIM0# |
3 | ||
| 90467-05164B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-0T040 |
AGV1#,GGV1# |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH |
2 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-0T040 |
AGV1#,GGV1# |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER |
2 | ||
| 63344-0T050 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH |
2 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63355-0T010 |
AGV1#,GGV1# |
1 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-33010 |
AGV1#,GGV1# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T050B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T030B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T030A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T010B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63650-0T010B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,IVORY,TRIM0# |
1 | ||
| 63650-0T050A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T010A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T011A0 |
AGV1#,GGV1# IVORY,TRIM0# |
1 | ||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T011B0 |
AGV1#,GGV1# LT.GRAY,TRIM1# |
1 | ||
| 63650-0T020B0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T020A0 |
AGV1#,GGV1# CORE PACKAGE&AUDIO-CD,6SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040A0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,IVORY,TRIM0# |
1 | ||
| 63650-0T040B0 |
AGV1#,GGV1# CORE PACKAGE&MOON ROOF-WITH&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH,LT.GRAY,TRIM1# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90468-05125 |
AGV1#,GGV1# |
2 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
