GGV15L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

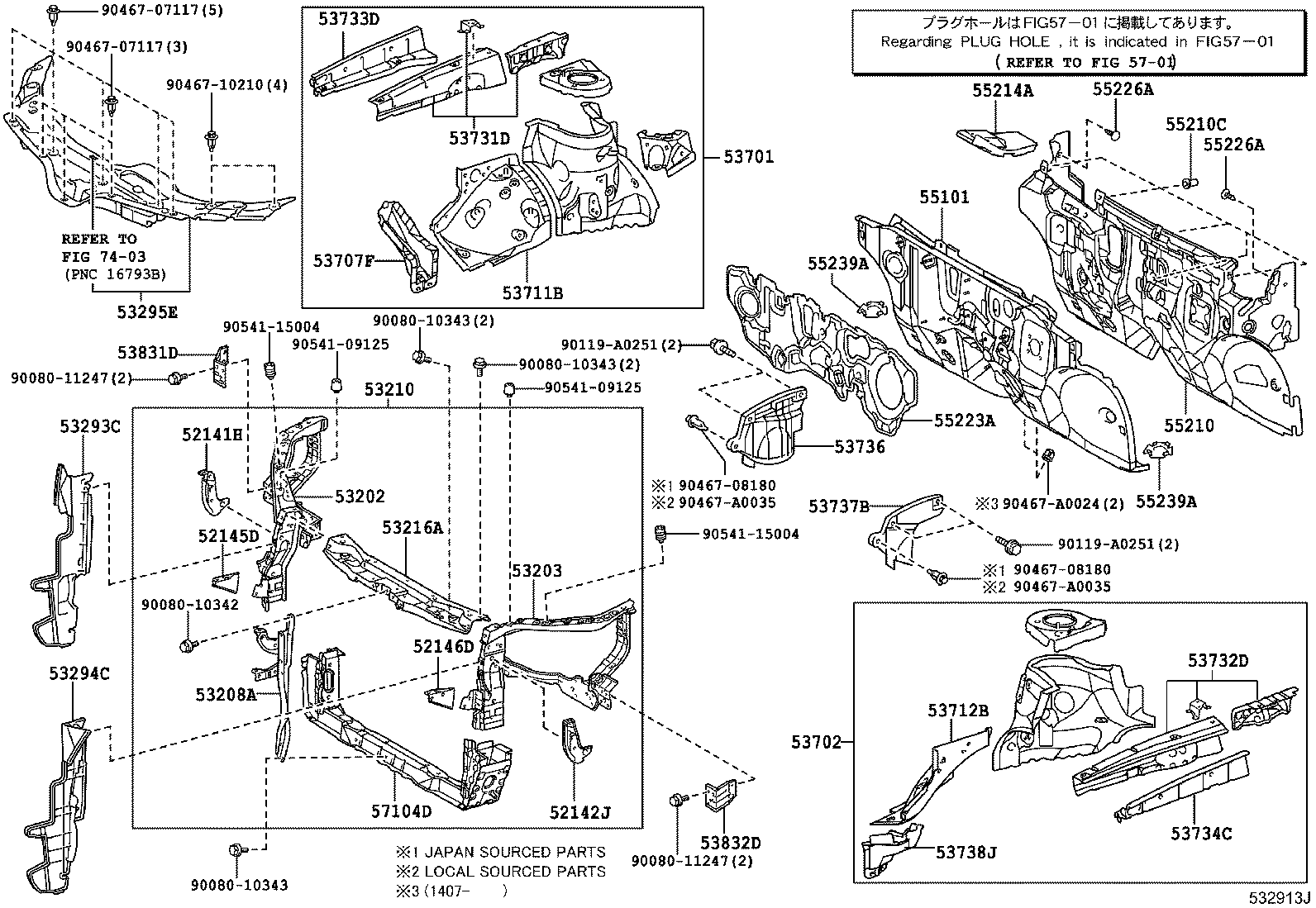

Click highlighted areas on diagram

diagram 52141H 52142J 52145D 52146D 53202 53203 53208A 53210 53216A 53293C 53294C 53295E 53701 53702 53707F 53711B 53712B 53731D 53732D 53733D 53734C 53736 53737B 53738J 53831D 53832D 55101 55210 55210C 55214A 55223A 55226A 55226A 55239A 55239A 5701 57104D 7403 9008010342 9008010343 9008010343 9008010343 9008011247 9008011247 90119A0251 90119A0251 9046707117 9046707117 9046708180 9046708180 9046710210 90467A0024 90467A0035 90467A0035 9054109125 9054109125 9054115004 9054115004
Part # Description Qty Price
52141H - ARM, FRONT BUMPER, UPPER RH
52141-0T010

AGV1#,GGV1#

 1
52142J - ARM, FRONT BUMPER, UPPER LH
52142-0T010

AGV1#,GGV1#

 1
52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-0T010

AGV1#,GGV1#

 1
52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-0T010

AGV1#,GGV1#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0T011

AGV1#,GGV1#

 1
53202-0T010

AGV1#,GGV1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0T010

AGV1#,GGV1#

 1
53203-0T011

AGV1#,GGV1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-0T010

AGV1#,GGV1#

 1
53210 - SUPPORT ASSY, RADIATOR
53210-0T010

AGV1#,GGV1#

 1
53210-0T012

AGV1#,GGV1#

 1
53210-0T011

AGV1#,GGV1#

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-0T010

AGV1#,GGV1#

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-0T010

AGV1#,GGV1#

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-0T010

AGV1#,GGV1#

 1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-0T010

GGV1#

 1
53295-0T011

AGV1#,GGV1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0T010

AGV1#,GGV1#

 1
53701-0T011

AGV1#,GGV1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0T010

AGV1#,GGV1#

 1
53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53707-0T010

AGV1#,GGV1#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-0T010

AGV1#,GGV1#

 1
53711-0T011

AGV1#,GGV1#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-0T020

AGV1#,GGV1#

 1
53712-0T010

GGV1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-0T901

GGV1#

 1
53731-0T902

AGV1#,GGV1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-0T901

AGV1#,GGV1#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-0T010

AGV1#,GGV1#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-0T010

AGV1#,GGV1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-07021

AGV1#,GGV1#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-06040

AGV1#,GGV1#

 1
53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH
53738-0T010

AGV1#,GGV1#

 1
53831D - PANEL, FRONT FENDER SIDE, RH
53833-0T010

AGV1#,GGV1#

 1
53832D - PANEL, FRONT FENDER SIDE, LH
53834-0T010

AGV1#,GGV1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-0T010

AGV1#,GGV1#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0T011

AGV1#,GGV1#

 1
55210-0T010

AGV1#,GGV1#

 1
55210C - CLIP
90467-06197

AGV1#,GGV1#

 5
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0T010

AGV1#,GGV1#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-0T010

GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
55223-0T010

GGV1#

 1
55226A - CLIP
90467-A0002

AGV1#,GGV1#

 2
90467-A0002C0

AGV1#,GGV1#

BLACK

 2
55226A - CLIP
90467-A0002

AGV1#,GGV1#

 2
90467-A0002C0

AGV1#,GGV1#

BLACK

 2
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-06020

AGV1#,GGV1#

 2
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-06020

AGV1#,GGV1#

 2
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-07021

AGV1#,GGV1#

 1
57104-07022

AGV1#,GGV1#

 1
Common parts
90080-10342
90080-10343
90080-11247
90119-A0251
90467-07117
90467-08180
90467-10210
90467-A0024
90467-A0035
90541-09125
90541-15004
Linked diagrams
5701
7403
