GGV15L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1005)

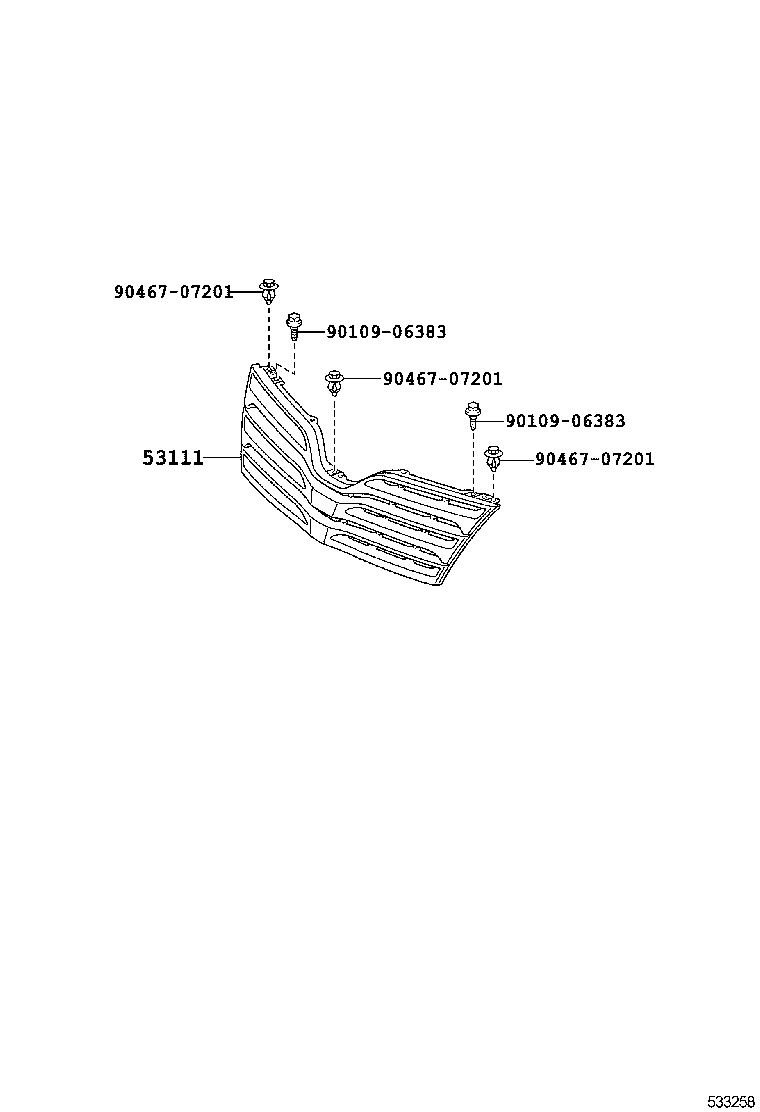

diagram 53111 53119B 53119B 9046707201 9046707201 9046707201
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-0T010

AGV1#,GGV1#

PLATED

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-20120

AGV1#,GGV1#

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-20120

AGV1#,GGV1#

 2
Common parts
90467-07201 None epc.PartDetail.None

(1005-1205)

diagram 53111 9010906383 9010906383 9046707201 9046707201 9046707201
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-0T010

AGV1#,GGV1#

PLATED

 1
Common parts
90109-06383 None epc.PartDetail.None
90467-07201 None epc.PartDetail.None

(1205- )

diagram 53111 53145G 53395H 9010906383 9010906383 90149A0001 90149A0001 9046707201 9046707201 9046707201
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-0T010

AGV1#,GGV1#

PLATED

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

AGV1#,GGV1#

 11
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-0T011

AGV1#,GGV1#

 1
Common parts
90109-06383 None epc.PartDetail.None
90149-A0001 None epc.PartDetail.None
90467-07201 None epc.PartDetail.None
