GGV15L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

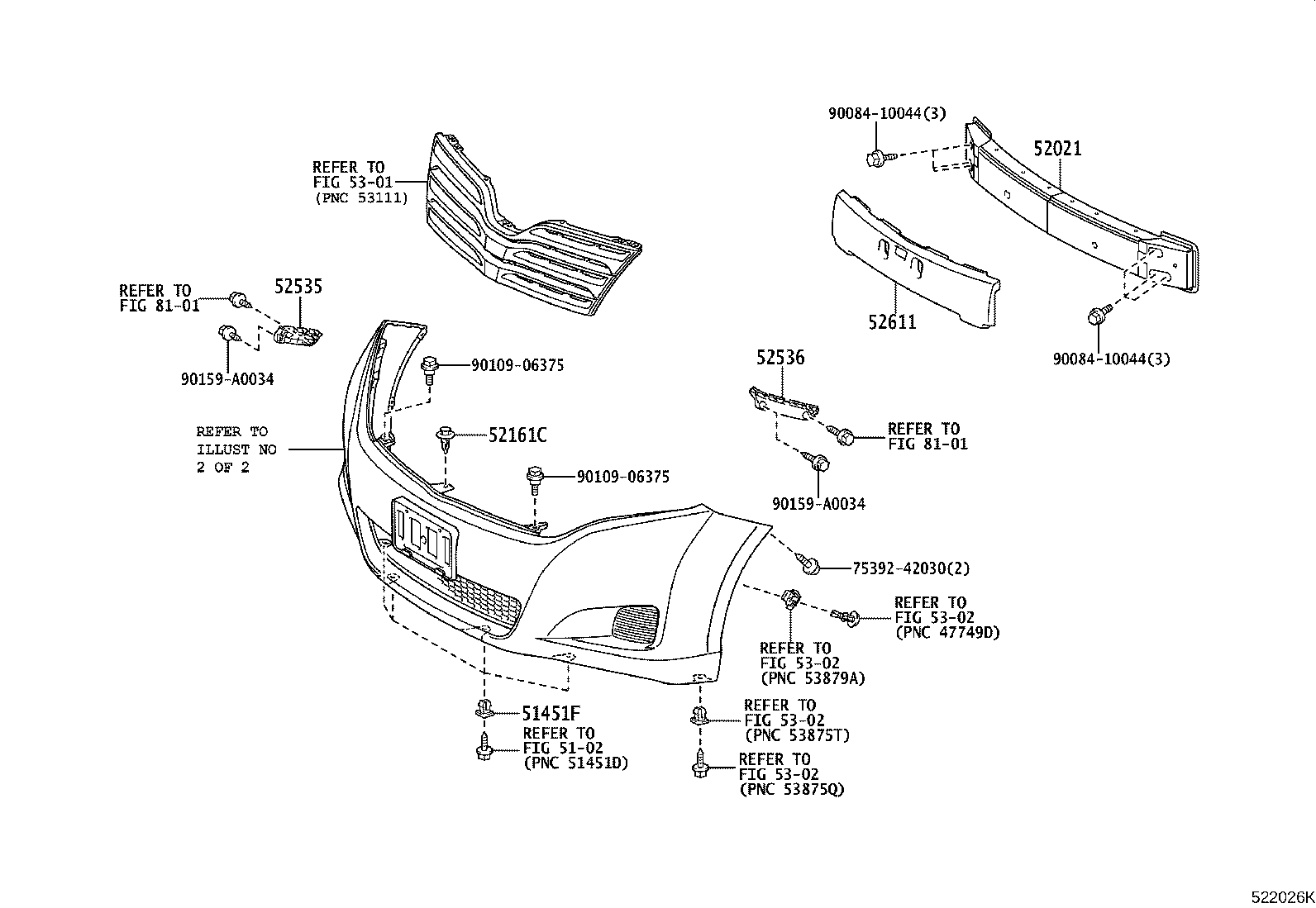

ILLUST NO. 1 OF 2(0811-1205)

Click highlighted areas on diagram

diagram 5102 51451F 52021 52161C 52535 52536 52611 5301 5302 5302 5302 5302 7539242030 8101 8101 9008410044 9008410044 9010906375 9010906375 90159A0034 90159A0034
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

AGV1#,GGV1#

 4
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-06041

AGV1#,GGV1#

 1
52161C - PIECE, FRONT BUMPER
52161-02020

AGV1#,GGV1#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0T010

AGV1#,GGV1#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0T010

AGV1#,GGV1#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0T010

AGV1#,GGV1#

 1
Common parts
75392-42030
90084-10044
90109-06375
90159-A0034
Linked diagrams
5102
5301
5302
8101

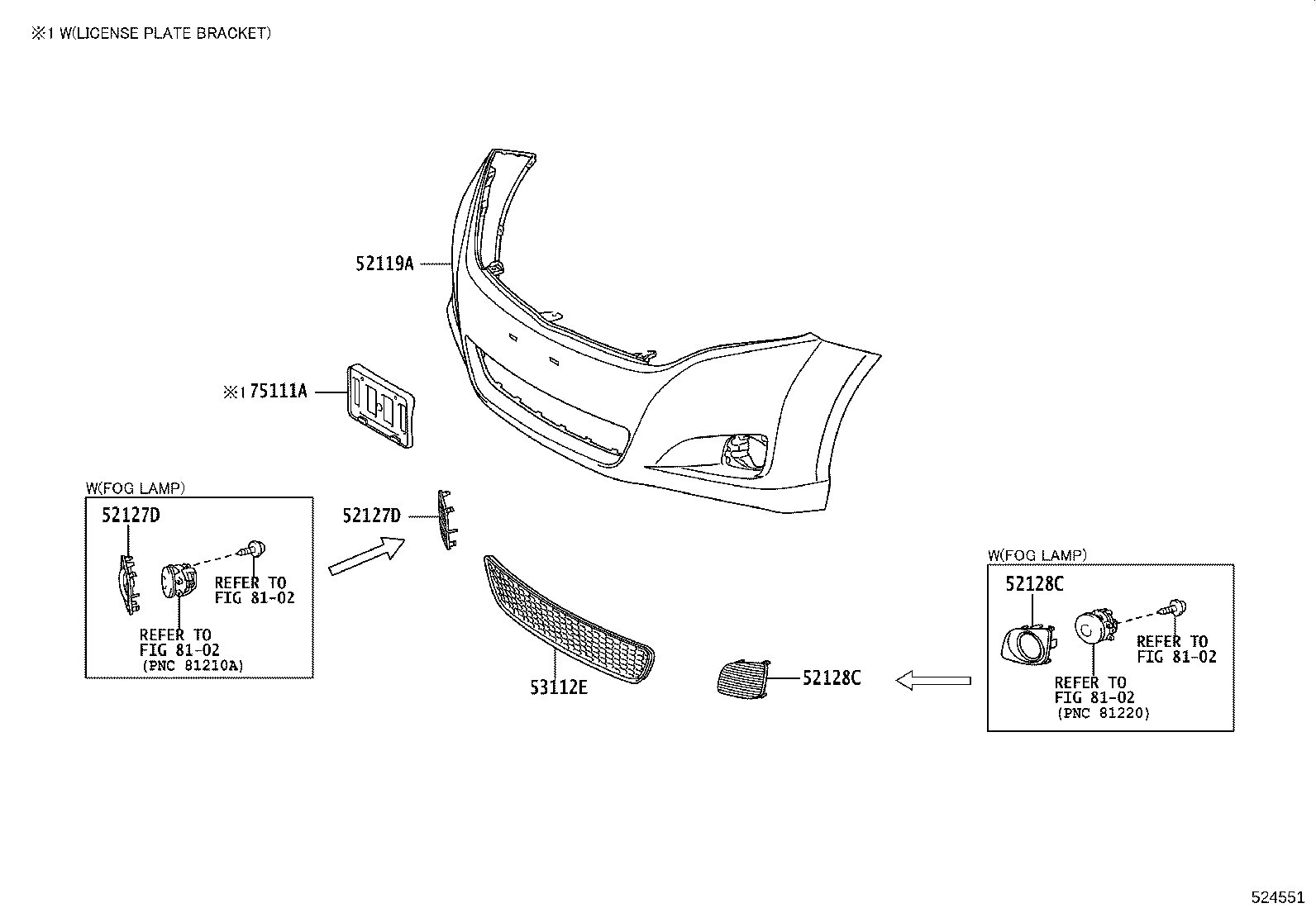

ILLUST NO. 2 OF 2(0811-1205)

Click highlighted areas on diagram

diagram 52119A 52127D 52127D 52128C 52128C 53112E 75111A 8102 8102 8102 8102
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0T900

AGV1#,GGV1#

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0T020

AGV1#,GGV1#

 1
52127-0T010

AGV1#,GGV1#

CORE PACKAGE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0T020

AGV1#,GGV1#

 1
52127-0T010

AGV1#,GGV1#

CORE PACKAGE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-0T020

AGV1#,GGV1#

 1
52128-0T010

AGV1#,GGV1#

CORE PACKAGE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-0T020

AGV1#,GGV1#

 1
52128-0T010

AGV1#,GGV1#

CORE PACKAGE

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0T010

AGV1#,GGV1#

NO PAINT REQ.

 1
75111A - BRACKET, FRONT LICENSE PLATE
75101-0T010

AGV1#,GGV1#

CANADA SPEC

 1
75101-0T010

AGV1#,GGV1#

LICENSE PLATE BRACKET-FRONT:WITH, REAR:WITHOUT(DOP)

 1
Linked diagrams
8102
