GGV15L-AWTGKA (2008)
Toyota Venza

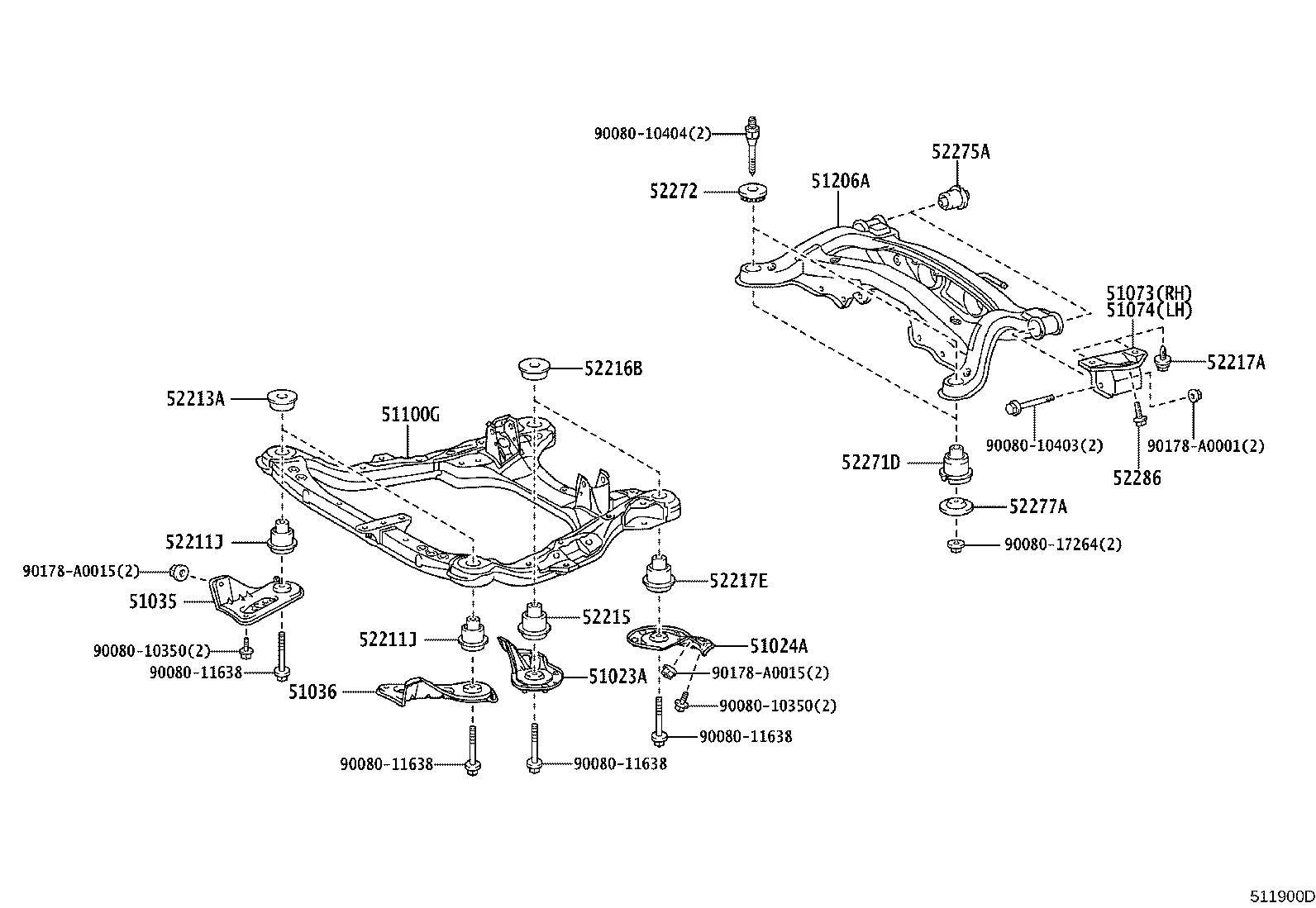

ILLUST NO. 1 OF 2(0811- )AGV15,GGV15
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-0T010 |
AGV1#,GGV1# |
1 | ||
| 51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-0T010 |
AGV1#,GGV1# |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0T010 |
AGV1#,GGV1# |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0T010 |
AGV1#,GGV1# |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-0E010 |
AGV15,GGV15 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-0E010 |
AGV15,GGV15 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-0T010 |
AGV1#,GGV1# |
1 | ||
| 51100-0T020 |
AGV1#,GGV1# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0T020 |
AGV15,GGV15 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E010 |
AGV1#,GGV1# |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-0E010 |
AGV1#,GGV1# |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-0E010 |
AGV1#,GGV1# |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-08020 |
AGV1#,GGV1# |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-08020 |
AGV1#,GGV1# |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-0E010 |
AGV15,GGV15 |
4 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-08010 |
AGV1#,GGV1# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0E010 |
AGV15,GGV15 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-0E010 |
AGV15,GGV15 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-0E010 |
AGV15,GGV15 |
2 | ||
| 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-0E020 |
AGV15,GGV15 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-48010 |
AGV15,GGV15 |
2 | ||
| Common parts | ||||
| 90080-10350 | ||||
| 90080-10403 | ||||
| 90080-10404 | ||||
| 90080-11638 | ||||
| 90080-17264 | ||||
| 90178-A0001 | ||||
| 90178-A0015 | ||||

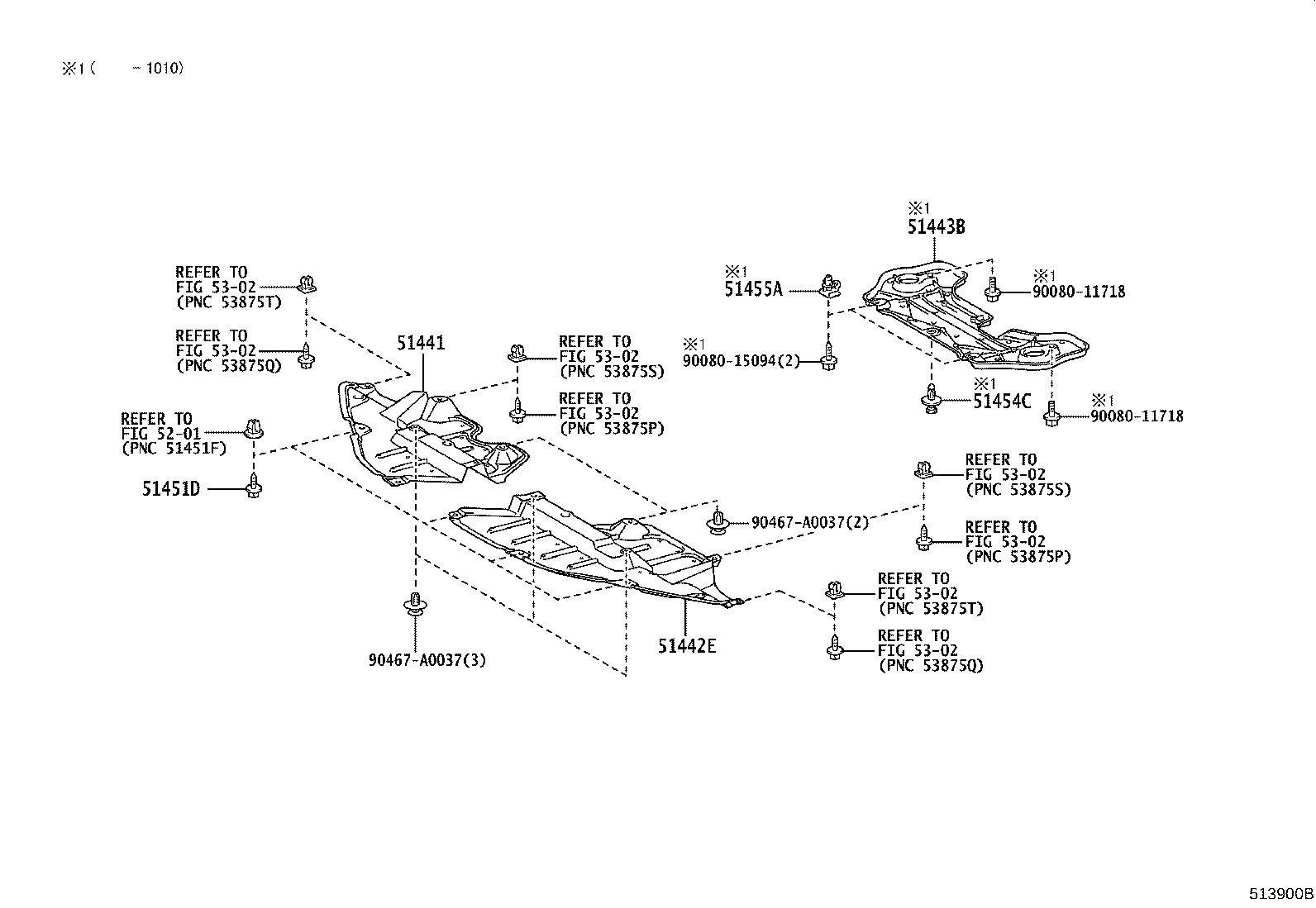

ILLUST NO. 2 OF 2(0811- )
ENGINE UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-0T010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 51441-0T010 |
AGV1#,GGV1# |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-0T010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 51442-0T010 |
AGV1#,GGV1# |
1 | ||
| 51443B - COVER, ENGINE UNDER, NO.3 | ||||
| 51443-0T010 |
AGV1#,GGV1# |
1 | ||
| 51443-0T010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60525 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
4 | ||
| 90159-60525 |
AGV1#,GGV1# |
4 | ||
| 51454C - SILENCER, ENGINE UNDER COVER, REAR | ||||
| 51454-0E010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 51454-0E010 |
AGV1#,GGV1# |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-0E010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
2 | ||
| 51455-0E010 |
AGV1#,GGV1# |
2 | ||
| Common parts | ||||
| 90080-11718 | ||||
| 90080-15094 | ||||
| 90467-A0037 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
