GGV15L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

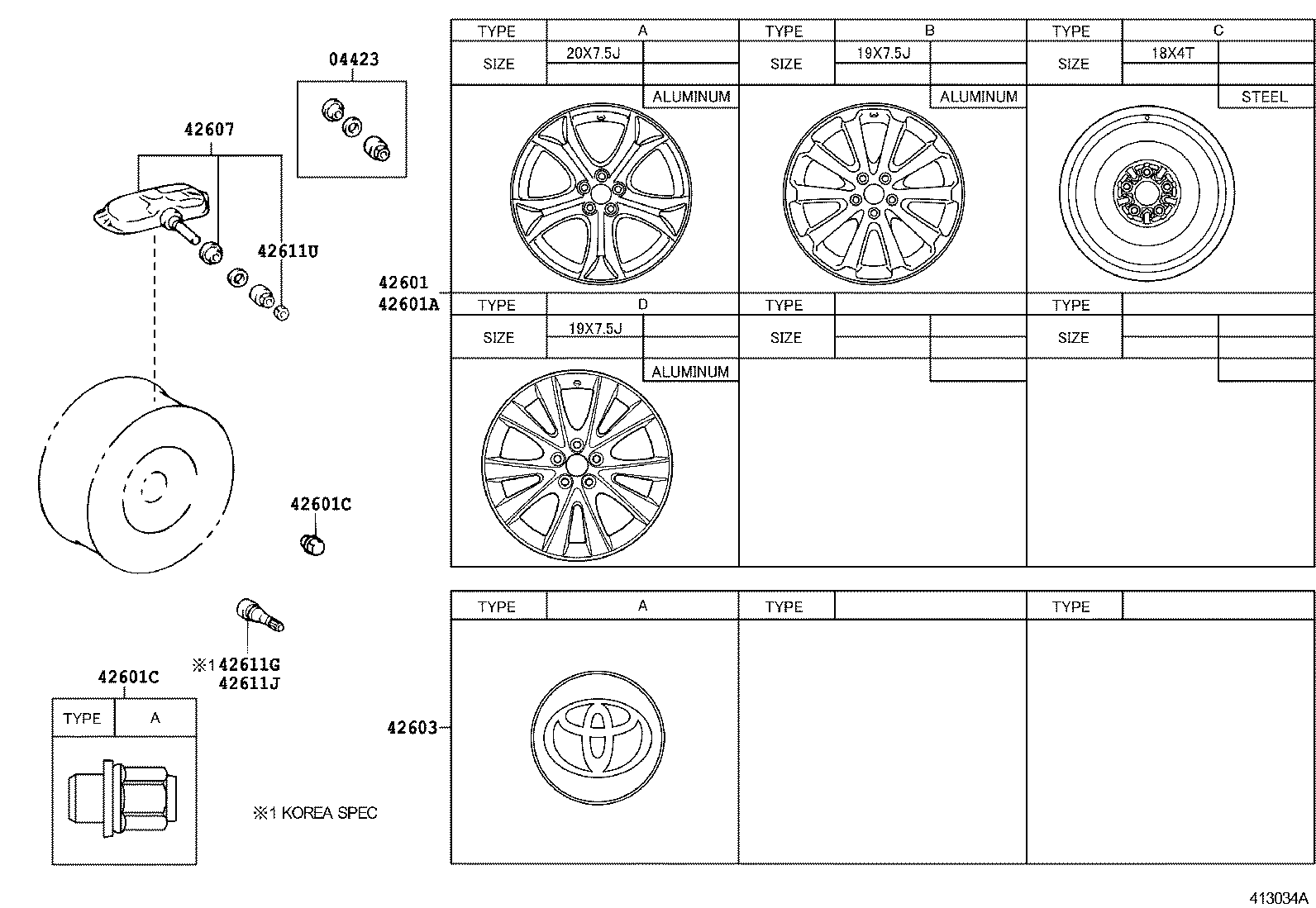

Click highlighted areas on diagram

diagram 04423 42601 42601A 42601C 42601C 42603 42607 42611G 42611J 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-0E010

AGV1#,GGV1#

 4
42601 - WHEEL, DISC
42611-0T020

AGV1#,GGV1#

19X7.5J,#,TYPE B:REFER ILLUST.

 4
42611-0T021

AGV1#,GGV1#

19X7.5J,#,TYPE B:REFER ILLUST.

 4
4261A-0T020

GGV15

20X7.5J,#,CORE PACKAGE,TYPE A:REFER ILLUST.

 4
4261A-0T010

GGV15

20X7.5J,#,CORE PACKAGE,TYPE A:REFER ILLUST.

 4
42611-0T010

GGV15

20X7.5J,#,CORE PACKAGE,TYPE A:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0T030

AGV1#,GGV1#

18X4T,TYPE C:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90084-94001

AGV1#,GGV1#

TYPE A:REFER ILLUST.

 20
42601C - NUT, HUB (FOR AXLE)
90084-94001

AGV1#,GGV1#

TYPE A:REFER ILLUST.

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AC040

AGV1#,GGV1#

*ALU,TYPE A:REFER ILLUST.

 4
42603-08020

GGV15

*ALU,CORE PACKAGE,TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-06011

AGV1#,GGV1#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006

AGV1#,GGV1#

 1
42611U - CAP, TIRE VALVE
90942-A5002

AGV1#,GGV1#

 4
