GGV15L-AWTGKA (2008)
Toyota Venza

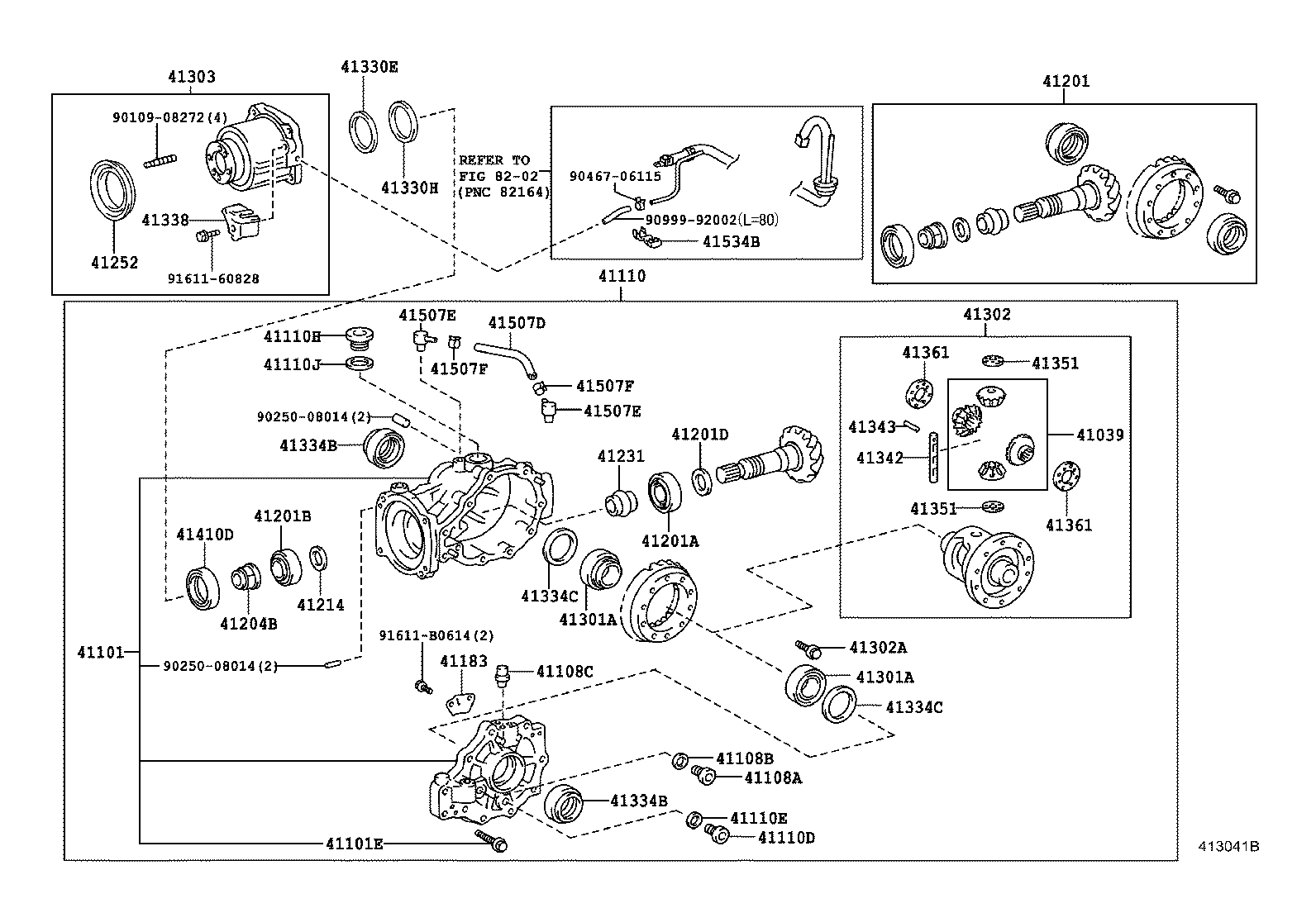

ILLUST NO. 1 OF 3(0811- )AGV15,GGV15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-44011 |
AGV15,GGV15 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-33032 |
AGV15,GGV15 |
1 | ||
| 41101-33033 |
AGV15,GGV15 |
1 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-10371 |
AGV15,GGV15 |
10 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18023 |
AGV15,GGV15 |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AGV15,GGV15 |
1 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03170 |
AGV15,GGV15 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-73010 |
AGV15,GGV15 *FGR=41:18=2.277 |
1 | ||
| 41110-73011 |
AGV15,GGV15 *FGR=41:18=2.277 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18051 |
AGV15,GGV15 |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
AGV15,GGV15 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-36001 |
AGV15,GGV15 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 90430-36003 |
AGV15,GGV15 |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-33010 |
AGV15,GGV15 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80565 |
AGV15,GGV15 *FGR=41:18=2.277 |
1 | ||
| 41201-80700 |
AGV15,GGV15 *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35093 |
AGV15,GGV15 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30047 |
AGV15,GGV15 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35045 |
AGV15,GGV15 T=1.74,MARK 45 |
1 | ||
| 90564-35052 |
AGV15,GGV15 T=1.81,MARK 52 |
1 | ||
| 90564-35049 |
AGV15,GGV15 T=1.78,MARK 49 |
1 | ||
| 90564-35050 |
AGV15,GGV15 T=1.79,MARK 50 |
1 | ||
| 90564-35043 |
AGV15,GGV15 T=1.72,MARK 43 |
1 | ||
| 90564-35047 |
AGV15,GGV15 T=1.76,MARK 47 |
1 | ||
| 90564-35044 |
AGV15,GGV15 T=1.73,MARK 44 |
1 | ||
| 90564-35042 |
AGV15,GGV15 T=1.71,MARK 42 |
1 | ||
| 90564-35056 |
AGV15,GGV15 T=1.85,MARK 56 |
1 | ||
| 90564-35055 |
AGV15,GGV15 T=1.84,MARK 55 |
1 | ||
| 90564-35041 |
AGV15,GGV15 T=1.70,MARK 41 |
1 | ||
| 90564-35053 |
AGV15,GGV15 T=1.82,MARK 53 |
1 | ||
| 90564-35051 |
AGV15,GGV15 T=1.80,MARK 51 |
1 | ||
| 90564-35058 |
AGV15,GGV15 T=1.87,MARK 58 |
1 | ||
| 90564-35057 |
AGV15,GGV15 T=1.86,MARK 57 |
1 | ||
| 90564-35061 |
AGV15,GGV15 T=1.90,MARK 61 |
1 | ||
| 90564-35046 |
AGV15,GGV15 T=1.75,MARK 46 |
1 | ||
| 90564-35048 |
AGV15,GGV15 T=1.77,MARK 48 |
1 | ||
| 90564-35062 |
AGV15,GGV15 T=1.91,MARK 62 |
1 | ||
| 90564-35059 |
AGV15,GGV15 T=1.88,MARK 59 |
1 | ||
| 90564-35060 |
AGV15,GGV15 T=1.89,MARK 60 |
1 | ||
| 90564-35063 |
AGV15,GGV15 T=1.92,MARK 63 |
1 | ||
| 90564-35065 |
AGV15,GGV15 T=1.94,MARK 65 |
1 | ||
| 90564-35081 |
AGV15,GGV15 T=2.06,MARK 81 |
1 | ||
| 90564-35070 |
AGV15,GGV15 T=1.95,MARK 70 |
1 | ||
| 90564-35064 |
AGV15,GGV15 T=1.93,MARK 64 |
1 | ||
| 90564-35079 |
AGV15,GGV15 T=2.04,MARK 79 |
1 | ||
| 90564-35080 |
AGV15,GGV15 T=2.05,MARK 80 |
1 | ||
| 90564-35072 |
AGV15,GGV15 T=1.97,MARK 72 |
1 | ||
| 90564-35073 |
AGV15,GGV15 T=1.98,MARK 73 |
1 | ||
| 90564-35076 |
AGV15,GGV15 T=2.01,MARK 76 |
1 | ||
| 90564-35071 |
AGV15,GGV15 T=1.96,MARK 71 |
1 | ||
| 90564-35078 |
AGV15,GGV15 T=2.03,MARK 78 |
1 | ||
| 90564-35075 |
AGV15,GGV15 T=2.00,MARK 75 |
1 | ||
| 90564-35082 |
AGV15,GGV15 T=2.07,MARK 82 |
1 | ||
| 90564-35074 |
AGV15,GGV15 T=1.99,MARK 74 |
1 | ||
| 90564-35086 |
AGV15,GGV15 T=2.11,MARK 86 |
1 | ||
| 90564-35083 |
AGV15,GGV15 T=2.08,MARK 83 |
1 | ||
| 90564-35092 |
AGV15,GGV15 T=2.17,MARK 92 |
1 | ||
| 90564-35084 |
AGV15,GGV15 T=2.09,MARK 84 |
1 | ||
| 90564-35087 |
AGV15,GGV15 T=2.12,MARK 87 |
1 | ||
| 90564-35054 |
AGV15,GGV15 T=1.83,MARK 54 |
1 | ||
| 90564-35089 |
AGV15,GGV15 T=2.14,MARK 89 |
1 | ||
| 90564-35077 |
AGV15,GGV15 T=2.02,MARK 77 |
1 | ||
| 90564-35088 |
AGV15,GGV15 T=2.13,MARK 88 |
1 | ||
| 90564-35090 |
AGV15,GGV15 T=2.15,MARK 90 |
1 | ||
| 90564-35094 |
AGV15,GGV15 T=2.19,MARK 94 |
1 | ||
| 90564-35093 |
AGV15,GGV15 T=2.18,MARK 93 |
1 | ||
| 90564-35091 |
AGV15,GGV15 T=2.16,MARK 91 |
1 | ||
| 90564-35095 |
AGV15,GGV15 T=2.20,MARK 95 |
1 | ||
| 90564-35085 |
AGV15,GGV15 T=2.10,MARK 85 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
AGV15,GGV15 OD=41.6 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 90560-30012 |
AGV15,GGV15 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-33030 |
AGV15,GGV15 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-44010 |
AGV15,GGV15 |
1 | ||
| 41252-44010 |
AGV15,GGV15 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38017 |
AGV15,GGV15 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38017 |
AGV15,GGV15 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-21030 |
AGV15,GGV15 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-11034 |
AGV15,GGV15 |
10 | ||
| 41303 - COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL | ||||
| 41303-68012 |
AGV15,GGV15 |
1 | ||
| 41303-68011 |
AGV15,GGV15 |
1 | ||
| 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) | ||||
| 90208-74002 |
AGV15,GGV15 |
1 | ||
| 90208-74003 |
AGV15,GGV15 |
1 | ||
| 41330H - SPACER (FOR TRANSMISSION COUPLING) | ||||
| 90560-68002 |
AGV15,GGV15 |
1 | ||
| 90560-68001 |
AGV15,GGV15 |
1 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-42033 |
AGV15,GGV15 |
2 | ||
| 90311-42046 |
AGV15,GGV15 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-42033 |
AGV15,GGV15 |
2 | ||
| 90311-42046 |
AGV15,GGV15 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-55026 |
AGV15,GGV15 T=1.63 |
1 | ||
| 90564-55025 |
AGV15,GGV15 T=1.60 |
1 | ||
| 90564-55029 |
AGV15,GGV15 T=1.72 |
1 | ||
| 90564-55027 |
AGV15,GGV15 T=1.66 |
1 | ||
| 90564-55036 |
AGV15,GGV15 T=1.93 |
1 | ||
| 90564-55031 |
AGV15,GGV15 T=1.78 |
1 | ||
| 90564-55030 |
AGV15,GGV15 T=1.75 |
1 | ||
| 90564-55028 |
AGV15,GGV15 T=1.69 |
1 | ||
| 90564-55038 |
AGV15,GGV15 T=1.99 |
1 | ||
| 90564-55033 |
AGV15,GGV15 T=1.84 |
1 | ||
| 90564-55034 |
AGV15,GGV15 T=1.87 |
1 | ||
| 90564-55041 |
AGV15,GGV15 T=2.08 |
1 | ||
| 90564-55035 |
AGV15,GGV15 T=1.90 |
1 | ||
| 90564-55039 |
AGV15,GGV15 T=2.03 |
1 | ||
| 90564-55032 |
AGV15,GGV15 T=1.81 |
1 | ||
| 90564-55044 |
AGV15,GGV15 T=2.17 |
1 | ||
| 90564-55040 |
AGV15,GGV15 T=2.05 |
1 | ||
| 90564-55046 |
AGV15,GGV15 T=2.23 |
1 | ||
| 90564-55043 |
AGV15,GGV15 T=2.14 |
1 | ||
| 90564-55049 |
AGV15,GGV15 T=2.32 |
1 | ||
| 90564-55042 |
AGV15,GGV15 T=2.11 |
1 | ||
| 90564-55052 |
AGV15,GGV15 T=2.41 |
1 | ||
| 90564-55054 |
AGV15,GGV15 T=2.47 |
1 | ||
| 90564-55048 |
AGV15,GGV15 T=2.29 |
1 | ||
| 90564-55058 |
AGV15,GGV15 T=2.59 |
1 | ||
| 90564-55037 |
AGV15,GGV15 T=1.96 |
1 | ||
| 90564-55053 |
AGV15,GGV15 T=2.44 |
1 | ||
| 90564-55059 |
AGV15,GGV15 T=2.62 |
1 | ||
| 90564-55060 |
AGV15,GGV15 T=2.65 |
1 | ||
| 90564-55057 |
AGV15,GGV15 T=2.56 |
1 | ||
| 90564-55045 |
AGV15,GGV15 T=2.20 |
1 | ||
| 90564-55047 |
AGV15,GGV15 T=2.26 |
1 | ||
| 90564-55051 |
AGV15,GGV15 T=2.38 |
1 | ||
| 90564-55056 |
AGV15,GGV15 T=2.53 |
1 | ||
| 90564-55050 |
AGV15,GGV15 T=2.35 |
1 | ||
| 90564-55055 |
AGV15,GGV15 T=2.50 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-55026 |
AGV15,GGV15 T=1.63 |
1 | ||
| 90564-55025 |
AGV15,GGV15 T=1.60 |
1 | ||
| 90564-55029 |
AGV15,GGV15 T=1.72 |
1 | ||
| 90564-55027 |
AGV15,GGV15 T=1.66 |
1 | ||
| 90564-55036 |
AGV15,GGV15 T=1.93 |
1 | ||
| 90564-55031 |
AGV15,GGV15 T=1.78 |
1 | ||
| 90564-55030 |
AGV15,GGV15 T=1.75 |
1 | ||
| 90564-55028 |
AGV15,GGV15 T=1.69 |
1 | ||
| 90564-55038 |
AGV15,GGV15 T=1.99 |
1 | ||
| 90564-55033 |
AGV15,GGV15 T=1.84 |
1 | ||
| 90564-55034 |
AGV15,GGV15 T=1.87 |
1 | ||
| 90564-55041 |
AGV15,GGV15 T=2.08 |
1 | ||
| 90564-55035 |
AGV15,GGV15 T=1.90 |
1 | ||
| 90564-55039 |
AGV15,GGV15 T=2.03 |
1 | ||
| 90564-55032 |
AGV15,GGV15 T=1.81 |
1 | ||
| 90564-55044 |
AGV15,GGV15 T=2.17 |
1 | ||
| 90564-55040 |
AGV15,GGV15 T=2.05 |
1 | ||
| 90564-55046 |
AGV15,GGV15 T=2.23 |
1 | ||
| 90564-55043 |
AGV15,GGV15 T=2.14 |
1 | ||
| 90564-55049 |
AGV15,GGV15 T=2.32 |
1 | ||
| 90564-55042 |
AGV15,GGV15 T=2.11 |
1 | ||
| 90564-55052 |
AGV15,GGV15 T=2.41 |
1 | ||
| 90564-55054 |
AGV15,GGV15 T=2.47 |
1 | ||
| 90564-55048 |
AGV15,GGV15 T=2.29 |
1 | ||
| 90564-55058 |
AGV15,GGV15 T=2.59 |
1 | ||
| 90564-55037 |
AGV15,GGV15 T=1.96 |
1 | ||
| 90564-55053 |
AGV15,GGV15 T=2.44 |
1 | ||
| 90564-55059 |
AGV15,GGV15 T=2.62 |
1 | ||
| 90564-55060 |
AGV15,GGV15 T=2.65 |
1 | ||
| 90564-55057 |
AGV15,GGV15 T=2.56 |
1 | ||
| 90564-55045 |
AGV15,GGV15 T=2.20 |
1 | ||
| 90564-55047 |
AGV15,GGV15 T=2.26 |
1 | ||
| 90564-55051 |
AGV15,GGV15 T=2.38 |
1 | ||
| 90564-55056 |
AGV15,GGV15 T=2.53 |
1 | ||
| 90564-55050 |
AGV15,GGV15 T=2.35 |
1 | ||
| 90564-55055 |
AGV15,GGV15 T=2.50 |
1 | ||
| 41338 - BRACKET, CONNECTOR CLAMP | ||||
| 41338-68010 |
AGV15,GGV15 |
1 | ||
| 41338-68010 |
AGV15,GGV15 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-33020 |
AGV15,GGV15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04053 |
AGV15,GGV15 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
AGV15,GGV15 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
AGV15,GGV15 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
AGV15,GGV15 T=1.60 |
1 | ||
| 41361-10100 |
AGV15,GGV15 T=1.65 |
1 | ||
| 41361-10070 |
AGV15,GGV15 T=1.50 |
1 | ||
| 41361-10110 |
AGV15,GGV15 T=1.70 |
1 | ||
| 41361-10080 |
AGV15,GGV15 T=1.55 |
1 | ||
| 41361-10120 |
AGV15,GGV15 T=1.75 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
AGV15,GGV15 T=1.60 |
1 | ||
| 41361-10100 |
AGV15,GGV15 T=1.65 |
1 | ||
| 41361-10070 |
AGV15,GGV15 T=1.50 |
1 | ||
| 41361-10110 |
AGV15,GGV15 T=1.70 |
1 | ||
| 41361-10080 |
AGV15,GGV15 T=1.55 |
1 | ||
| 41361-10120 |
AGV15,GGV15 T=1.75 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90310-54001 |
AGV15,GGV15 |
1 | ||
| 41507D - HOSE, DIFFERENTIAL PRESSURE CONTROL | ||||
| 95337-06020 |
AGV15,GGV15 |
1 | ||
| 41507E - ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 90407-10027 |
AGV15,GGV15 |
2 | ||
| 41507E - ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 90407-10027 |
AGV15,GGV15 |
2 | ||
| 41507F - CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 96132-51100 |
AGV15,GGV15 |
2 | ||
| 41507F - CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 96132-51100 |
AGV15,GGV15 |
2 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-73010 |
AGV15,GGV15 |
1 | ||
| Common parts | ||||
| 90109-08272 | ||||
| 90250-08014 | ||||
| 90467-06115 | ||||
| 90999-92002 | ||||
| 91611-60828 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 8202 | ||||

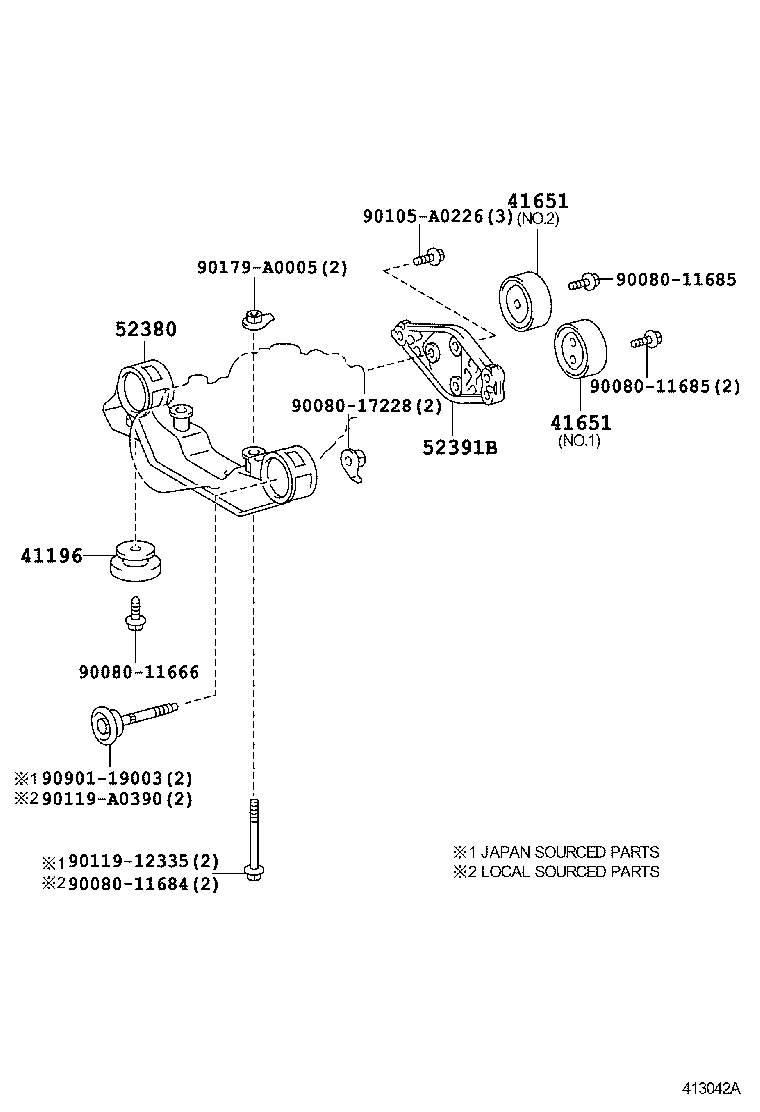

ILLUST NO. 3 OF 3(0811- )AGV15,GGV15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-01010 |
AGV15,GGV15 |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-01020 |
AGV15,GGV15 NO.1 |
1 | ||
| 41651-33030 |
AGV15,GGV15 NO.2 |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-01020 |
AGV15,GGV15 NO.1 |
1 | ||
| 41651-33030 |
AGV15,GGV15 NO.2 |
1 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-73010 |
AGV15,GGV15 |
1 | ||
| 52391B - SUPPORT, DIFFERENTIAL | ||||
| 52391-33020 |
AGV15,GGV15 |
1 | ||
| Common parts | ||||
| 90080-11666 | ||||
| 90080-11684 | ||||
| 90080-11685 | ||||
| 90080-17228 | ||||
| 90105-A0226 | ||||
| 90119-12335 | ||||
| 90119-A0390 | ||||
| 90179-A0005 | ||||
| 90901-19003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
