GGV10L-AWTGKA (2012)

Toyota Venza

Production May 2012 - Dec 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1205- )GGV1#

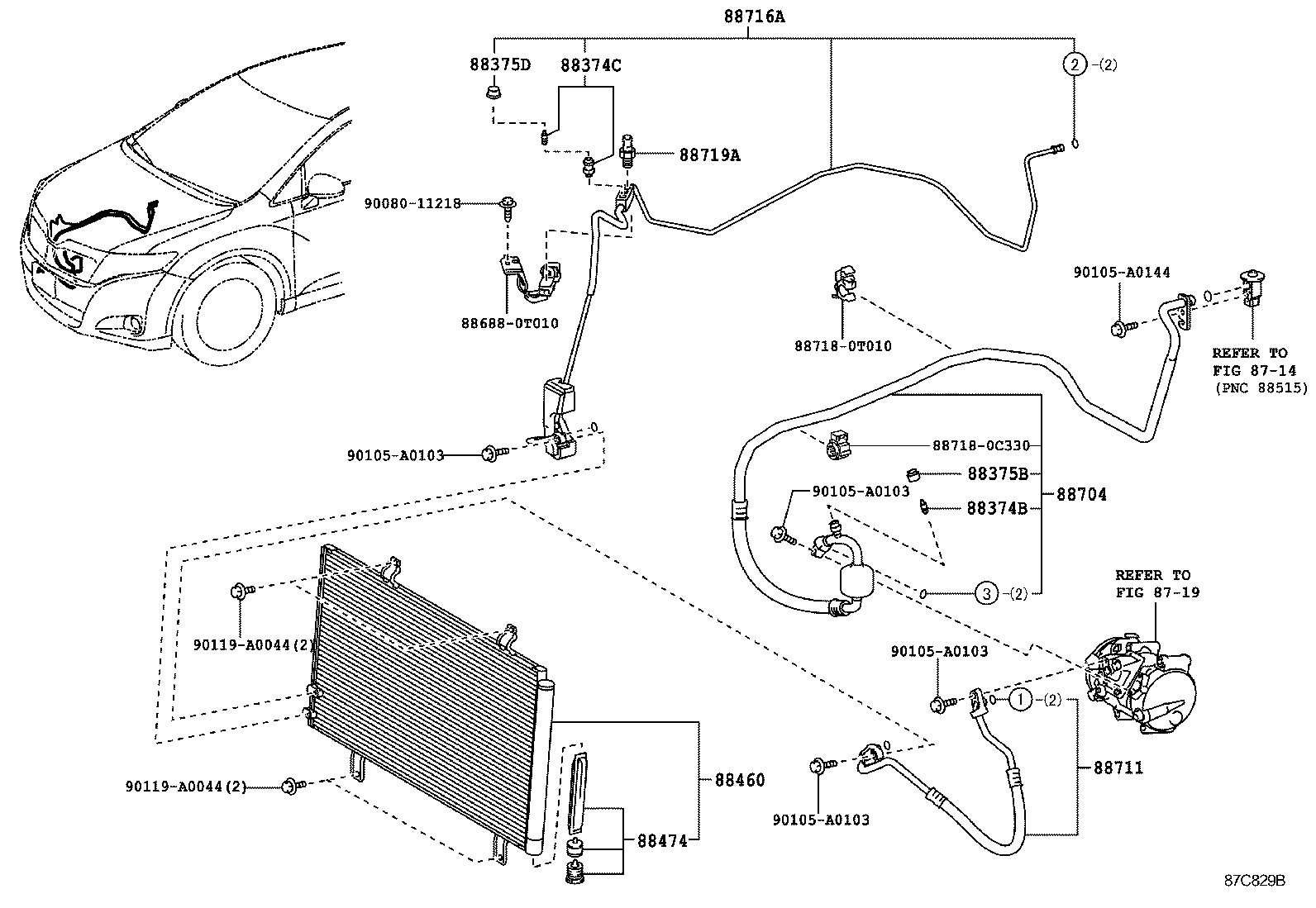

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 886880T010 88704 88711 88716A 887180C330 887180T010 88719A 9008011218 90105A0103 90105A0103 90105A0103 90105A0103 90105A0144 90119A0044 90119A0044
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AGV1#,GGV1#

 1
88374-30010

AGV1#,GGV1#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AGV1#,GGV1#

 1
88374-30010

AGV1#,GGV1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02070

AGV1#,GGV1#

 1
88375-02070

AGV1#,GGV1#

(L)

 1
88375-30290

AGV1#,GGV1#

(J)

 1
88375-0E030

AGV1#,GGV1#

(L)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-02060

AGV1#,GGV1#

(L)

 1
88375-0E020

AGV1#,GGV1#

(L)

 1
88375-30280

AGV1#,GGV1#

(J)

 1
88375-02060

AGV1#,GGV1#

 1
88460 - CONDENSER ASSY, COOLER
88460-06210

AGV1#,GGV1#

 1
88460-06210

AGV1#,GGV1#

 1
88474 - DRYER, COOLER
88474-17010

AGV1#,GGV1#

 1
88474-17010

AGV1#,GGV1#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0T010

GGV1#

 1
88704-0T010

GGV1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0T010

GGV1#

 1
88711-0T010

GGV1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0T010

AGV1#,GGV1#

 1
88716-0T010

AGV1#,GGV1#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AGV1#,GGV1#

 1
88719-33020

AGV1#,GGV1#

 1
Common parts
88688-0T010
88718-0C330
88718-0T010
90080-11218
90105-A0103
90105-A0144
90119-A0044
