GGV10L-AWTGKA (2008)

Toyota Venza

Production Nov 2008 - May 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

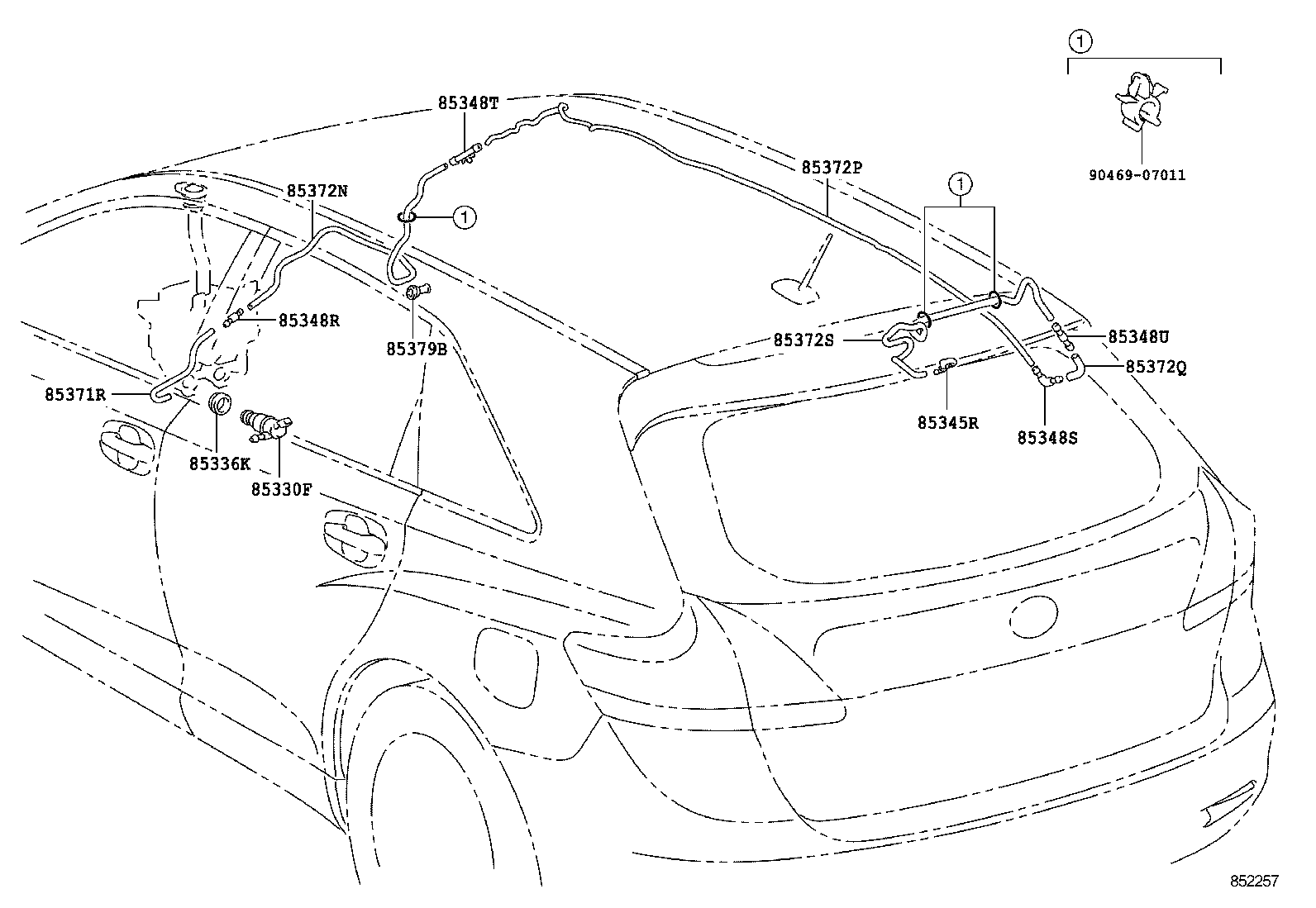

Click highlighted areas on diagram

diagram 85330F 85336K 85345R 85348R 85348S 85348T 85348U 85371R 85372N 85372P 85372Q 85372S 85379B 9046907011
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85330-60180

AGV1#,GGV1#

 1
85336K - PROTECTOR, WASHER JAR
85336-60300

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85336-60300

AGV1#,GGV1#

 1
85345R - NOZZLE, REAR WASHER
85391-0T010

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85391-0T010

AGV1#,GGV1#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85317-02300

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85317-02300

AGV1#,GGV1#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-02260

AGV1#,GGV1#

 1
85375-02260

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-20800

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85375-20800

AGV1#,GGV1#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85317-02300

AGV1#,GGV1#

 1
85317-02300

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-33023

AGV1#,GGV1#

L=260,SPECIAL UTILITY PACKAGE-WITH

 1
90068-33023

AGV1#,GGV1#

L=260

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90068-33090

AGV1#,GGV1#

L=1300,SPECIAL UTILITY PACKAGE-WITH

 1
90068-33090

AGV1#,GGV1#

L=1300

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90068-33088

AGV1#,GGV1#

L=2900

 1
90068-33088

AGV1#,GGV1#

L=2900,SPECIAL UTILITY PACKAGE-WITH

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85355-14481

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
85355-14481

AGV1#,GGV1#

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90068-33089

AGV1#,GGV1#

L=970

 1
90068-33089

AGV1#,GGV1#

L=970,SPECIAL UTILITY PACKAGE-WITH

 1
85379B - GROMMET, WASHER, A
85379-52351

AGV1#,GGV1#

 1
85379-52351

AGV1#,GGV1#

SPECIAL UTILITY PACKAGE-WITH

 1
Common parts
90469-07011
