GGV10L-AWTGKA (2008)
Toyota Venza
Production
Nov 2008
-
May 2012
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

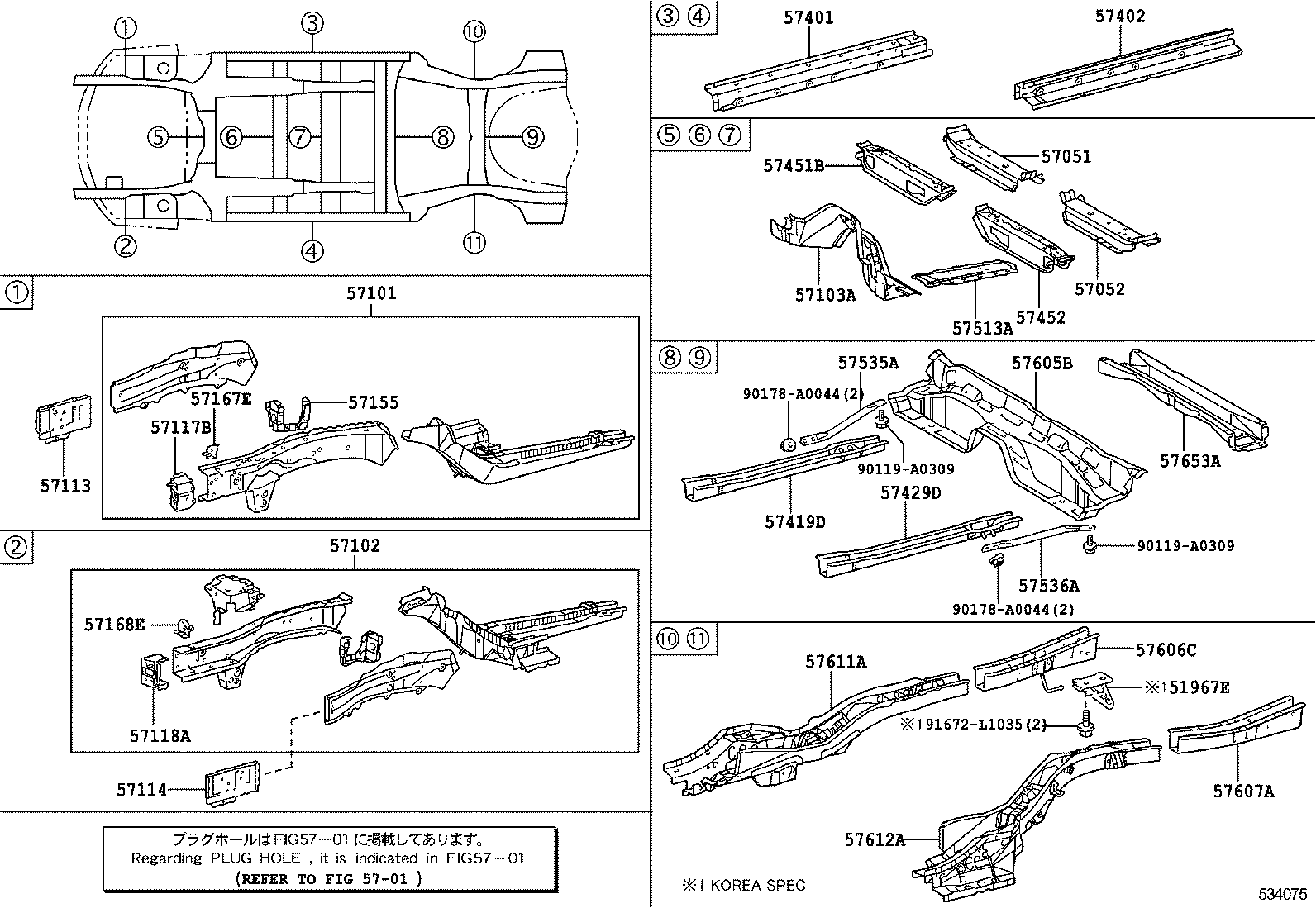

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-0T010 |
AGV1#,GGV1# |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-0T010 |
AGV1#,GGV1# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-0T011 |
AGV1#,GGV1# |
1 | ||
| 57101-0T010 |
AGV1#,GGV1# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-0T010 |
AGV1#,GGV1# |
1 | ||
| 57102-0T011 |
AGV1#,GGV1# |
1 | ||
| 57102-0T012 |
AGV1#,GGV1# |
1 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-0T010 |
AGV1#,GGV1# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57107-06011 |
AGV1#,GGV1# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57108-06011 |
AGV1#,GGV1# |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-06030 |
AGV1#,GGV1# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-06030 |
AGV1#,GGV1# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-06010 |
AGV1#,GGV1# |
1 | ||
| 57167E - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-06010 |
AGV1#,GGV1# |
1 | ||
| 57168E - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-06010 |
AGV1#,GGV1# |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-0T010 |
AGV1#,GGV1# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-0T010 |
AGV1#,GGV1# |
1 | ||
| 57419D - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-06040 |
AGV1#,GGV1# |
1 | ||
| 57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57429-06020 |
AGV1#,GGV1# |
1 | ||
| 57451B - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-0T900 |
AGV1#,GGV1# |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-0T900 |
AGV1#,GGV1# |
1 | ||
| 57513A - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-06010 |
AGV1#,GGV1# |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 57535-06010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 57535-06010 |
AGV1#,GGV1# |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-06010 |
AGV1#,GGV1# |
1 | ||
| 57536-06010 |
AGV1#,GGV1# SPECIAL UTILITY PACKAGE-WITH |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0T010 |
AGV1#,GGV1# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0T020 |
AGV1#,GGV1# |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-0T010 |
AGV1#,GGV1# |
1 | ||
| 57611A - MEMBER, REAR FLOOR SIDE, RH | ||||
| 57611-0T901 |
AGV10,GGV10 |
1 | ||
| 57612A - MEMBER, REAR FLOOR SIDE, LH | ||||
| 57612-0T901 |
AGV10,GGV10 |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-0T010 |
AGV1#,GGV1# |
1 | ||
| Common parts | ||||
| 90119-A0309 | ||||
| 90178-A0044 | ||||
| 91672-L1035 | ||||
| Linked diagrams | ||||
| 5701 | ||||
