AXUH85L-ANXSBA (2020)
Toyota Venza

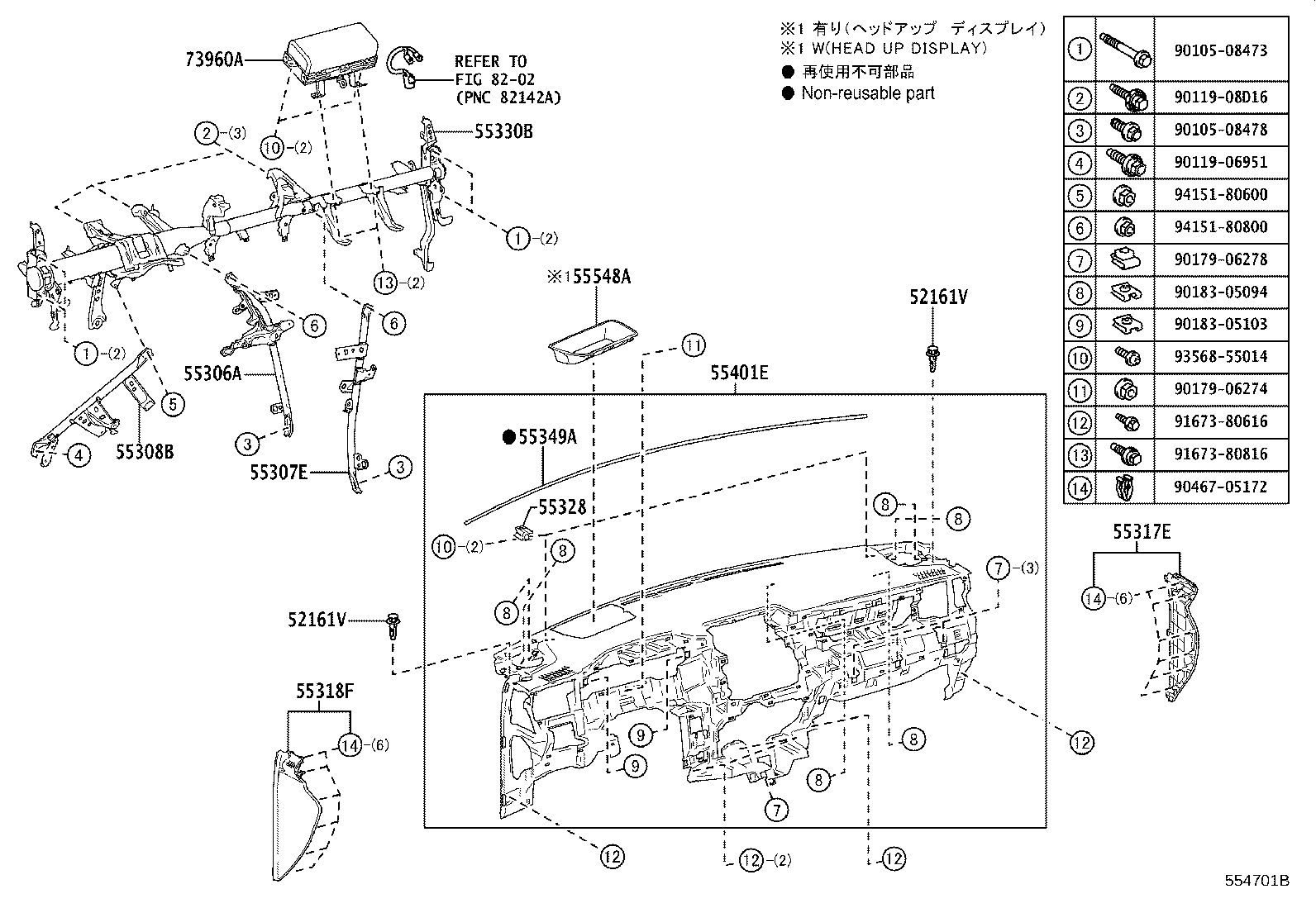

ILLUST NO. 1 OF 3(2007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
AXUH85 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
AXUH85 |
2 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-48190 |
AXUH85 |
1 | ||
| 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48190 |
AXUH85 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-48110 |
AXUH85 |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-48160C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-48160C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-10040 |
AXUH85 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48300 |
AXUH85..G,S HEAD UP DISPLAY-WITH |
1 | ||
| 55330-48290 |
AXUH85 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-48060 |
AXUH85 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-48310C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55401-48320C0 |
AXUH85..G,S HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-48060 |
AXUH85..G,S HEAD UP DISPLAY-WITH |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48120 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

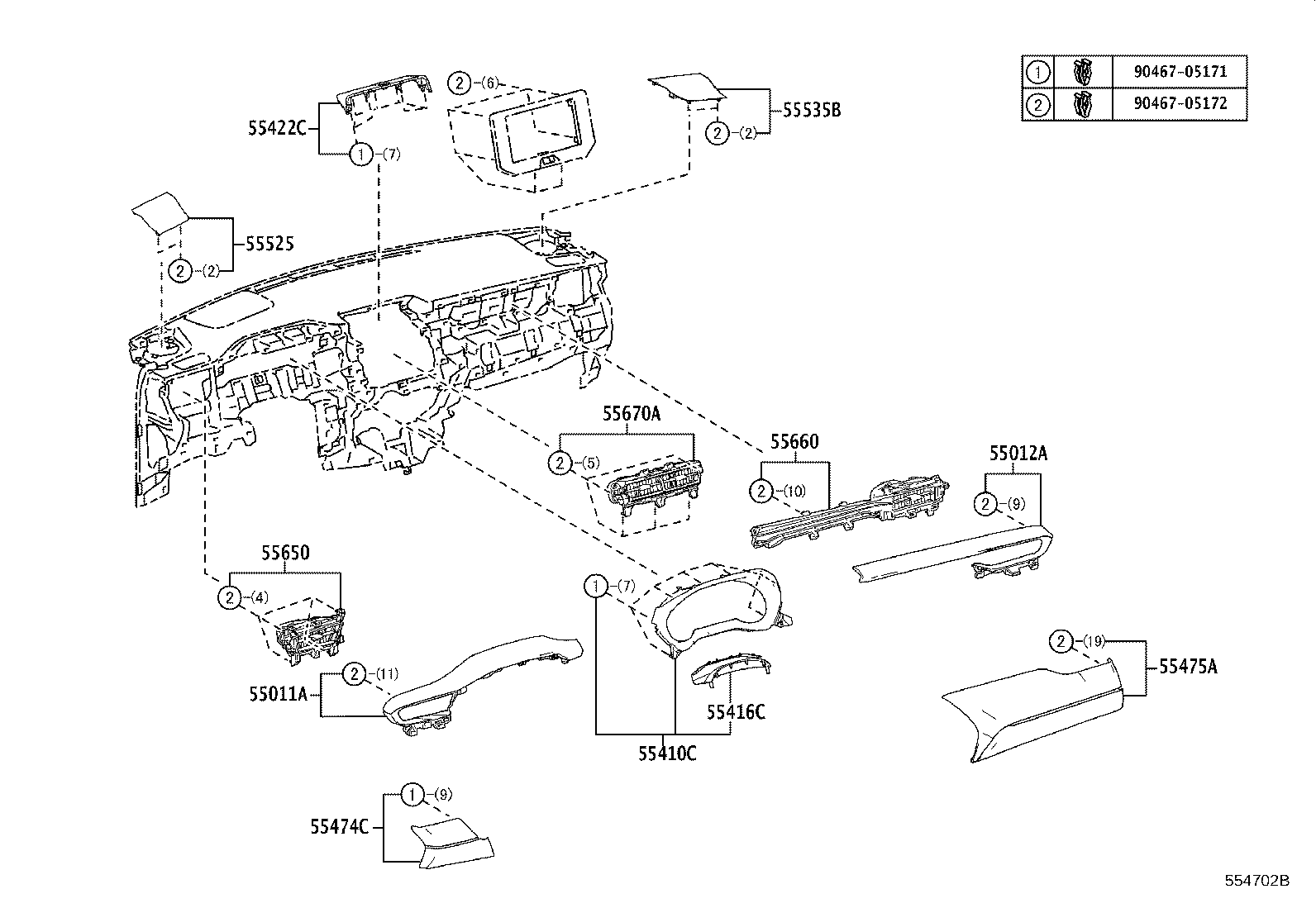

ILLUST NO. 2 OF 3(2007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-48040C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-48040C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-48180 |
AXUH85 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-48080 |
AXUH85 |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-48150 |
AXUH85 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-48130E0 |
AXUH85..G,S DK. GRAY, SATIN BROWN,TRIM4# |
1 | ||
| 55474-48130E1 |
AXUH85..G,S DK. GRAY, SATIN BEIGE,TRIM1# |
1 | ||
| 55474-48130C0 |
AXUH85..G,S BLACK, SATIN BLACK,TRIM2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-48160B2 |
AXUH85..G,S DK. GRAY,SATIN BEIGE,CHRM,TRIM1# |
1 | ||
| 55475-48160B1 |
AXUH85..G,S DK. GRAY,SATIN BROWN,CHRM,TRIM4# |
1 | ||
| 55475-48160B0 |
AXUH85..G,S BLACK, SATIN BLACK, CHRM,TRIM2# |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-48070C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-48040C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48170 |
AXUH85 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48170 |
AXUH85 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-48160 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||

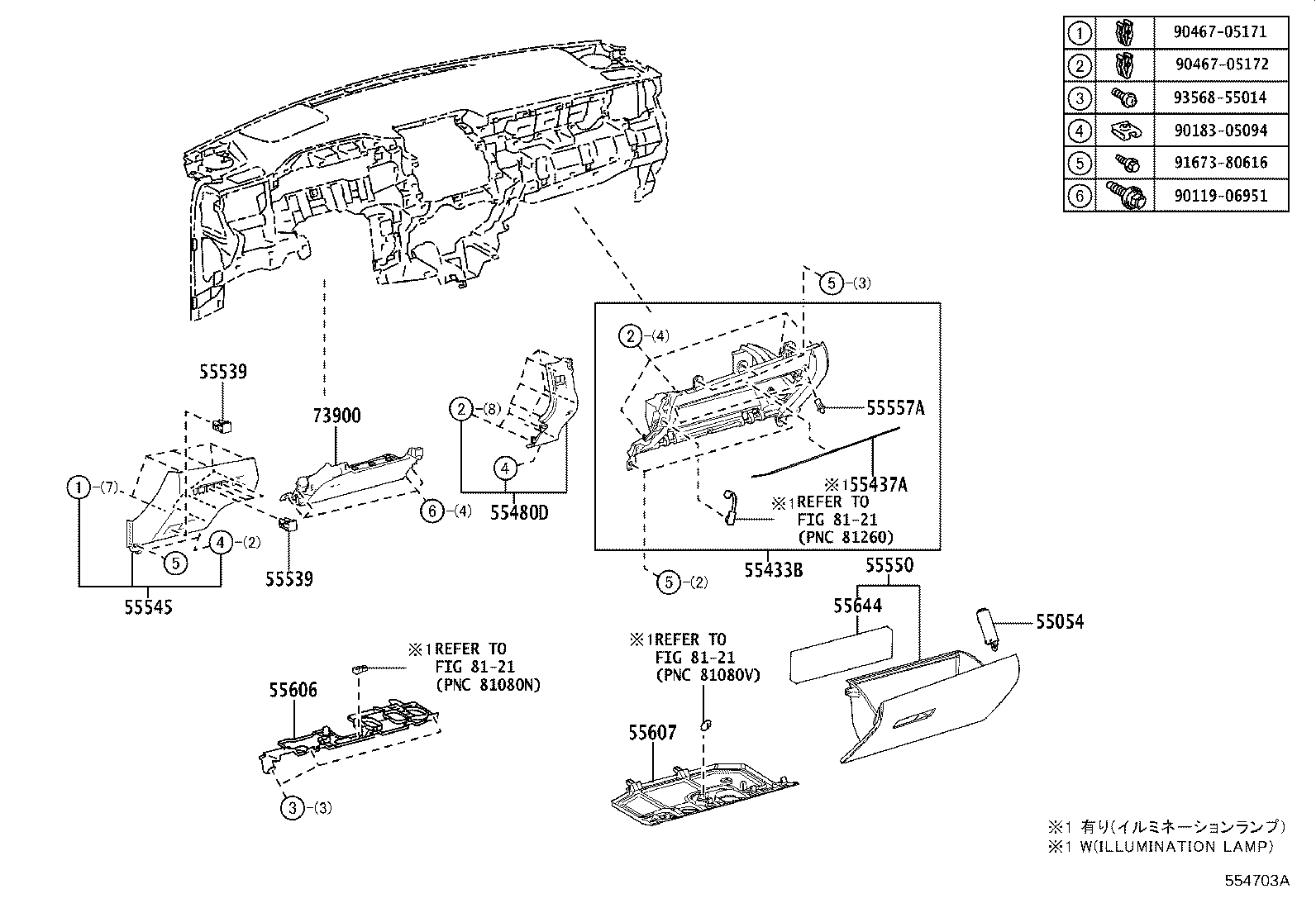

ILLUST NO. 3 OF 3(2007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXUH85 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-48260C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-48170 |
AXUH85..G,S |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-48080C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-48030C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-48200C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
AXUH85 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-48070 |
AXUH85 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-42080 |
AXUH85 |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-48090 |
AXUH85 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48110C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
