AXUH85L-ANXSBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

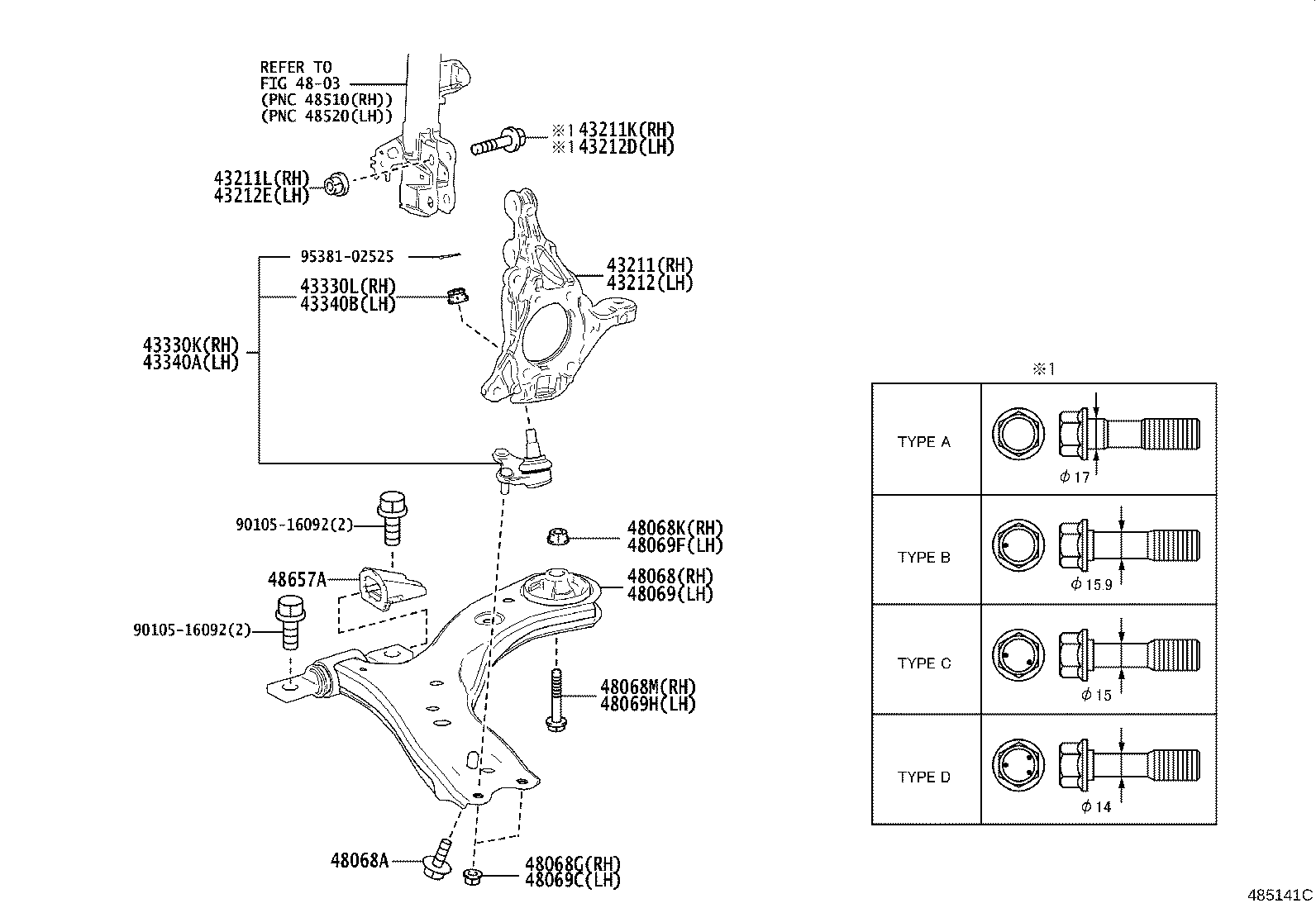

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-42010 |
AXUH85 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17014 |
AXUH85 OD=15,TYPE C |
2 | ||
| 90105-17015 |
AXUH85 OD=14,TYPE D |
2 | ||
| 90105-17021 |
AXUH85 OD=17,TYPE A |
2 | ||
| 90105-17013 |
AXUH85 OD=15.9,TYPE B |
2 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17002 |
AXUH85 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-42010 |
AXUH85 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17015 |
AXUH85 OD=14,TYPE D |
2 | ||
| 90105-17014 |
AXUH85 OD=15,TYPE C |
2 | ||
| 90105-17021 |
AXUH85 OD=17,TYPE A |
2 | ||
| 90105-17013 |
AXUH85 OD=15.9,TYPE B |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17002 |
AXUH85 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-49235 |
AXUH85 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14017 |
AXUH85 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-49235 |
AXUH85 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14017 |
AXUH85 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-42070 |
AXUH85 |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90105-12407 |
AXUH85 |
2 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90178-12019 |
AXUH85 |
2 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90179-14068 |
AXUH85 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90119-14180 |
AXUH85 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-42070 |
AXUH85 |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90178-12019 |
AXUH85 |
2 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90179-14068 |
AXUH85 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90119-14180 |
AXUH85 |
1 | ||
| 48657A - STOPPER, FRONT LOWER ARM BUSH | ||||
| 48657-28010 |
AXUH85 |
2 | ||
| Common parts | ||||
| 90105-16092 | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
