AXUH85L-ANXMBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

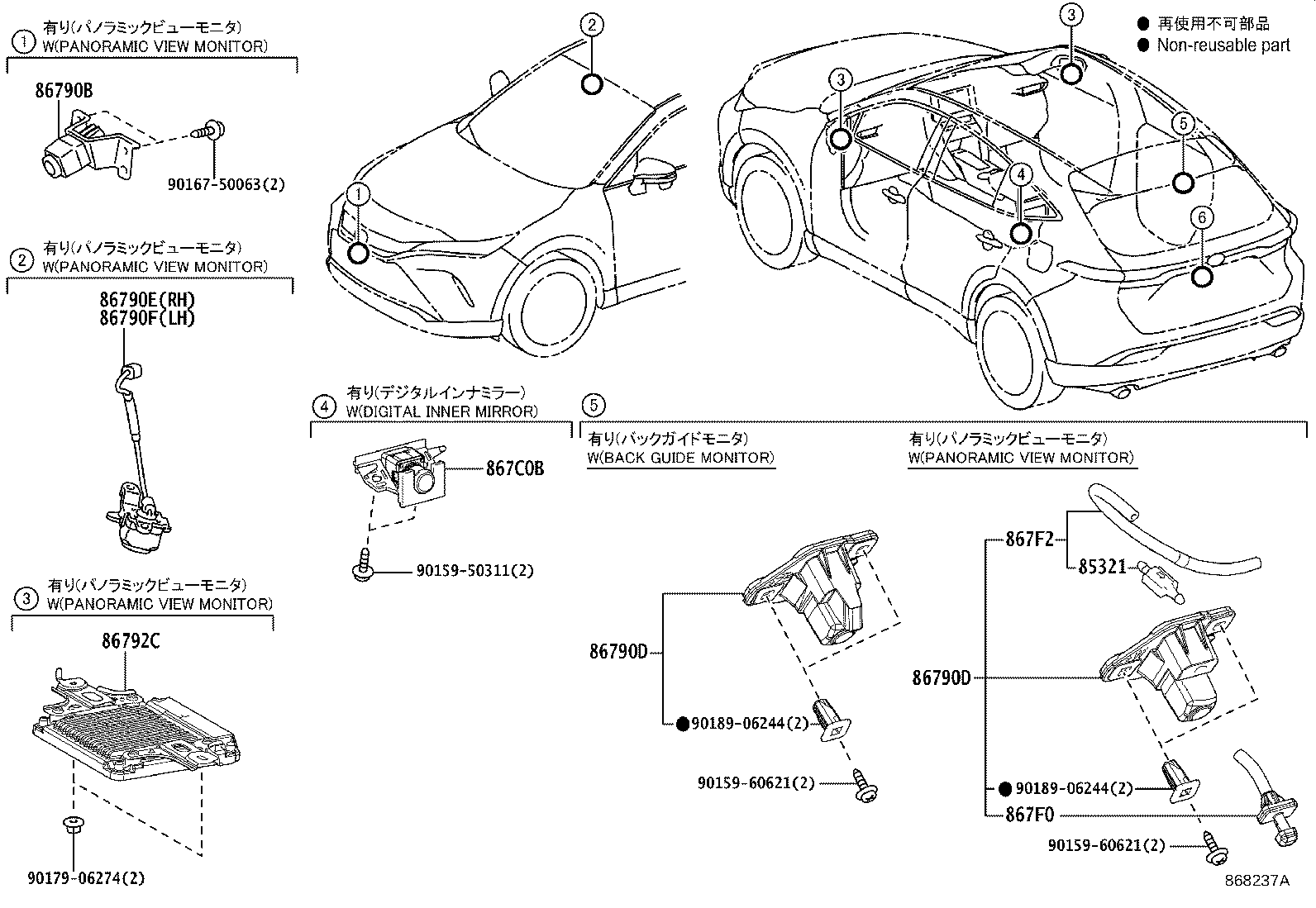

Click highlighted areas on diagram

diagram 85321 86790B 86790D 86790D 86790E 86790F 86792C 867C0B 867F0 867F2 9015950311 9015960621 9015960621 9016750063 9017906274 9018906244 9018906244
Part # Description Qty Price
85321 - VALVE, WASHER
85321-26030

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86790B - CAMERA ASSY, TELEVISION, FR
86790-48250

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86790D - CAMERA ASSY, TELEVISION, RR
867B0-48130

AXUH85

 1
867B0-48140

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86790D - CAMERA ASSY, TELEVISION, RR
867B0-48130

AXUH85

 1
867B0-48140

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-48160

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-48150

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
86792C - COMPUTER, PARKING ASSIST
86792-48610

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
867C0B - CAMERA ASSY, INNER MIRROR, RR
867C0-48020

AXUH85..S

 1
867F0 - NOZZLE ASSY, CAMERA CLEANER
867F0-48030

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
867F2 - HOSE, CAMERA CLEANER
867F2-48020

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
Common parts
90159-50311
90159-60621
90167-50063
90179-06274
90189-06244
