AXUH85L-ANXMBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(2007- )
Click highlighted areas on diagram

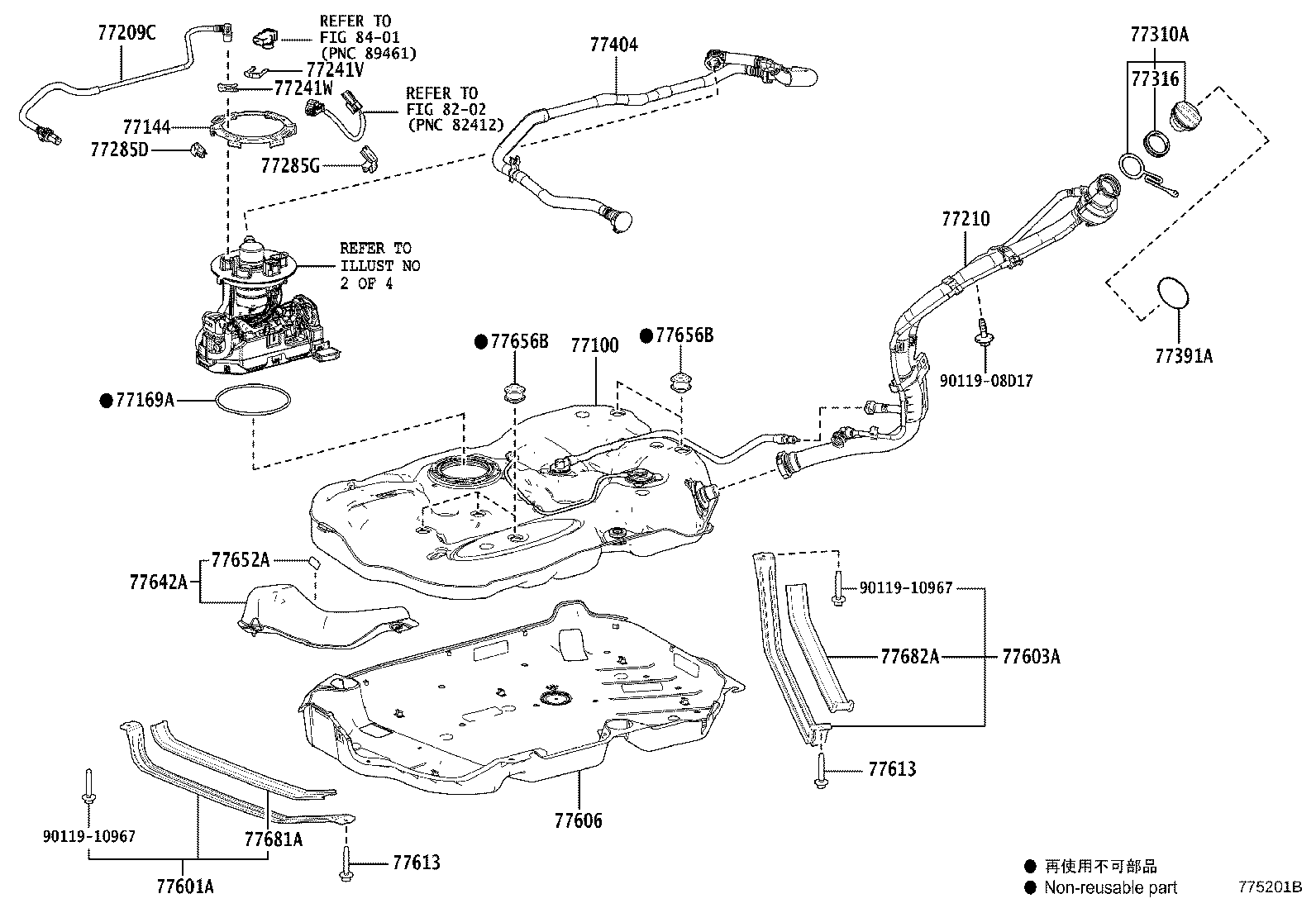

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42321 |
AXUH85 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
AXUH85 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
AXUH85 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42230 |
AXUH85 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-48430 |
AXUH85 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXUH85 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXUH85 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
AXUH85 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42240 |
AXUH85 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53040 |
AXUH85 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
AXUH85 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXUH85 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-48140 |
AXUH85 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-42120 |
AXUH85 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-42050 |
AXUH85 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-42050 |
AXUH85 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
AXUH85 |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
AXUH85 |
2 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-42070 |
AXUH85 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-42040 |
AXUH85 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-33010 |
AXUH85 |
5 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-33010 |
AXUH85 |
5 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-42040 |
AXUH85 |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-42010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10967 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(2007- )
Click highlighted areas on diagram

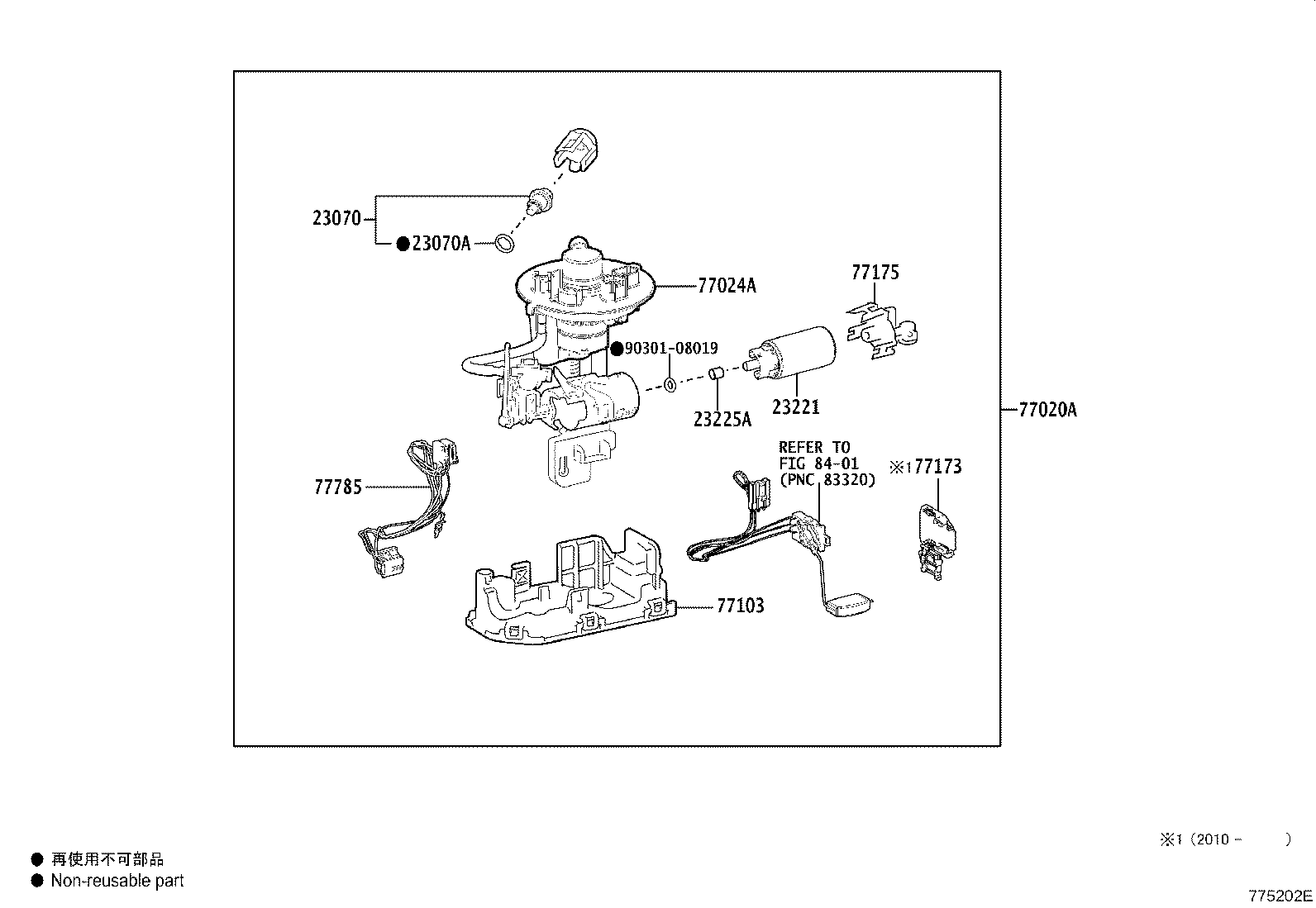

FUEL SUCTION TUBE(PUMP & GAGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFXS..AXUH85 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
A25AFXS..AXUH85 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-25030 |
A25AFXS..AXUH85 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
A25AFXS..AXUH85 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-42251 |
AXUH85 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42150 |
AXUH85 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
AXUH85 |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12020 |
AXUH85 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12030 |
AXUH85 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42070 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(2007- )
Click highlighted areas on diagram

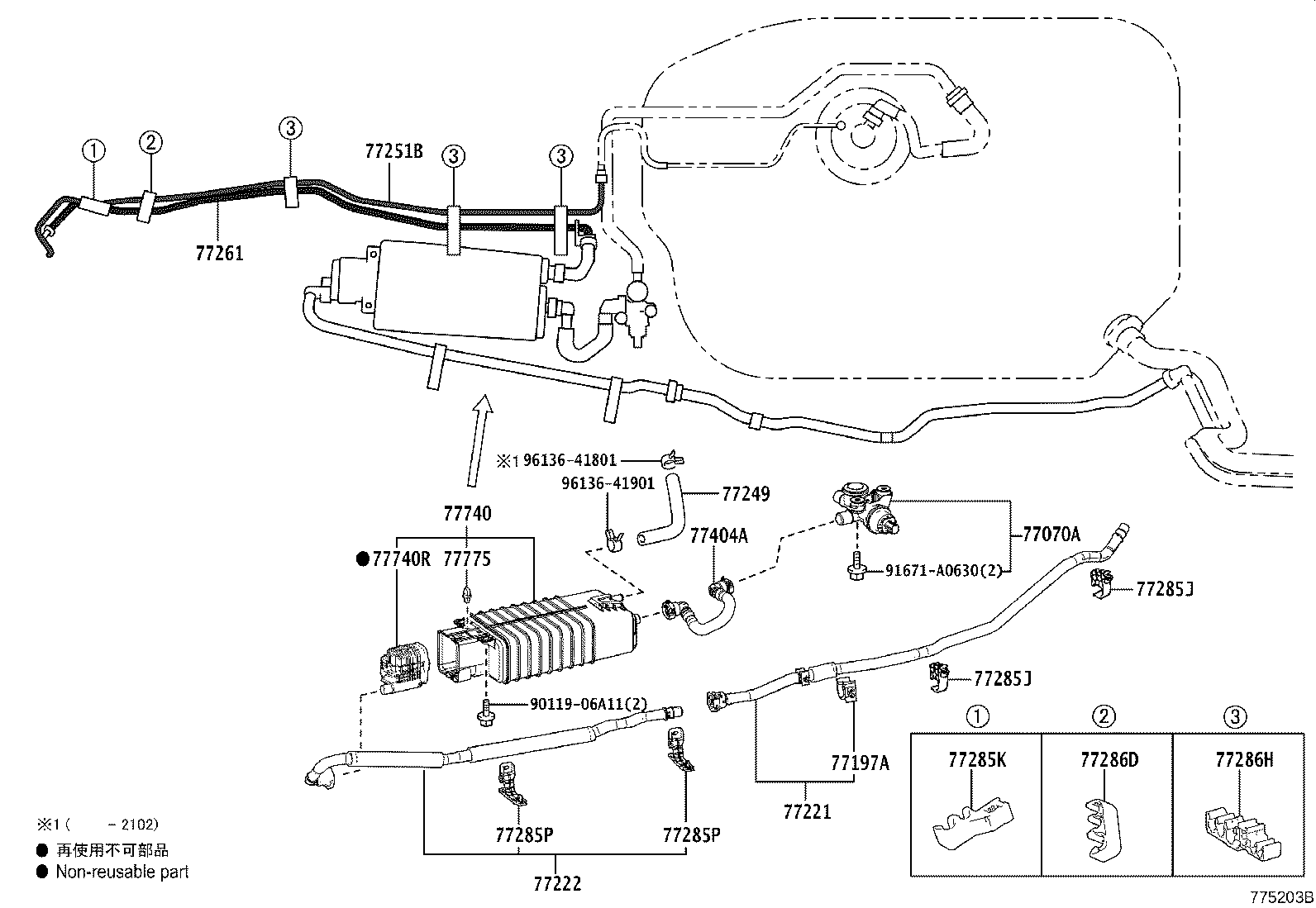

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77070A - VALVE ASSY, CLOSE TANK | ||||
| 77070-48010 |
AXUH85 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42010 |
AXUH85 |
1 | ||
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77227-42100 |
AXUH85 |
1 | ||
| 77222 - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77227-42080 |
AXUH85 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-42110 |
AXUH85 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-42260 |
AXUH85 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-42120 |
AXUH85 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42210 |
AXUH85 |
2 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42210 |
AXUH85 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42170 |
AXUH85 |
1 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-42200 |
AXUH85 |
2 | ||
| 77285P - CLAMP, NO.1(FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-42200 |
AXUH85 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-42180 |
AXUH85 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-42150 |
AXUH85 |
3 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-42160 |
AXUH85 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33240 |
AXUH85 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
AXUH85 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 91671-A0630 | ||||
| 96136-41801 | ||||
| 96136-41901 | ||||
ILLUST NO. 4 OF 4(2007- )
Click highlighted areas on diagram

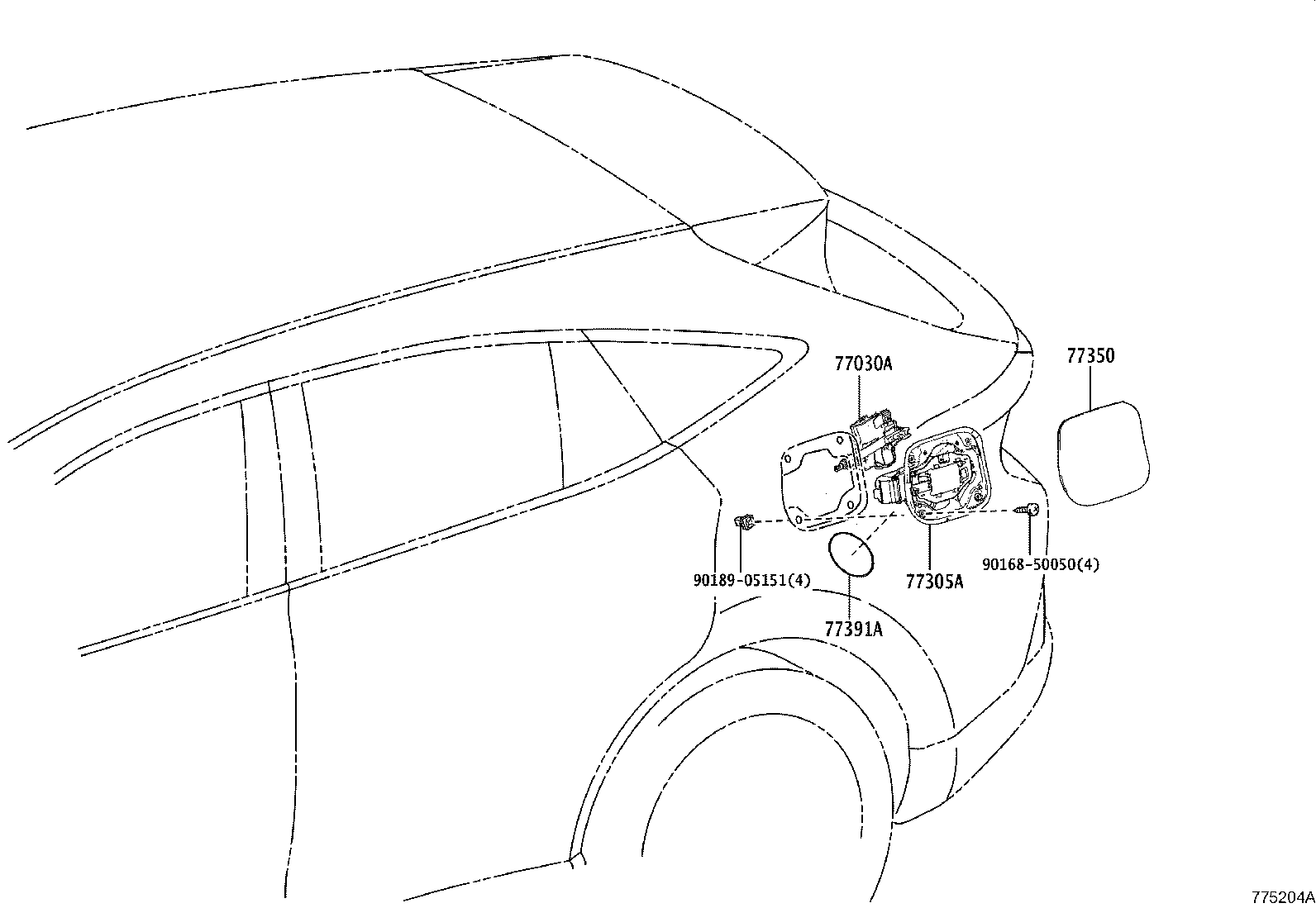

FUEL LID OPENER(ELECTRICAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48110 |
AXUH85 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-48040 |
AXUH85 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48130 |
AXUH85 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90168-50050 | ||||
| 90189-05151 | ||||
