AXUH85L-ANXMBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

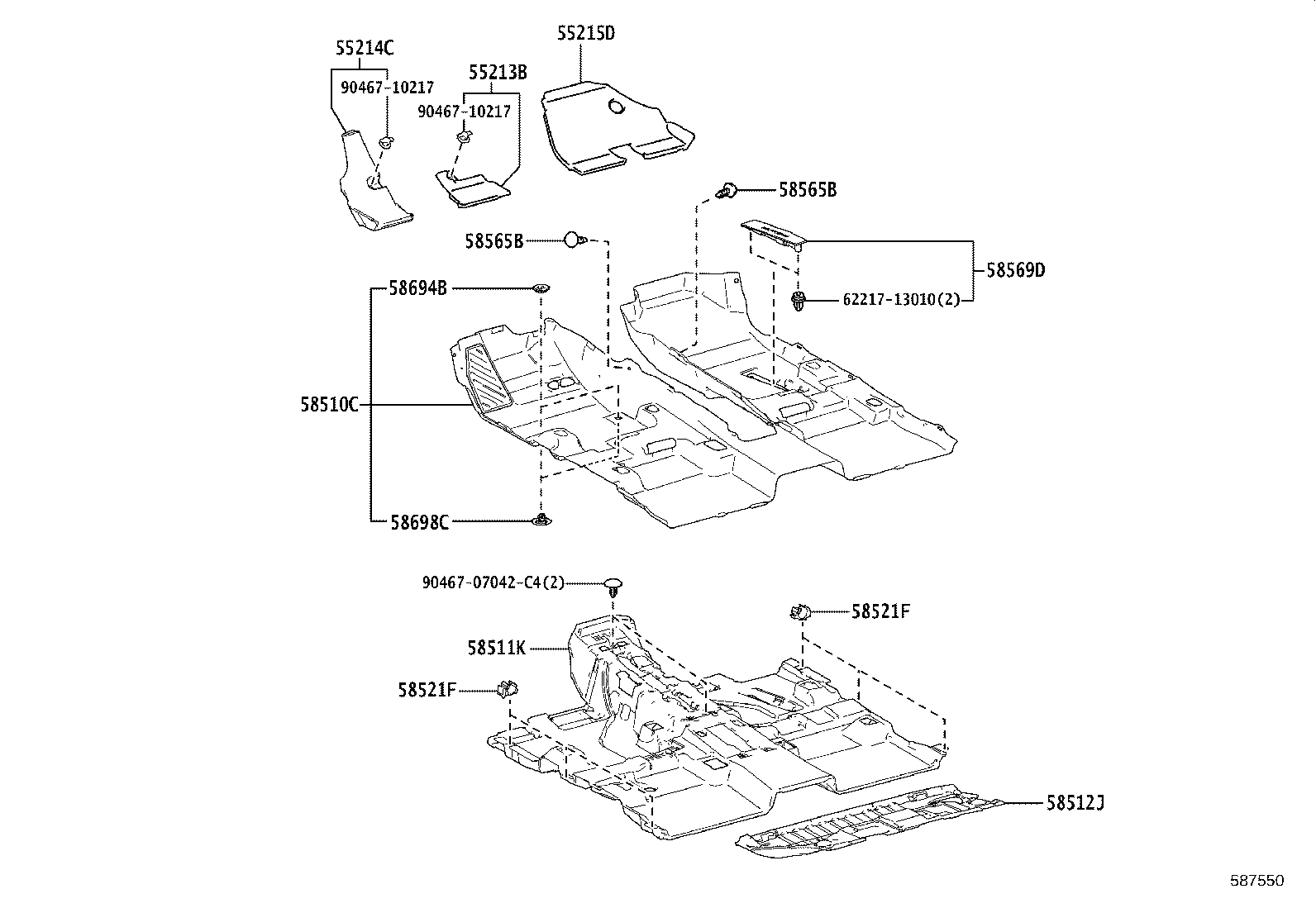

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510C 58511K 58512J 58521F 58521F 58565B 58565B 58569D 58694B 58698C 6221713010 9046707042C4 9046710217 9046710217
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-42100

AXUH85

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-42090

AXUH85

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-42030

AXUH85

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-42D00C1

AXUH85..M..USA

BLACK,TRIM1#,2#

 1
58510-42D00C1

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
58511K - MAT, FLOOR, NO.1
58511-42040

AXUH85

 1
58512J - MAT, FLOOR, NO.2
58512-42010

AXUH85

 1
58521F - HOOK, FLOOR CARPET
58521-33070

AXUH85

 6
58521F - HOOK, FLOOR CARPET
58521-33070

AXUH85

 6
58565B - CLIP
90467-05164C7

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 2
90467-05164C7

AXUH85..M..USA

BLACK,TRIM1#,2#

 2
58565B - CLIP
90467-05164C7

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 2
90467-05164C7

AXUH85..M..USA

BLACK,TRIM1#,2#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-42040C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
58569-42040C0

AXUH85..M..USA

BLACK,TRIM1#,2#

 1
58694B - PLATE, MAT SET, UPPER
58694-33010

AXUH85

 2
58698C - PLATE, MAT SET, LOWER
58698-33010

AXUH85

 2
Common parts
62217-13010
90467-07042C4
90467-10217
