AXUH85L-ANXMBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

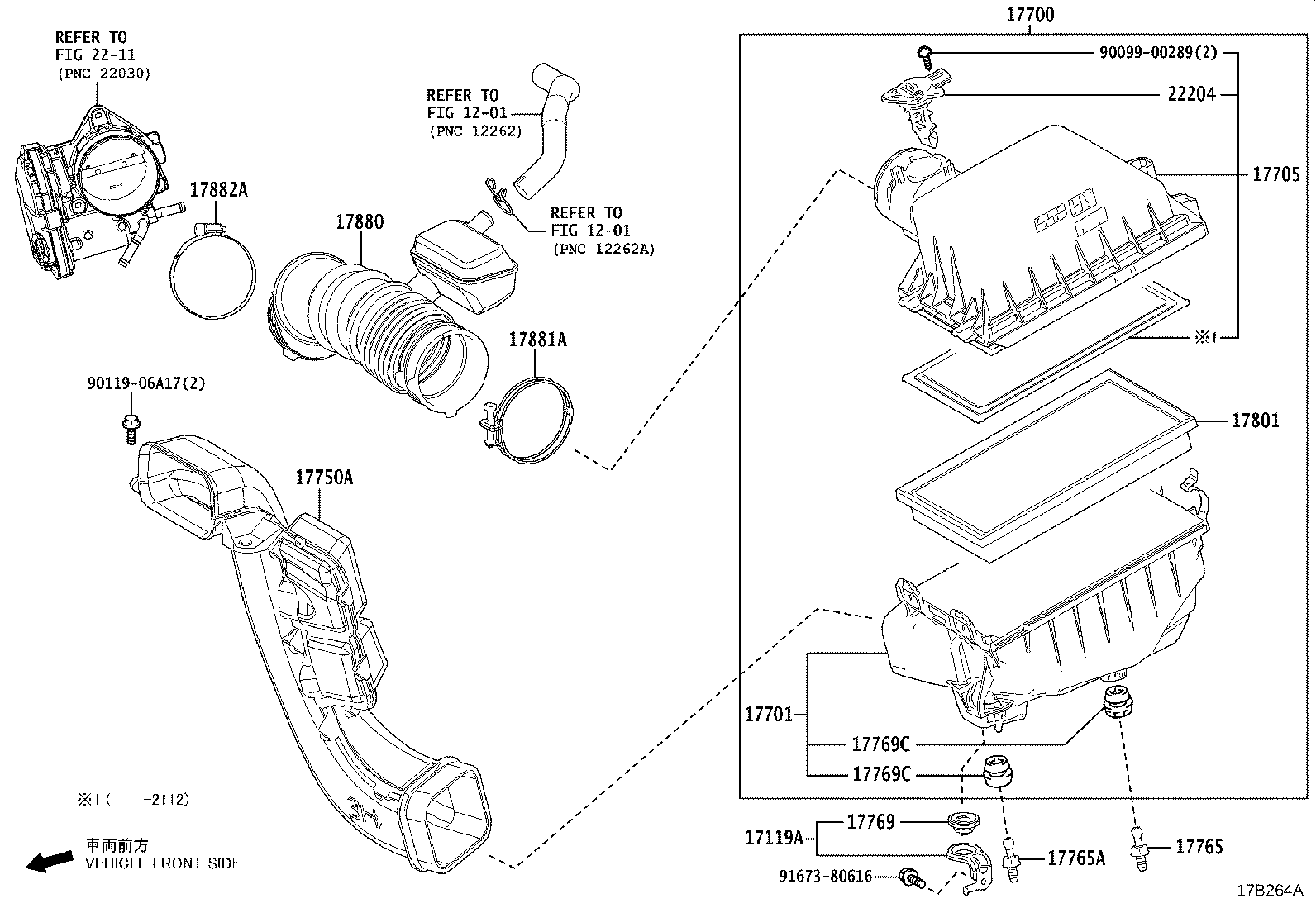

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-25010 |
A25AFXS..AXUH85 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-25111 |
A25AFXS..AXUH85 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-25081 |
A25AFXS..AXUH85 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-25080 |
A25AFXS..AXUH85 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-25040 |
A25AFXS..AXUH85 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-25010 |
A25AFXS..AXUH85 |
1 | ||
| 17765A - STAY, AIR CLEANER, NO.1 | ||||
| 17765-25010 |
A25AFXS..AXUH85 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-25020 |
A25AFXS..AXUH85 |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25030 |
A25AFXS..AXUH85 |
2 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25030 |
A25AFXS..AXUH85 |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-77050 |
A25AFXS..AXUH85 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-25040 |
A25AFXS..AXUH85 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
A25AFXS..AXUH85 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17891-31010 |
A25AFXS..AXUH85 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
A25AFXS..AXUH85 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06A17 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
