AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

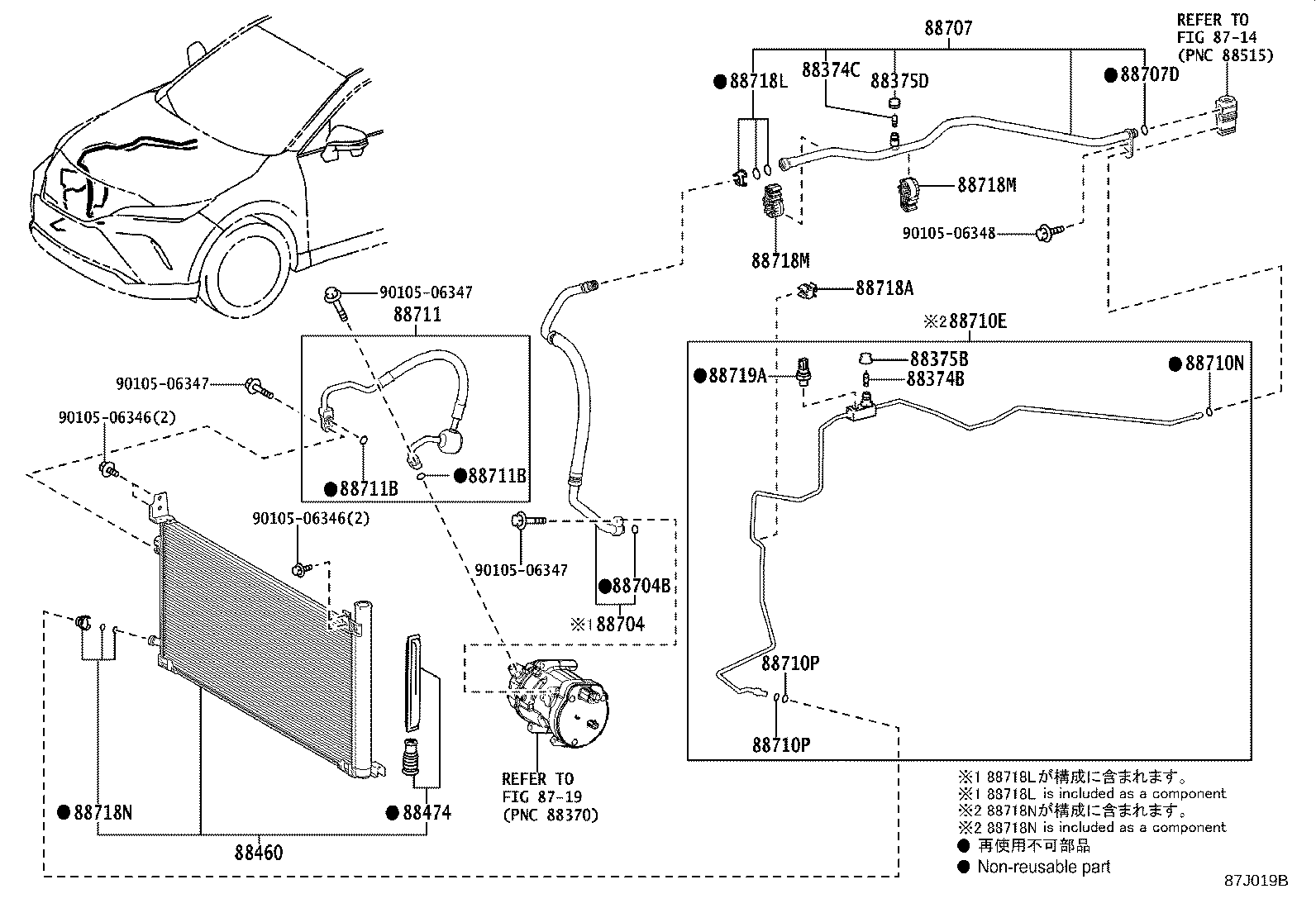

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AXUH85 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AXUH85 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30320 |
AXUH85 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30310 |
AXUH85 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-42040 |
AXUH85 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
AXUH85 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-42740 |
AXUH85 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
AXUH85 ID=13.4,OD=18.2 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-42170 |
AXUH85 |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14121 |
AXUH85 ID=13.4,OD=18.2 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-42150 |
AXUH85 |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
AXUH85 ID=6.7,OD=10.3 |
1 | ||
| 88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14158 |
AXUH85 ID=6.7,OD=10.3 |
2 | ||
| 88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14158 |
AXUH85 ID=6.7,OD=10.3 |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-42060 |
AXUH85 |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14120 |
AXUH85 |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14120 |
AXUH85 |
2 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2F110 |
AXUH85 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AXUH85 |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXUH85 |
2 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXUH85 |
2 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
AXUH85 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90105-06346 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
