AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )
Click highlighted areas on diagram

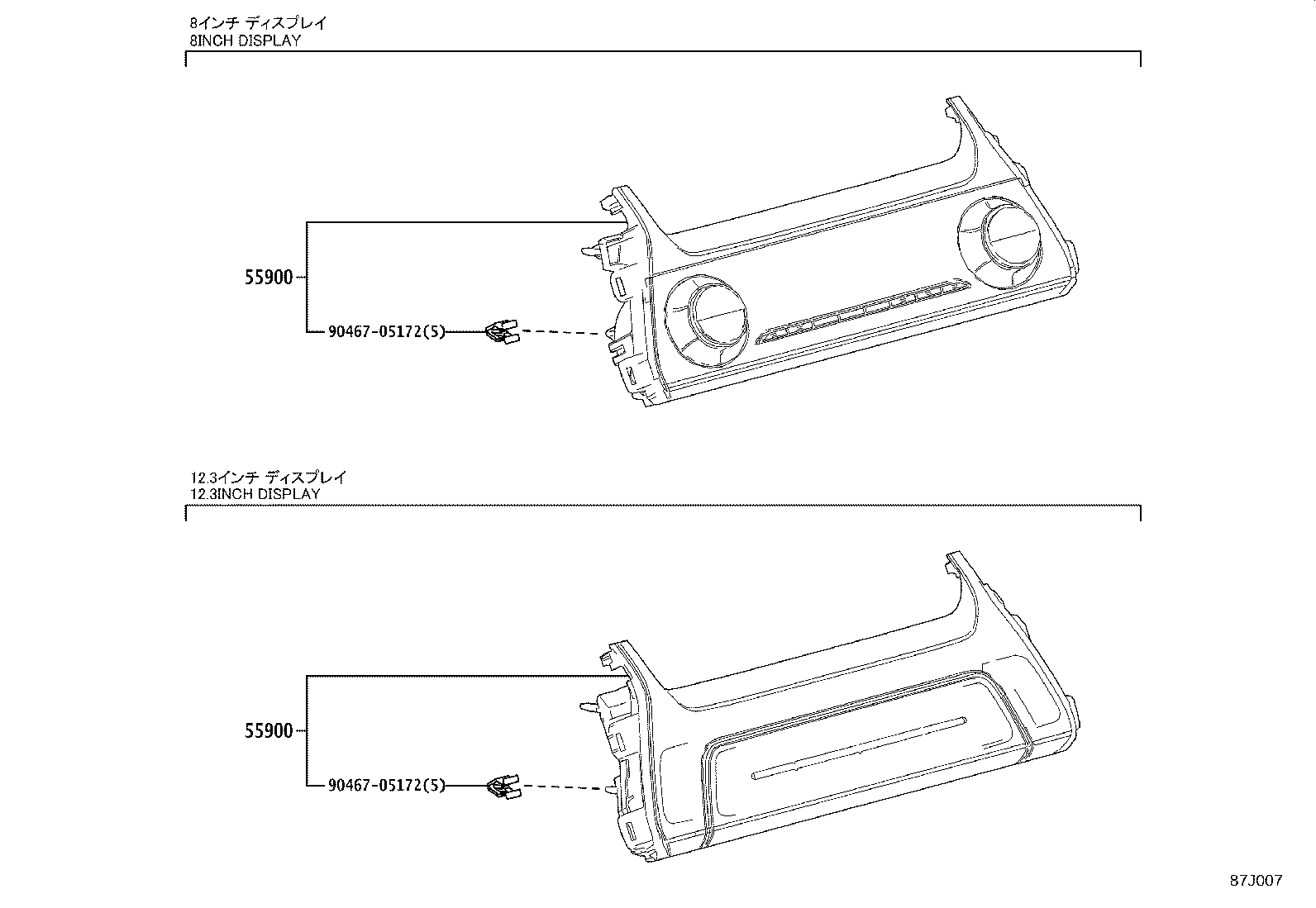

HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48720 |
AXUH85..S |
1 | ||
| 55900-48700 |
AXUH85..S..USA AUDIO-6PEAKER & 8INCH DISPLAY T1 & XM(USA) |
1 | ||
| 55900-48700 |
AXUH85..G,M |
1 | ||
| 55900-48720 |
AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48720 |
AXUH85..S |
1 | ||
| 55900-48700 |
AXUH85..S..USA AUDIO-6PEAKER & 8INCH DISPLAY T1 & XM(USA) |
1 | ||
| 55900-48700 |
AXUH85..G,M |
1 | ||
| 55900-48720 |
AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
(2007- )
Click highlighted areas on diagram

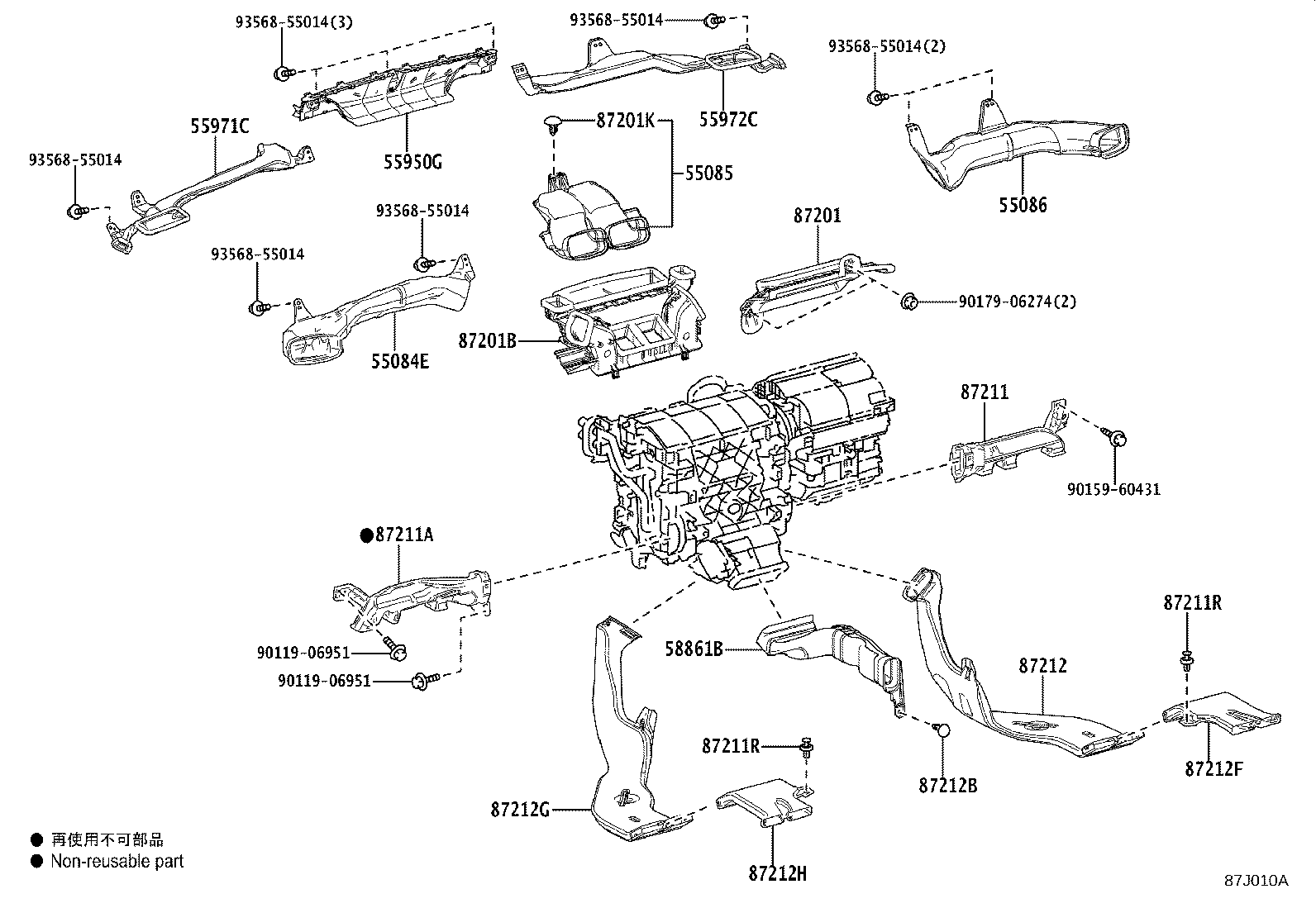

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-48040 |
AXUH85 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-48050 |
AXUH85 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-48030 |
AXUH85 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-48100 |
AXUH85 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-48120 |
AXUH85 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-48120 |
AXUH85 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-48140 |
AXUH85 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-42060 |
AXUH85 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-42120 |
AXUH85 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C9 |
AXUH85 BLACK |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-42050 |
AXUH85 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-42040 |
AXUH85 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07215 |
AXUH85 |
2 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07215 |
AXUH85 |
2 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-42080 |
AXUH85 |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-05161C9 |
AXUH85 BLACK |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-42060 |
AXUH85 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-42070 |
AXUH85 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-42030 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 93568-55014 | ||||
(2007- )
Click highlighted areas on diagram

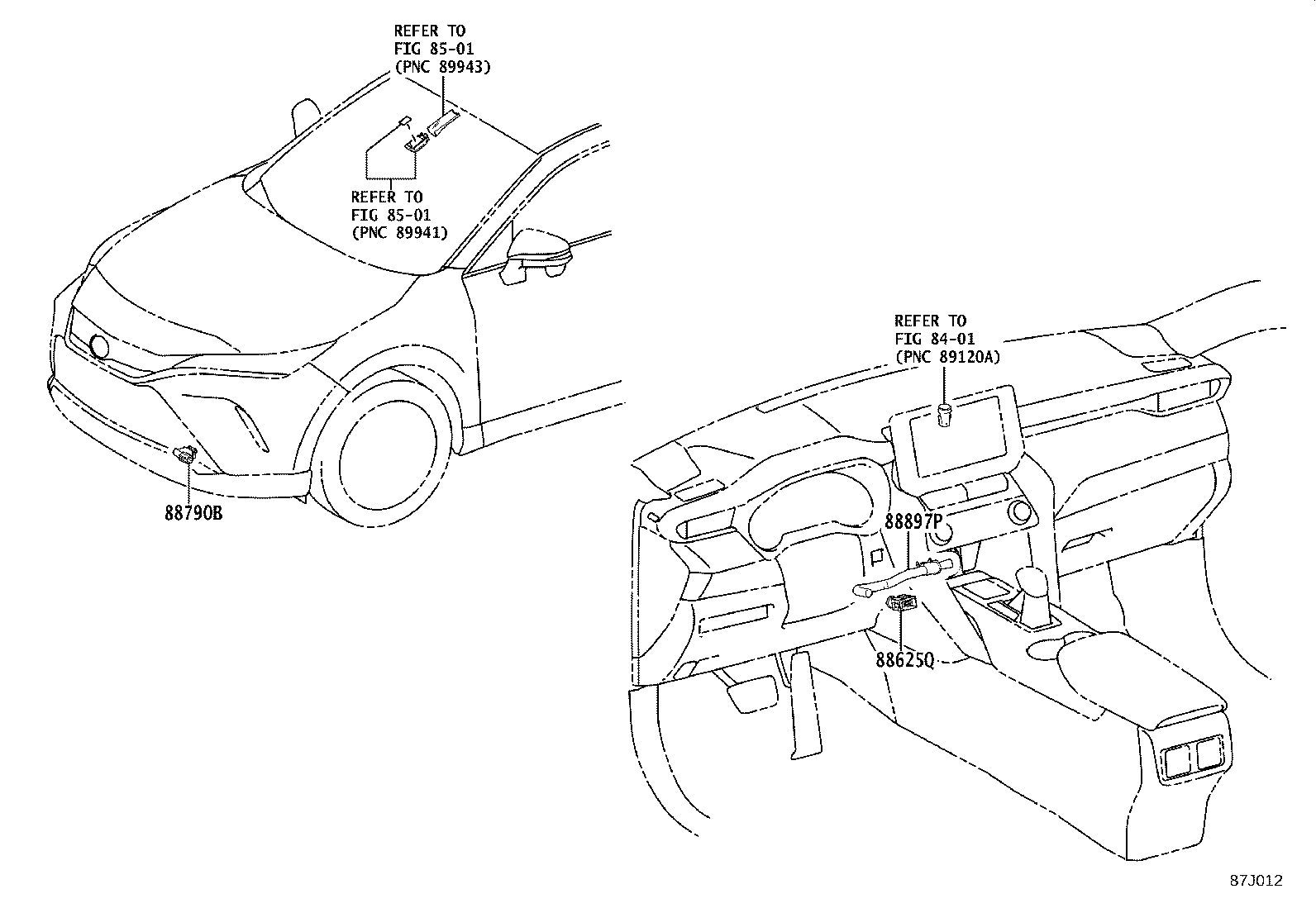

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
AXUH85 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
AXUH85 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-42070 |
AXUH85 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
