AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

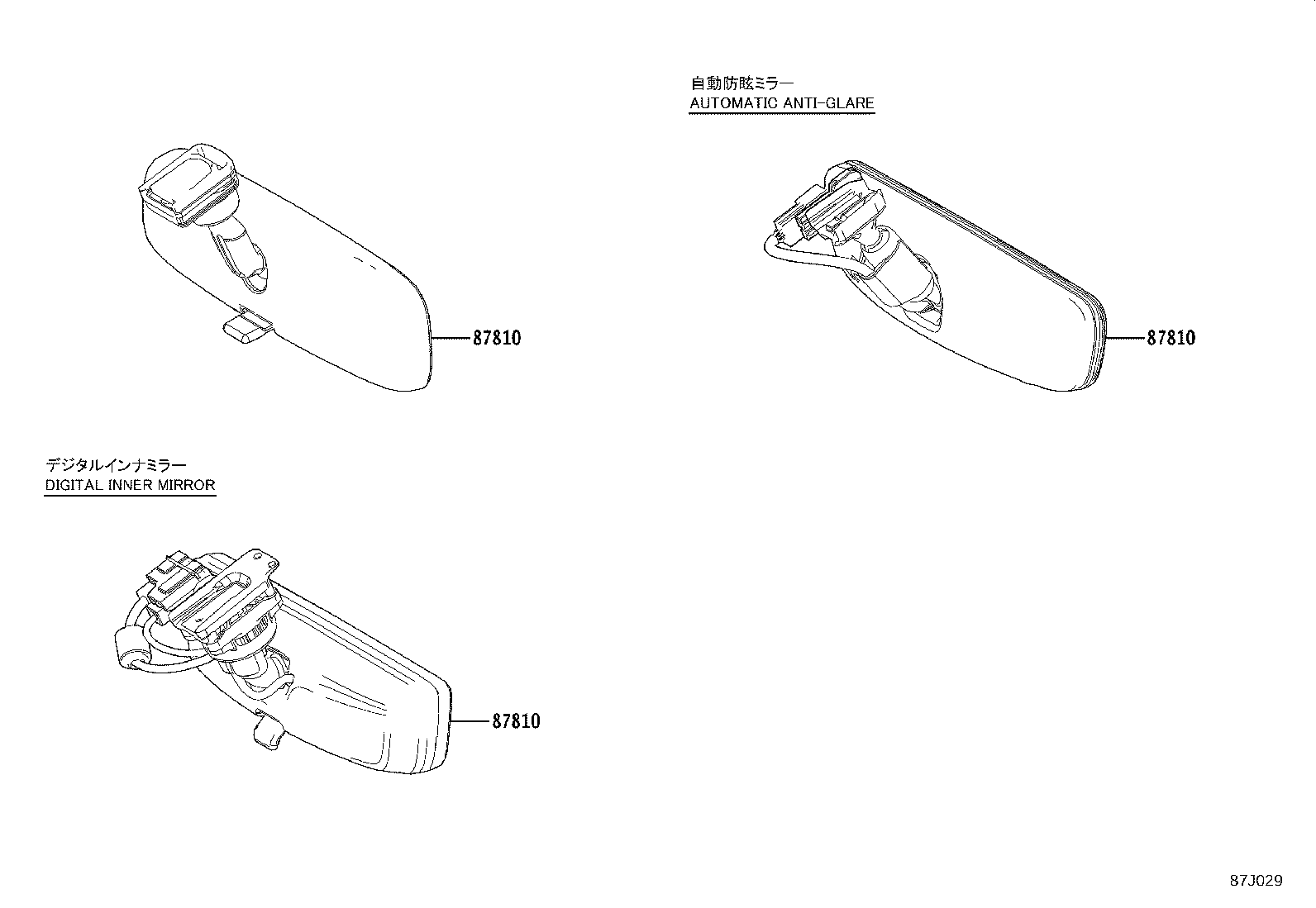

INNER REAR VIEW MIRROR

diagram 87810 87810 87810
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WZ30

AXUH85..S

 1
87810-0WW70

AXUH85..G

 1
87810-0WZ30

AXUH85..G

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WZ30

AXUH85..S

 1
87810-0WW70

AXUH85..G

 1
87810-0WZ30

AXUH85..G

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WZ30

AXUH85..S

 1
87810-0WW70

AXUH85..G

 1
87810-0WZ30

AXUH85..G

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK

 1

(2007- )

Click highlighted areas on diagram

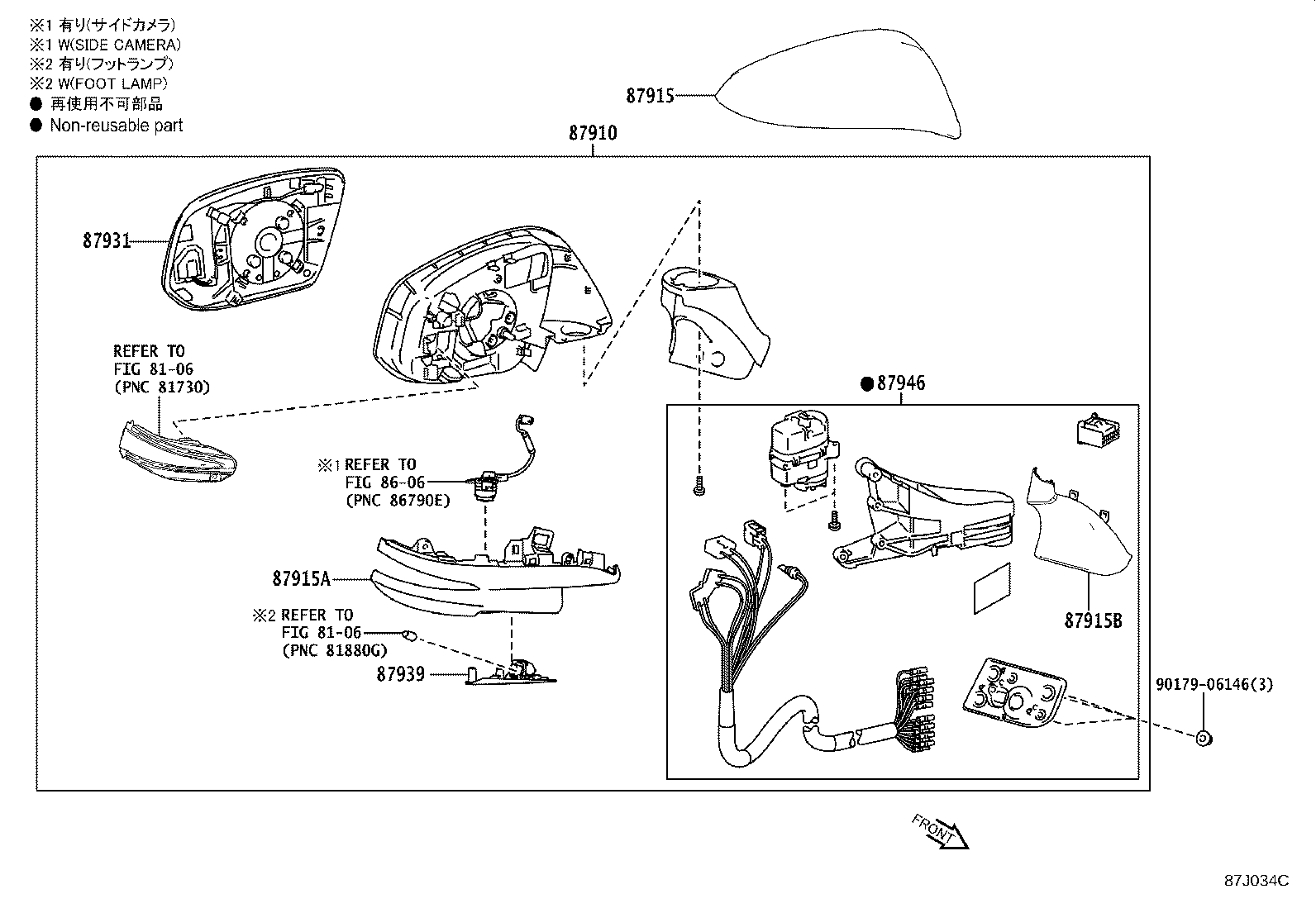

RH SIDE OUTER REAR VIEW MIRROR

diagram 8106 8106 8606 87910 87915 87915A 87915B 87931 87939 87946 9017906146
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-48B40

AXUH85

NO PAINT REQ.

 1
87910-48B50

AXUH85..S

NO PAINT REQ.,BACK MONITOR-WITH(*PVM & WASHER)

 1
87915 - COVER, OUTER MIRROR, RH
87915-48040C6

AXUH85

PRECIOUS BLACK,219

 1
87915-48040J4

AXUH85

DK. BLUE MC.,8X8

 1
87915-48040B5

AXUH85

SLATE GRAY ME.,1K4 ,1K9

 1
87915-48040C0

AXUH85

BLACK,202

 1
87915-48040A0

AXUH85

WHITE PEARL CS.,070

 1
87915-48040D5

AXUH85

RED MC.,3T3

 1
87915-48040E7

AXUH85

STEEL BLONDE ME.,4X1

 1
87915A - COVER, OUTER MIRROR, RH
8791B-35C00

AXUH85

NO PAINT REQ.

 1
87915B - COVER, OUTER MIRROR, LOWER RH
8791B-48B40

AXUH85

 1
87931 - OUTER MIRROR, RH
87931-48B40

AXUH85

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-48B20

AXUH85

 1
87939-48B30

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-48B50

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
87946-48B40

AXUH85

 1
Common parts
90179-06146
Linked diagrams
8106
8606

(2007- )

Click highlighted areas on diagram

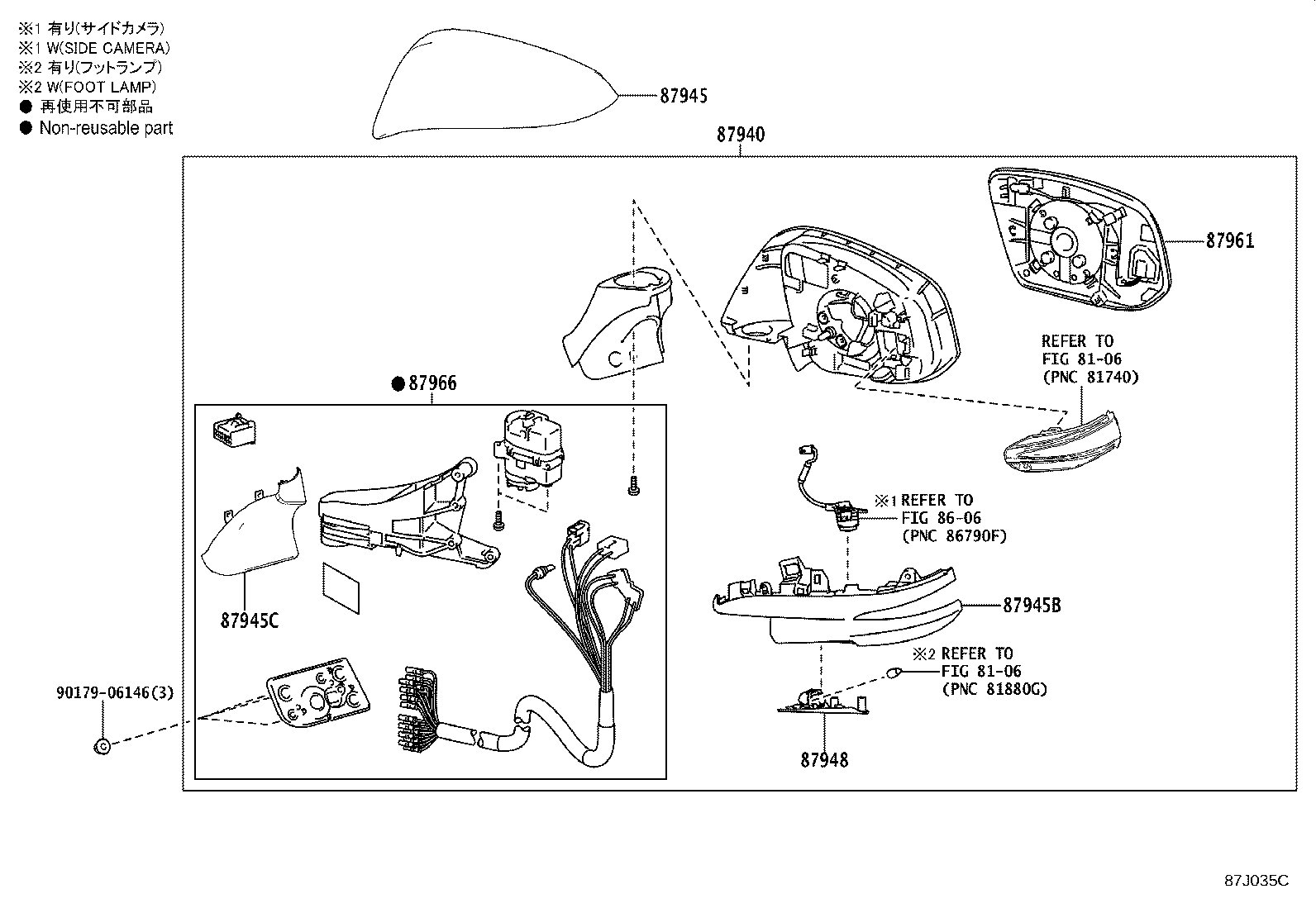

LH SIDE OUTER REAR VIEW MIRROR

diagram 8106 8106 8606 87940 87945 87945B 87945C 87948 87961 87966 9017906146
Part # Description Qty Price
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-48B40

AXUH85

NO PAINT REQ.

 1
87940-48B50

AXUH85..S

NO PAINT REQ.,BACK MONITOR-WITH(*PVM & WASHER)

 1
87945 - COVER, OUTER MIRROR, LH
87945-48040B5

AXUH85

SLATE GRAY ME.,1K4 ,1K9

 1
87945-48040D5

AXUH85

RED MC.,3T3

 1
87945-48040A0

AXUH85

WHITE PEARL CS.,070

 1
87945-48040E7

AXUH85

STEEL BLONDE ME.,4X1

 1
87945-48040J4

AXUH85

DK. BLUE MC.,8X8

 1
87945-48040C6

AXUH85

PRECIOUS BLACK,219

 1
87945-48040C0

AXUH85

BLACK,202

 1
87945B - COVER, OUTER MIRROR, LH
8794B-35B70

AXUH85

NO PAINT REQ.

 1
87945C - COVER, OUTER MIRROR, LOWER LH
8794B-48B40

AXUH85

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-48B20

AXUH85

 1
87948-48B30

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
87961 - MIRROR OUTER, LH
87961-48B40

AXUH85

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-48B40

AXUH85

 1
87966-48B50

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
Common parts
90179-06146
Linked diagrams
8106
8606
