AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

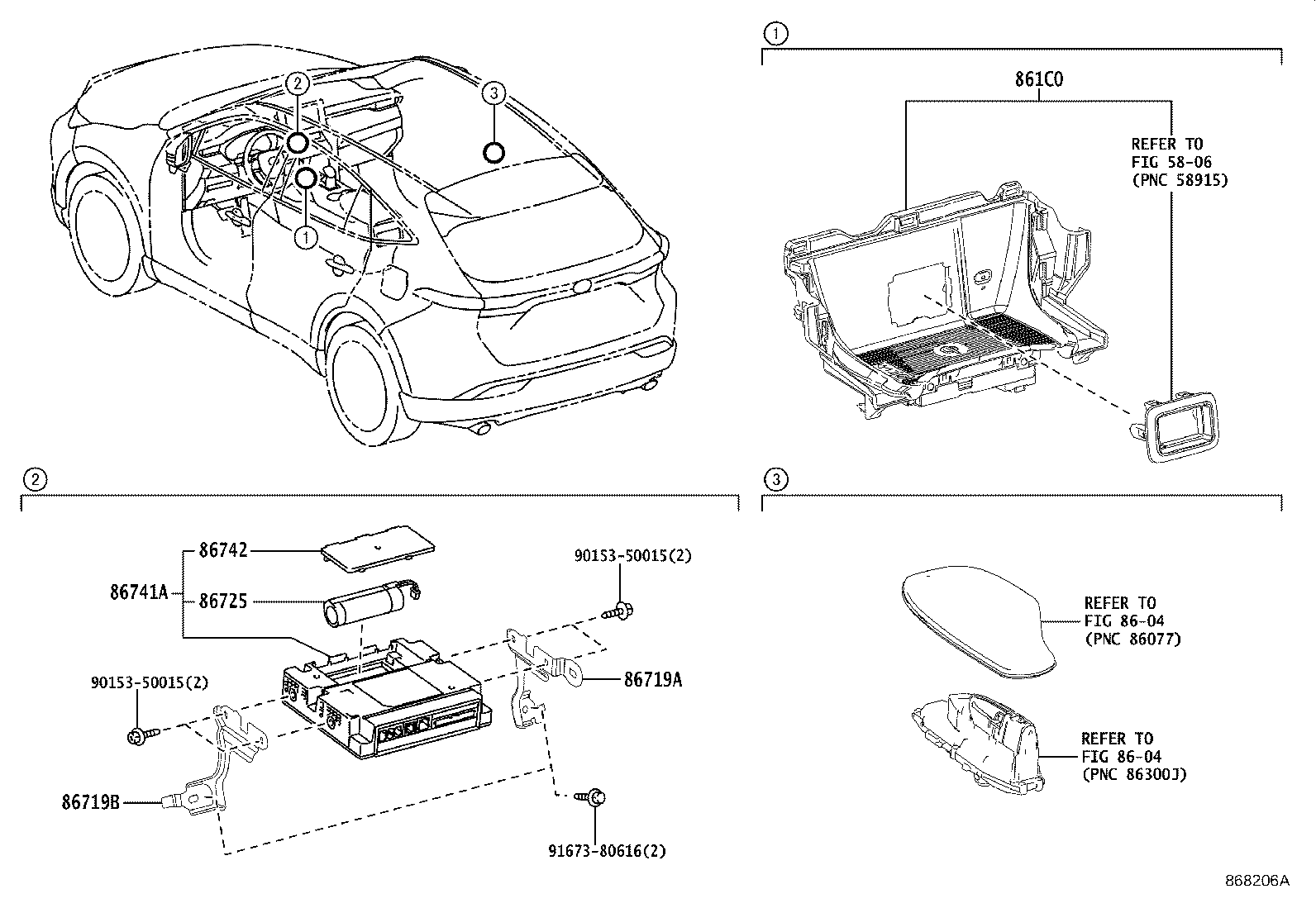

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER | ||||
| 861C0-48090 |
AXUH85 |
1 | ||
| 86719A - BRACKET, TELEPHONE NO.1 | ||||
| 86719-48180 |
AXUH85 |
1 | ||
| 86719-48180 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86719B - BRACKET, TELEPHONE NO.2 | ||||
| 86719-48210 |
AXUH85 |
1 | ||
| 86719-48210 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-06020 |
AXUH85 |
1 | ||
| 86725-06020 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86741A - TRANSCEIVER, TELEMATICS | ||||
| 86741-06092 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86741-06092 |
AXUH85 |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-06020 |
AXUH85 |
1 | ||
| 86742-06020 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8604 | ||||
