AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

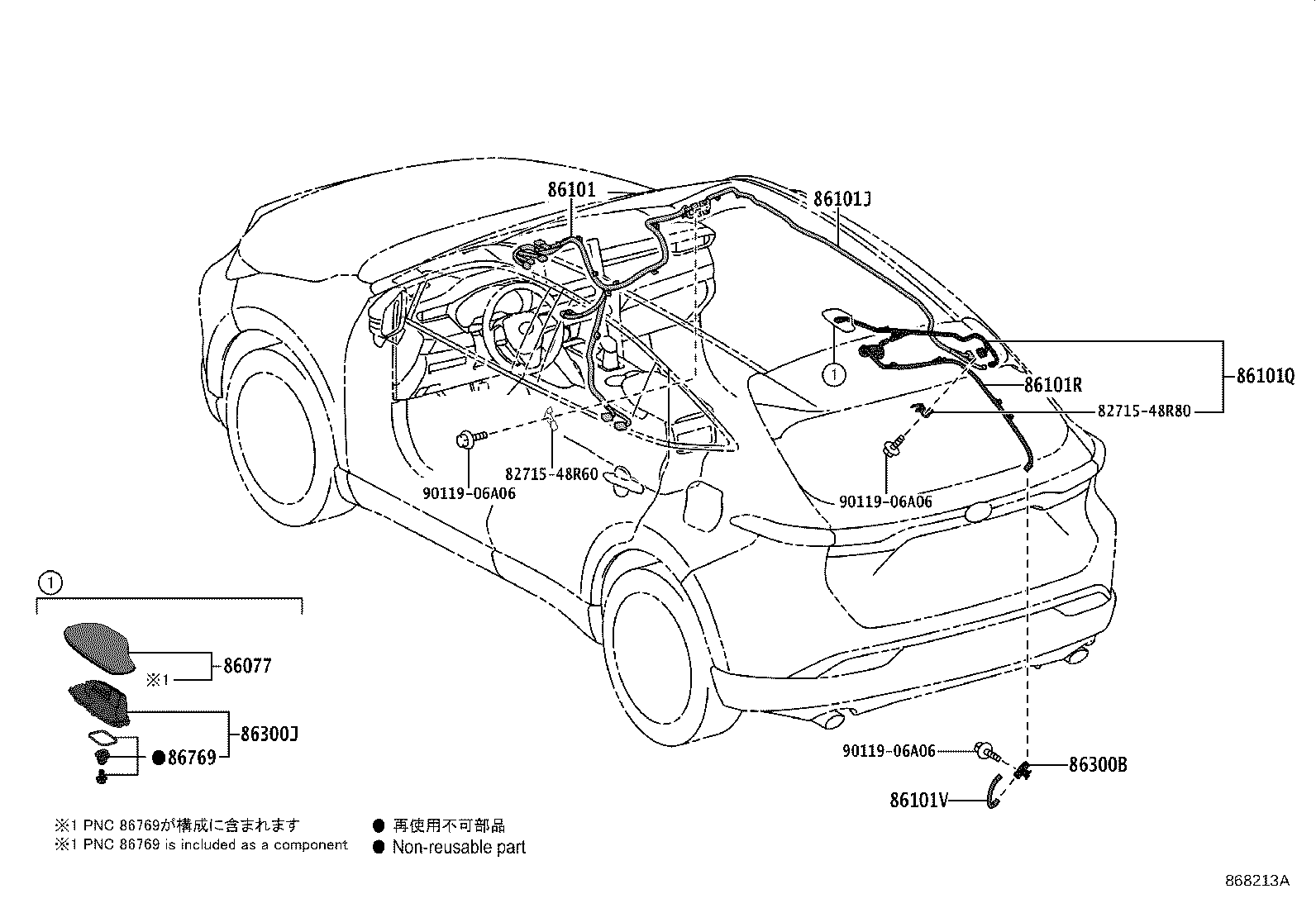

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86077 - COVER KIT, ANTENNA | ||||
| 86077-12060A1 |
AXUH85 WHITE PEARL CS.,070 |
1 | ||
| 86077-12060B2 |
AXUH85 SLATE GRAY ME.,1K4 ,1K9 |
1 | ||
| 86077-12060E0 |
AXUH85 STEEL BLONDE ME.,4X1 |
1 | ||
| 86077-12060J2 |
AXUH85 DK. BLUE MC.,8X8 |
1 | ||
| 86077-12060D2 |
AXUH85 RED MC.,3T3 |
1 | ||
| 86077-12060C4 |
AXUH85 BLACK,202 |
1 | ||
| 86077-12060C5 |
AXUH85 PRECIOUS BLACK,219 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-4D310 |
AXUH85..G,M |
1 | ||
| 86101-4D320 |
AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| 86101-4D290 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86101-4D320 |
AXUH85..S |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-4D250 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 86101-4D180 |
AXUH85 |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-4D110 |
AXUH85 |
1 | ||
| 86101R - CORD SUB-ASSY, ANTENNA, NO.5 | ||||
| 86101-4D170 |
AXUH85 |
1 | ||
| 86101V - CORD SUB-ASSY, ANTENNA, NO.6 | ||||
| 86101-4D100 |
AXUH85 |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-30C70 |
AXUH85 |
1 | ||
| 86300J - ANTENNA ASSY, ROOF | ||||
| 86760-10010 |
AXUH85 |
1 | ||
| 86769 - HOUSING, ROOF ANTENNA | ||||
| 86769-K0010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 82715-48R60 | ||||
| 82715-48R80 | ||||
| 90119-06A06 | ||||
