Toyota Venza AXUH85 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
82930B - CONDENSER ASSY, WIRING HARNESS
82930-42020	AXUH85	07/2020 - 12/2999	1
86011V - CONDENSER, RADIO SETTING
90980-04189	AXUH85	07/2020 - 12/2999	1
Common parts
90119-06A06
90179-06274

Part #	Description	Period	Qty
86011C - FILTER, NOISE
894B5-48011	AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE	07/2020 - 12/2999	1
86120 - RECEIVER ASSY, RADIO
86120-4D190	AXUH85..S..USA PANASONIC	07/2020 - 12/2999	1
86120-4D190	AXUH85..G..USA PANASONIC,AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-40020	AXUH85	07/2020 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-48280	AXUH85..S	07/2020 - 12/2999	1
86211-48280	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-48280	AXUH85..S	07/2020 - 12/2999	1
86212-48280	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-48380	AXUH85..S	07/2020 - 12/2999	1
86280-48380	AXUH85..S..USA GUAM,SAIPAN SPEC	07/2020 - 12/2999	1
86280-48380	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-48190	AXUH85..S	07/2020 - 12/2999	1
86285-48190	AXUH85..S..USA GUAM,SAIPAN SPEC	07/2020 - 12/2999	1
86285-48190	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-48140	AXUH85..S..USA GUAM,SAIPAN SPEC	07/2020 - 12/2999	1
86286-48140	AXUH85..S	07/2020 - 12/2999	1
86286-48140	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86706 - BASE SUB-ASSY, TRANSCEIVER ANTENNA
86706-48010	AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)	07/2020 - 12/2999	1
86706-48010	AXUH85..S	07/2020 - 12/2999	1
Common parts
90119-06A06
90153-50015
91673-80616
94151-80800

AXUH85L-ANXGBA (2020)

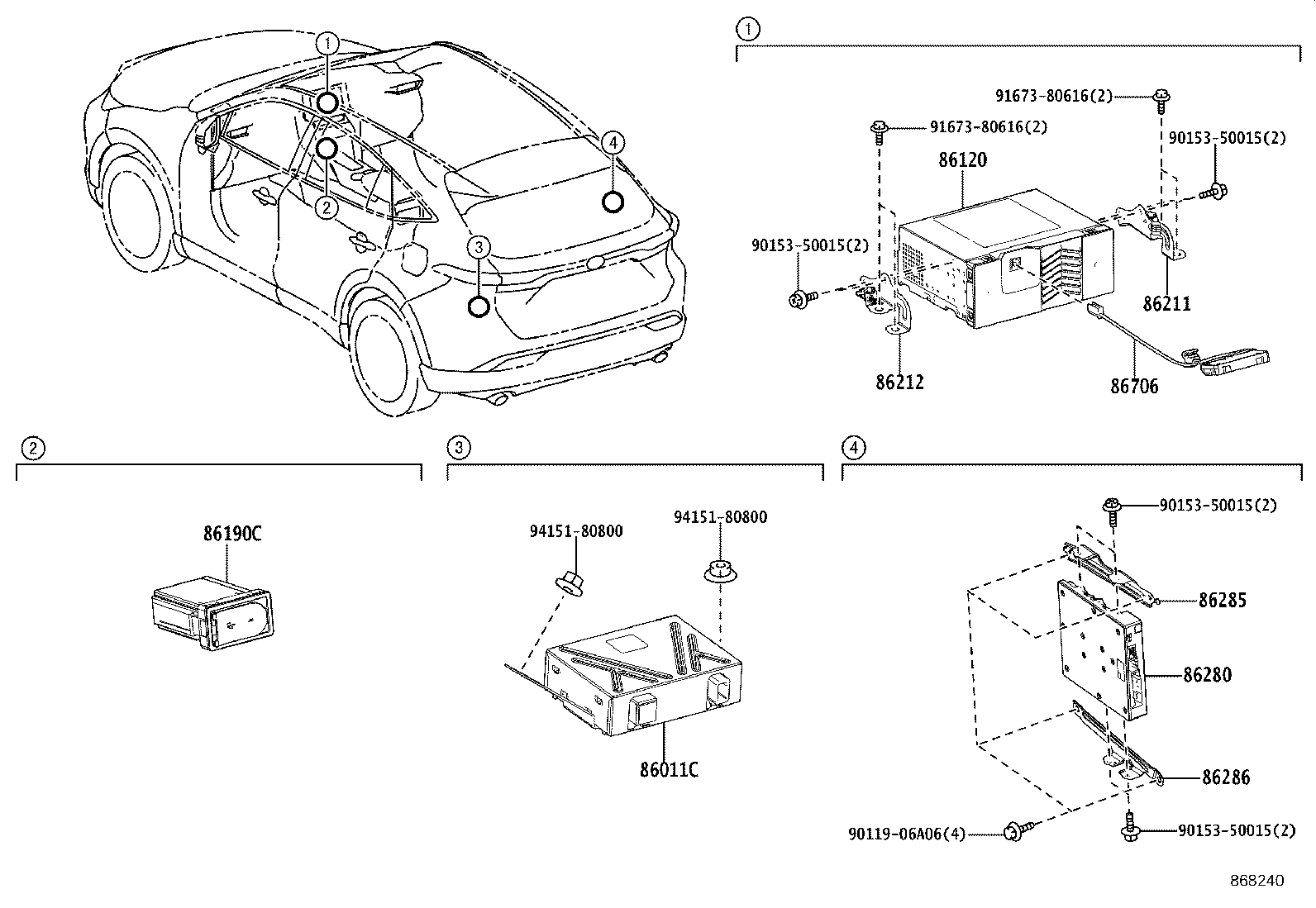

ILLUST NO. 2 OF 2(2007- )

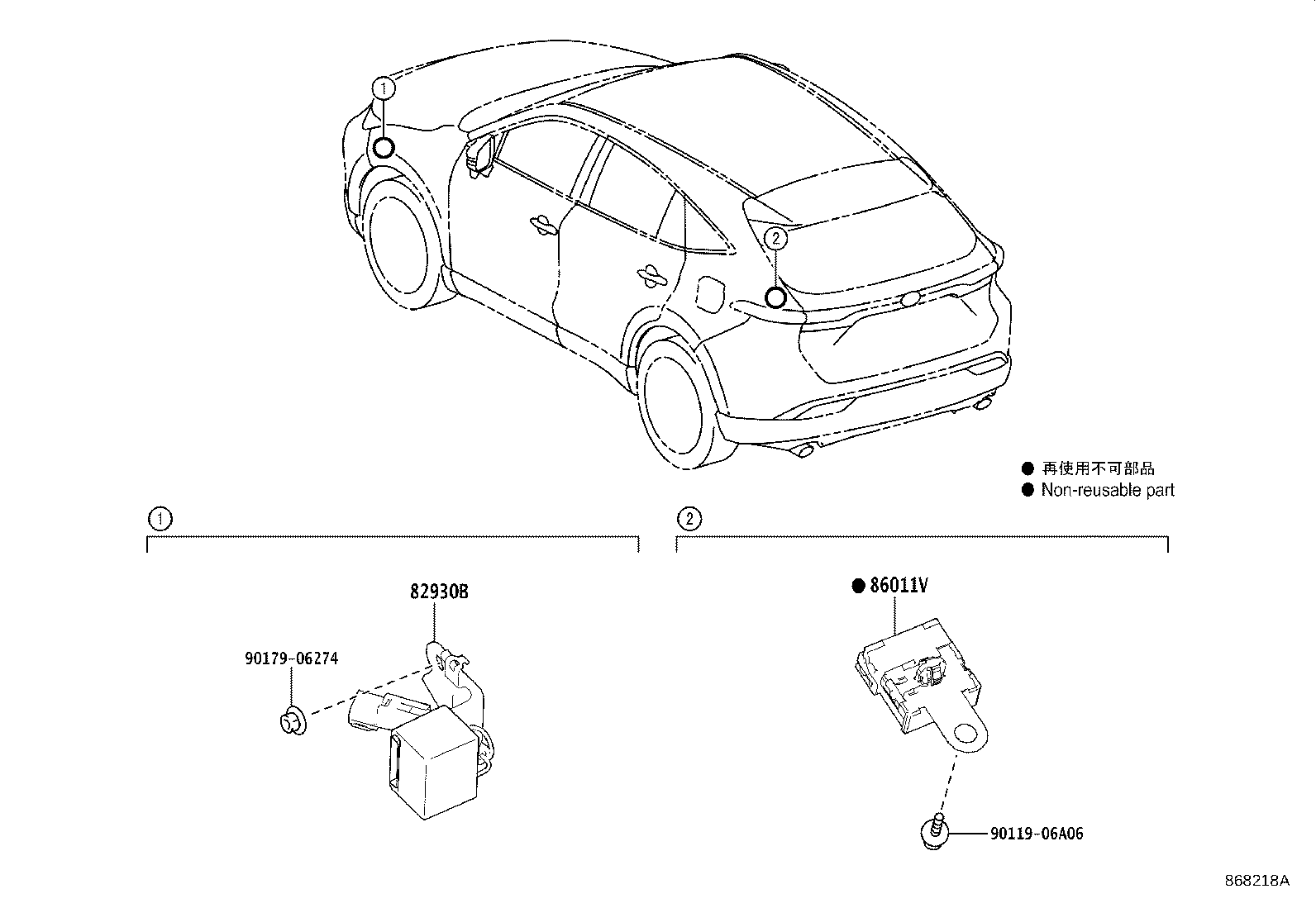

ILLUST NO. 1 OF 2(2007- )
