AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )S

Click highlighted areas on diagram

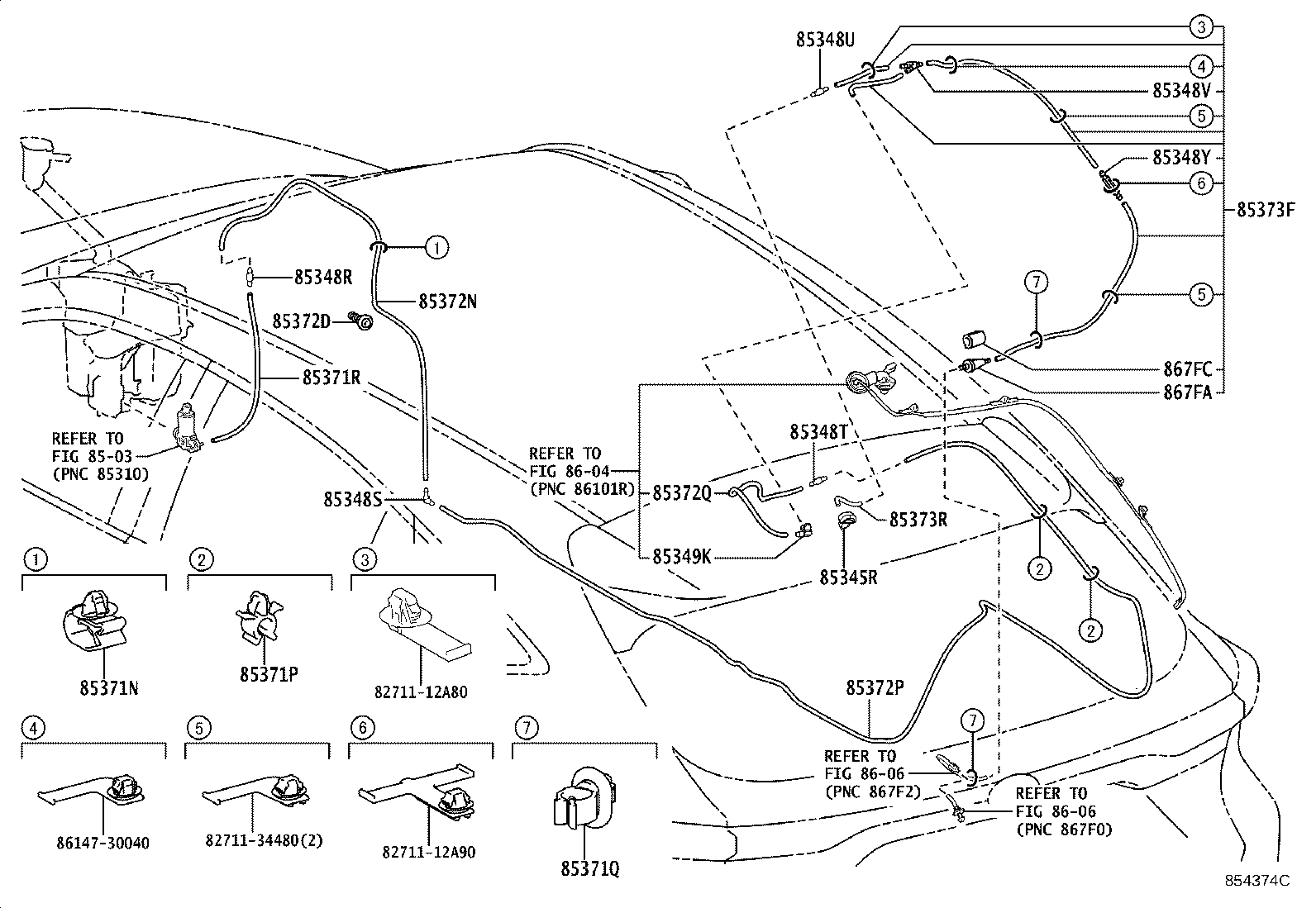

W/(BACK MONITOR)

diagram 8271112A80 8271112A90 8271134480 8503 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349K 85371N 85371P 85371Q 85371R 85372D 85372N 85372P 85372Q 85373F 85373R 8604 8606 8606 8614730040 867FA 867FC
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-48100

AXUH85

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AXUH85

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

AXUH85

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AXUH85

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85378-33410

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-32150

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-48410

AXUH85

 1
85371N - CLAMP, REAR WASHER HOSE
82711-16790

AXUH85

 1
85371P - CLAMP, REAR WASHER HOSE, NO.2
90469-07011

AXUH85

 2
85371Q - CLAMP, REAR WASHER HOSE, NO.3
82711-1A750

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62092

AXUH85

L=400

 1
85372D - GROMMET, REAR WASHER HOSE
85379-12850

AXUH85

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62184

AXUH85..S

L=1320,BACK MONITOR-WITH(*PVM & WASHER)

 1
90099-62184

AXUH85

L=1320

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62239

AXUH85

L=4035

 1
90099-62239

AXUH85..S

L=4035,BACK MONITOR-WITH(*PVM & WASHER)

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62240

AXUH85..S

L=495,BACK MONITOR-WITH(*PVM & WASHER)

 1
90099-62240

AXUH85

L=495

 1
85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
867F2-48010

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62105

AXUH85

L=90

 1
90099-62230

AXUH85..S

L=85,BACK MONITOR-WITH(*PVM & WASHER)

 1
867FA - FILTER, CLEANER HOSE
867FA-26010

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
867FC - CUSHION, CLEANER HOSE
867FC-0E020

AXUH85..S

BACK MONITOR-WITH(*PVM & WASHER)

 1
Common parts
82711-12A80
82711-12A90
82711-34480
86147-30040
Linked diagrams
8503
8604
8606

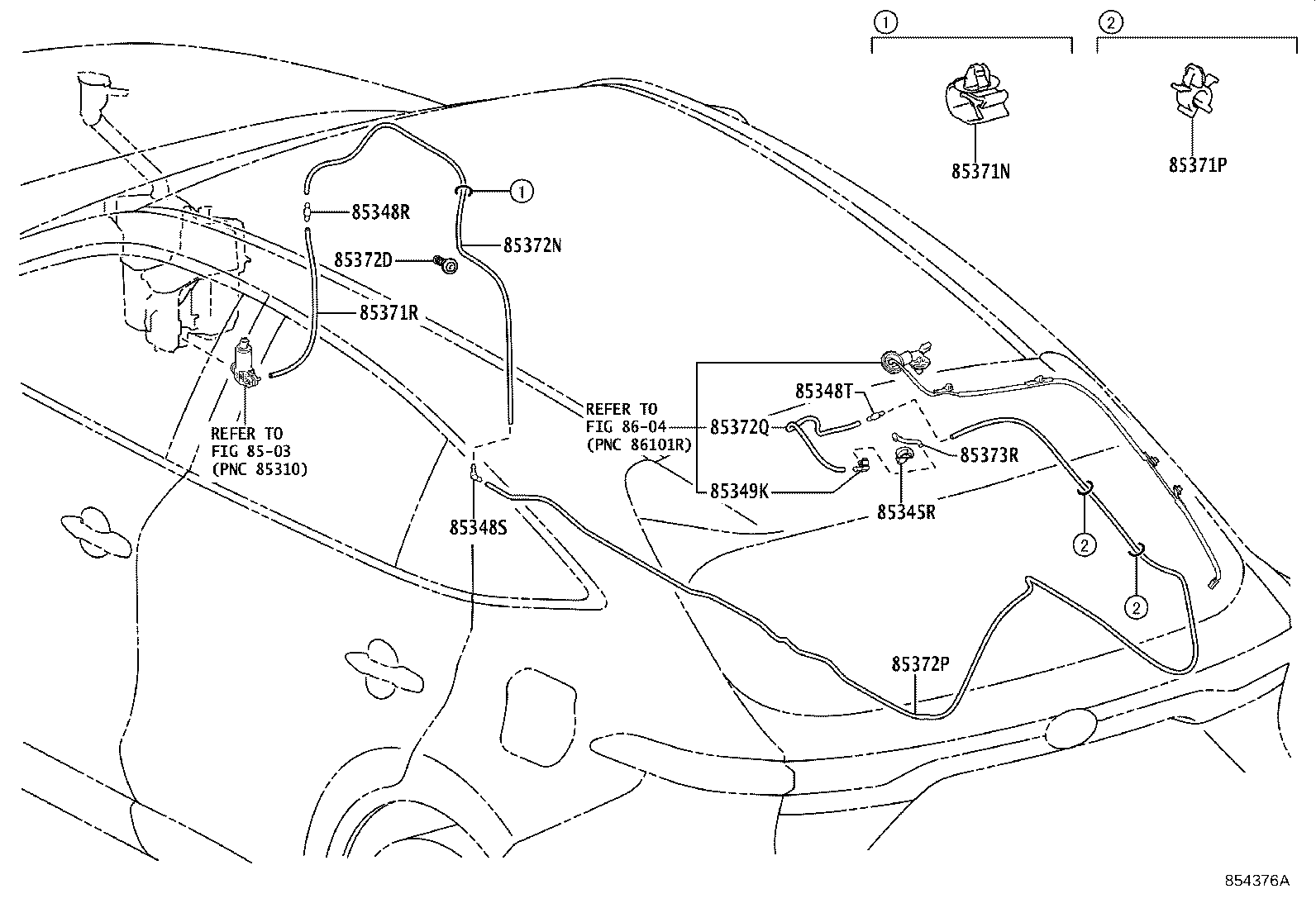

(2007- )

Click highlighted areas on diagram

diagram 8503 85345R 85348R 85348S 85348T 85349K 85371N 85371P 85371R 85372D 85372N 85372P 85372Q 85373R 8604
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-48100

AXUH85

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AXUH85

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

AXUH85

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AXUH85

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-48410

AXUH85

 1
85371N - CLAMP, REAR WASHER HOSE
82711-16790

AXUH85

 1
85371P - CLAMP, REAR WASHER HOSE, NO.2
90469-07011

AXUH85

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62092

AXUH85

L=400

 1
85372D - GROMMET, REAR WASHER HOSE
85379-12850

AXUH85

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62184

AXUH85..S

L=1320,BACK MONITOR-WITH(*PVM & WASHER)

 1
90099-62184

AXUH85

L=1320

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62239

AXUH85

L=4035

 1
90099-62239

AXUH85..S

L=4035,BACK MONITOR-WITH(*PVM & WASHER)

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62240

AXUH85..S

L=495,BACK MONITOR-WITH(*PVM & WASHER)

 1
90099-62240

AXUH85

L=495

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62105

AXUH85

L=90

 1
90099-62230

AXUH85..S

L=85,BACK MONITOR-WITH(*PVM & WASHER)

 1
Linked diagrams
8503
8604
