AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

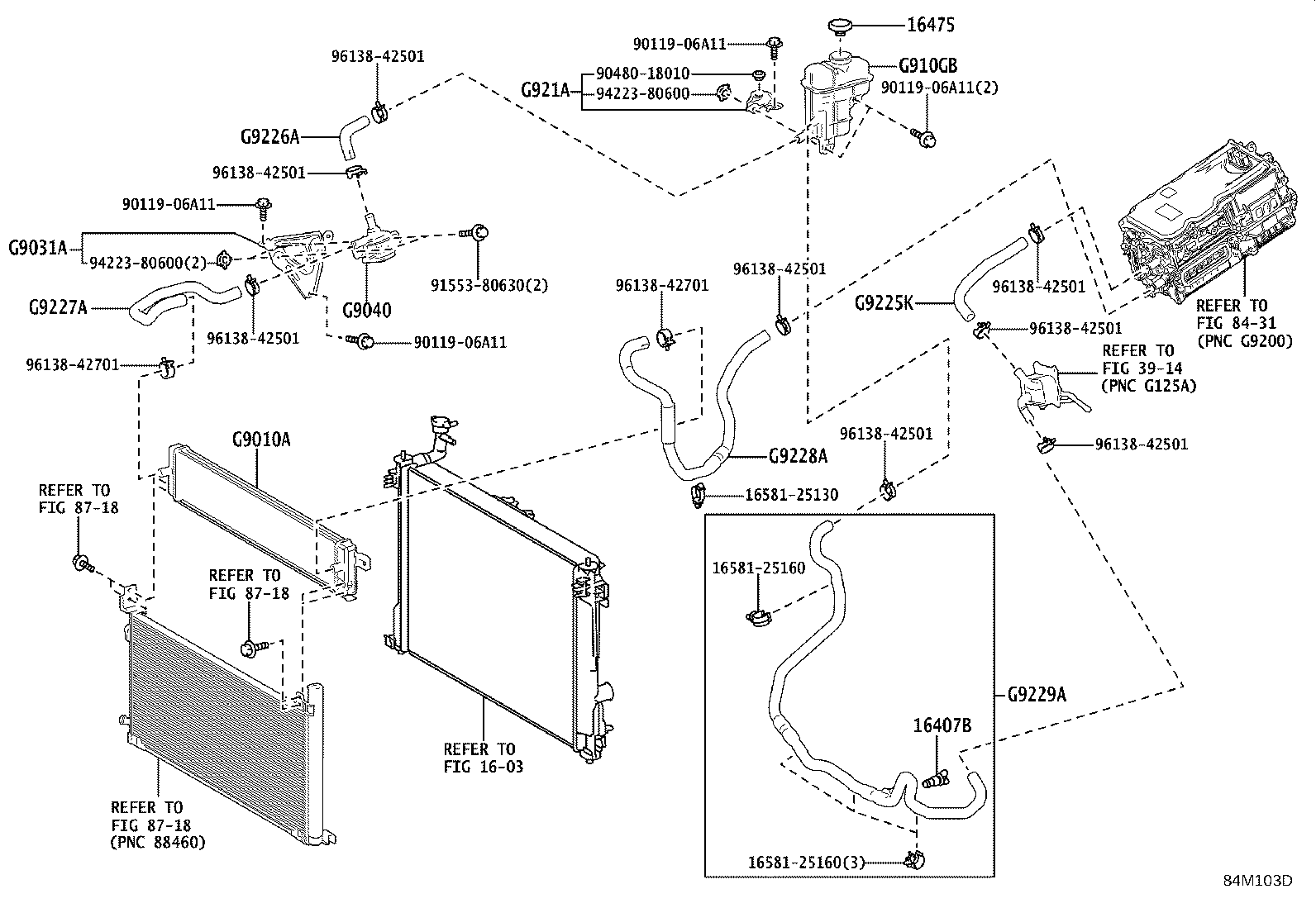

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16407B - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
A25AFXS..AXUH85 |
1 | ||
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
A25AFXS..AXUH85 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-42030 |
AXUH85 |
1 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9141-42010 |
AXUH85 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-42010 |
AXUH85 |
1 | ||
| G910GB - TANK SUB-ASSY, INVERTER RESERVE W/O CAP | ||||
| G910G-42010 |
AXUH85 |
1 | ||
| G921A - BRACKET, INVERTER RESERVE TANK, NO.1 | ||||
| G91H2-42010 |
AXUH85 |
1 | ||
| G9225K - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-42010 |
AXUH85 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-42010 |
AXUH85 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-42010 |
AXUH85 |
1 | ||
| G9228A - HOSE, INVERTER COOLING, NO.4 | ||||
| G9228-42030 |
AXUH85 |
1 | ||
| G9229A - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-42020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 16581-25130 | ||||
| 16581-25160 | ||||
| 90119-06A11 | ||||
| 90480-18010 | ||||
| 91553-80630 | ||||
| 94223-80600 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3914 | ||||
| 8431 | ||||
| 8718 | ||||
