AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

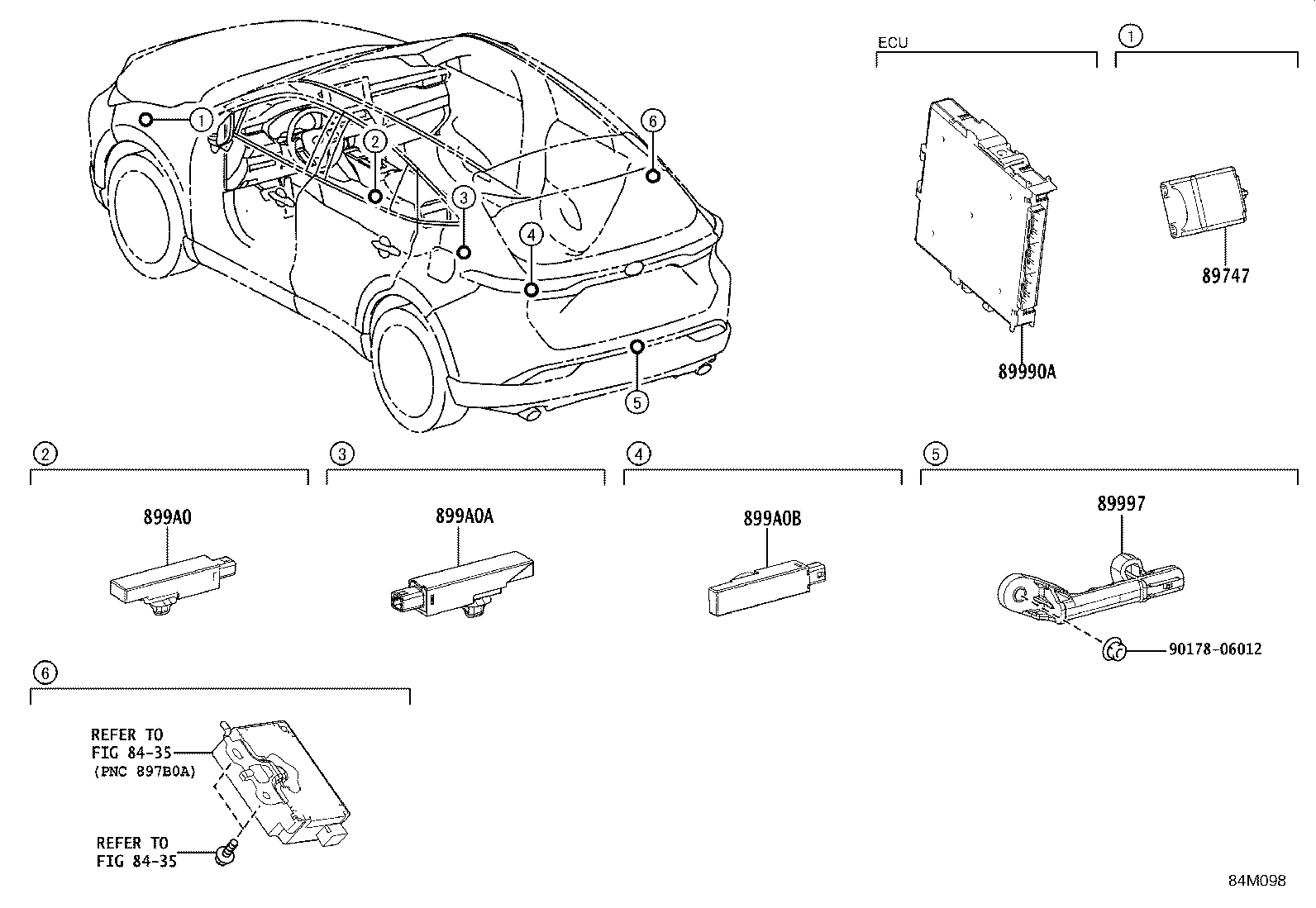

Click highlighted areas on diagram

diagram 8435 8435 89747 89990A 89997 899A0 899A0A 899A0B 9017806012
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AXUH85

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-48030

AXUH85..(G,S)..USA

GUAM,SAIPAN SPEC

 1
899H0-48030

AXUH85..(G,S)..USA

PUERTO RICO SPEC

 1
899H0-48040

AXUH85..G,S

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

AXUH85

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-12130

AXUH85

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-12130

AXUH85

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-12130

AXUH85

 1
Common parts
90178-06012
Linked diagrams
8435
