AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

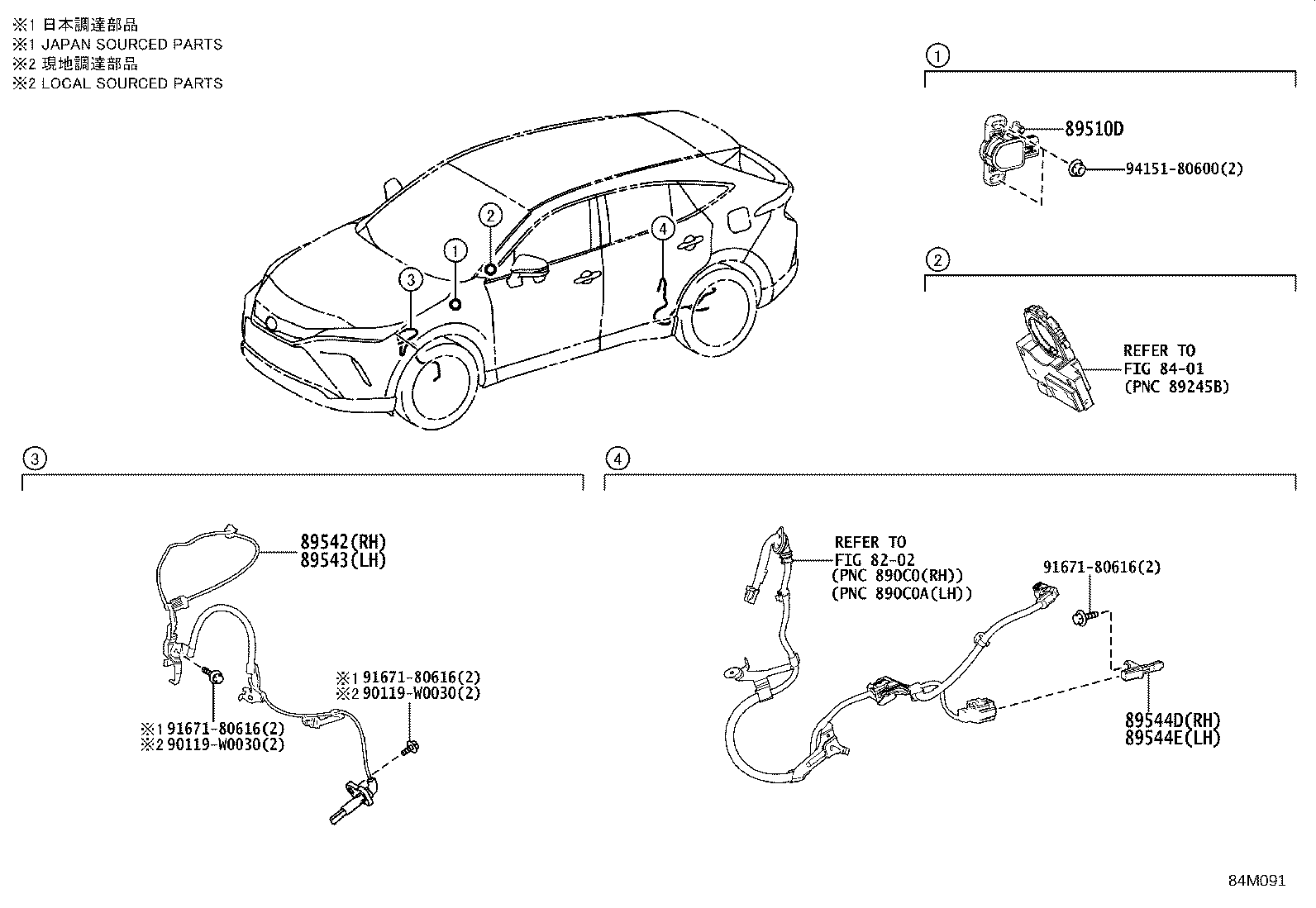

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-47040 |
AXUH85 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-42070 |
AXUH85 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-42070 |
AXUH85 |
1 | ||
| 89544D - SENSOR, SKID CONTROL, REAR RH | ||||
| 89544-0R020 |
AXUH85 |
1 | ||
| 89544E - SENSOR, SKID CONTROL, REAR LH | ||||
| 89544-0R020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
