AXUH85L-ANXGBA (2020)
Toyota Venza
ILLUST NO. 2 OF10(2007- )

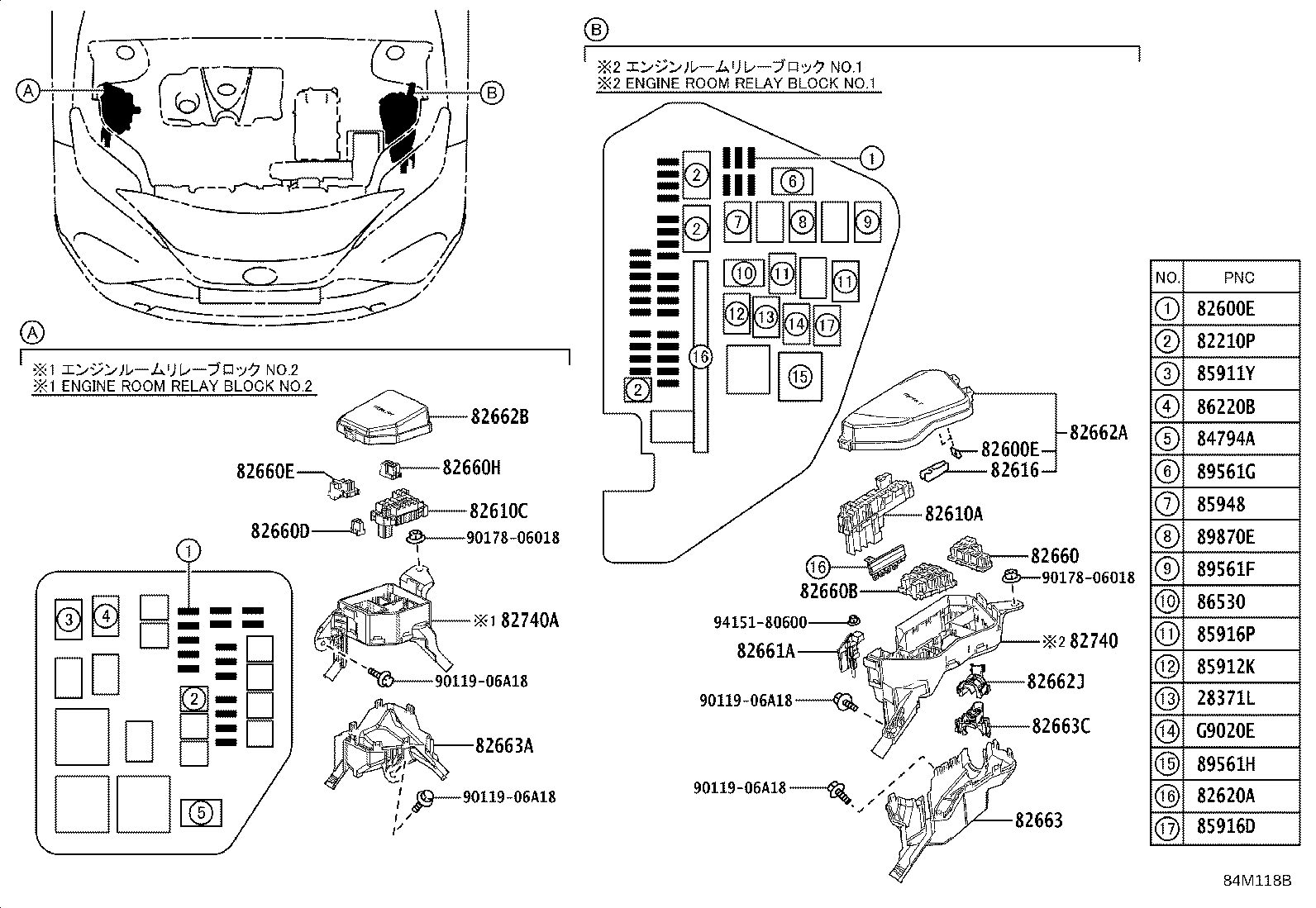

ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371L - RELAY, IGP | ||||
| 90987-02027 |
A25AFXS..AXUH85 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08298 |
AXUH85 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08302 |
AXUH85 50A-30A-50A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
AXUH85 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXUH85 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
AXUH85 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXUH85 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AXUH85 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
AXUH85 25A,MINI FUSE |
1 | ||
| 90982-09025 |
AXUH85 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
AXUH85 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXUH85 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
AXUH85 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXUH85 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
AXUH85 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
AXUH85 25A,MINI FUSE |
1 | ||
| 90982-09025 |
AXUH85 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-48050 |
AXUH85 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-42090 |
AXUH85 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXUH85 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48280 |
AXUH85 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42100 |
AXUH85 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-42110 |
AXUH85 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
AXUH85 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
AXUH85 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
AXUH85 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-42060 |
AXUH85 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48580 |
AXUH85 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-48600 |
AXUH85 |
1 | ||
| 82662J - COVER, RELAY BLOCK, UPPER, NO.5 | ||||
| 82662-42730 |
AXUH85 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42190 |
AXUH85 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42170 |
AXUH85 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42220 |
AXUH85 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42080 |
AXUH85 |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-42120 |
AXUH85 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
AXUH85..USA COLD AREA SPEC |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90987-02027 |
AXUH85..G,S |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
AXUH85 |
2 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| 86220B - RELAY, INVERTER, NO.2 | ||||
| 90987-02027 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02025 |
AXUH85 |
1 | ||
| 89870E - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| G9020E - RELAY, HYBRID WATER PUMP | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06018 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF10(2007- )

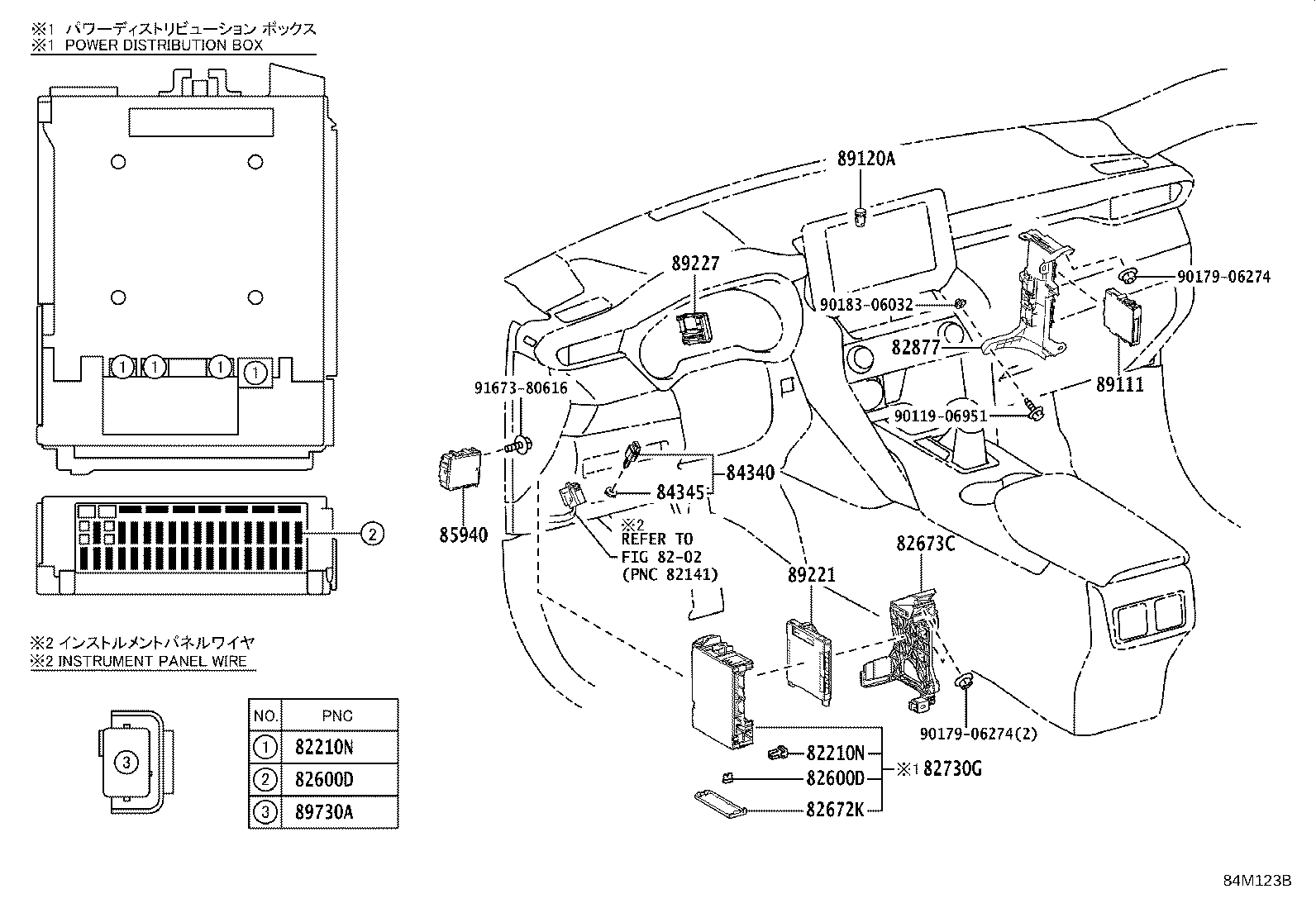

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08296 |
AXUH85 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
AXUH85 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
AXUH85 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 90982-08306 |
AXUH85 30A,TERM.:FEMALE,PNK,MARK 32V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08296 |
AXUH85 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
AXUH85 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
AXUH85 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 90982-08306 |
AXUH85 30A,TERM.:FEMALE,PNK,MARK 32V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXUH85 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
AXUH85 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AXUH85 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
AXUH85 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXUH85 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
AXUH85 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AXUH85 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXUH85 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
AXUH85 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AXUH85 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
AXUH85 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXUH85 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
AXUH85 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
AXUH85 25A,MINI FUSE |
1 | ||
| 82672K - COVER, POWER DISTRIBUTION BOX | ||||
| 82672-48420 |
AXUH85 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42310 |
AXUH85 |
1 | ||
| 82730G - BOX ASSY, POWER DISTRIBUTION | ||||
| 82730-48Q50 |
AXUH85 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-42060 |
AXUH85 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49105 |
AXUH85 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AXUH85 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42040 |
AXUH85 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-48270 |
AXUH85 *614 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AXUH85 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-48610 |
AXUH85..G,S *614 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-48070 |
AXUH85 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF10(2007- )

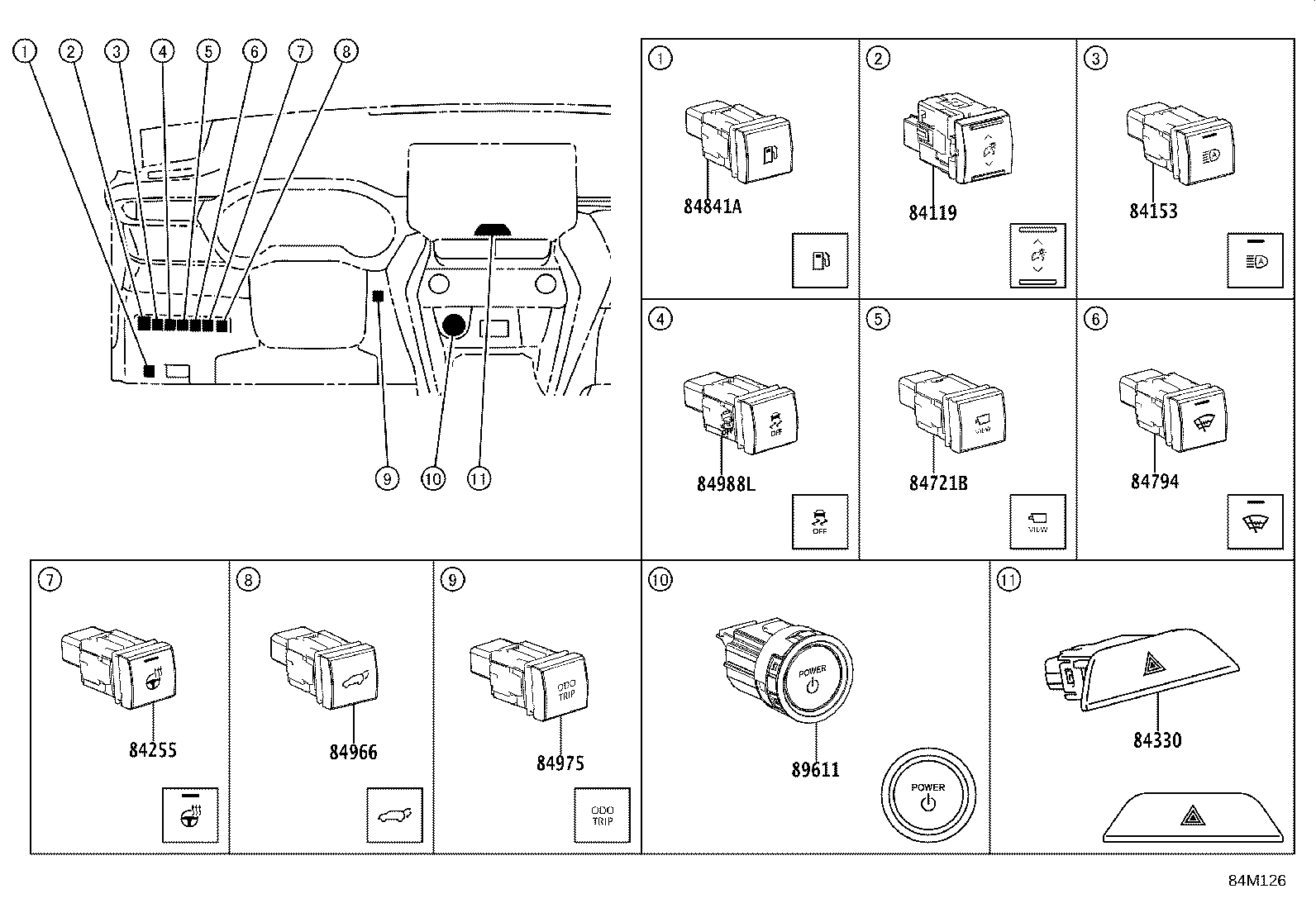

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-48040 |
AXUH85 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-48030 |
AXUH85 |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-60050 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 84255-60050 |
AXUH85..S |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-48070 |
AXUH85 |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-33010 |
AXUH85..S BACK MONITOR-WITH(*PVM & WASHER) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-60060 |
AXUH85..USA COLD AREA SPEC |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33040 |
AXUH85 |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84966-42010 |
AXUH85 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-48030 |
AXUH85 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48130 |
AXUH85 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
AXUH85 |
1 | ||

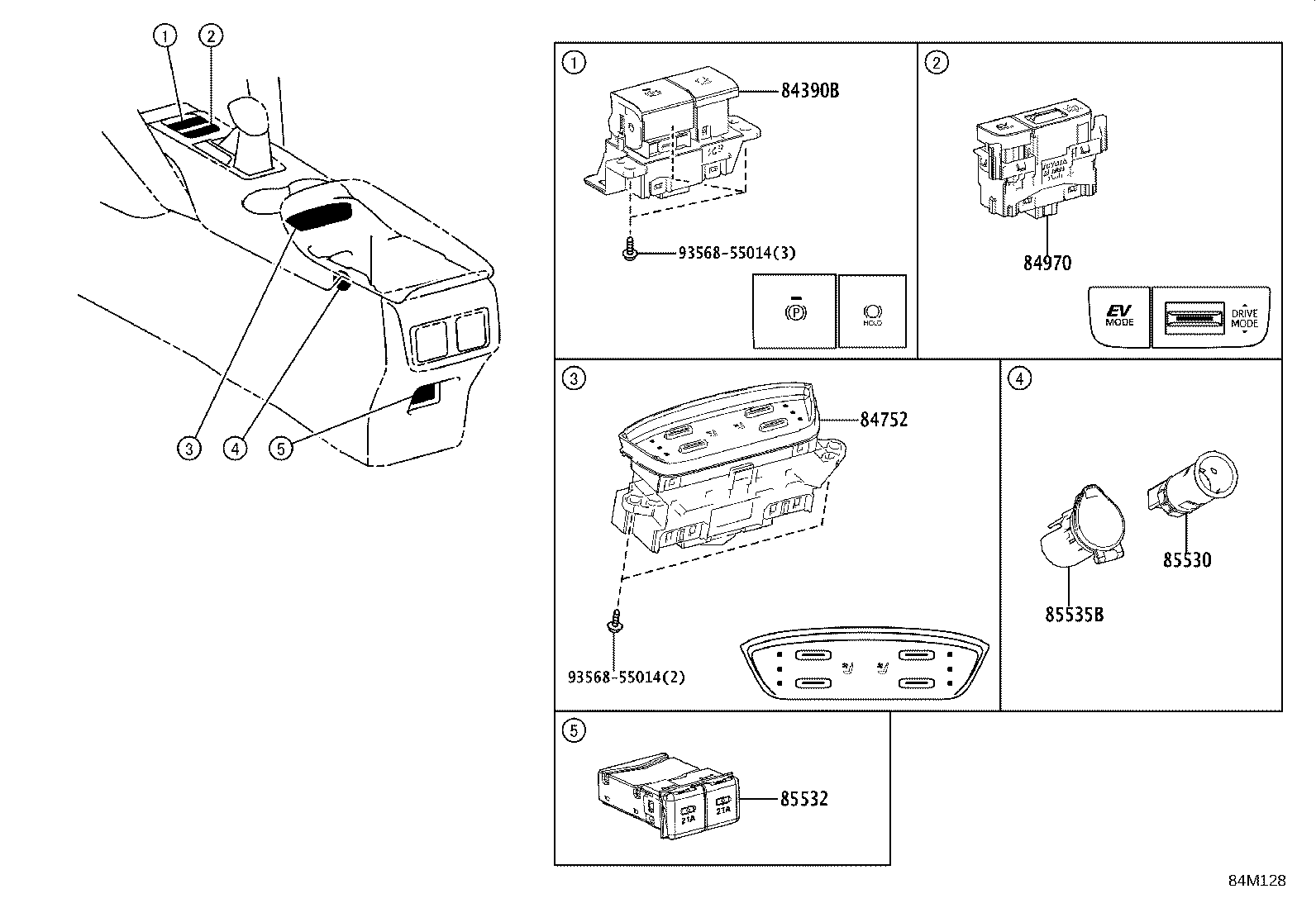

ILLUST NO. 5 OF10(2007- )
CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-48090 |
AXUH85 |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-48060 |
AXUH85..S |
1 | ||
| 84752-48070 |
AXUH85..G |
1 | ||
| 84752-48060 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-48360 |
AXUH85 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AXUH85 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
AXUH85 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 6 OF10(2007- )

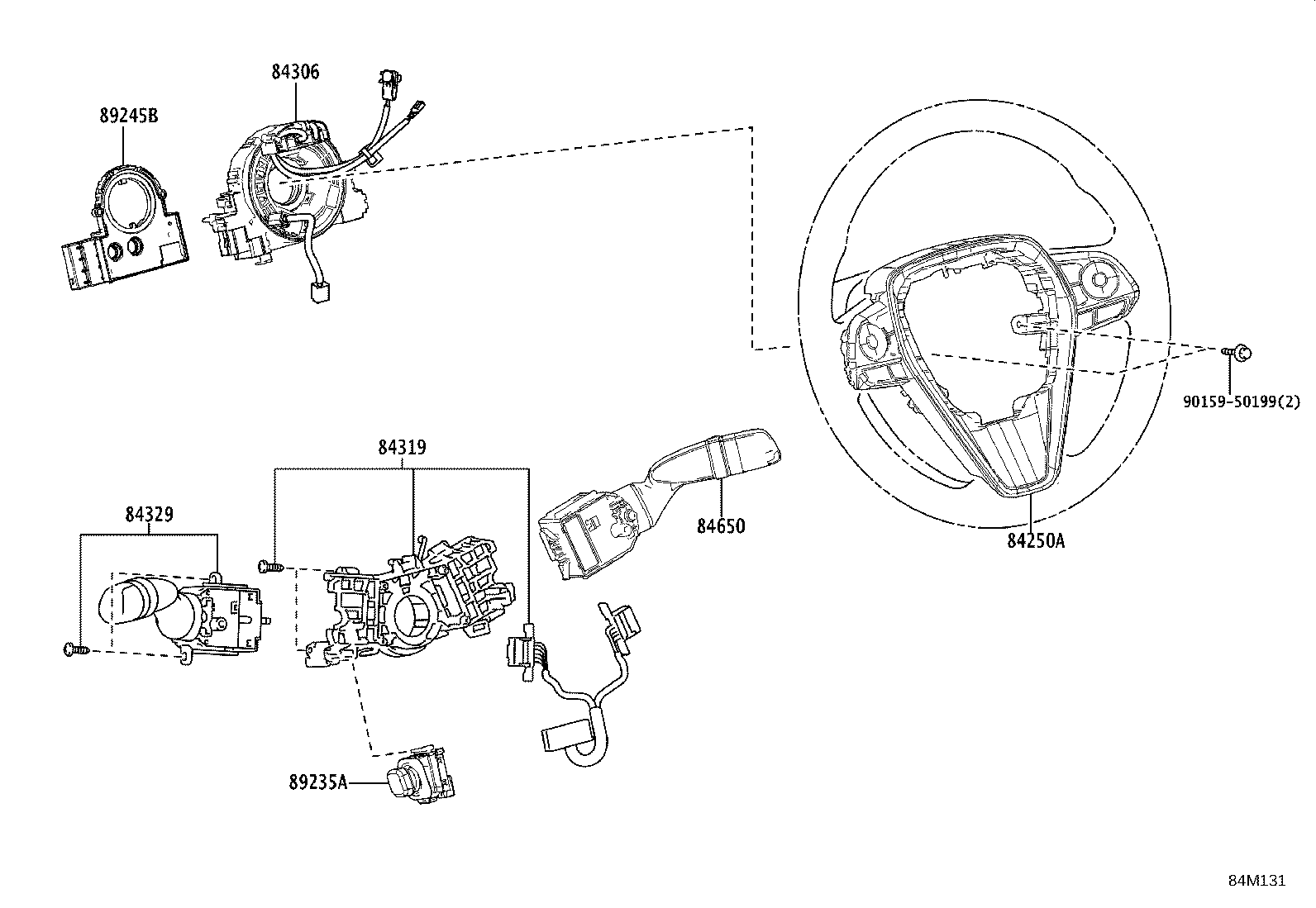

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48480 |
AXUH85..G,S |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-42030 |
AXUH85 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXUH85 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33080 |
AXUH85..S..USA |
1 | ||
| 84329-33080 |
AXUH85..(G,M)..USA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42190 |
AXUH85..(G,S)..USA HEAD UP DISPLAY-WITH |
1 | ||
| 84652-12A60 |
AXUH85..USA |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
AXUH85 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-48011 |
AXUH85 *614 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF10(2007- )

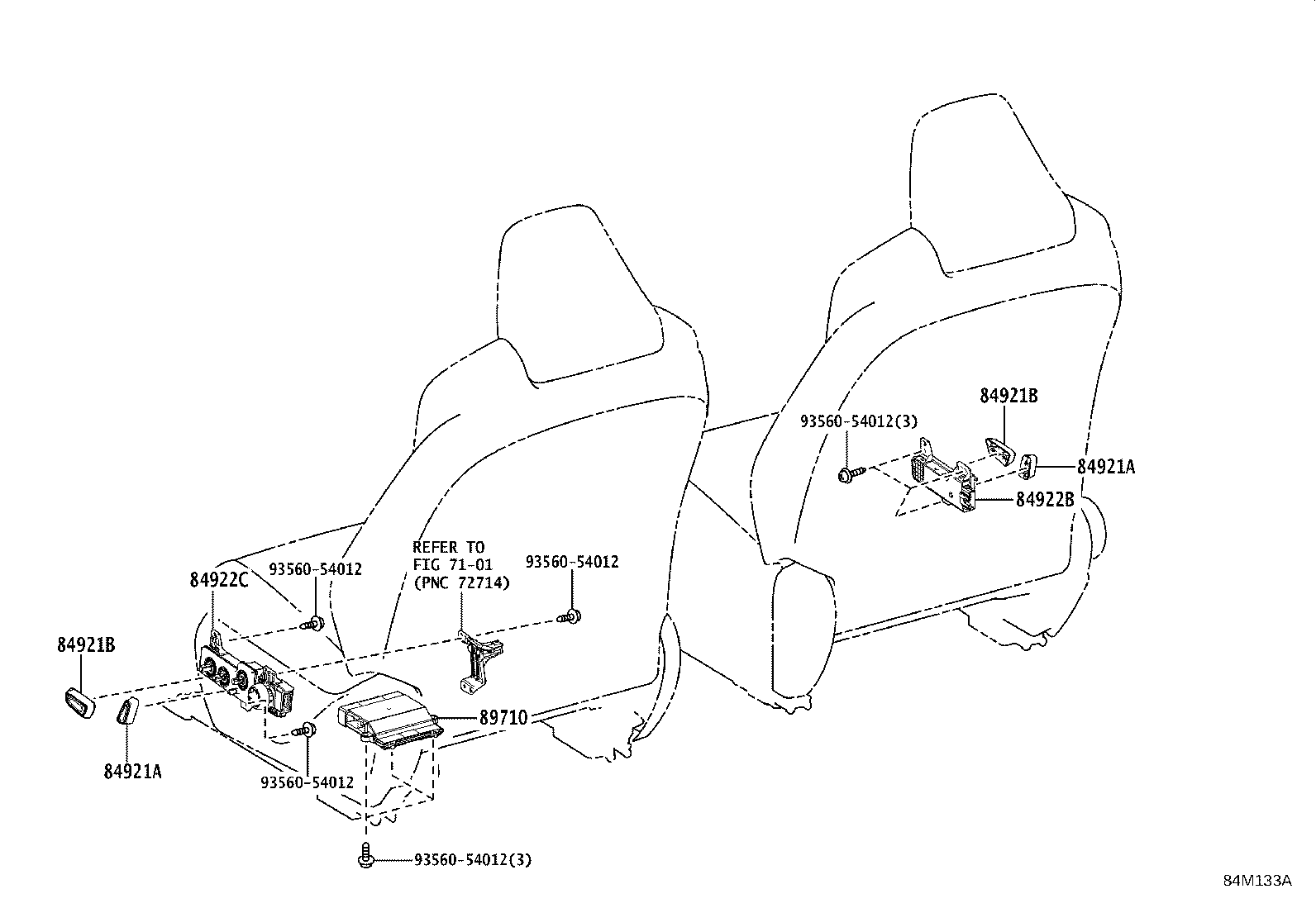

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
AXUH85..S BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33200C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33180C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
AXUH85..S BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33200C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33180C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-33190C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33190C0 |
AXUH85..S BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-33190C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921-33190C0 |
AXUH85..S BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33140 |
AXUH85..S |
1 | ||
| 84922-33140 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33160C0 |
AXUH85..G BLACK,TRIM1#,2#,4# |
1 | ||
| 84922-48030C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 84922-48030C0 |
AXUH85..S BLACK,TRIM1#,2#,4# |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-48020 |
AXUH85..G,S |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||

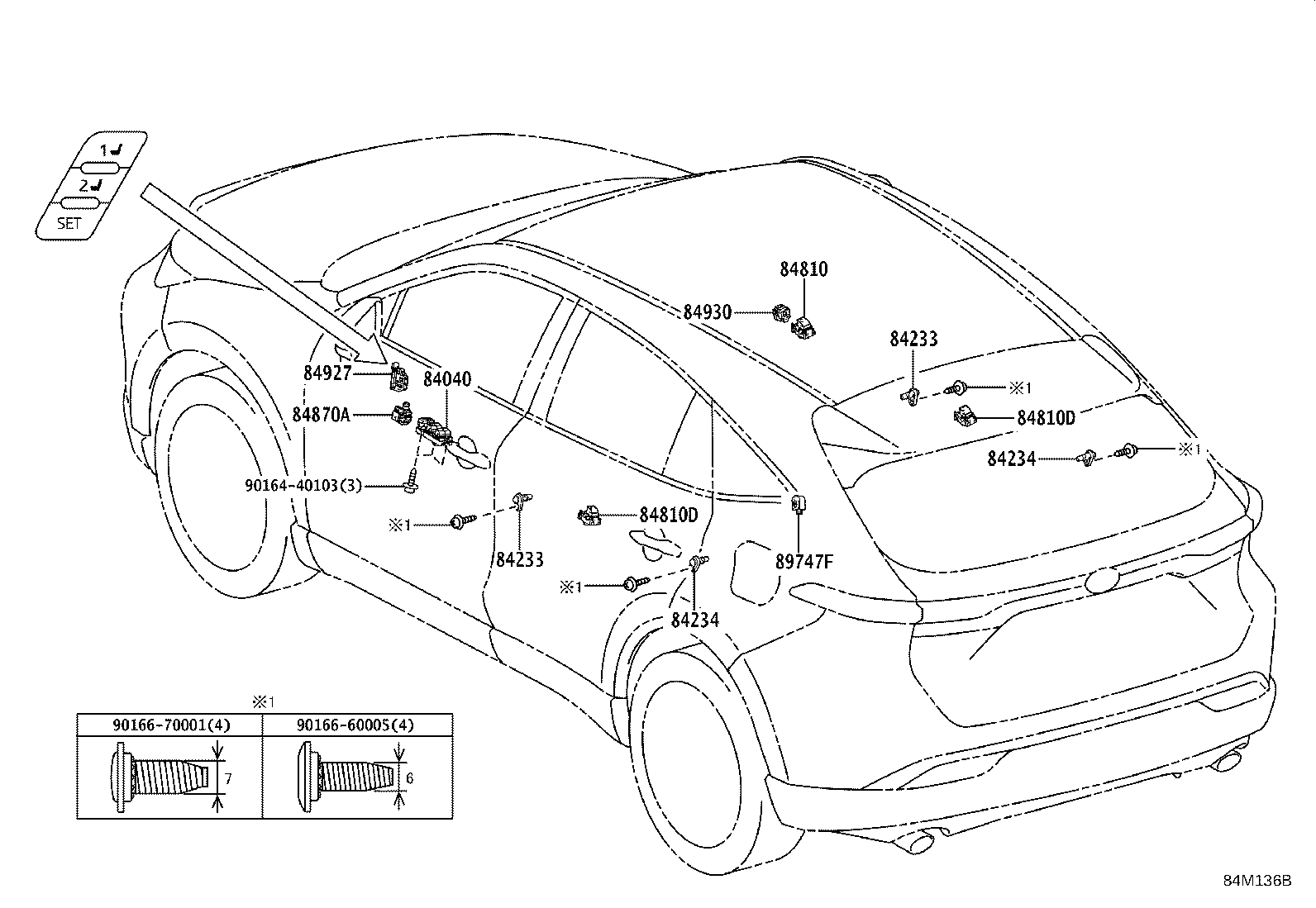

ILLUST NO. 8 OF10(2007- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12240 |
AXUH85 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXUH85 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXUH85 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXUH85 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXUH85 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
AXUH85 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
AXUH85 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
AXUH85 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12160 |
AXUH85 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-48120 |
AXUH85..G,S |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12270 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

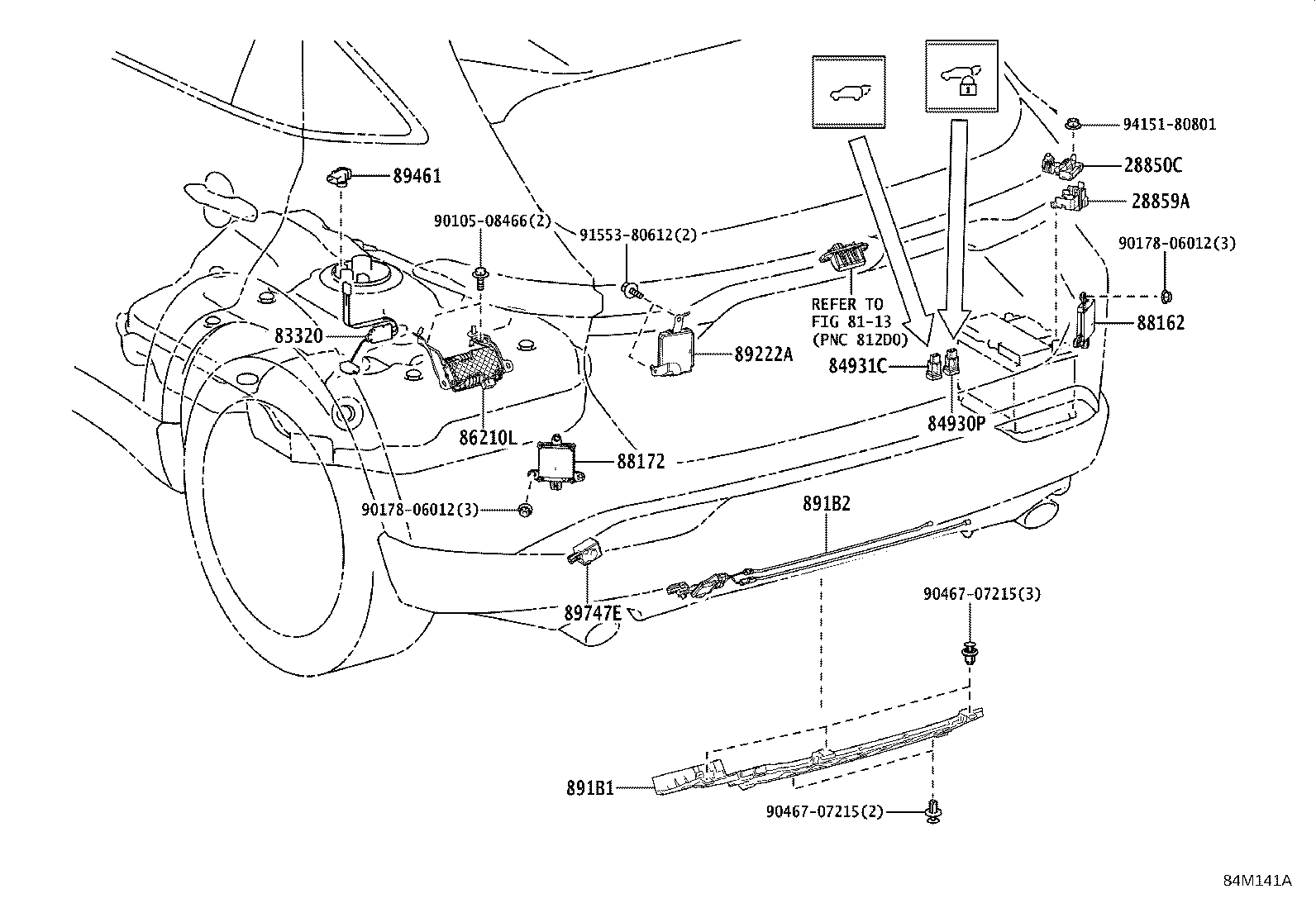

ILLUST NO. 9 OF10(2007- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-K0010 |
A25AFXS..AXUH85 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-25060 |
A25AFXS..AXUH85 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-42101 |
AXUH85 |
1 | ||
| 84930P - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48140 |
AXUH85 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-48130 |
AXUH85 |
1 | ||
| 86210L - INVERTER ASSY, VOLTAGE, NO.2 | ||||
| 86210-48190 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-48100 |
AXUH85 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-48100 |
AXUH85 |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-48060 |
AXUH85..G,S |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W231 |
AXUH85..G,S |
1 | ||
| 891B2-0W230 |
AXUH85..G,S |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-48230 |
AXUH85 |
1 | ||
| 89461 - SENSOR, VAPOR PRESSURE | ||||
| 89461-48020 |
AXUH85 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90105-08466 | ||||
| 90178-06012 | ||||
| 90467-07215 | ||||
| 91553-80612 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8113 | ||||

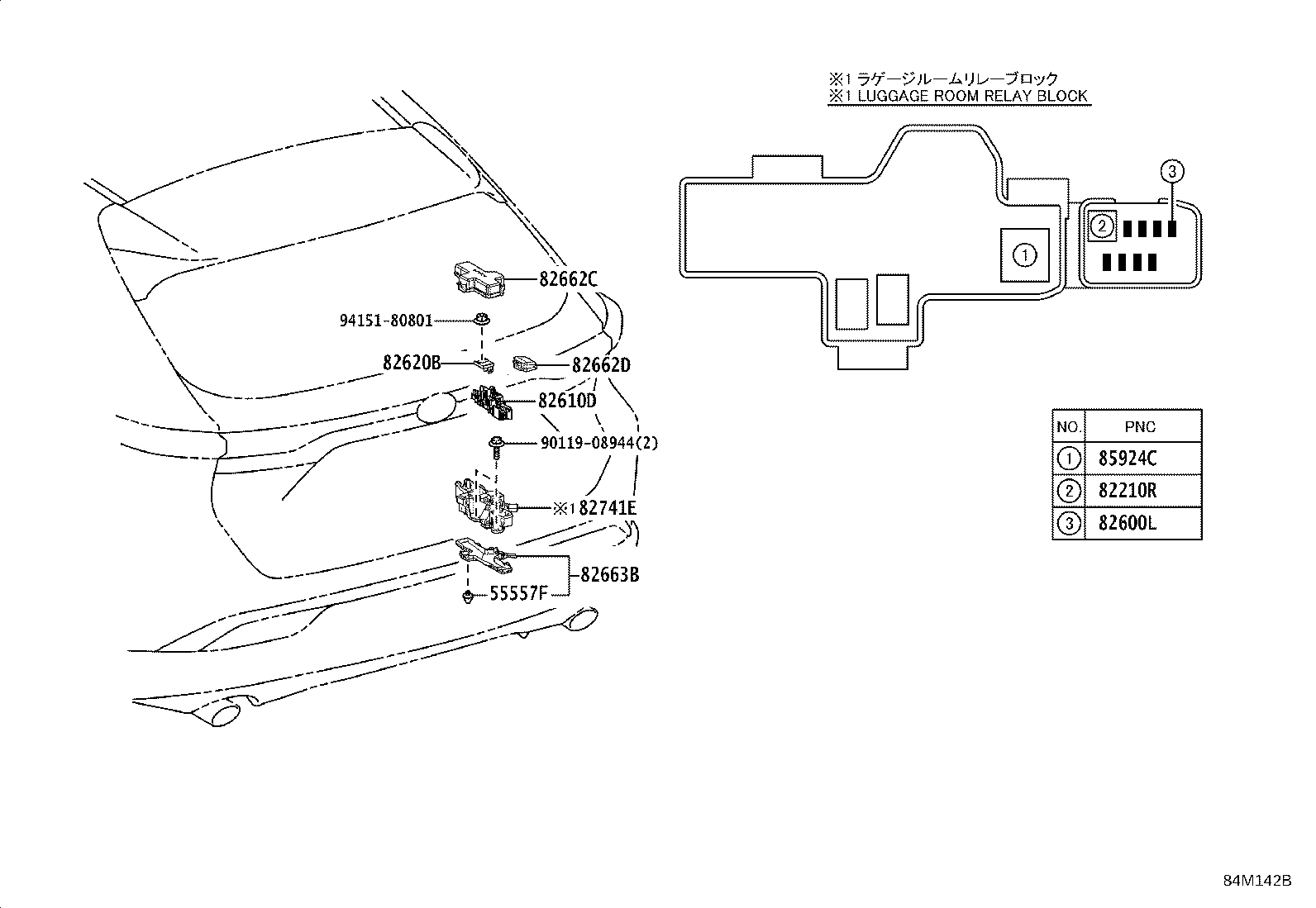

ILLUST NO.10 OF10(2007- )
FLOOR RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55557F - CUSHION, RELAY BLOCK | ||||
| 55557-53030 |
AXUH85 |
1 | ||
| 82210R - LUGGAGE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
AXUH85 |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09020 |
AXUH85 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXUH85 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
AXUH85 15A,MINI FUSE,BLUE |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-42100 |
AXUH85 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-42080 |
AXUH85 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-42720 |
AXUH85 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-48610 |
AXUH85 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-42200 |
AXUH85 |
1 | ||
| 82741E - BLOCK, LUGGAGE ROOM RELAY, NO.1 | ||||
| 82740-42070 |
AXUH85 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02031 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-08944 | ||||
| 94151-80801 | ||||

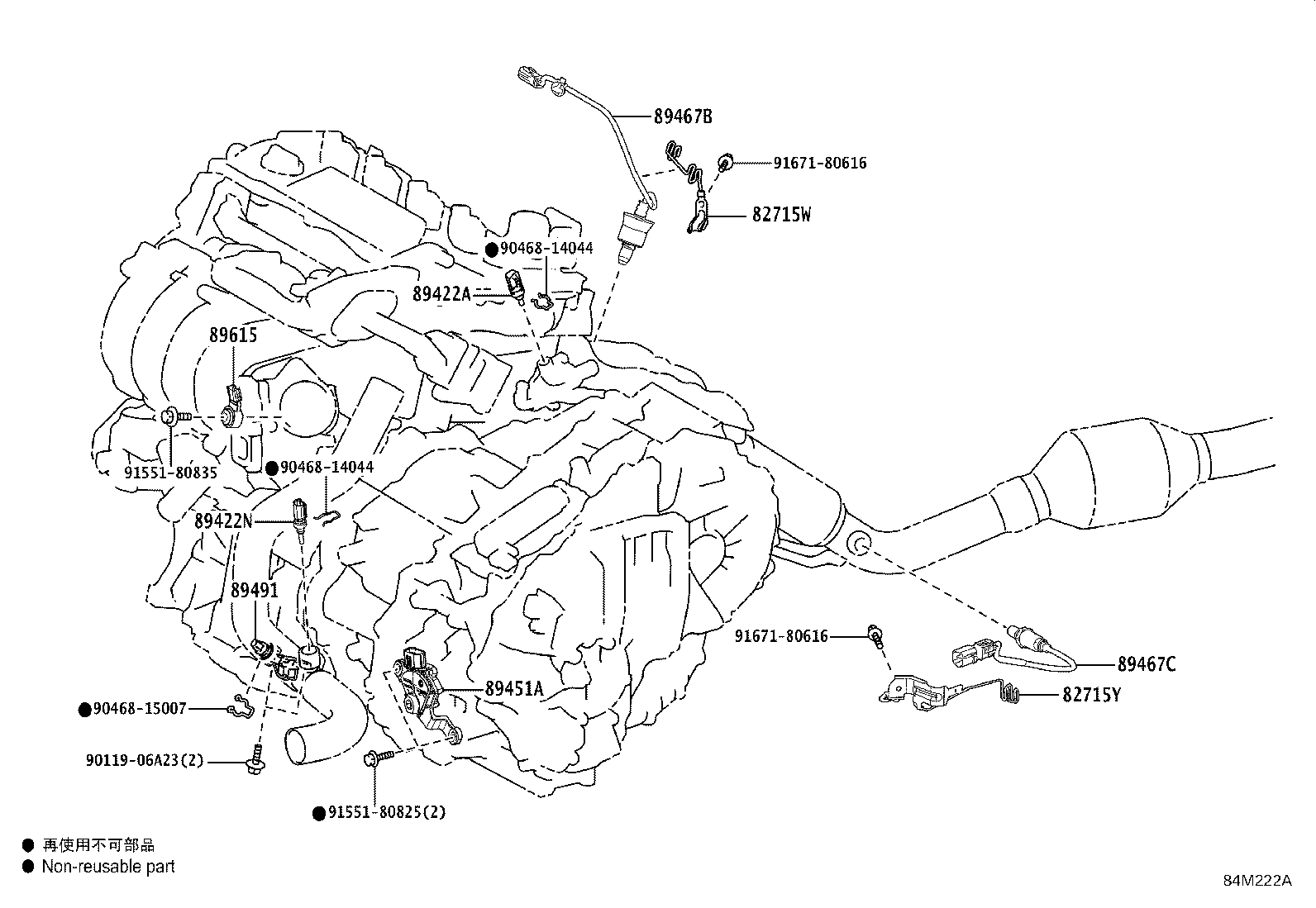

ILLUST NO. 1 OF10(2007- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33K11 |
AXUH85 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-42K60 |
AXUH85 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXUH85 |
1 | ||
| 89422N - SENSOR, WATER TEMPERATURE, NO.2 | ||||
| 89422-33040 |
AXUH85 |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
AXUH85 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33290 |
AXUH85 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-42170 |
AXUH85 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXUH85 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A23 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
