AXUH85L-ANXGBA (2020)
Toyota Venza

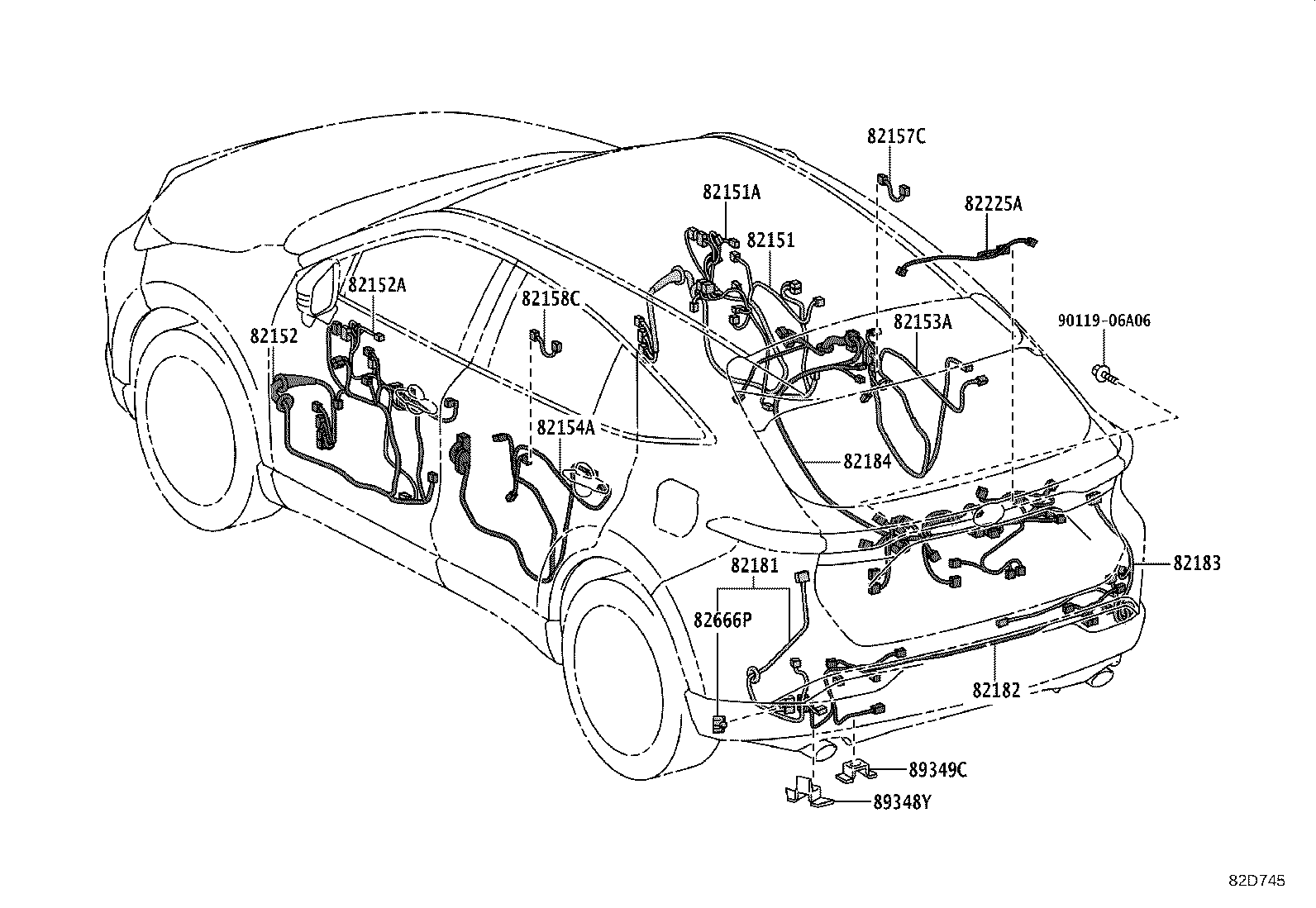

ILLUST NO. 6 OF11(2007- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-48C40 |
AXUH85 |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-48140 |
AXUH85..G,S |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-48C20 |
AXUH85 |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-48130 |
AXUH85..G,S |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-48310 |
AXUH85..G,S |
1 | ||
| 82153-48300 |
AXUH85..(G,S)..USA PUERTO RICO SPEC |
1 | ||
| 82153-48300 |
AXUH85..(G,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-48240 |
AXUH85..(G,S)..USA PUERTO RICO SPEC |
1 | ||
| 82154-48240 |
AXUH85..(G,S)..USA GUAM,SAIPAN SPEC |
1 | ||
| 82154-48250 |
AXUH85..G,S |
1 | ||
| 82157C - WIRE, REAR DOOR, RH NO.2 | ||||
| 82157-48040 |
AXUH85 |
1 | ||
| 82158C - WIRE, REAR DOOR, LH NO.2 | ||||
| 82157-48040 |
AXUH85 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-48410 |
AXUH85..G,S |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-48290 |
AXUH85..G,S |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-48200 |
AXUH85 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-48B20 |
AXUH85..G,M |
1 | ||
| 82184-48B40 |
AXUH85..G INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK |
1 | ||
| 82184-48B40 |
AXUH85..S |
1 | ||
| 82225A - WIRE, LAMP, NO.2 | ||||
| 82225-48010 |
AXUH85 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-48130 |
AXUH85 |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50140 |
AXUH85 |
1 | ||
| 89349C - CLIP, ULTRASONIC SENSOR, REAR NO.2 | ||||
| 89348-50050 |
AXUH85..G,S |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||

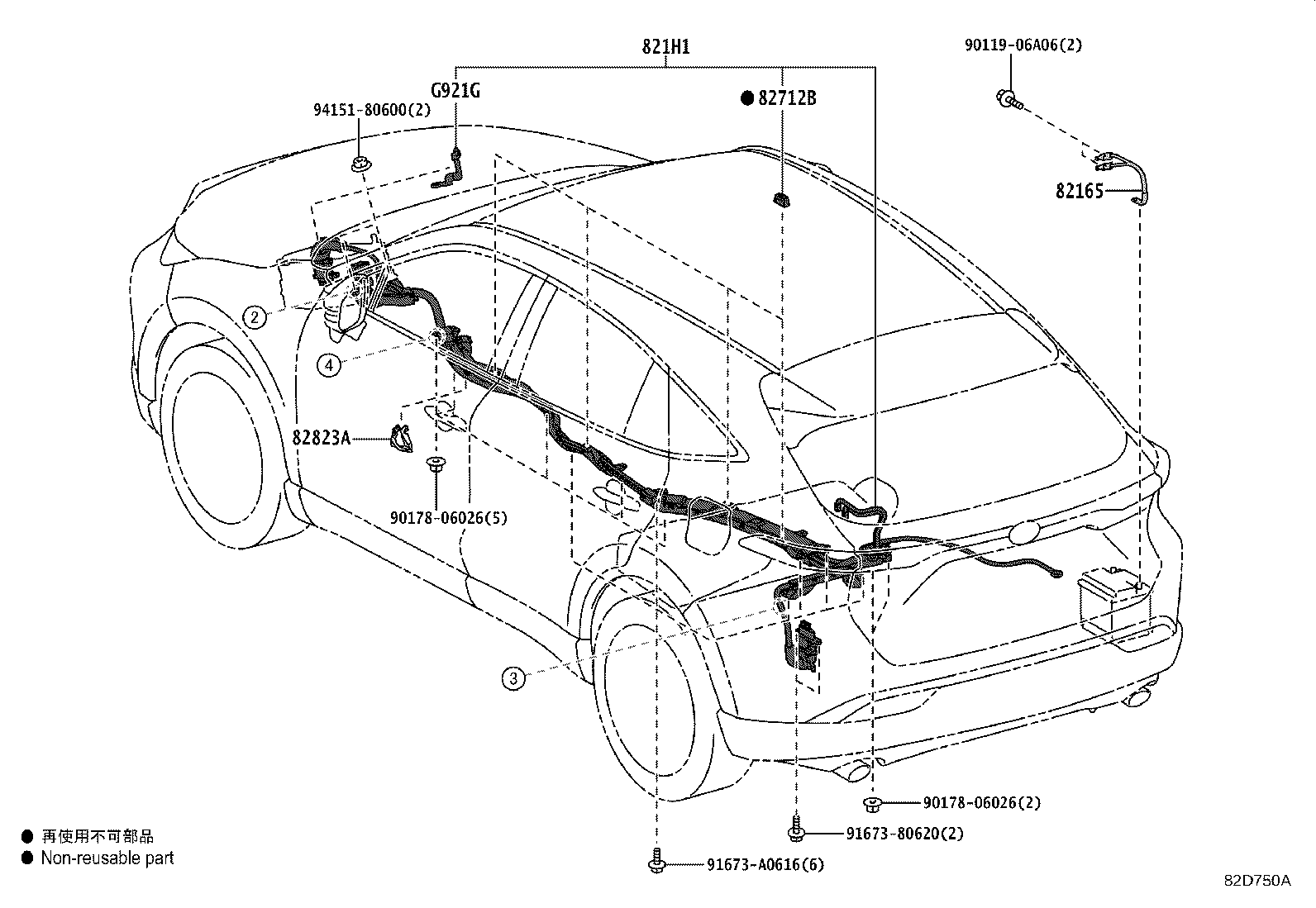

ILLUST NO. 8 OF11(2007- )
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-48170 |
AXUH85 |
1 | ||
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-48130 |
AXUH85 |
1 | ||
| 821H1-48131 |
AXUH85 |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-33170 |
AXUH85 |
4 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-42050 |
AXUH85 |
1 | ||
| G921G - PROTECTOR, INVERTER | ||||
| G921G-42010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90178-06026 | ||||
| 91673-80620 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||

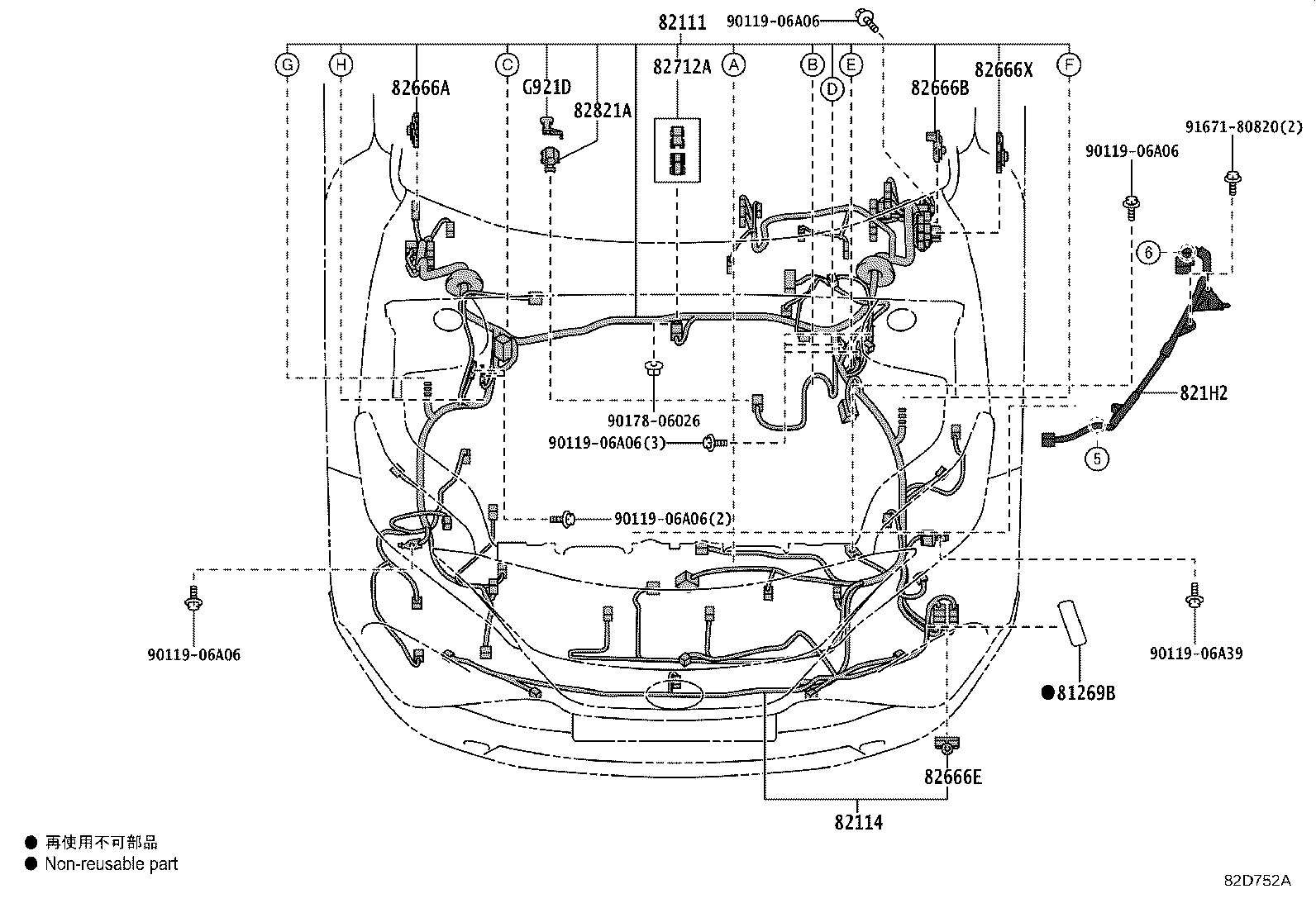

ILLUST NO. 1 OF11(2007- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81269B - SEAL, FOG LAMP | ||||
| 81269-42010 |
AXUH85..G,M |
1 | ||
| 81269-42010 |
AXUH85..S |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-4DF80 |
AXUH85..USA |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-48140 |
AXUH85..S BACK MONITOR-WITH(*PVM & WASHER) |
1 | ||
| 82114-48130 |
AXUH85..S |
1 | ||
| 82114-48130 |
AXUH85..G |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-42020 |
AXUH85 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60220 |
AXUH85 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-42710 |
AXUH85 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-48130 |
AXUH85 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-60310 |
AXUH85 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-42060 |
AXUH85 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-42210 |
AXUH85 |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-42010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A39 | ||||
| 90178-06026 | ||||
| 91671-80820 | ||||

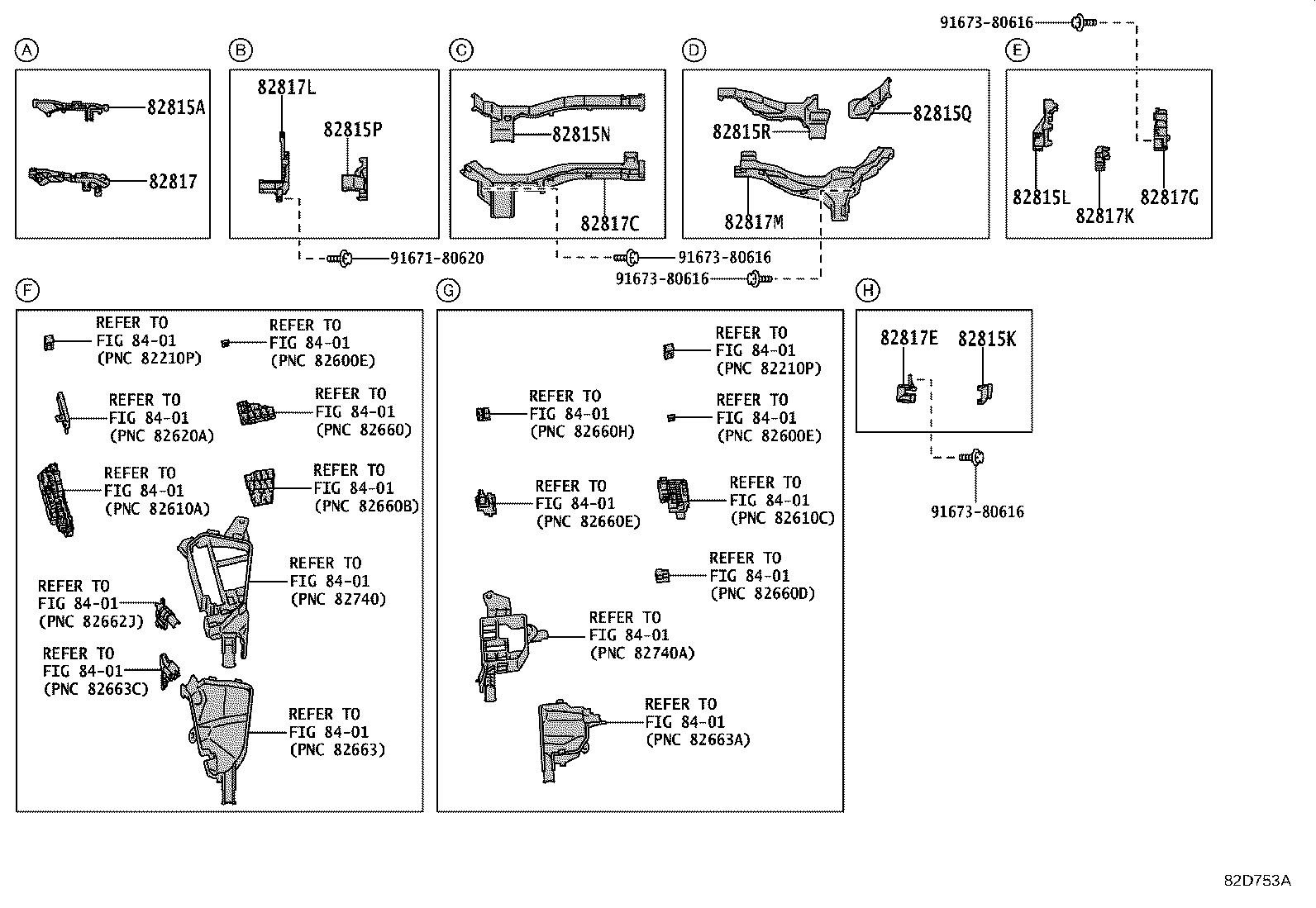

ILLUST NO. 2 OF11(2007- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-42180 |
AXUH85 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-42570 |
AXUH85 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-42630 |
AXUH85 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-42200 |
AXUH85 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-42170 |
AXUH85 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-42270 |
AXUH85 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-42F60 |
AXUH85 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42B60 |
AXUH85 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-42B80 |
AXUH85 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-42F90 |
AXUH85 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-42G30 |
AXUH85 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-42N40 |
AXUH85 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-42B50 |
AXUH85 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-42S60 |
AXUH85 |
1 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

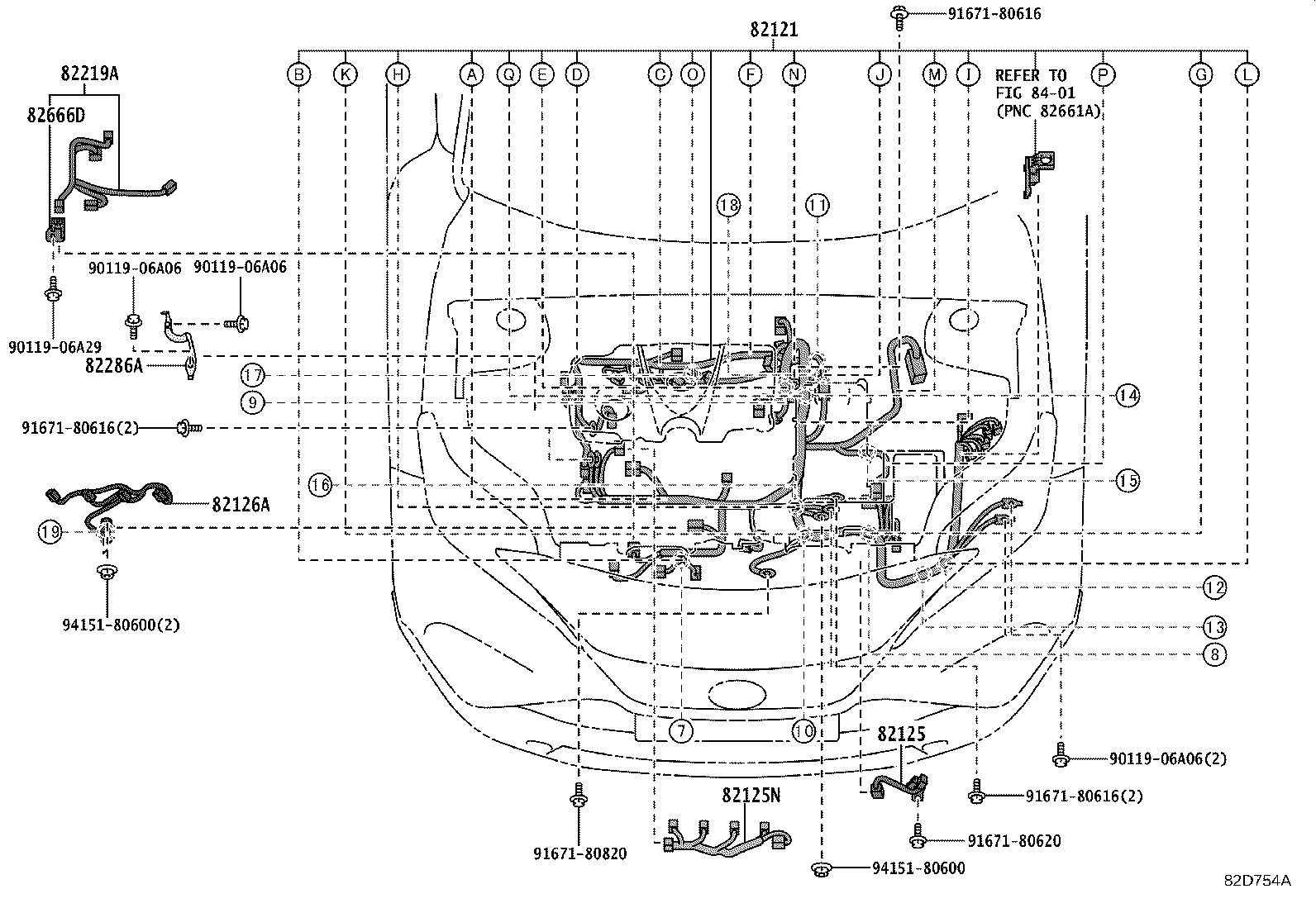

ILLUST NO. 3 OF11(2007- )
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-48760 |
AXUH85 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-33270 |
AXUH85 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-33180 |
AXUH85 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33050 |
AXUH85 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-33140 |
AXUH85 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-42050 |
AXUH85 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-33720 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A29 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

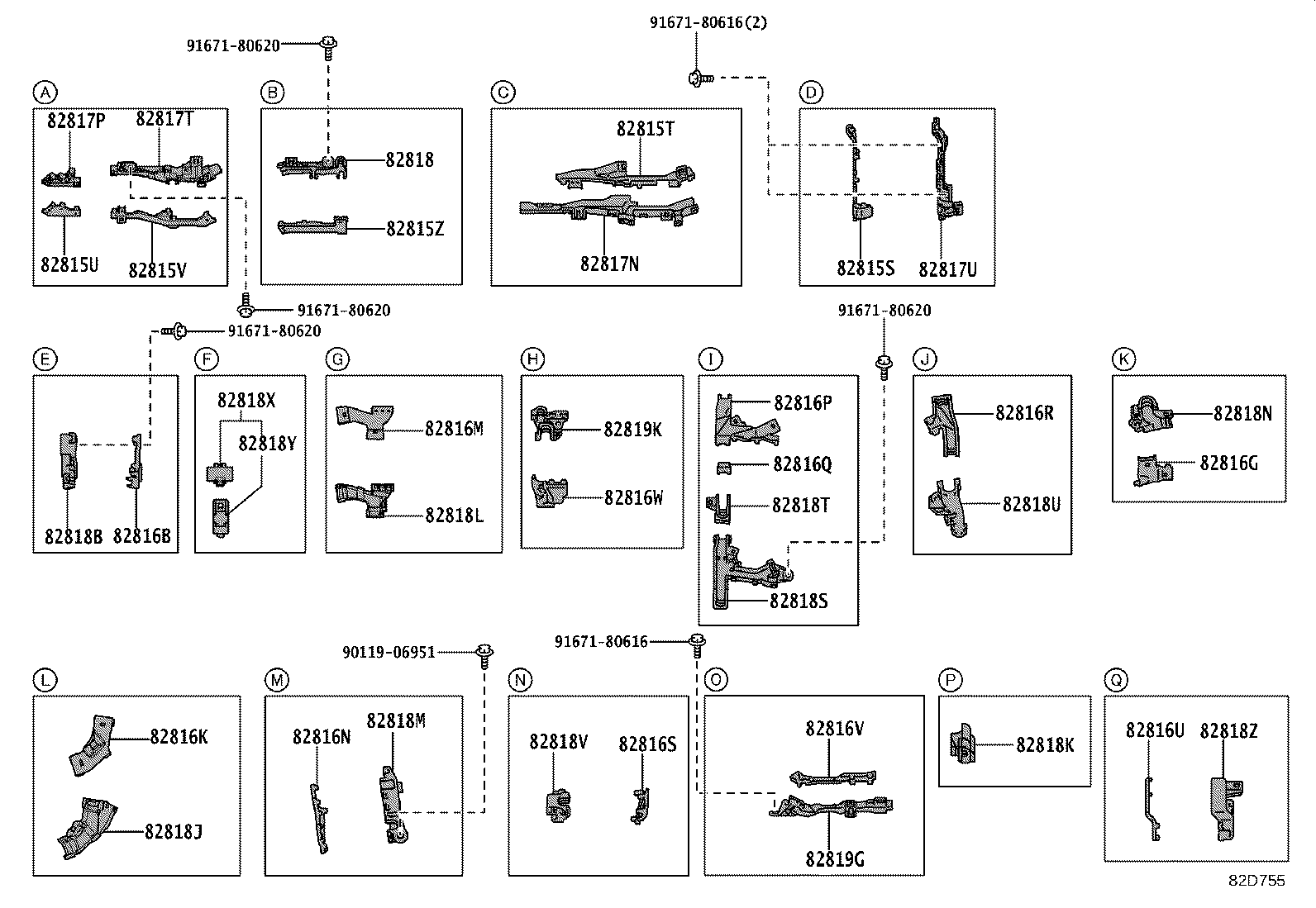

ILLUST NO. 4 OF11(2007- )
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-33J00 |
AXUH85 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-33G90 |
AXUH85 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33F70 |
AXUH85 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33F60 |
AXUH85 |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-33G60 |
AXUH85 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33M90 |
AXUH85 |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-33G00 |
AXUH85 |
1 | ||
| 82816K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33C80 |
AXUH85 |
1 | ||
| 82816M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33F80 |
AXUH85 |
1 | ||
| 82816N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-42530 |
AXUH85 |
1 | ||
| 82816P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-42510 |
AXUH85 |
1 | ||
| 82816Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-42C90 |
AXUH85 |
1 | ||
| 82816R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-42520 |
AXUH85 |
1 | ||
| 82816S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-42540 |
AXUH85 |
1 | ||
| 82816U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-42560 |
AXUH85 |
1 | ||
| 82816V - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-42680 |
AXUH85 |
1 | ||
| 82816W - COVER, WIRING HARNESS PROTECTOR, NO.19 | ||||
| 82815-33F90 |
AXUH85 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33S50 |
AXUH85 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33R30 |
AXUH85 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33R20 |
AXUH85 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33S60 |
AXUH85 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33S20 |
AXUH85 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3T240 |
AXUH85 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33X20 |
AXUH85 |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-42N60 |
AXUH85 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33R40 |
AXUH85 |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-42F50 |
AXUH85 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33R60 |
AXUH85 |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-42F30 |
AXUH85 |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-42P60 |
AXUH85 |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-42F40 |
AXUH85 |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-42F60 |
AXUH85 |
1 | ||
| 82818X - PROTECTOR, WIRING HARNESS, NO.20 | ||||
| 82817-33Y50 |
AXUH85 |
1 | ||
| 82818Y - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-33Z40 |
AXUH85 |
1 | ||
| 82818Z - PROTECTOR, WIRING HARNESS, NO.22 | ||||
| 82817-42F80 |
AXUH85 |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-42G70 |
AXUH85 |
1 | ||
| 82819K - PROTECTOR, WIRING HARNESS, NO.26 | ||||
| 82817-33R50 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||

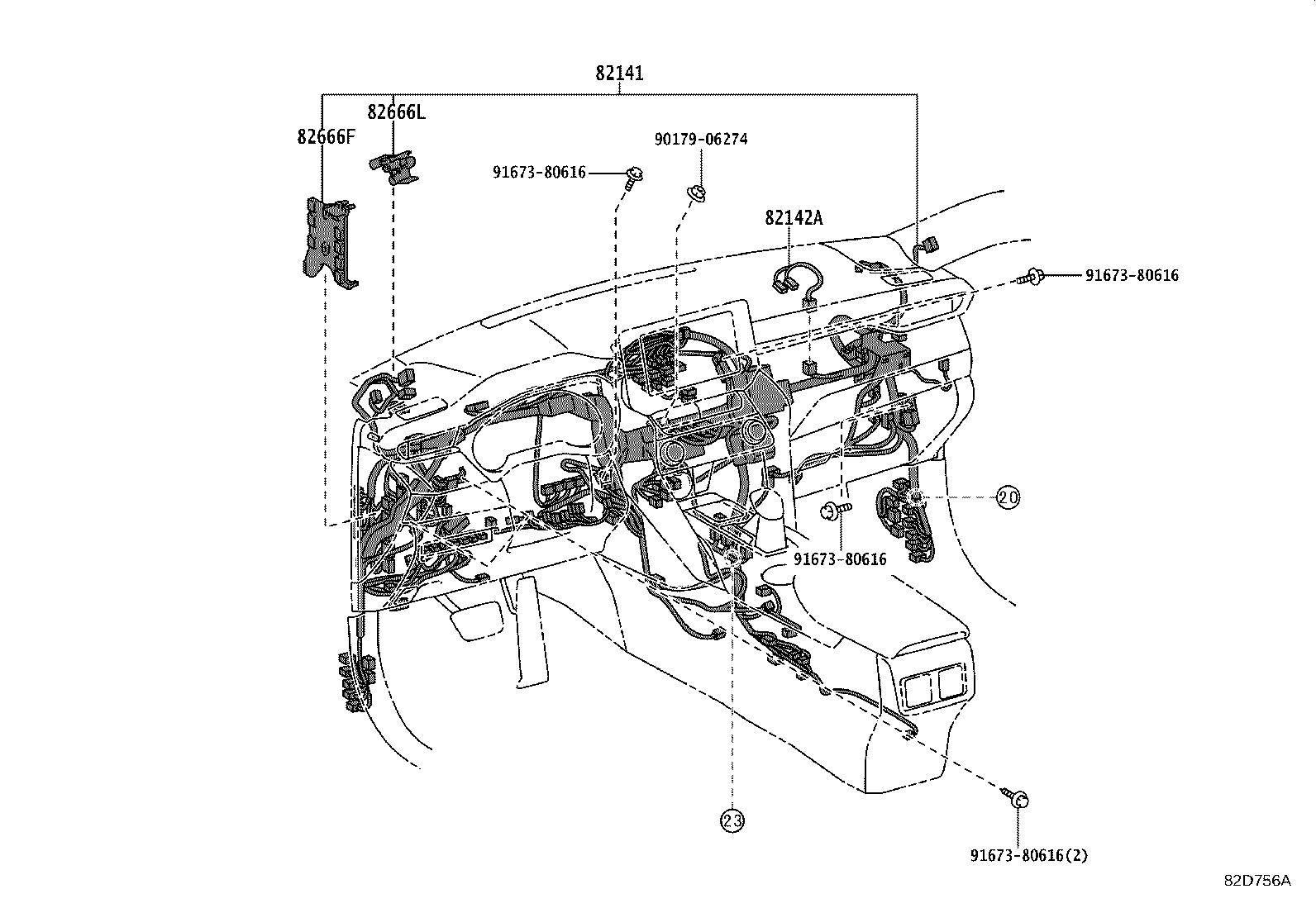

ILLUST NO. 5 OF11(2007- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-48100 |
AXUH85..USA GUAM,SAIPAN SPEC |
1 | ||
| 82145-48140 |
AXUH85..S |
1 | ||
| 82145-48160 |
AXUH85..S BACK MONITOR-WITH(*PVM & WASHER) |
1 | ||
| 82145-48140 |
AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| 82145-48110 |
AXUH85..G,M |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-42060 |
AXUH85 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42690 |
AXUH85 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-48470 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||

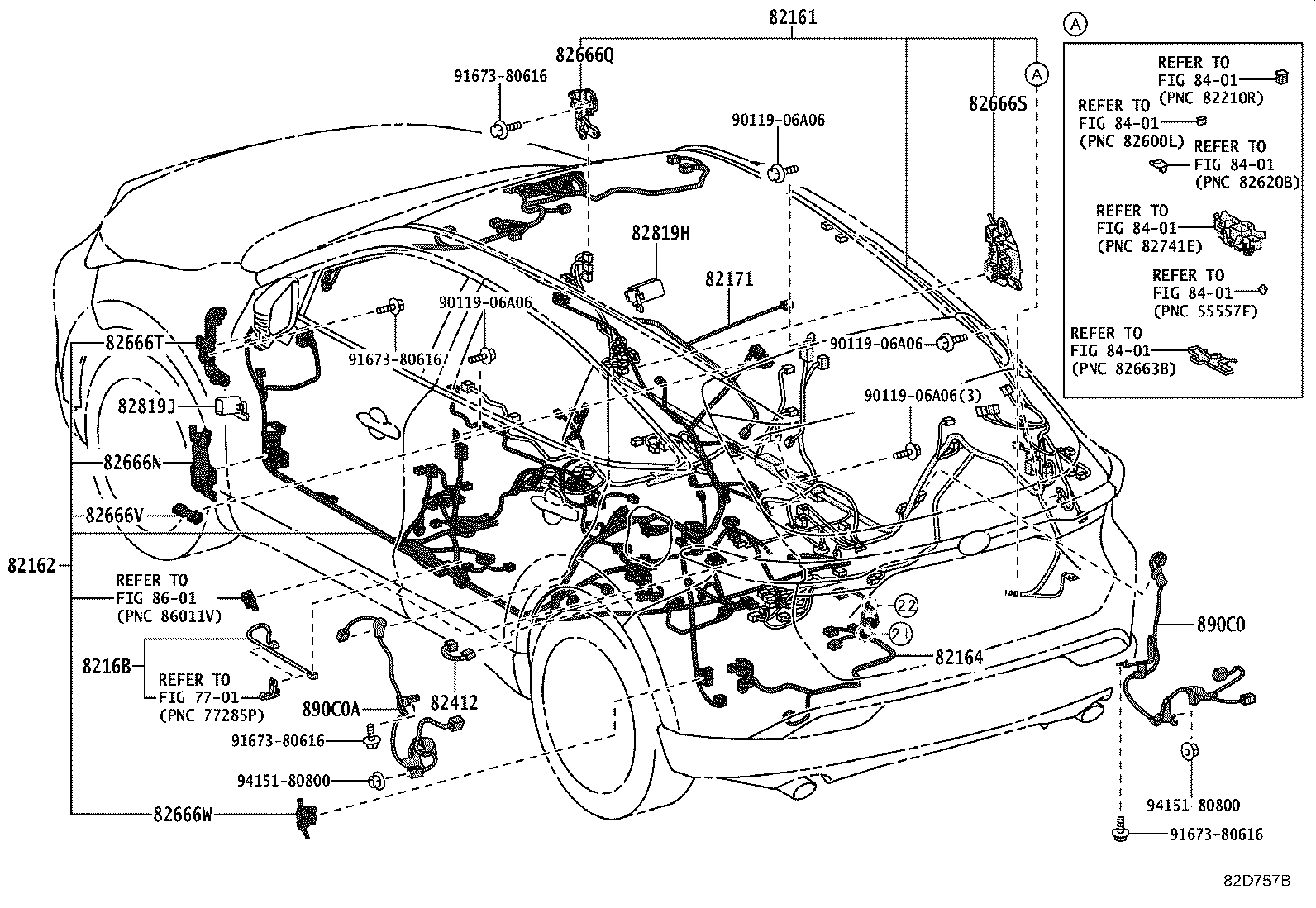

ILLUST NO. 7 OF11(2007- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-4DN40 |
AXUH85..S |
1 | ||
| 82161-4DN20 |
AXUH85..G..USA AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| 82161-4DN10 |
AXUH85..G,M |
1 | ||
| 82161-4DN40 |
AXUH85..G..USA "LEATHER PACKAGE"*(S)&AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA) |
1 | ||
| 82161-4DN30 |
AXUH85..S..USA GUAM,SAIPAN SPEC |
1 | ||
| 82161-4DN30 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-4D010 |
AXUH85..S BACK MONITOR-WITH(*PVM & WASHER) |
1 | ||
| 82162-48Z90 |
AXUH85..G,S |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42230 |
AXUH85 |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-42010 |
AXUH85 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48R10 |
AXUH85..G |
1 | ||
| 82171-48S00 |
AXUH85..G MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK |
1 | ||
| 82171-48R30 |
AXUH85..G INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK |
1 | ||
| 82171-48S20 |
AXUH85..S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE&HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48R90 |
AXUH85..G MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE&HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48S00 |
AXUH85..S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 82171-48S20 |
AXUH85..G MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK&HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48R50 |
AXUH85..G INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK&HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48R20 |
AXUH85..G HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48R30 |
AXUH85..S |
1 | ||
| 82171-48R50 |
AXUH85..S HEAD UP DISPLAY-WITH |
1 | ||
| 82171-48R80 |
AXUH85..G MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-42180 |
AXUH85 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42600 |
AXUH85 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-42520 |
AXUH85 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-42550 |
AXUH85 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-42610 |
AXUH85 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-60310 |
AXUH85 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-48480 |
AXUH85 |
1 | ||
| 82819H - PROTECTOR, WIRING HARNESS, NO.24 | ||||
| 82817-42P10 |
AXUH85 |
1 | ||
| 82819J - PROTECTOR, WIRING HARNESS, NO.25 | ||||
| 82817-42P00 |
AXUH85 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-42010 |
AXUH85 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-42020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
| 8601 | ||||

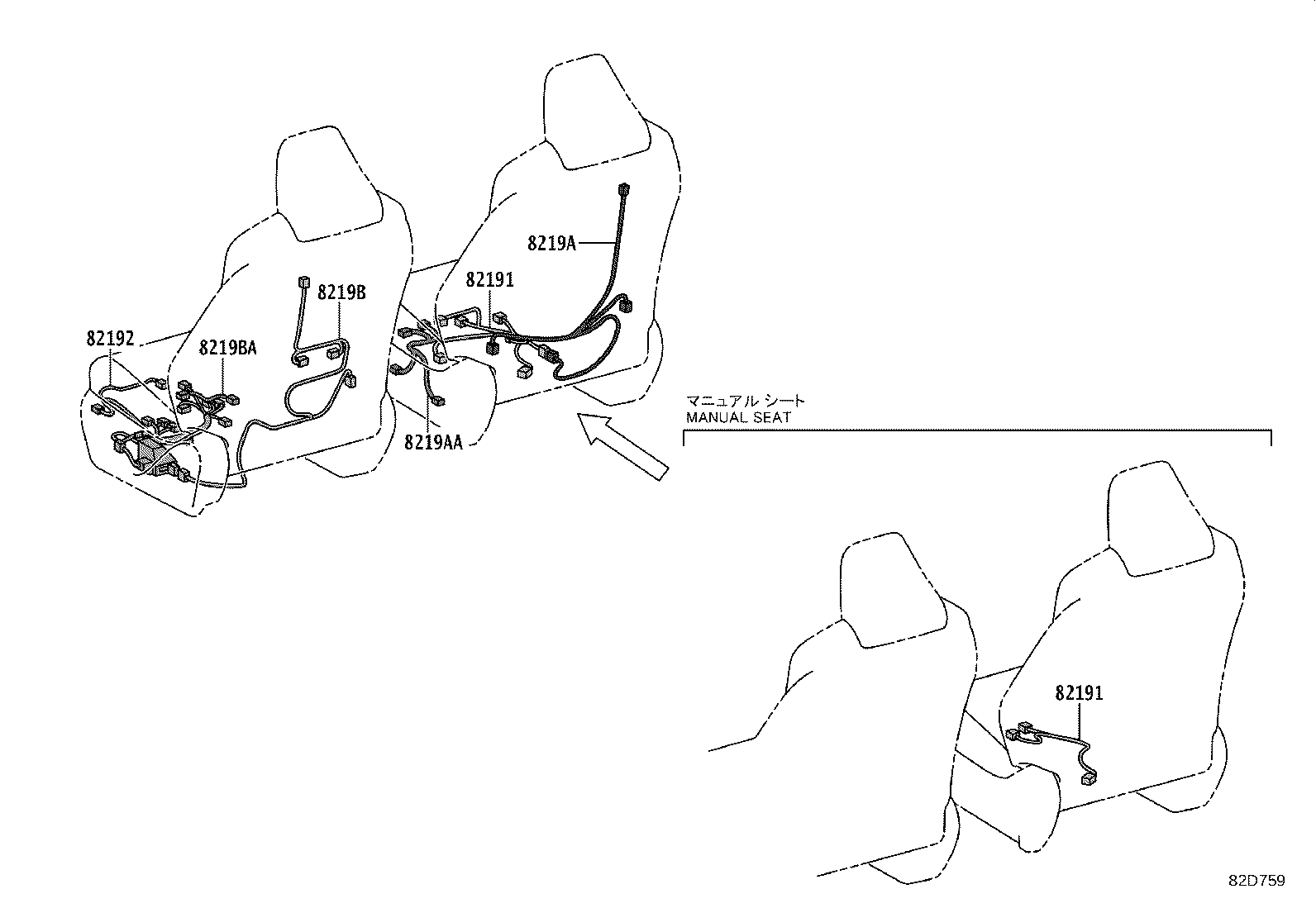

ILLUST NO. 9 OF11(2007- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-76190 |
AXUH85..G |
1 | ||
| 82191-42270 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 82191-42270 |
AXUH85..S |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-76190 |
AXUH85..G |
1 | ||
| 82191-42270 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 82191-42270 |
AXUH85..S |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-48790 |
AXUH85..S |
1 | ||
| 82192-48790 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 82192-48810 |
AXUH85..G |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-48110 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 8219A-48110 |
AXUH85..S |
1 | ||
| 8219AA - WIRE, FRONT SEAT, RH NO.3 | ||||
| 82191-42240 |
AXUH85 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-48110 |
AXUH85..S |
1 | ||
| 8219B-48120 |
AXUH85..G |
1 | ||
| 8219B-48110 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 8219BA - WIRE, FRONT SEAT, LH NO.3 | ||||
| 82192-11080 |
AXUH85 |
1 | ||

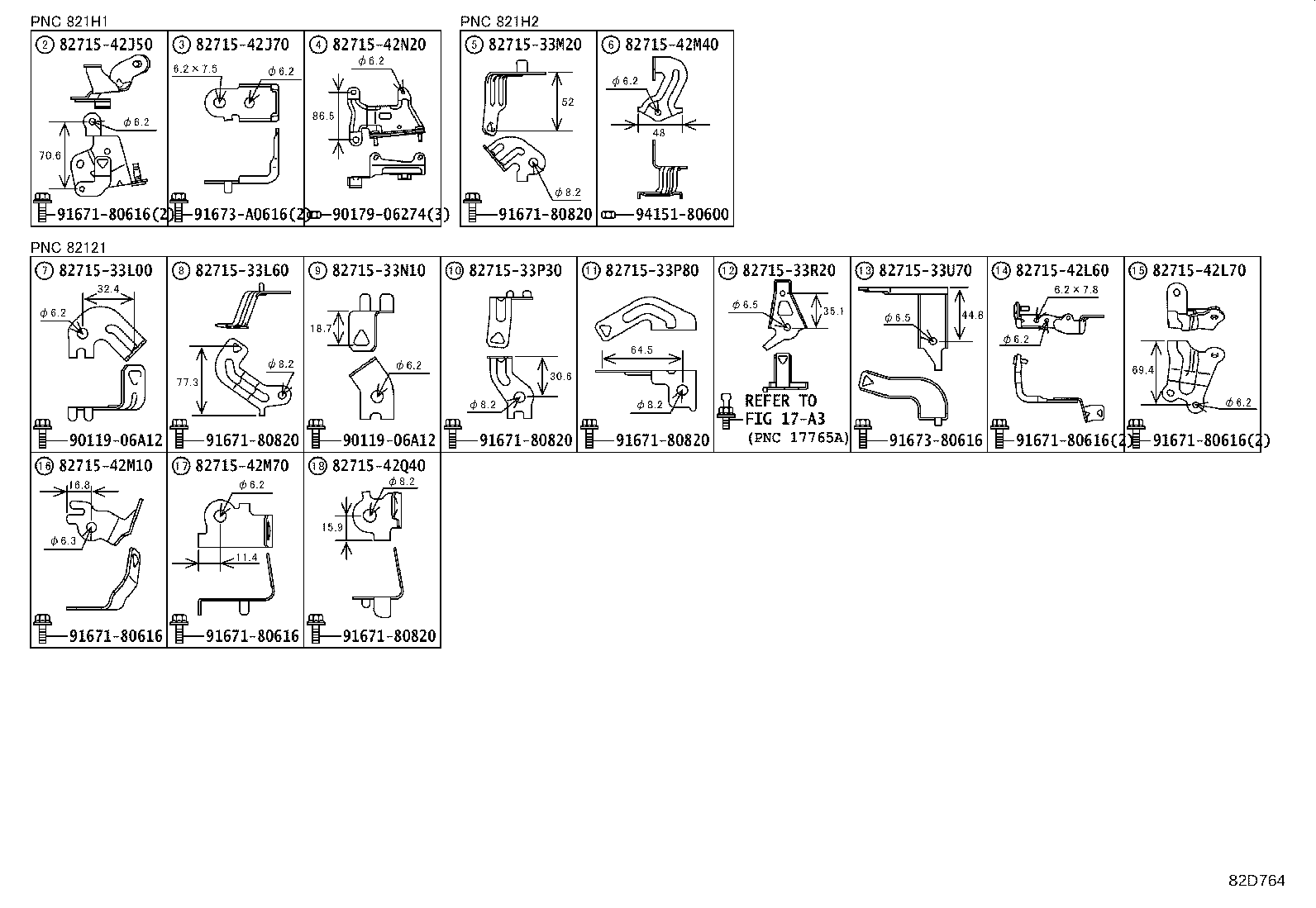

ILLUST NO.10 OF11(2007- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-33L00 | ||||
| 82715-33L60 | ||||
| 82715-33M20 | ||||
| 82715-33N10 | ||||
| 82715-33P30 | ||||
| 82715-33P80 | ||||
| 82715-33R20 | ||||
| 82715-33U70 | ||||
| 82715-42J50 | ||||
| 82715-42J70 | ||||
| 82715-42L60 | ||||
| 82715-42L70 | ||||
| 82715-42M10 | ||||
| 82715-42M40 | ||||
| 82715-42M70 | ||||
| 82715-42N20 | ||||
| 82715-42Q40 | ||||
| 90119-06A12 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||

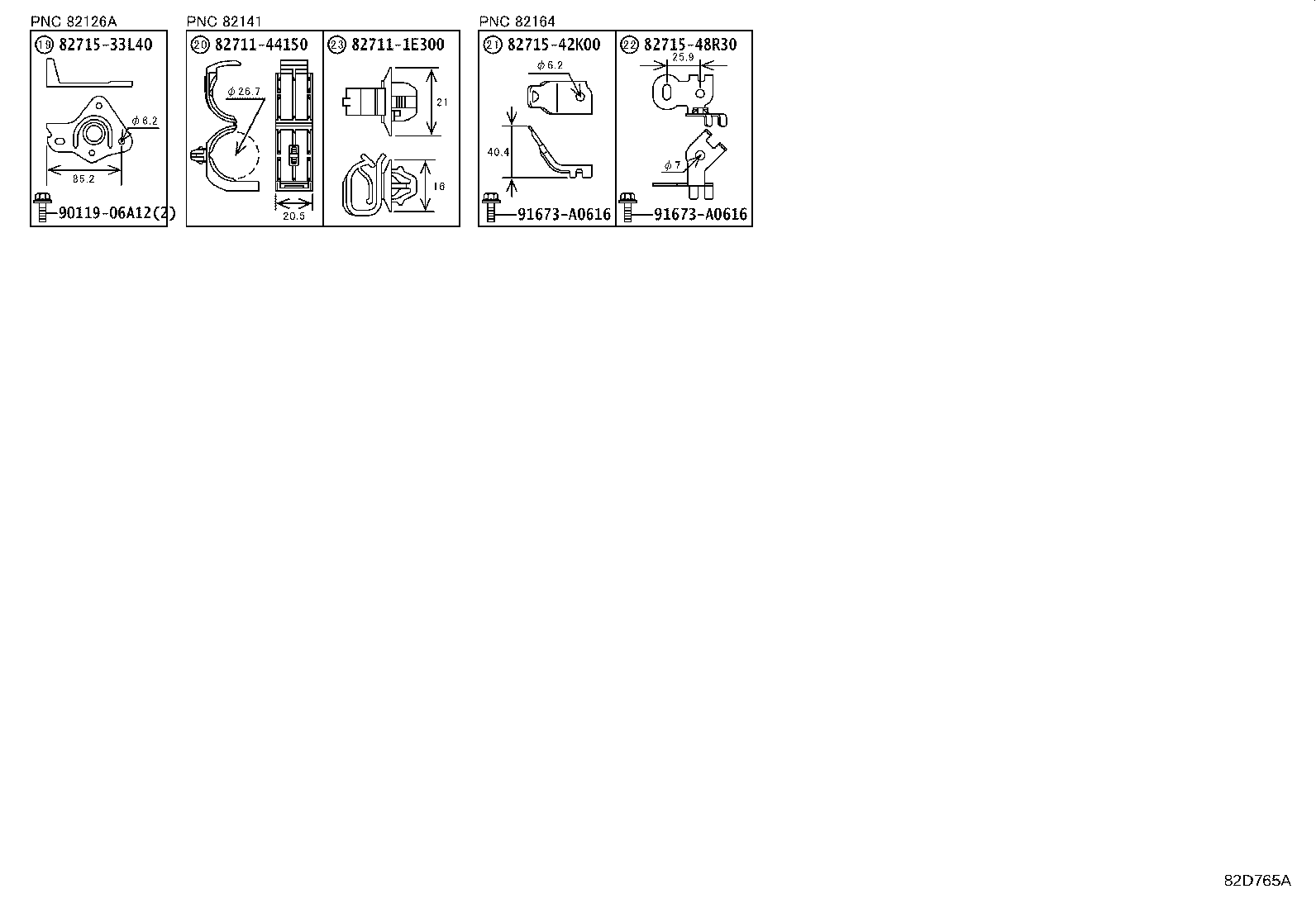

ILLUST NO.11 OF11(2007- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E300 | ||||
| 82711-44150 | ||||
| 82715-33L40 | ||||
| 82715-42K00 | ||||
| 82715-48R30 | ||||
| 90119-06A12 | ||||
| 91673-A0616 | ||||

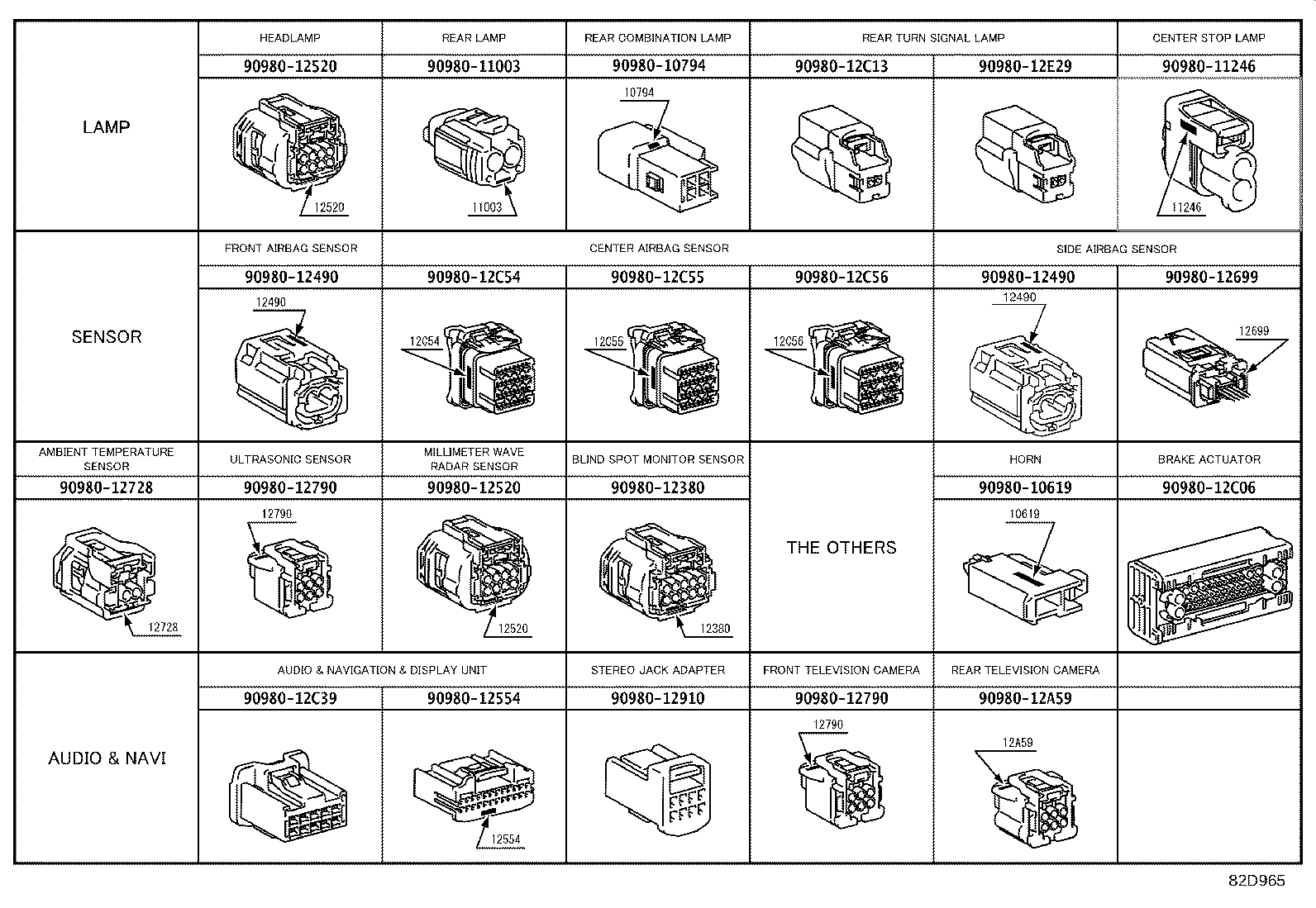

ILLUST NO.12 OF12(2007- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10794 | ||||
| 90980-11003 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12554 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12910 | ||||
| 90980-12A59 | ||||
| 90980-12C06 | ||||
| 90980-12C13 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12E29 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
