AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

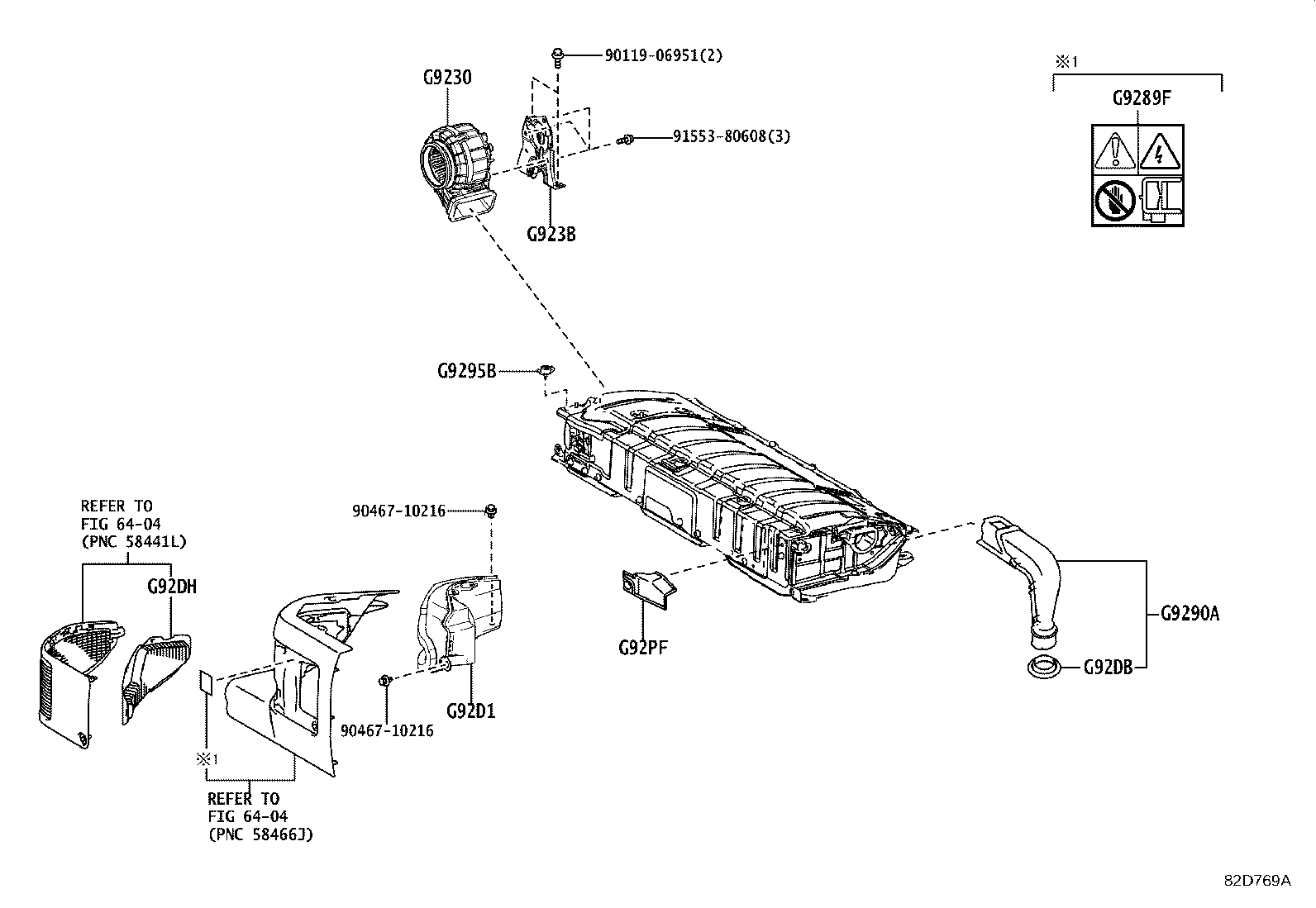

ILLUST NO. 2 OF 3(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-33050 |
AXUH85 |
1 | ||
| G923B - BRACKET, BATTERY COOLING BLOWER | ||||
| G923B-42010 |
AXUH85 |
1 | ||
| G9289F - LABEL, BATTERY CAUTION, NO.3 | ||||
| 82685-47110 |
AXUH85 |
1 | ||
| G9290A - HOSE ASSY, HYBRID BATTERY | ||||
| G9290-42010 |
AXUH85 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
AXUH85 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-42010 |
AXUH85 |
1 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-47030 |
AXUH85 |
1 | ||
| G92DH - FILTER, HV BATTERY INTAKE, NO.1 | ||||
| G92DH-42010 |
AXUH85 |
1 | ||
| G92PF - PROTECTOR, HV BATTERY, NO.4 | ||||
| G92PF-33010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10216 | ||||
| 91553-80608 | ||||
| Linked diagrams | ||||
| 6404 | ||||

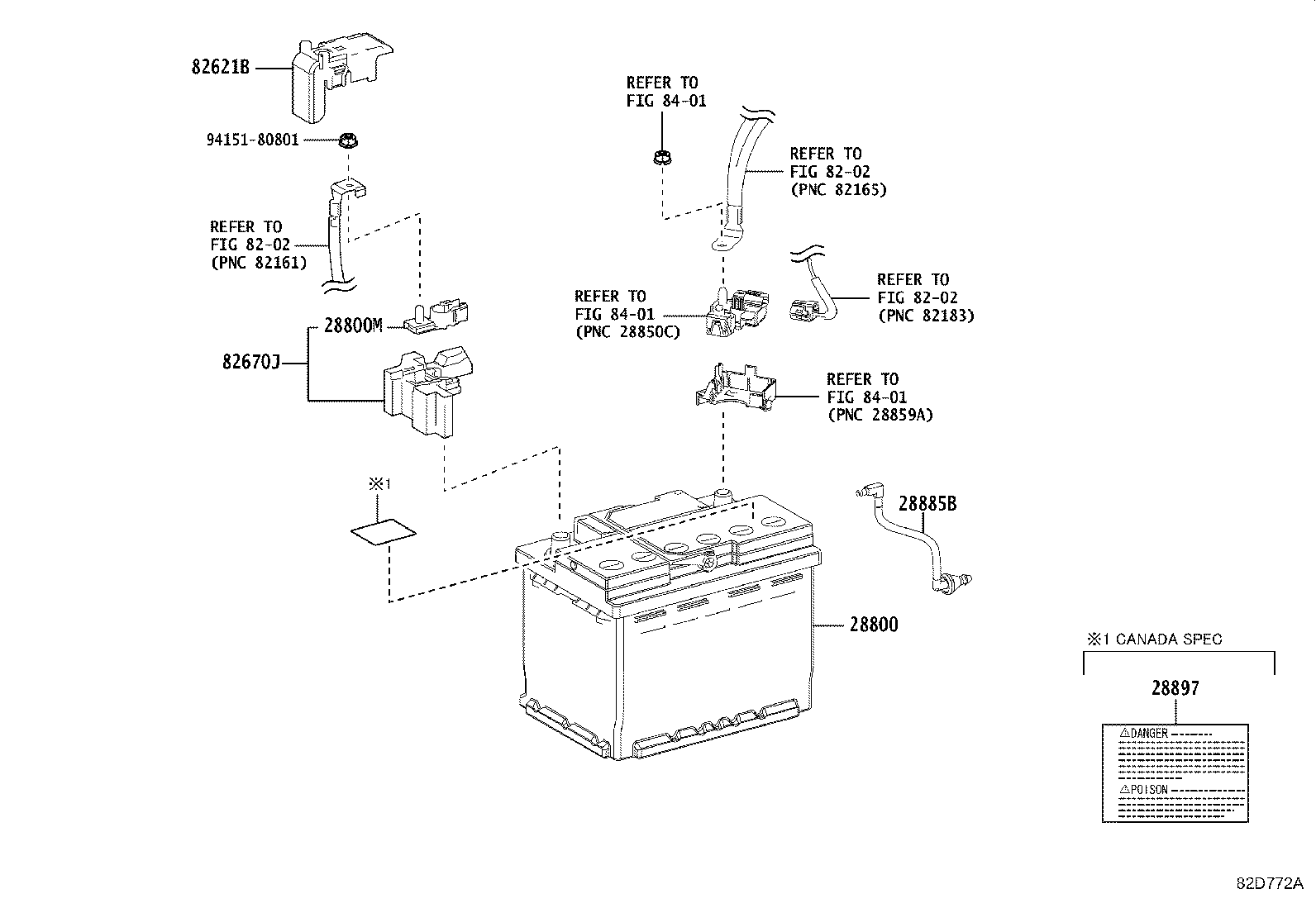

ILLUST NO. 1 OF 3(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-25030 |
A25AFXS..AXUH85 LN2 |
1 | ||
| 28800M - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05058 |
A25AFXS..AXUH85 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-25020 |
A25AFXS..AXUH85 |
1 | ||
| 82621B - COVER, FUSIBLE LINK | ||||
| 82621-42020 |
AXUH85 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-48130 |
AXUH85 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

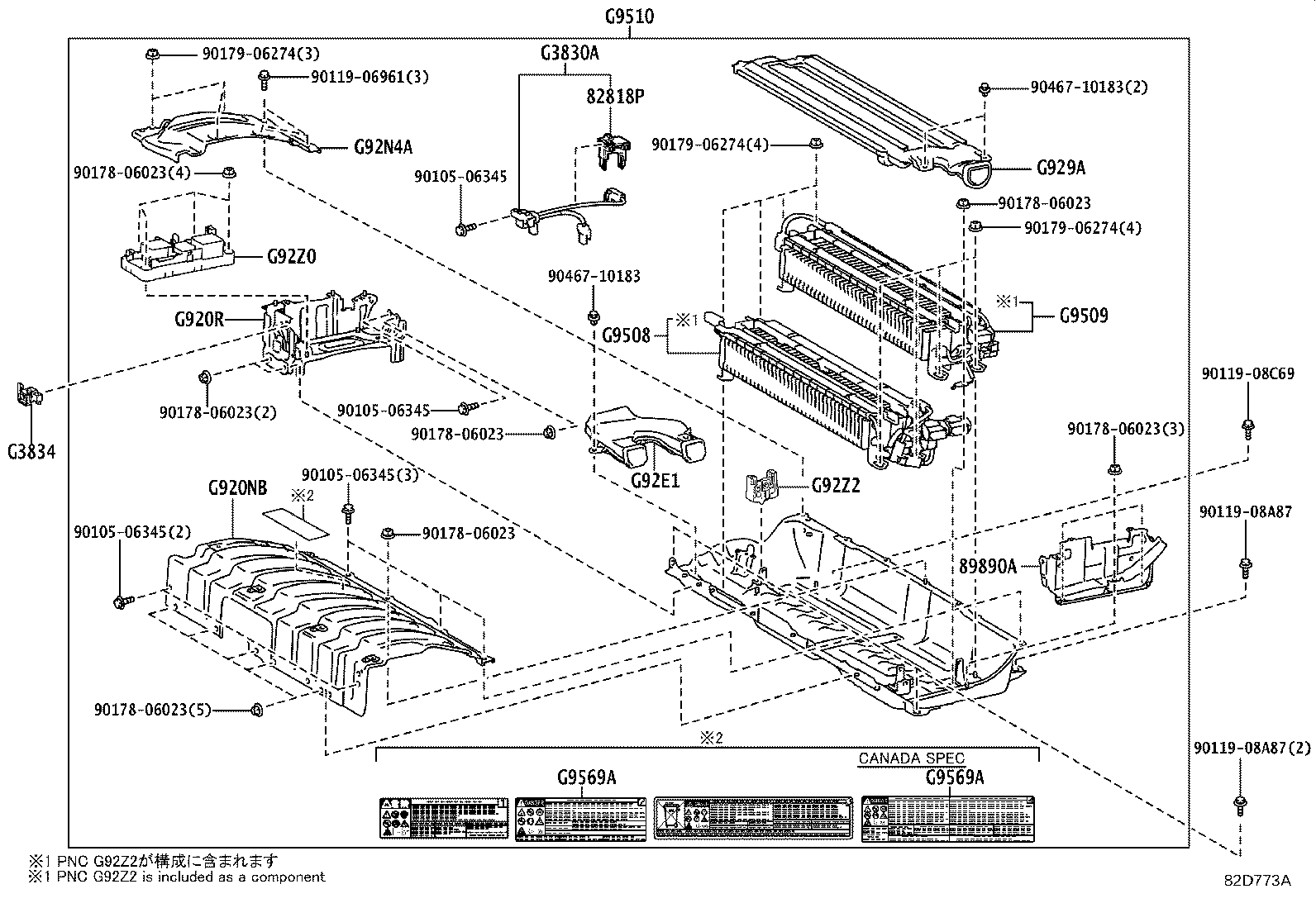

ILLUST NO. 3 OF 3(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82818P - PROTECTOR, WIRING HARNESS | ||||
| 82817-47Q60 |
AXUH85 |
1 | ||
| 89890A - COMPUTER ASSY, BATTERY | ||||
| 89890-48030 |
AXUH85 DENSO |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-47120 |
AXUH85 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-47050 |
AXUH85 |
1 | ||
| G920NB - COVER SUB-ASSY, HV BATTERY, UPPER | ||||
| G920N-33040 |
AXUH85 |
1 | ||
| G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 | ||||
| G920R-33020 |
AXUH85 |
1 | ||
| G929A - HOSE, HV BATTERY, NO.1 | ||||
| G929A-33020 |
AXUH85 |
1 | ||
| G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1 | ||||
| G92E1-42010 |
AXUH85 |
1 | ||
| G92N4A - PANEL, HV BATTERY RH COVER, NO.1 | ||||
| G92N4-33030 |
AXUH85 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-33051 |
AXUH85 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47070 |
AXUH85 |
1 | ||
| G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1 | ||||
| G9509-48020 |
AXUH85 |
1 | ||
| G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2 | ||||
| G9508-48020 |
AXUH85 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-48110 |
AXUH85 |
1 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-47110 |
AXUH85..USA |
1 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-47110 |
AXUH85..USA |
1 | ||
| Common parts | ||||
| 90105-06345 | ||||
| 90119-06961 | ||||
| 90119-08A87 | ||||
| 90119-08C69 | ||||
| 90178-06023 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
