AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

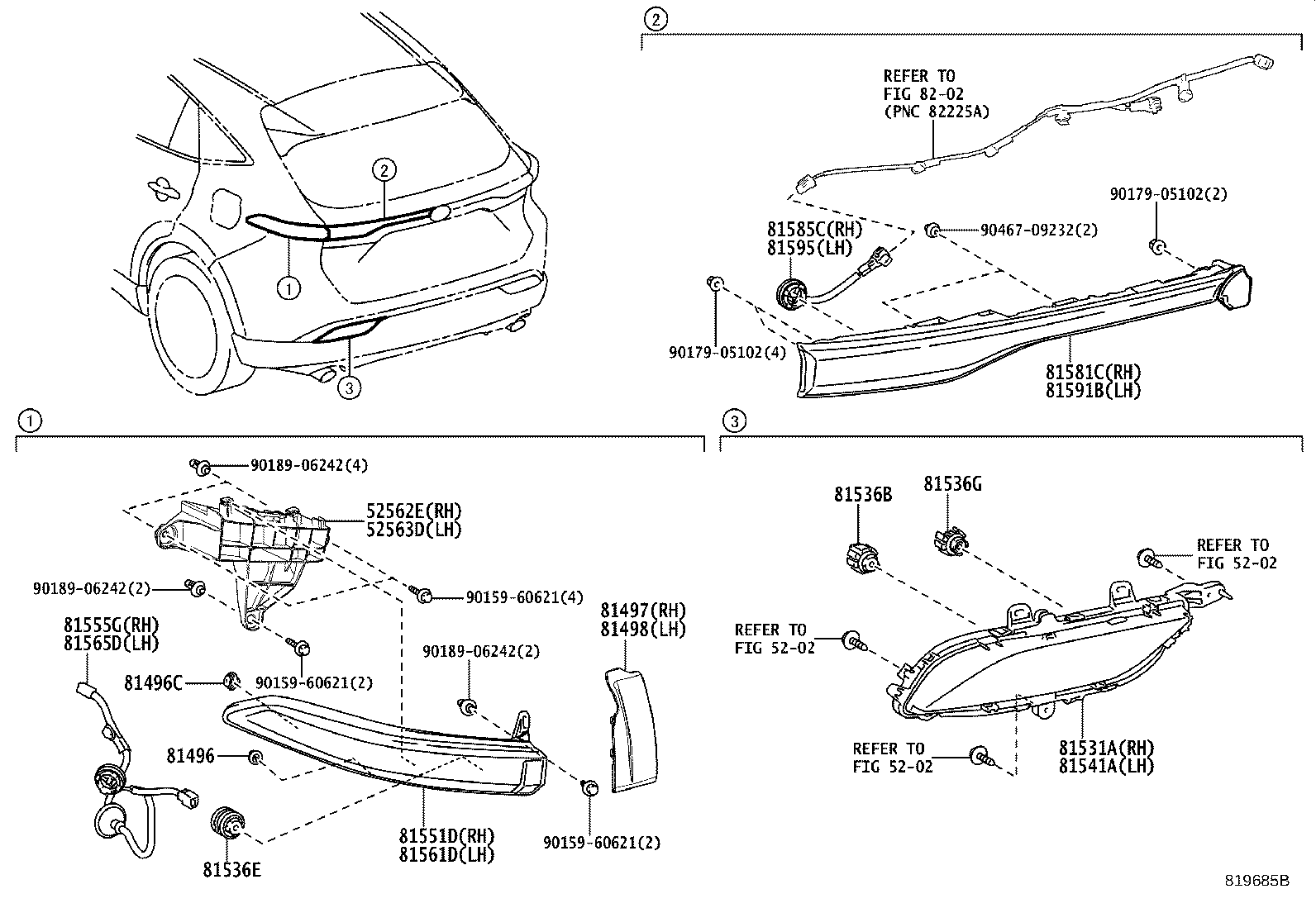

Click highlighted areas on diagram

diagram 5202 5202 5202 52562E 52563D 81496 81496C 81497 81498 81531A 81536B 81536E 81536G 81541A 81551D 81555G 81561D 81565D 81581C 81585C 81591B 81595 8202 9015960621 9015960621 9015960621 9017905102 9017905102 9018906242 9018906242 9018906242 9046709232
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-48030

AXUH85

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-48030

AXUH85

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

AXUH85

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

AXUH85

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-48010

AXUH85

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-48010

AXUH85

 1
81531A - LENS & BODY, REAR TURN SIGNAL LAMP, RH
81531-48010

AXUH85

 1
81536B - LED, REAR TURN SIGNAL LAMP
81532-48011

AXUH85

 2
81532-48010

AXUH85

 2
81536E - LED, STOP LAMP
81536-48510

AXUH85

 2
81536G - LED, BACK-UP LAMP
81542-48010

AXUH85

 2
81541A - LENS & BODY, REAR TURN SIGNAL LAMP, LH
81541-48010

AXUH85

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-48520

AXUH85

 1
81555G - CORD, REAR COMBINATION LAMP, RH
81555-48510

AXUH85

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-48520

AXUH85

 1
81565D - CORD, REAR COMBINATION LAMP, LH
81555-48510

AXUH85

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-48330

AXUH85

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-48330

AXUH85

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-48330

AXUH85

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-48330

AXUH85

 1
Common parts
90159-60621
90179-05102
90189-06242
90467-09232
Linked diagrams
5202
8202
