AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

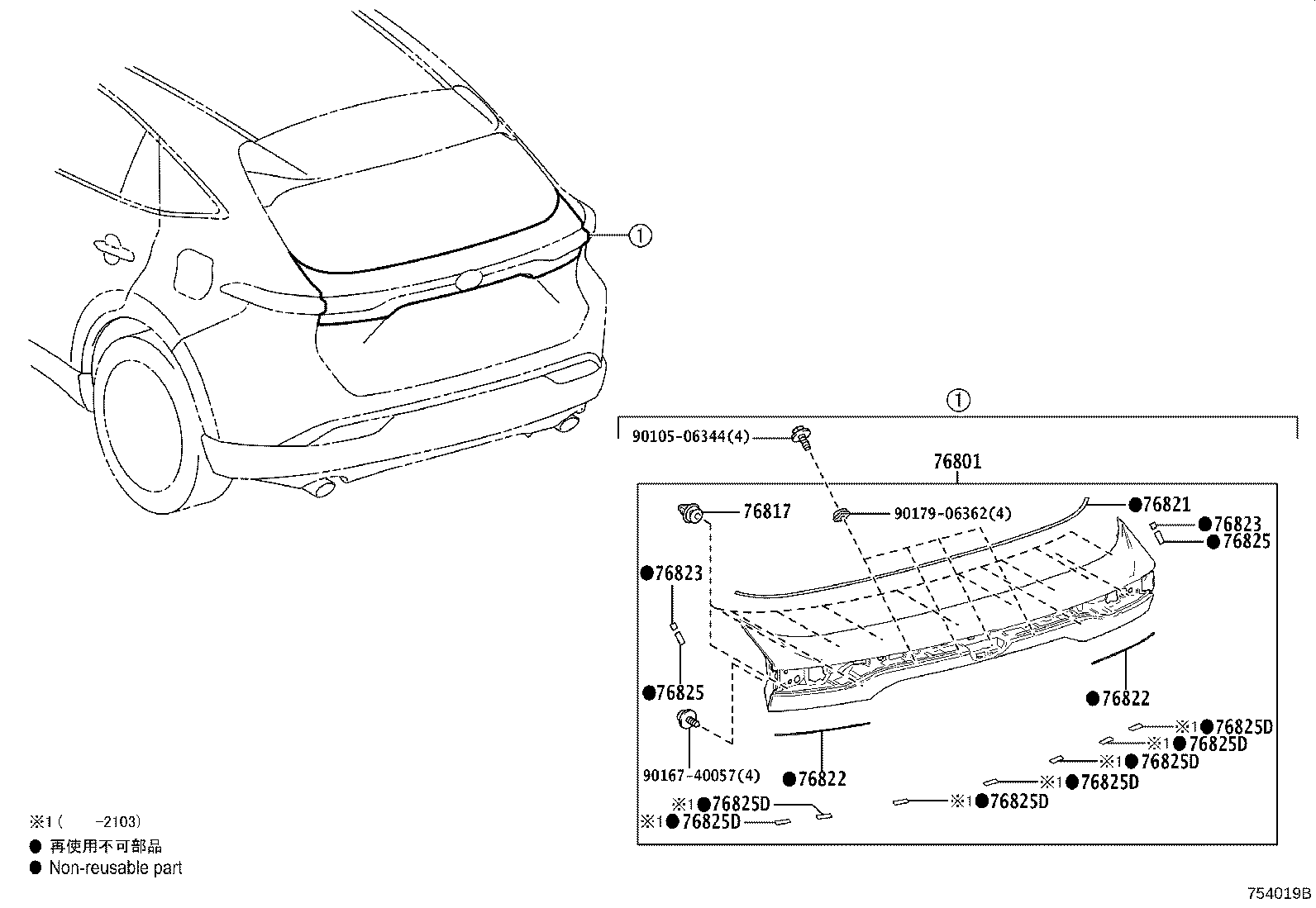

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-48540C0 |
AXUH85 BLACK,202 |
1 | ||
| 76801-48541C0 |
AXUH85 BLACK,202 |
1 | ||
| 76801-48540A0 |
AXUH85 WHITE PEARL CS.,070 |
1 | ||
| 76801-48541B0 |
AXUH85 SLATE GRAY ME.,1K9 |
1 | ||
| 76801-48541E0 |
AXUH85 STEEL BLONDE ME.,4X1 |
1 | ||
| 76801-48541C1 |
AXUH85 PRECIOUS BLACK,219 |
1 | ||
| 76801-48541A0 |
AXUH85 WHITE PEARL CS.,070 |
1 | ||
| 76801-48541D0 |
AXUH85 RED MC.,3T3 |
1 | ||
| 76801-48540E0 |
AXUH85 STEEL BLONDE ME.,4X1 |
1 | ||
| 76801-48540D0 |
AXUH85 RED MC.,3T3 |
1 | ||
| 76801-48540C1 |
AXUH85 PRECIOUS BLACK,219 |
1 | ||
| 76801-48541J0 |
AXUH85 DK. BLUE MC.,8X8 |
1 | ||
| 76801-48540J0 |
AXUH85 DK. BLUE MC.,8X8 |
1 | ||
| 76801-48540B0 |
AXUH85 SLATE GRAY ME.,1K4 ,1K9 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
AXUH85 |
12 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-48060 |
AXUH85 |
1 | ||
| 76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER | ||||
| 76822-48060 |
AXUH85 |
2 | ||
| 76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER | ||||
| 76822-48060 |
AXUH85 |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-48020 |
AXUH85 |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-48020 |
AXUH85 |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-48110 |
AXUH85 |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-48110 |
AXUH85 |
2 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-48110 |
AXUH85 |
7 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
