AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

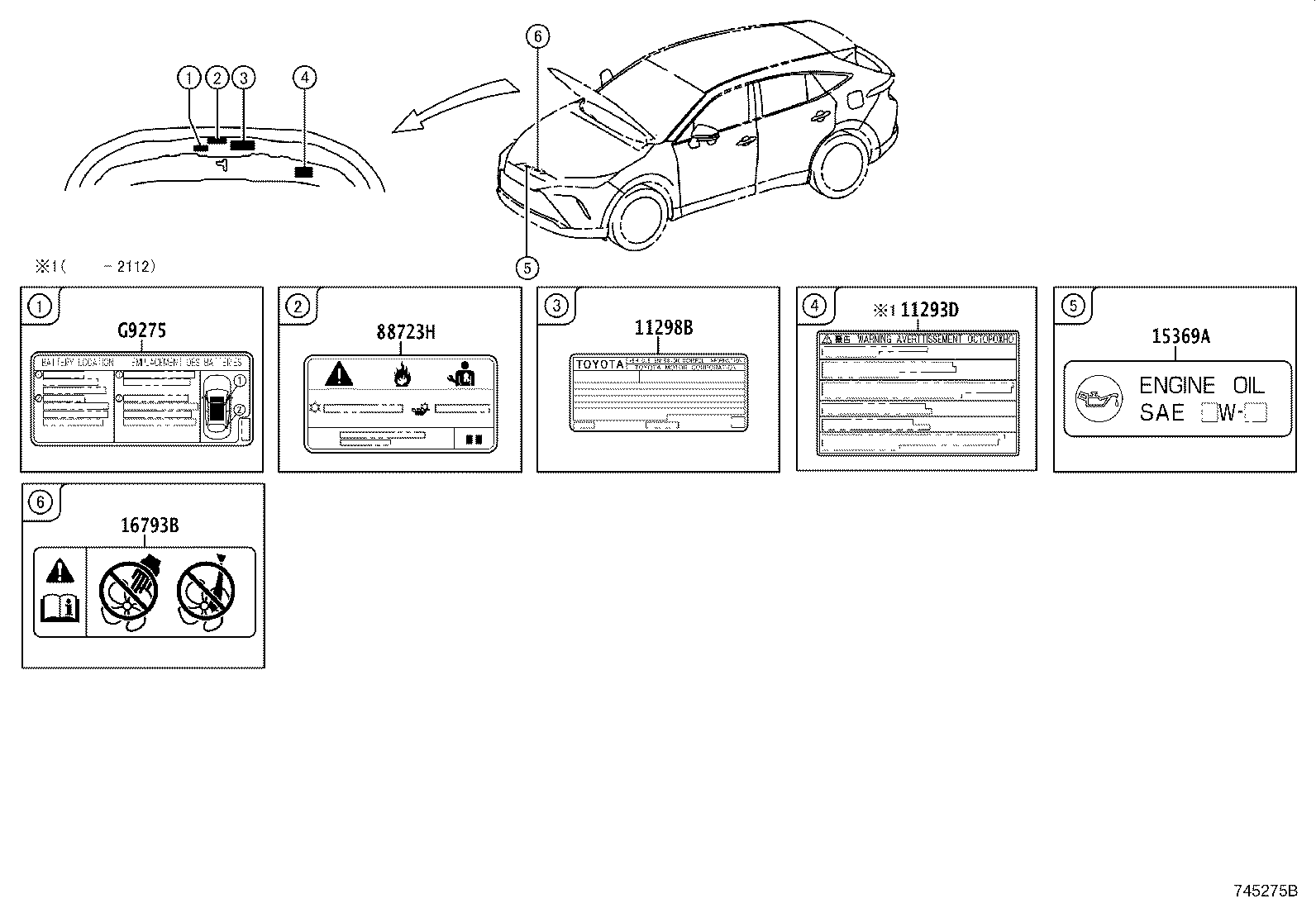

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 11293D 11298B 15369A 16793B 88723H G9275
Part # Description Qty Price
11293D - LABEL, ENGINE CAUTION
11293-36070

A25AFXS..AXUH85

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-25082

A25AFXS..AXUH85

 1
15369A - LABEL, ENGINE OIL INFORMATION
15369-25010

A25AFXS..AXUH85

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-36030

A25AFXS..AXUH85

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-11020

AXUH85

 1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-48120

AXUH85

 1

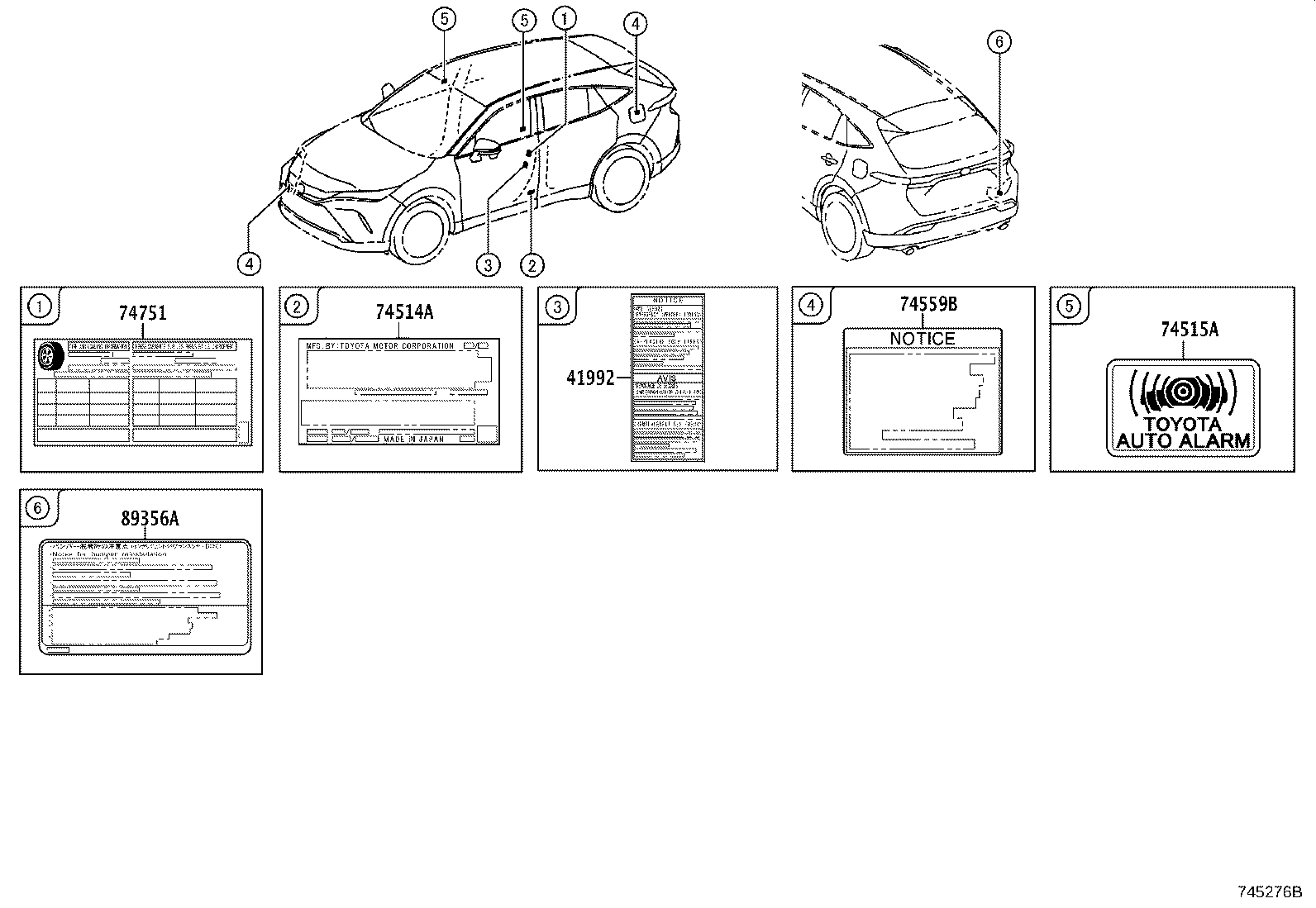

ILLUST NO. 2 OF 3(2007- )

Click highlighted areas on diagram

EXTERIOR

diagram 41992 74514A 74515A 74559B 74751 89356A
Part # Description Qty Price
41992 - LABEL, DIFFERENTIAL NOTICE
41992-48020

AXUH85

 1
74514A - LABEL, CERTIFICATION REGULATION INFORMATION
74514-48020

AXUH85

 1
74515A - PLATE, THEFT WARNING
74515-33020

AXUH85

 2
74515-33020

AXUH85..USA

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

 2
74559B - LABEL, FUEL INFORMATION
74559-48010

AXUH85

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-48E40

AXUH85..G,S

 1
42661-48F90

AXUH85..(G,S)..USA

GUAM,SAIPAN SPEC

 1
42661-48F90

AXUH85..(G,S)..USA

PUERTO RICO SPEC

 1
89356A - LABEL, CLEARANCE WARNING INFORMATION
89356-47020

AXUH85..G,S

 2

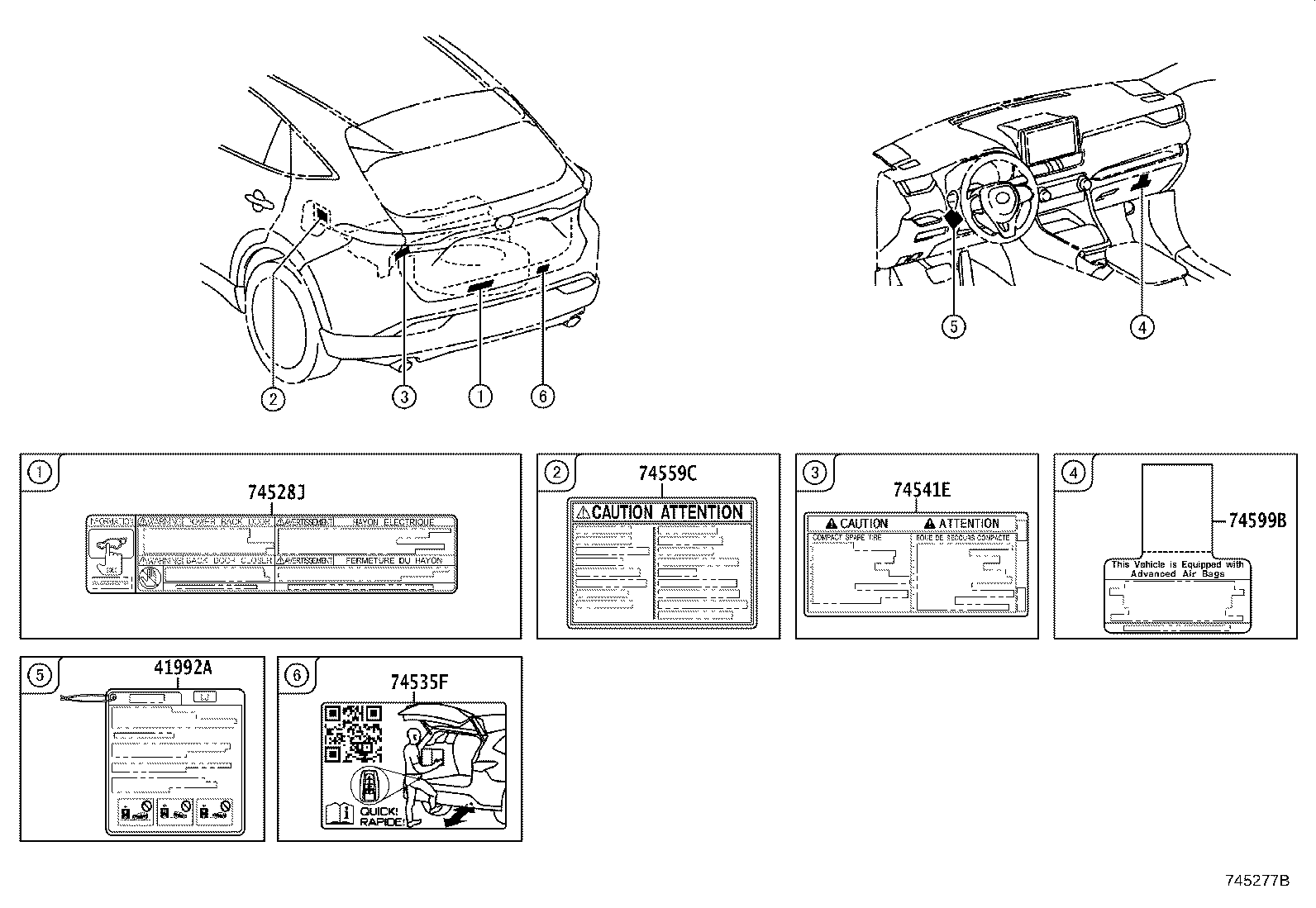

ILLUST NO. 3 OF 3(2007- )

Click highlighted areas on diagram

INTERIOR

diagram 41992A 74528J 74535F 74541E 74559C 74599B
Part # Description Qty Price
41992A - LABEL, DIFFERENTIAL NOTICE, NO.2
41992-42030

AXUH85

 1
74528J - LABEL, POWER BACK DOOR CAUTION
74528-42011

AXUH85

 1
74535F - LABEL, GATE HELPER INFORMATION
74535-42100

AXUH85..G,S

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-42020

AXUH85

 1
42668-42030

AXUH85..USA

PUERTO RICO SPEC

 1
74559C - LABEL, FUEL INFORMATION, NO.2
74559-30070

AXUH85

 1
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-48020

AXUH85..USA

 1
