AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

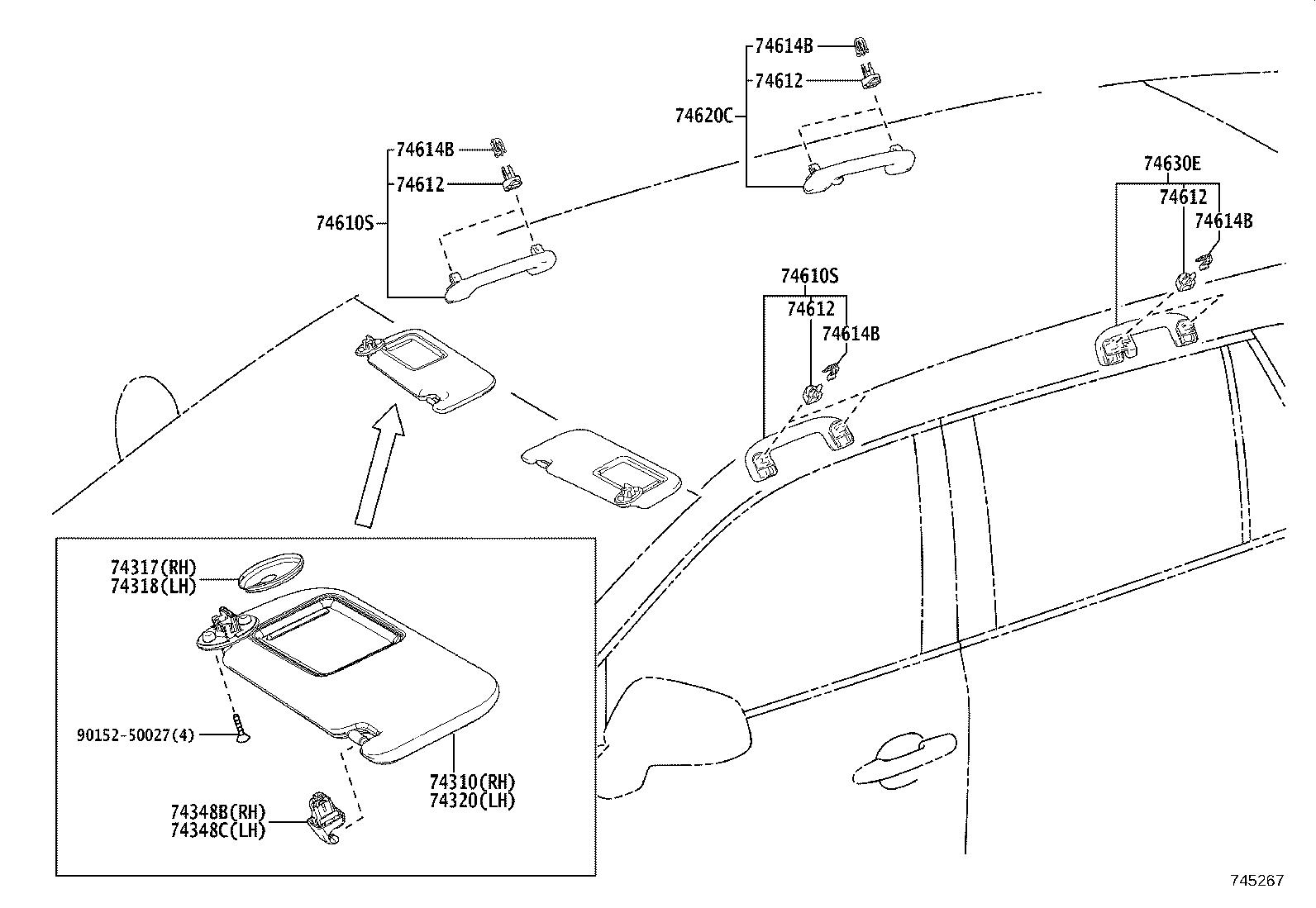

Click highlighted areas on diagram

diagram 74310 74317 74318 74320 74348B 74348C 74610S 74610S 74612 74612 74612 74612 74614B 74614B 74614B 74614B 74620C 74630E 9015250027
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-48560C3

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74310-48560B2

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74317 - COVER, VISOR BRACKET, RH
74317-60020C2

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74317-60020B1

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74318 - COVER, VISOR BRACKET, LH
74317-60020B1

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74317-60020C2

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74320 - VISOR ASSY, LH
74320-48510B2

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74320-48510C3

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74348B - HOLDER, VISOR, RH
74348-47010C0

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74348-47010B3

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-47010B3

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74348-47010C0

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74610S - GRIP ASSY, ASSIST
74610-12140B1

AXUH85..G,S

LT.GRAY,TRIM1#

 2
74610-12140C0

AXUH85..G,S

BLACK,TRIM2#,4#

 2
74610S - GRIP ASSY, ASSIST
74610-12140B1

AXUH85..G,S

LT.GRAY,TRIM1#

 2
74610-12140C0

AXUH85..G,S

BLACK,TRIM2#,4#

 2
74612 - COVER, ASSIST GRIP
74612-47070B1

AXUH85..G,S

LT.GRAY,TRIM1#

 8
74612-47070C2

AXUH85..G,S

BLACK,TRIM2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-47070B1

AXUH85..G,S

LT.GRAY,TRIM1#

 8
74612-47070C2

AXUH85..G,S

BLACK,TRIM2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-47070B1

AXUH85..G,S

LT.GRAY,TRIM1#

 8
74612-47070C2

AXUH85..G,S

BLACK,TRIM2#,4#

 8
74612 - COVER, ASSIST GRIP
74612-47070B1

AXUH85..G,S

LT.GRAY,TRIM1#

 8
74612-47070C2

AXUH85..G,S

BLACK,TRIM2#,4#

 8
74614B - PLATE, ASSIST GRIP LOCK
74614-12020

AXUH85

 8
74614B - PLATE, ASSIST GRIP LOCK
74614-12020

AXUH85

 8
74614B - PLATE, ASSIST GRIP LOCK
74614-12020

AXUH85

 8
74614B - PLATE, ASSIST GRIP LOCK
74614-12020

AXUH85

 8
74620C - GRIP ASSY, ASSIST, REAR RH
74610-12170B1

AXUH85..G,S

LT.GRAY,TRIM1#

 1
74610-12170C0

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-12180C0

AXUH85..G,S

BLACK,TRIM2#,4#

 1
74610-12180B1

AXUH85..G,S

LT.GRAY,TRIM1#

 1
Common parts
90152-50027
