AXUH85L-ANXGBA (2020)
Toyota Venza

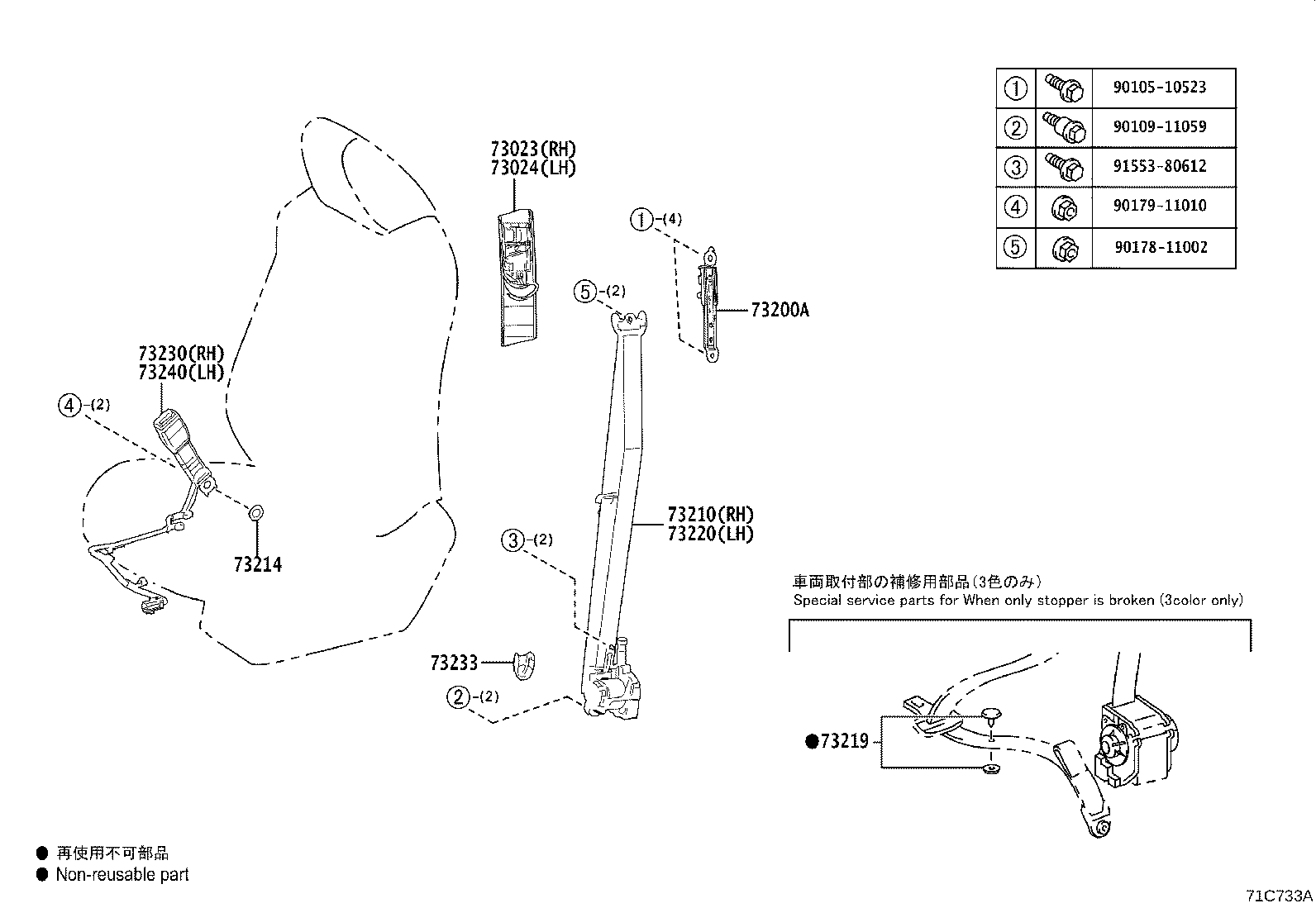

ILLUST NO. 1 OF 2(2007- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12030B0 |
AXUH85..G,S LT.GRAY,TRIM1# |
1 | ||
| 73023-12030C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-12020C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
1 | ||
| 73024-12020B0 |
AXUH85..G,S LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-42020 |
AXUH85 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-42440C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
AXUH85 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
AXUH85 GRAY |
1 | ||
| 73219-33010 |
AXUH85..USA BLACK,PUERTO RICO SPEC |
1 | ||
| 73219-02030 |
AXUH85 BEIGE |
1 | ||
| 73219-33020 |
AXUH85..USA GRAY,PUERTO RICO SPEC |
1 | ||
| 73219-33030 |
AXUH85..USA BEIGE,PUERTO RICO SPEC |
1 | ||
| 73219-02010 |
AXUH85 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-47221C7 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-48620C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-48550C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

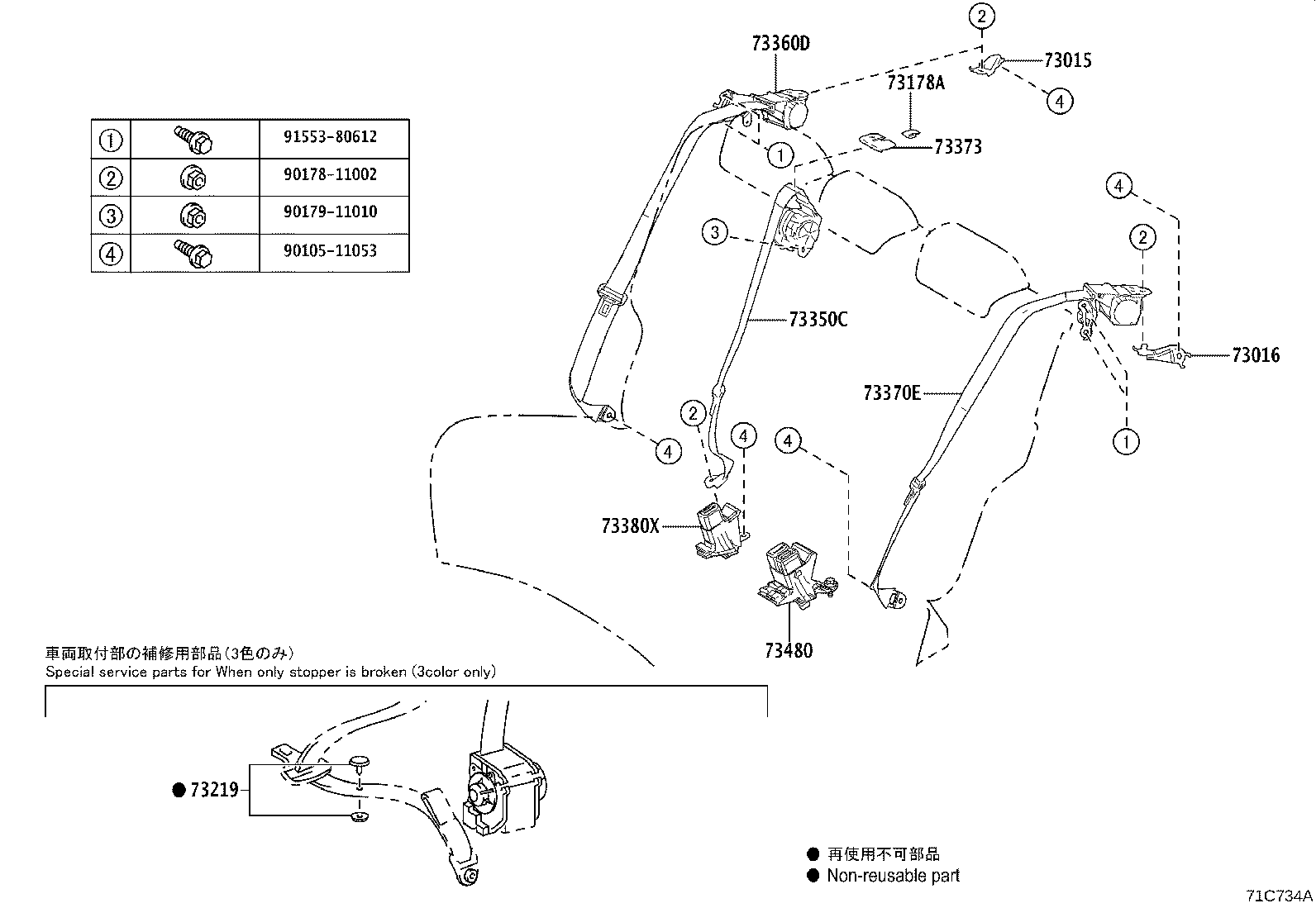

ILLUST NO. 2 OF 2(2007- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-48030 |
AXUH85 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-48030 |
AXUH85 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-48010C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
AXUH85 GRAY |
1 | ||
| 73219-33010 |
AXUH85..USA BLACK,PUERTO RICO SPEC |
1 | ||
| 73219-02030 |
AXUH85 BEIGE |
1 | ||
| 73219-33020 |
AXUH85..USA GRAY,PUERTO RICO SPEC |
1 | ||
| 73219-33030 |
AXUH85..USA BEIGE,PUERTO RICO SPEC |
1 | ||
| 73219-02010 |
AXUH85 BLACK |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-42010C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73360D - BELT ASSY, REAR SEAT, OUTER RH | ||||
| 73360-48290C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73370E - BELT ASSY, REAR SEAT, OUTER LH | ||||
| 73370-48290C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-48080C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73380X - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73380-42140C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-42060C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
