AXUH85L-ANXGBA (2020)
Toyota Venza
(2007- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

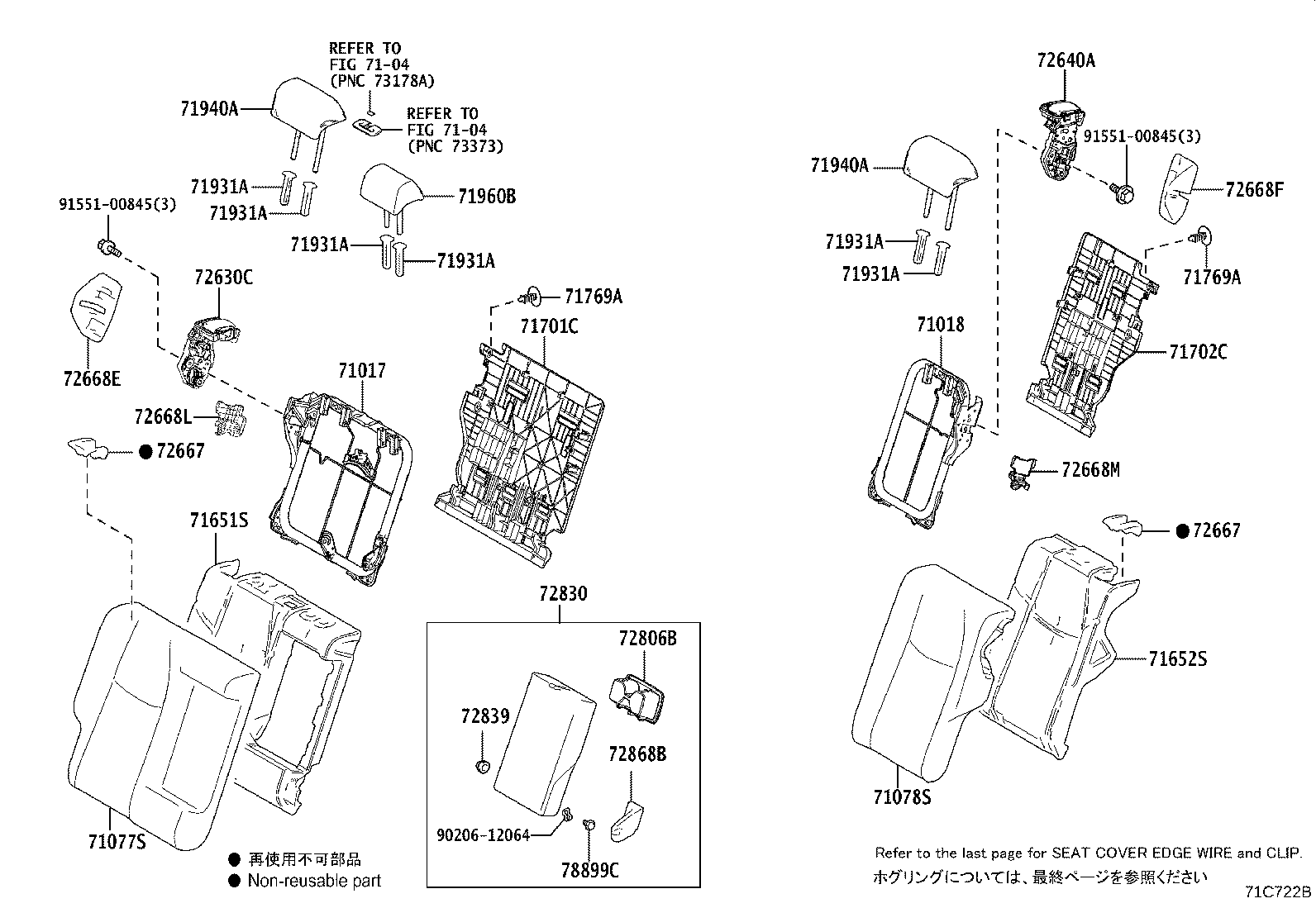

ILLUST NO. 1 OF 3(2007- )
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48270 |
AXUH85 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48210 |
AXUH85 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48K60C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71077-48K60B2 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71077-48K70B3 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71077-48K70B3 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71077-48K70C5 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71077-48K70C4 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71077-48K70C4 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71077-48K60C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71077-48K70C5 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48J80C2 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71078-48J80B2 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71078-48J70B2 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71078-48J70C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71078-48J70C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71078-48J80C3 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71078-48J80C3 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71078-48J80C2 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71078-48J80B2 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48310 |
AXUH85 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48280 |
AXUH85 |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-48010 |
AXUH85 |
1 | ||
| 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-48010 |
AXUH85 |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-28040 |
AXUH85 |
5 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-28040 |
AXUH85 |
5 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48C80B1 |
AXUH85..G,S MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-48C80C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48C80B1 |
AXUH85..G,S MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-48C80C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48750C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
1 | ||
| 71960-48750B1 |
AXUH85..G,S MEDIUM GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-48070C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-48020C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-48060C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-48060C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
2 | ||
| 72668E - BEZEL, REAR SEAT BACK LOCK, LOWER RH | ||||
| 72668-48030C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 72668F - BEZEL, REAR SEAT BACK LOCK, LOWER LH | ||||
| 72668-48040C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 72668L - BEZEL, REAR SEAT BACK LOCK, LOWER RH NO.2 | ||||
| 72668-48050 |
AXUH85 |
1 | ||
| 72668M - BEZEL, REAR SEAT BACK LOCK, LOWER LH NO.2 | ||||
| 72668-48060 |
AXUH85 |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-42020C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-48B90B0 |
AXUH85..G,S MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-48B90C0 |
AXUH85..G,S BLACK,TRIM2#,4# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-22010 |
AXUH85 |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-42040C0 |
AXUH85..G,S BLACK,TRIM1#,2#,4# |
1 | ||
| 78899C - BOLT, REAR SUB SEAT | ||||
| 78899-60070 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90206-12064 | ||||
| 91551-00845 | ||||
| Linked diagrams | ||||
| 7104 | ||||

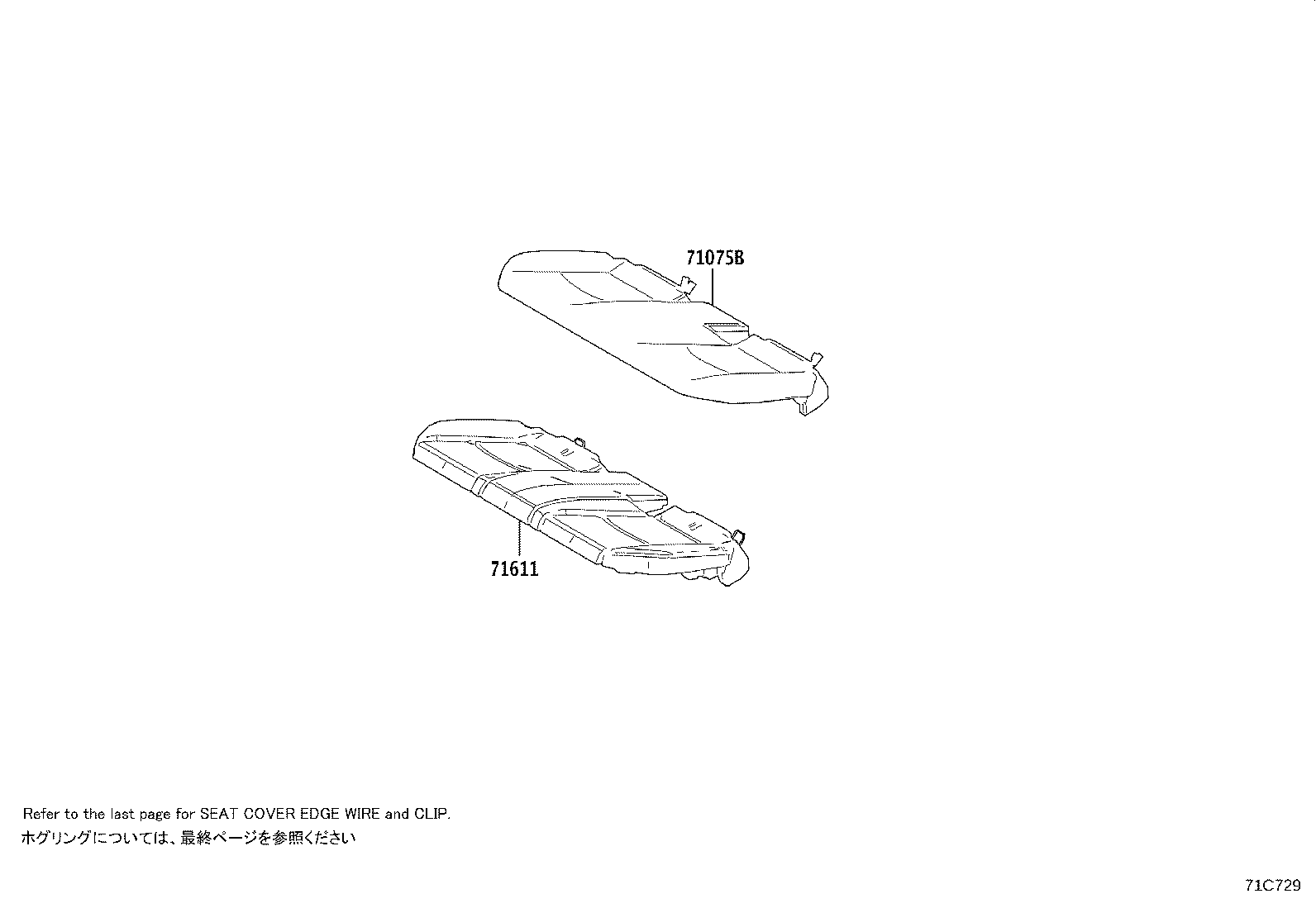

ILLUST NO. 2 OF 3(2007- )
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-48D20B1 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71075-48D20C0 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71075-48D10C1 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71075-48D10C0 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71075-48D20B1 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71075-48D20C1 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71075-48D20C1 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71075-48D20C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71075-48D10B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-48380 |
AXUH85 |
1 | ||

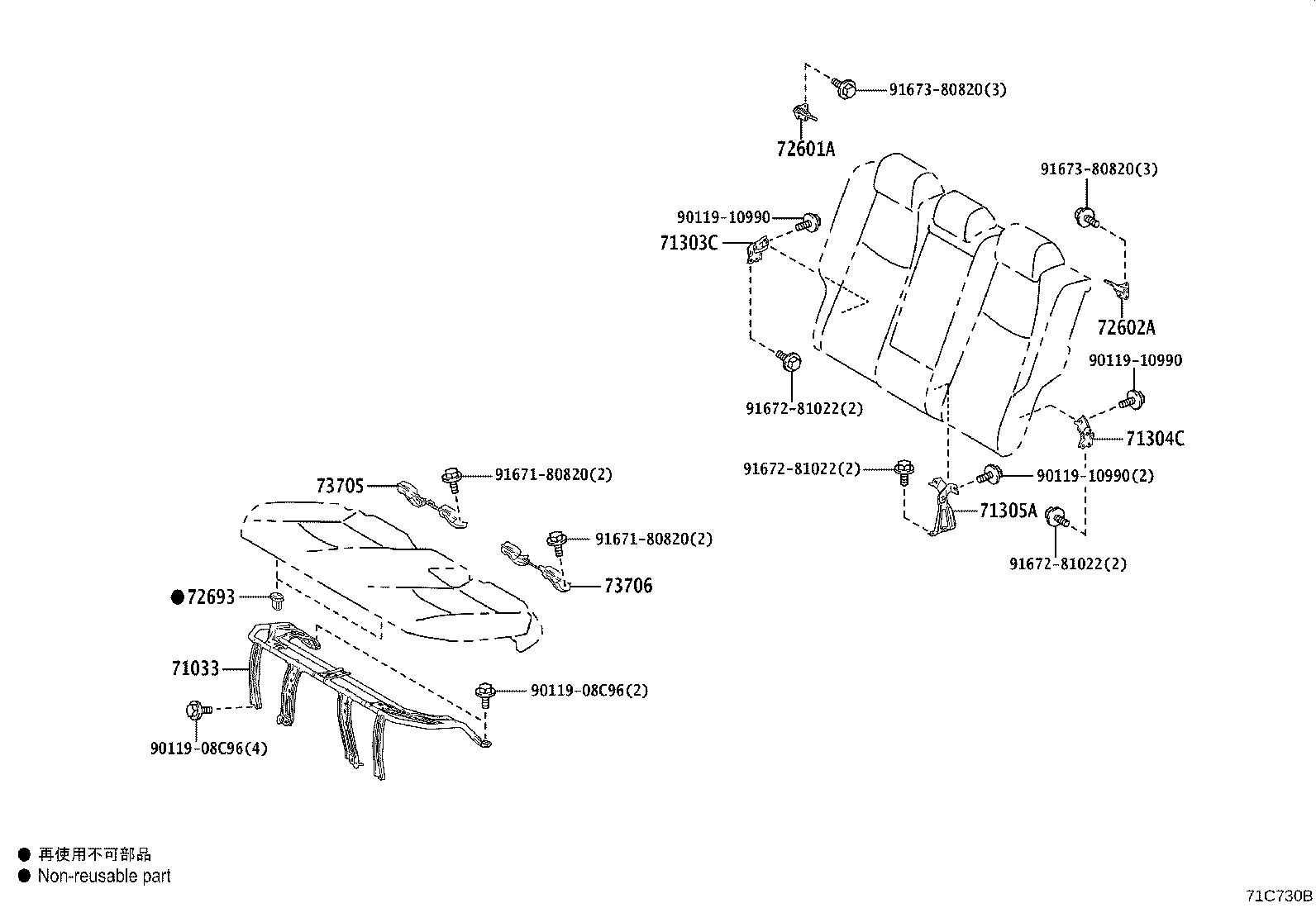

ILLUST NO. 3 OF 3(2007- )
FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-42020 |
AXUH85 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-42020 |
AXUH85 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-42020 |
AXUH85 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-42010 |
AXUH85 |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-48010 |
AXUH85 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-48010 |
AXUH85 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXUH85 |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-42030 |
AXUH85 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-42040 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90119-10990 | ||||
| 91671-80820 | ||||
| 91672-81022 | ||||
| 91673-80820 | ||||
