AXUH85L-ANXGBA (2020)
Toyota Venza
(2007- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

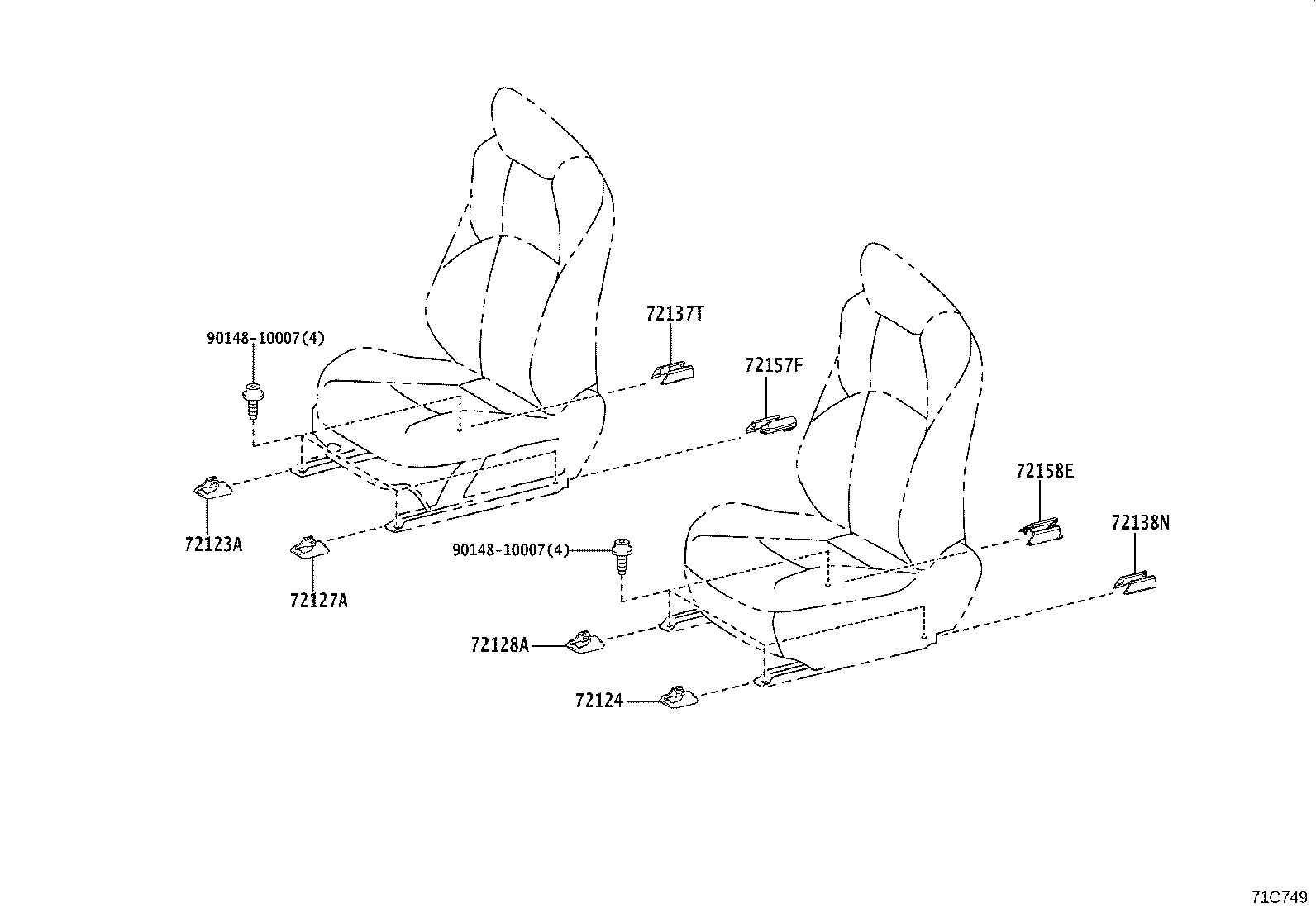

ILLUST NO. 5 OF 5(2007- )
FRONT SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
AXUH85 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-10100 |
AXUH85 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
AXUH85 |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-10100 |
AXUH85 |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXUH85 |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXUH85 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXUH85 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90148-10007 | ||||

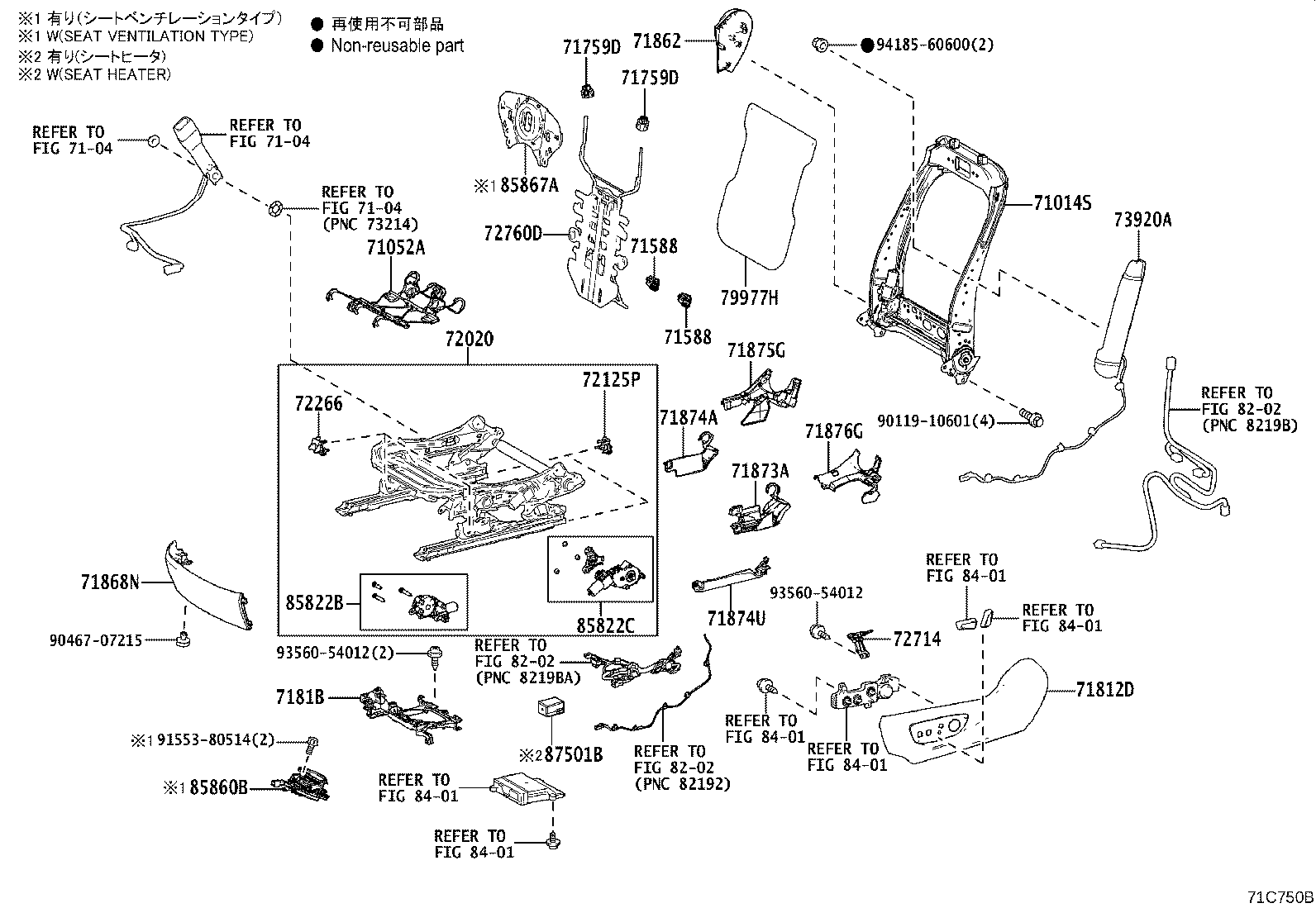

ILLUST NO. 3 OF 5(2007- )
FRONT POWER SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42250 |
AXUH85..G,S |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
AXUH85 |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXUH85 |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXUH85 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42210C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-42010 |
AXUH85 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-42040C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-42040 |
AXUH85 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42050 |
AXUH85 |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42060 |
AXUH85 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-42080C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42090C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42340 |
AXUH85..G,S |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47020 |
AXUH85 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
AXUH85 |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-42010 |
AXUH85 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-33140 |
AXUH85..G,M |
1 | ||
| 72750-33130 |
AXUH85..S |
1 | ||
| 72750-33130 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42080 |
AXUH85 |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-76010 |
AXUH85 |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-42060 |
AXUH85 W(POWER SEAT) |
1 | ||
| 85801-50130 |
AXUH85 W(POWER SEAT+MEMORY) |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-42050 |
AXUH85 W(POWER SEAT) |
1 | ||
| 85801-50140 |
AXUH85 W(POWER SEAT+MEMORY) |
1 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85802-42020 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 85802-42020 |
AXUH85..S |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-42020 |
AXUH85..S |
1 | ||
| 85867-42020 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
AXUH85..G,S |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

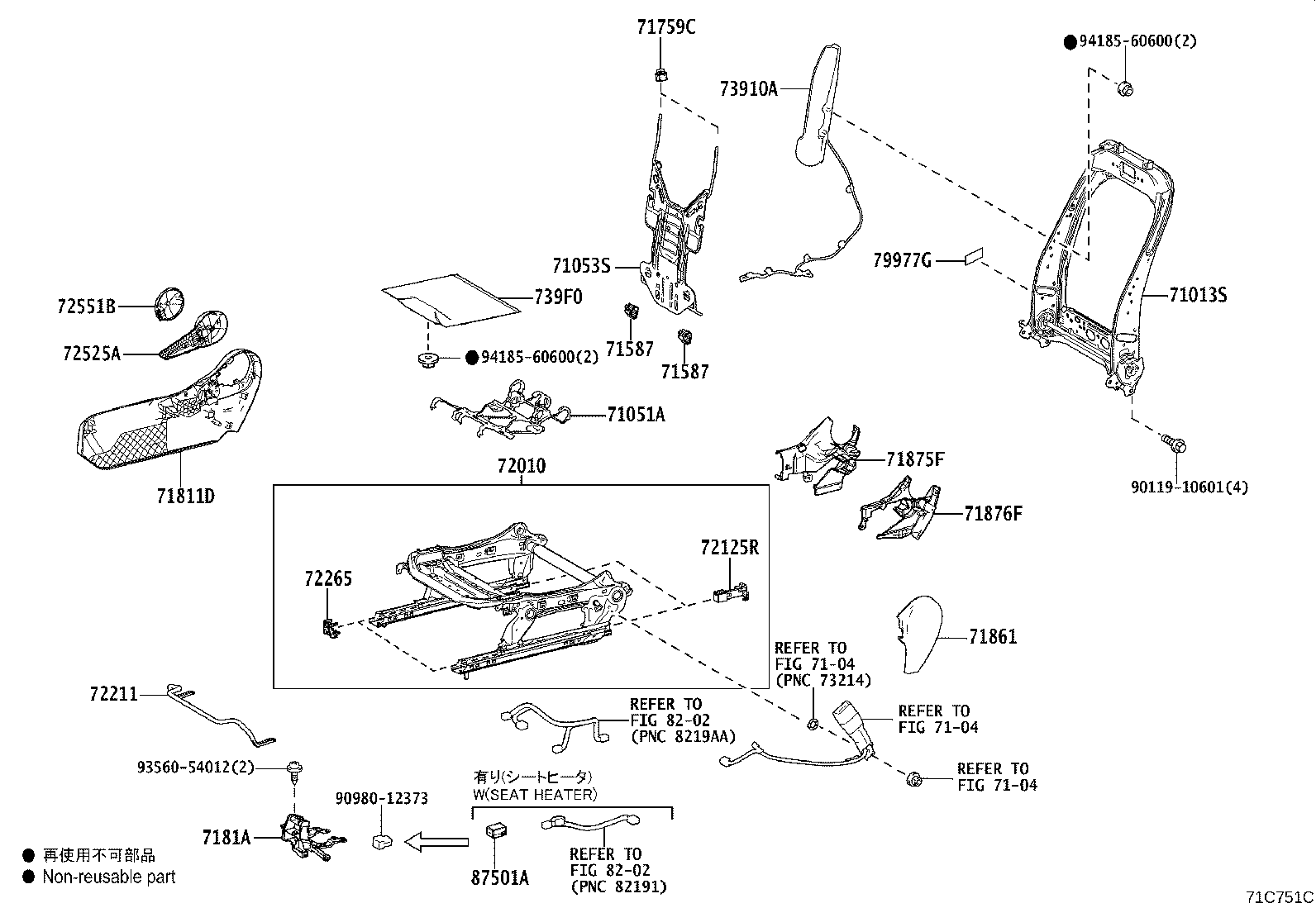

ILLUST NO. 2 OF 5(2007- )
FRONT MANUAL SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42340 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71013-42250 |
AXUH85..S |
1 | ||
| 71013-42340 |
AXUH85..G,M |
1 | ||
| 71013-42250 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXUH85 |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXUH85..G,M |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH85 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42220C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71811-42220C0 |
AXUH85..S BLACK,TRIM1#,2#,4# |
1 | ||
| 71811-26520C0 |
AXUH85..G..USA;AXUH85..(G,M)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXUH85 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42120C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42070C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42080C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42320 |
AXUH85..G,M |
1 | ||
| 72010-42400 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 72010-42400 |
AXUH85..S |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXUH85 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
AXUH85..G,M |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH85 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26170C0 |
AXUH85..G BLACK,TRIM1#,2#,4# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-47030C1 |
AXUH85..G..USA;AXUH85..(G,M)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42080 |
AXUH85 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-42010 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 739F0-12030 |
AXUH85..G,M |
1 | ||
| 739F0-42010 |
AXUH85..S |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 79977-76010 |
AXUH85..S |
1 | ||
| 79977-12090 |
AXUH85..G,M |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXUH85..G,S |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90980-12373 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||

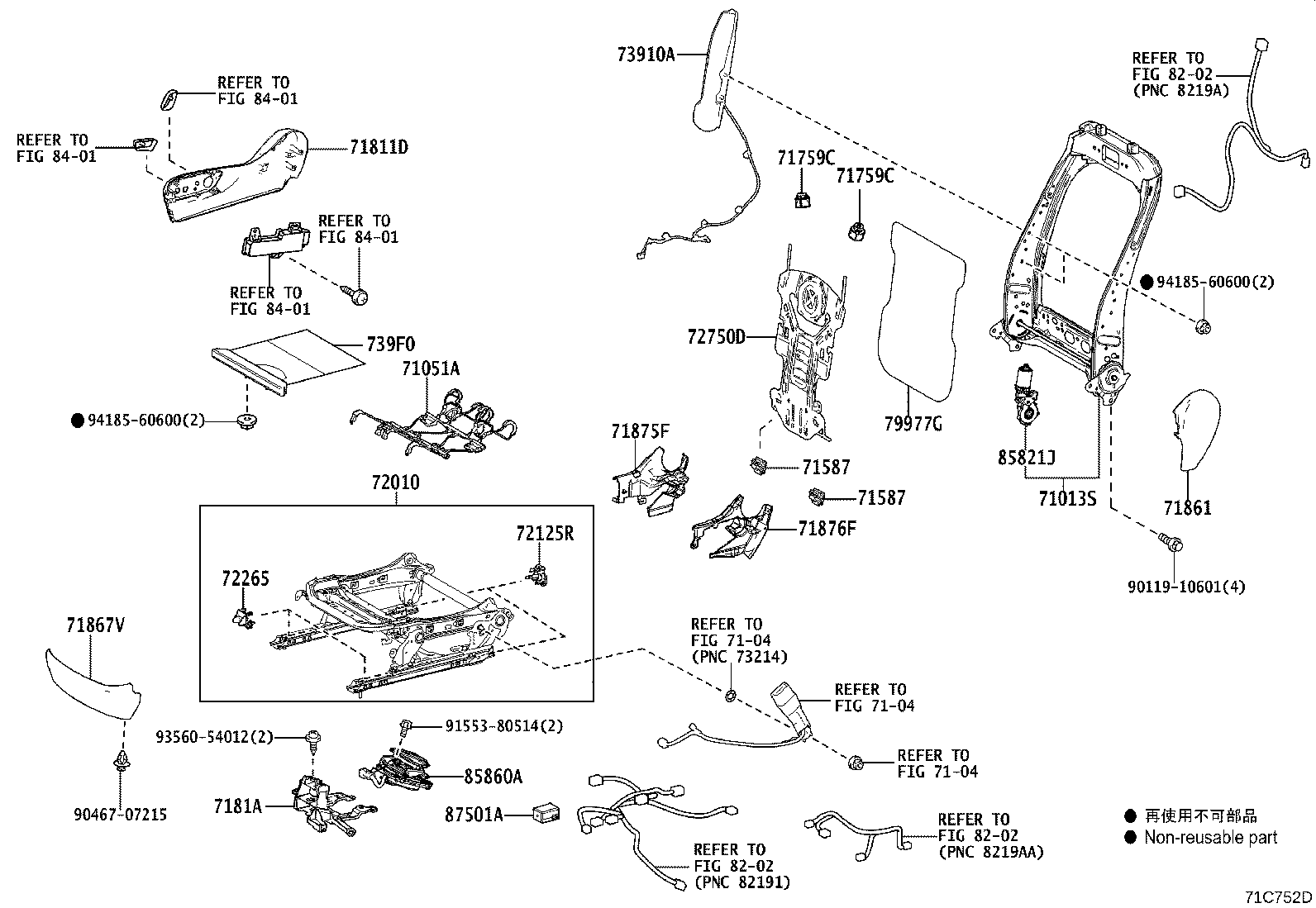

ILLUST NO. 4 OF 5(2007- )
FRONT POWER SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42340 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71013-42250 |
AXUH85..S |
1 | ||
| 71013-42340 |
AXUH85..G,M |
1 | ||
| 71013-42250 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXUH85 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH85 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH85 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH85 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42220C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71811-42220C0 |
AXUH85..S BLACK,TRIM1#,2#,4# |
1 | ||
| 71811-26520C0 |
AXUH85..G..USA;AXUH85..(G,M)..CND BLACK,TRIM1#,2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXUH85 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42120C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-42040C0 |
AXUH85..S BLACK,TRIM1#,2#,4# |
1 | ||
| 71867-42040C0 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42070C1 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42080C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42320 |
AXUH85..G,M |
1 | ||
| 72010-42400 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 72010-42400 |
AXUH85..S |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXUH85 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH85 |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-42020 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 72760-42020 |
AXUH85..S |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42080 |
AXUH85 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-42010 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 739F0-12030 |
AXUH85..G,M |
1 | ||
| 739F0-42010 |
AXUH85..S |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 79977-76010 |
AXUH85..S |
1 | ||
| 79977-12090 |
AXUH85..G,M |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-48120 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 85801-48120 |
AXUH85..S |
1 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85801-42030 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 85801-42030 |
AXUH85..S |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXUH85..G,S |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

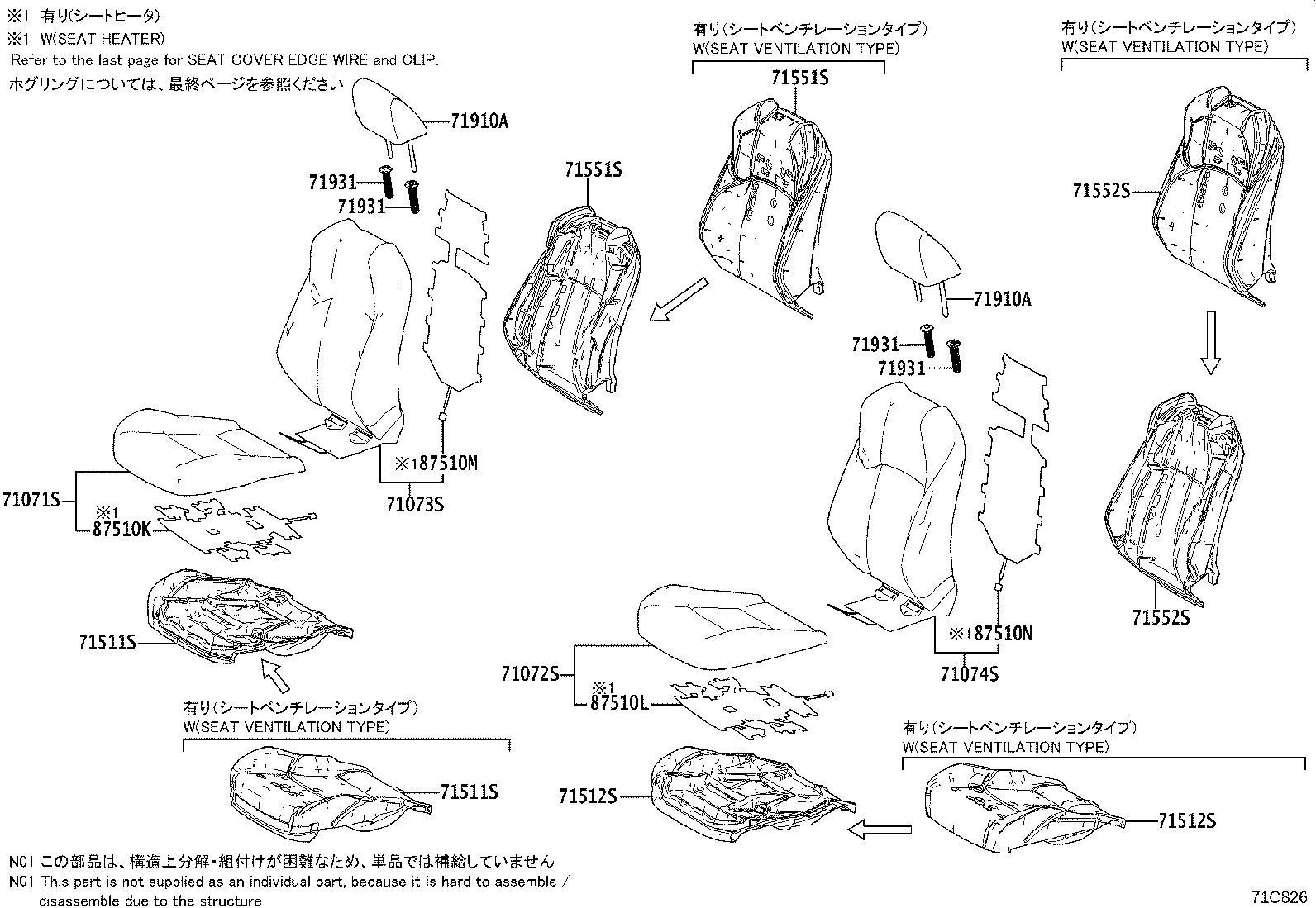

ILLUST NO. 1 OF 5(2007- )
FRONT SEAT COVER & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48D80B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71071-48E00C3 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71071-48D80C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71071-48E00B1 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71071-48E00C2 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48E00B1 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71071-48D80C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48E00C2 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48E00C3 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48C90B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71072-48D00C3 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71072-48D00C2 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71072-48D00B1 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71072-48D00B1 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71072-48D00C2 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-48C90C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71072-48C90C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71072-48D00C3 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48G40B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71073-48G50B1 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71073-48G40C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71073-48G40C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G50C3 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71073-48G50C2 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G50B1 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71073-48G50C2 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G50C3 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48G00C2 |
AXUH85..G BLACK/GRAY,TRIM2# |
1 | ||
| 71074-48G00B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71074-48G10B1 |
AXUH85..S MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71074-48G00C3 |
AXUH85..G BLACK/CAMEL,TRIM4# |
1 | ||
| 71074-48G10C3 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71074-48G10B1 |
AXUH85..G "LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71074-48G10C2 |
AXUH85..S BLACK/GRAY,TRIM2# |
1 | ||
| 71074-48G10C2 |
AXUH85..G "LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-48G10C3 |
AXUH85..S BLACK/CAMEL,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48450 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71511-48450 |
AXUH85..S |
1 | ||
| 71511-48440 |
AXUH85..G,M |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48450 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71511-48450 |
AXUH85..S |
1 | ||
| 71511-48440 |
AXUH85..G,M |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48390 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71512-48380 |
AXUH85..G,M |
1 | ||
| 71512-48390 |
AXUH85..S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48390 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71512-48380 |
AXUH85..G,M |
1 | ||
| 71512-48390 |
AXUH85..S |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48280 |
AXUH85..S |
1 | ||
| 71551-48280 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71551-48270 |
AXUH85..G,M |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48280 |
AXUH85..S |
1 | ||
| 71551-48280 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71551-48270 |
AXUH85..G,M |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48270 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71552-48270 |
AXUH85..S |
1 | ||
| 71552-48260 |
AXUH85..G,M |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48270 |
AXUH85..G "LEATHER PACKAGE"*(S) |
1 | ||
| 71552-48270 |
AXUH85..S |
1 | ||
| 71552-48260 |
AXUH85..G,M |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48E60C1 |
AXUH85..G BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48E60B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E60 |
AXUH85..S |
2 | ||
| 71910-48E60C0 |
AXUH85..G BLACK/GRAY,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48E60C1 |
AXUH85..G BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48E60B1 |
AXUH85..G MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E60 |
AXUH85..S |
2 | ||
| 71910-48E60C0 |
AXUH85..G BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH85..G,S W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH85..G,S W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-48280 |
AXUH85..G,S |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-48290 |
AXUH85..G,S |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-42060 |
AXUH85..G,S |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-42060 |
AXUH85..G,S |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
