AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

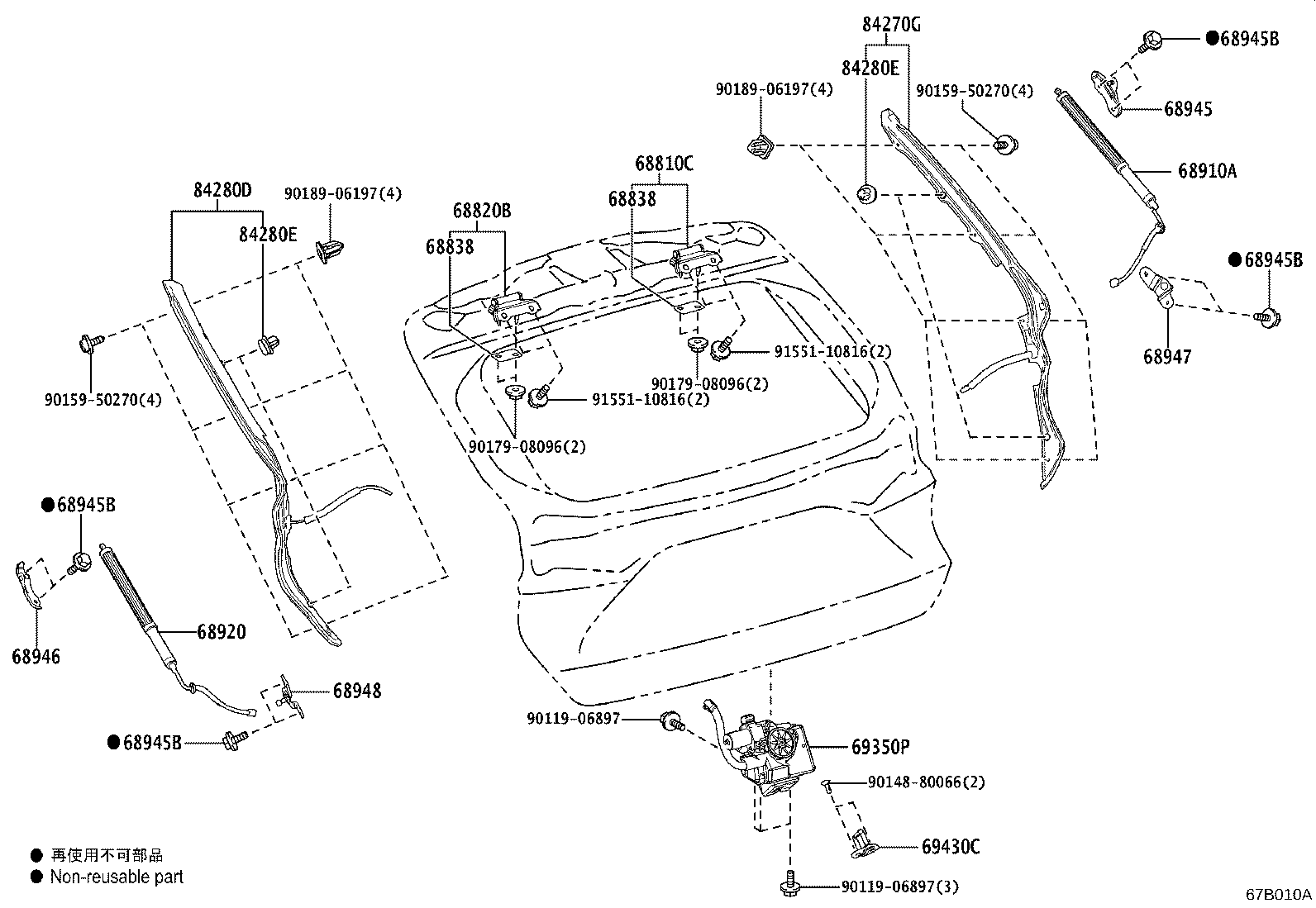

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-48220 |
AXUH85 |
1 | ||
| 68820B - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-48220 |
AXUH85 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-48160 |
AXUH85 T=2.0 |
2 | ||
| 68838-48140 |
AXUH85 T=1.0 |
2 | ||
| 68838-48150 |
AXUH85 T=1.5 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-48160 |
AXUH85 T=2.0 |
2 | ||
| 68838-48140 |
AXUH85 T=1.0 |
2 | ||
| 68838-48150 |
AXUH85 T=1.5 |
2 | ||
| 68910A - UNIT ASSY SET, POWER BACK DOOR, RH | ||||
| 68910-48120 |
AXUH85 |
1 | ||
| 68920 - UNIT ASSY SET, POWER BACK DOOR, LH | ||||
| 68920-48100 |
AXUH85 |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-48140 |
AXUH85 |
1 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06325 |
AXUH85 |
8 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06325 |
AXUH85 |
8 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06325 |
AXUH85 |
8 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06325 |
AXUH85 |
8 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-48090 |
AXUH85 |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-48070 |
AXUH85 |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-48070 |
AXUH85 |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-42080 |
AXUH85 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-48030 |
AXUH85 |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-48060 |
AXUH85 |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-48060 |
AXUH85 |
1 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
AXUH85 |
4 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
AXUH85 |
4 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90148-80066 | ||||
| 90159-50270 | ||||
| 90179-08096 | ||||
| 90189-06197 | ||||
| 91551-10816 | ||||
