AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

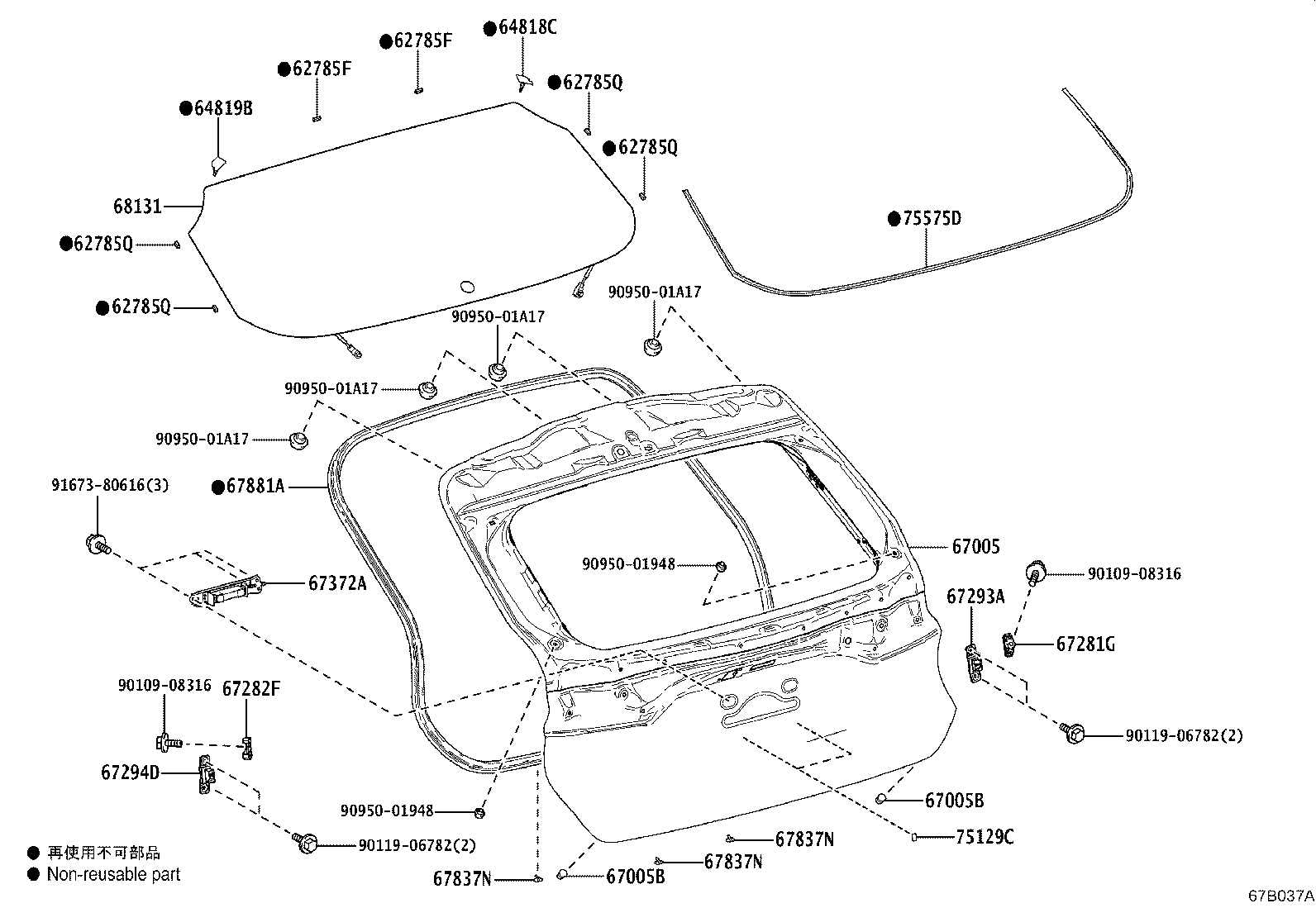

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

DOOR PANEL

diagram 62785F 62785F 62785Q 62785Q 62785Q 62785Q 64818C 64819B 67005 67005B 67005B 67281G 67282F 67293A 67294D 67372A 67837N 67837N 67837N 67881A 68131 75129C 75575D 9010908316 9010908316 9011906782 9011906782 9095001948 9095001948 9095001A17 9095001A17 9095001A17 9095001A17 9167380616
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

AXUH85

 2
62785F - SPACER, BACK DOOR GLASS
62785-60030

AXUH85

 2
62785Q - SPACER, QUARTER WINDOW GLASS, NO.2
62786-10010

AXUH85

 4
62785Q - SPACER, QUARTER WINDOW GLASS, NO.2
62786-10010

AXUH85

 4
62785Q - SPACER, QUARTER WINDOW GLASS, NO.2
62786-10010

AXUH85

 4
62785Q - SPACER, QUARTER WINDOW GLASS, NO.2
62786-10010

AXUH85

 4
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-48090

AXUH85

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-48080

AXUH85

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-48A90

AXUH85

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

AXUH85

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

AXUH85

 2
67281G - STOPPER, BACK DOOR, LOWER RH
67281-48030

AXUH85

 1
67282F - STOPPER, BACK DOOR, LWR LH
67282-48020

AXUH85

 1
67293A - CUSHION, BACK DOOR STOPPER
67293-48070

AXUH85

 1
67294D - CUSHION, BACK DOOR STOPPER, LH
67294-48020

AXUH85

 1
67372A - WEIGHT, BACK DOOR
67372-48080

AXUH85

 1
67837N - SEAL, BACK DOOR DUST PROOF
67837-52040

AXUH85

 3
67837N - SEAL, BACK DOOR DUST PROOF
67837-52040

AXUH85

 3
67837N - SEAL, BACK DOOR DUST PROOF
67837-52040

AXUH85

 3
67881A - WEATHERSTRIP, BACK DOOR
67881-48100

AXUH85

 1
68131 - GLASS, BACK DOOR
68105-48923

AXUH85..S

 1
68105-48923

AXUH85..G

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK

 1
68105-48921

AXUH85..G,M

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-30010

AXUH85

 2
75575D - MOULDING, BACK WINDOW, LOWER
75575-48070

AXUH85

 1
Common parts
90109-08316
90119-06782
90950-01948
90950-01A17
91673-80616

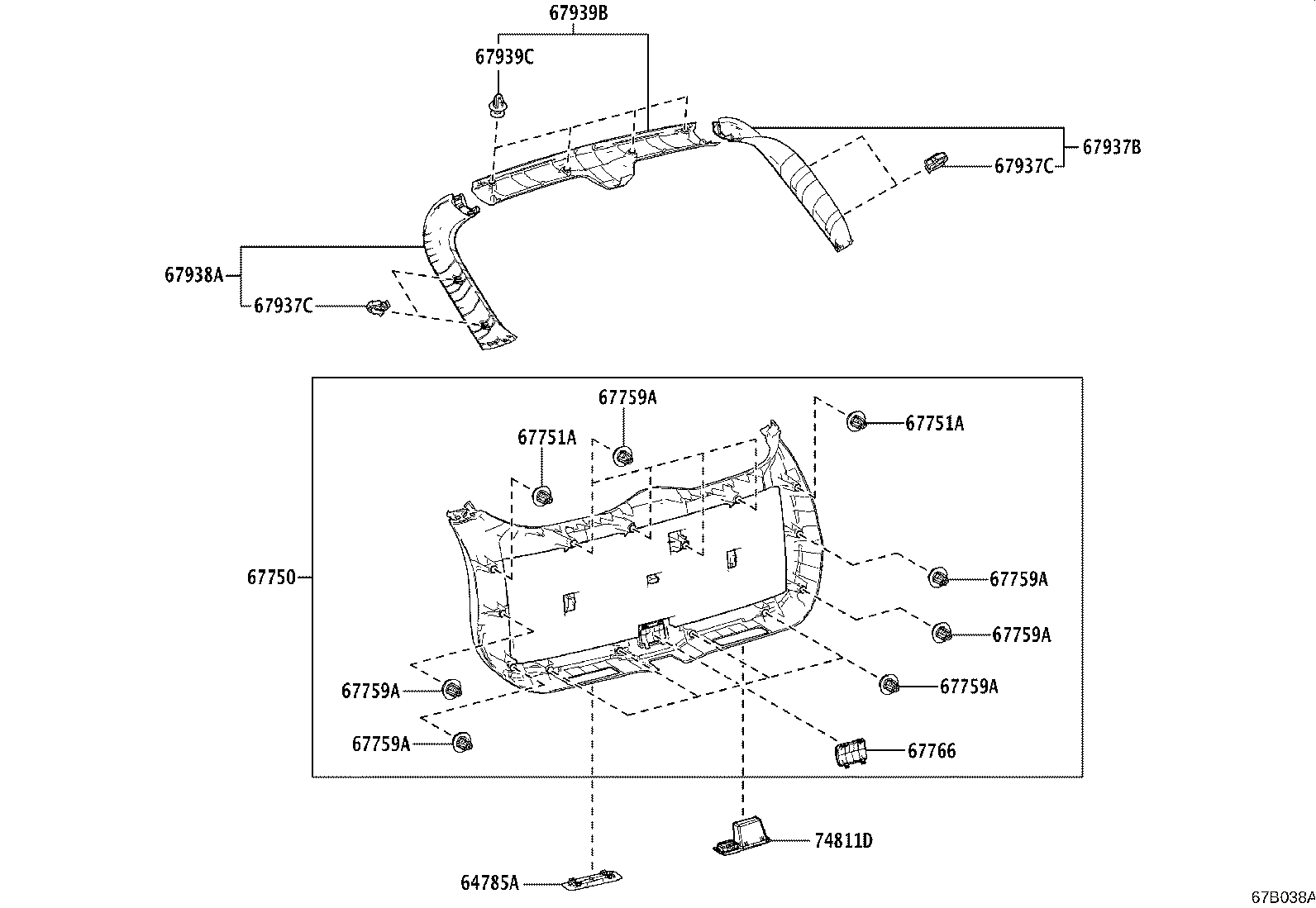

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

DOOR TRIM

diagram 64785A 67750 67751A 67751A 67759A 67759A 67759A 67759A 67759A 67759A 67766 67937B 67937C 67937C 67938A 67939B 67939C 74811D
Part # Description Qty Price
64785A - BASE, BACK DOOR TRIM
64785-78010C1

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-48030C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

AXUH85

 2
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

AXUH85

 2
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09245

AXUH85

 12
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-48040C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-48060C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

AXUH85

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010

AXUH85

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-48020C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-48020C0

AXUH85..G..USA;AXUH85..(G,M)..CND

BLACK,TRIM1#,2#,4#

 1
67939-48030C0

AXUH85..S

BLACK,TRIM1#,2#,4#

 1
67939-48030C0

AXUH85..G

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK,BLACK,TRIM1#,2#,4#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

AXUH85

 4
74811D - HANDLE, DOOR PULL
69291-78040C1

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
