AXUH85L-ANXGBA (2020)
Toyota Venza

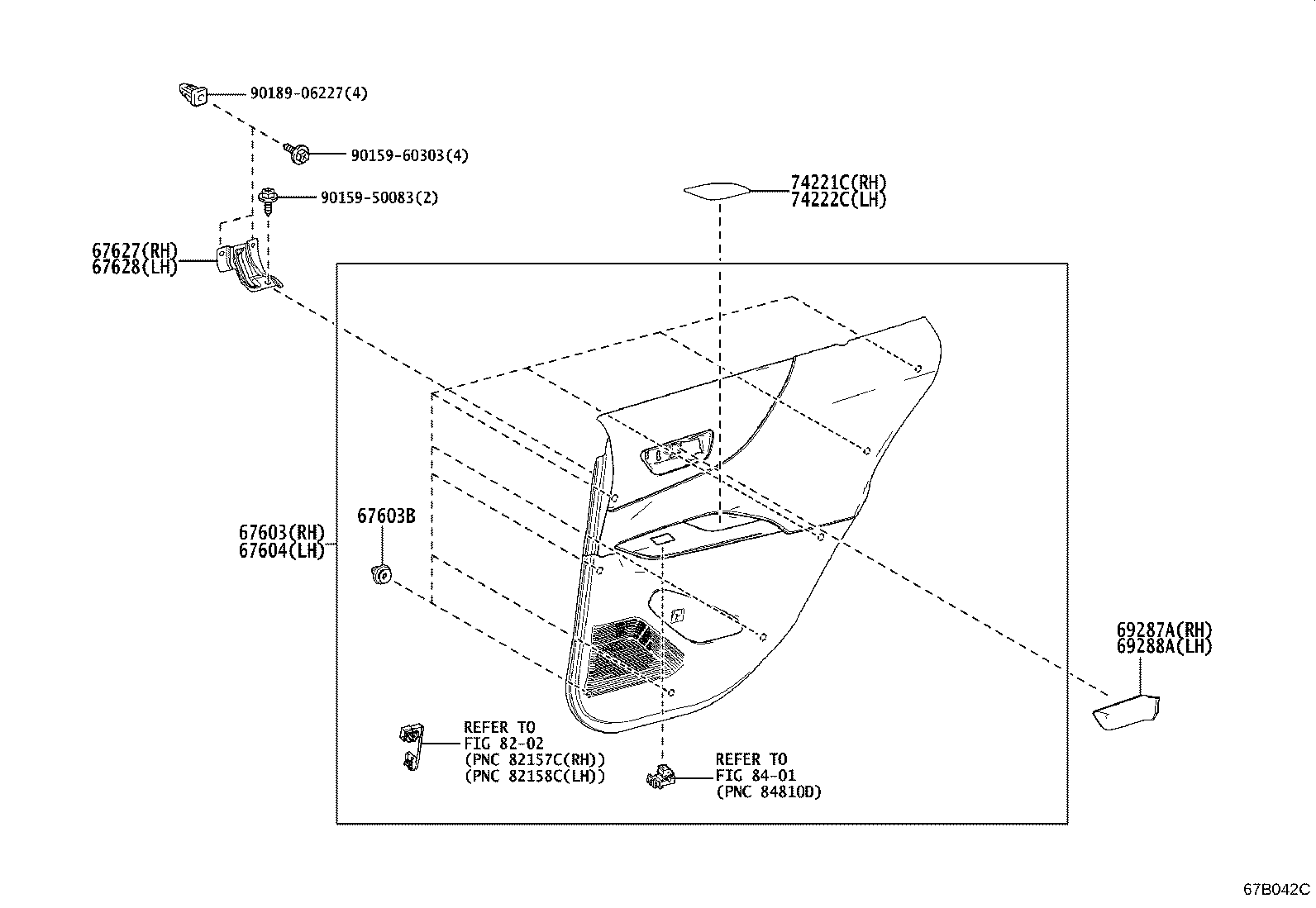

ILLUST NO. 2 OF 2(2007- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-48C8020 |
AXUH85..G,S BLACK/BLACK,TRIM2# |
1 | ||
| 67630-48C80C8 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-48C81C9 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM4# |
1 | ||
| 67630-48C80C9 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM4# |
1 | ||
| 67630-48C8120 |
AXUH85..G,S BLACK/BLACK,TRIM2# |
1 | ||
| 67630-48C81C8 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AXUH85 |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-48B70C5 |
AXUH85..G,S BLACK/BLACK,TRIM1# |
1 | ||
| 67640-48B70C6 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM4# |
1 | ||
| 67640-48B71C7 |
AXUH85..G,S BLACK/BLACK,TRIM2# |
1 | ||
| 67640-48B70C7 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM2# |
1 | ||
| 67640-48B71C6 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM4# |
1 | ||
| 67640-48B71C5 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-48020 |
AXUH85 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67626-48020 |
AXUH85 |
1 | ||
| 69287A - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-48070 |
AXUH85 |
1 | ||
| 69288A - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-48070 |
AXUH85 |
1 | ||
| 74221C - COVER, REAR DOOR ARMREST, RH | ||||
| 74221-48050 |
AXUH85 |
1 | ||
| 74222C - COVER, REAR DOOR ARMREST, LH | ||||
| 74221-48050 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

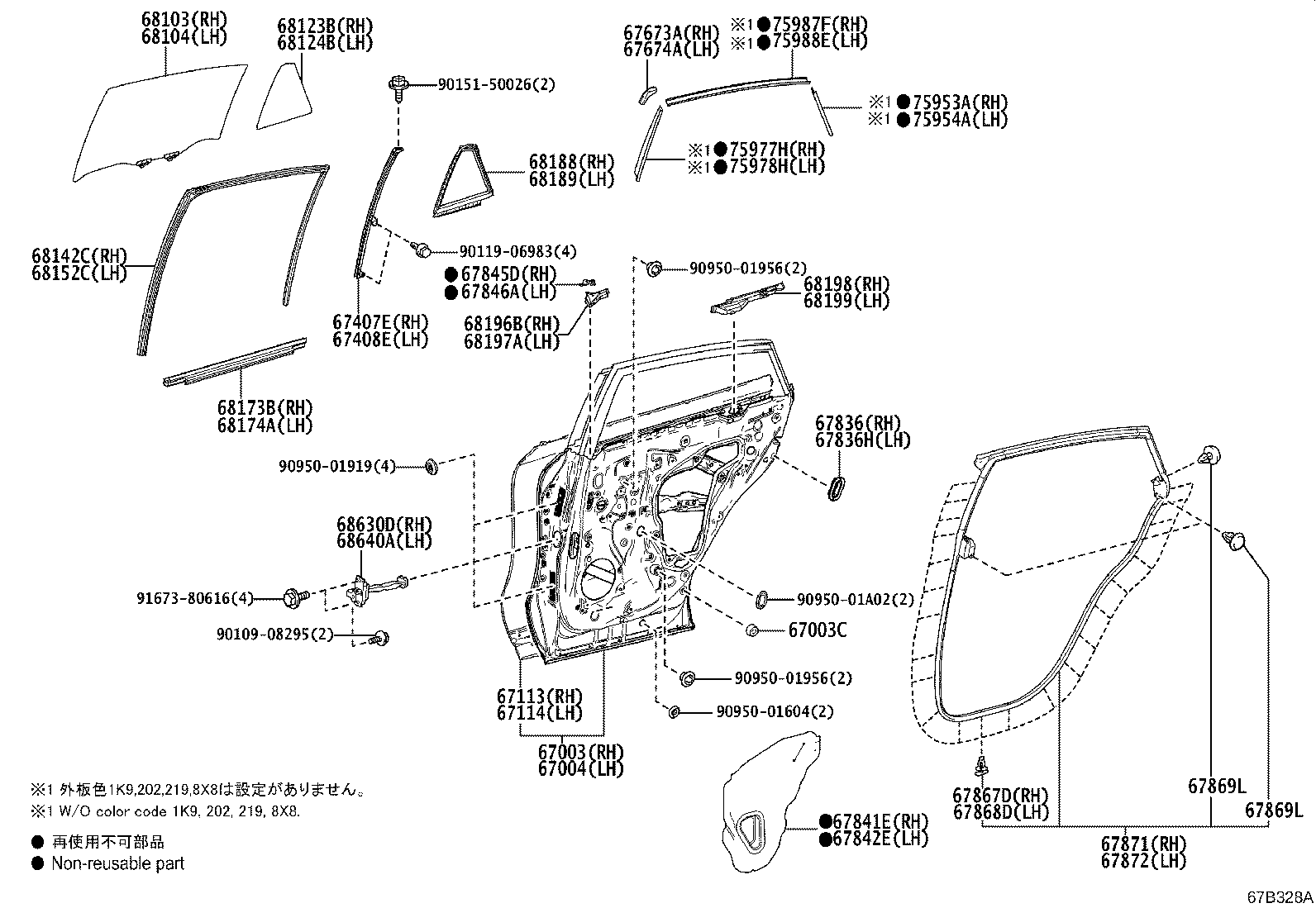

ILLUST NO. 1 OF 2(2007- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48270 |
AXUH85..USA |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
AXUH85 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48270 |
AXUH85..USA |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-48090 |
AXUH85 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-48090 |
AXUH85 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48080 |
AXUH85 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48080 |
AXUH85 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48050 |
AXUH85 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48050 |
AXUH85 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-60010 |
AXUH85 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-60010 |
AXUH85 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48081 |
AXUH85 |
1 | ||
| 67841-48080 |
AXUH85 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-48071 |
AXUH85 |
1 | ||
| 67842-48070 |
AXUH85 |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-42010 |
AXUH85 |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-42010 |
AXUH85 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXUH85 |
22 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXUH85 |
22 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXUH85 |
6 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXUH85 |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48100 |
AXUH85 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48100 |
AXUH85 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-48300 |
AXUH85 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-48300 |
AXUH85 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48190 |
AXUH85 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48190 |
AXUH85 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48080 |
AXUH85 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48080 |
AXUH85 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-48080 |
AXUH85 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-48080 |
AXUH85 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48060 |
AXUH85 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48060 |
AXUH85 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-48030 |
AXUH85 |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-48030 |
AXUH85 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-48030 |
AXUH85 |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-48030 |
AXUH85 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48090 |
AXUH85 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-48090 |
AXUH85 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-48050 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-48050 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-48060 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-48060 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-48100 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-48100 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01604 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||
