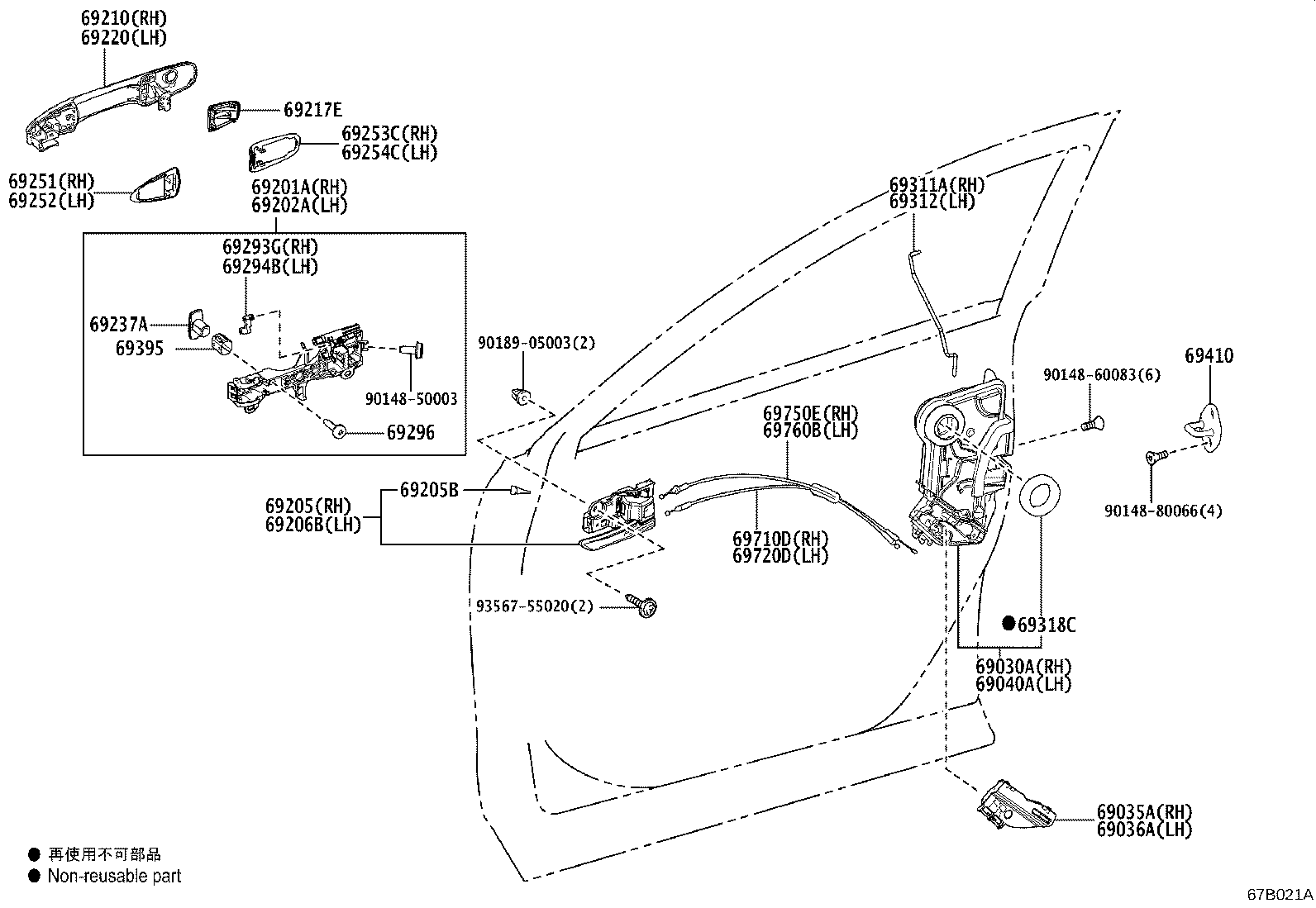

Toyota Venza AXUH85 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-53120	AXUH85	07/2020 - 12/2999	1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-30010	AXUH85	07/2020 - 12/2999	1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-30010	AXUH85	07/2020 - 12/2999	1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-53130	AXUH85	07/2020 - 12/2999	1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-33060	AXUH85	07/2020 - 12/2999	1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-33060	AXUH85	07/2020 - 12/2999	1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-33140C0	AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#	07/2020 - 12/2999	1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014	AXUH85	07/2020 - 12/2999	4
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-33150C0	AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4#	07/2020 - 12/2999	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-K0020C2	AXUH85 PRECIOUS BLACK,219	07/2020 - 12/2999	1
69210-K0020D1	AXUH85 RED MC.,3T3	07/2020 - 12/2999	1
69210-K0020B4	AXUH85 SLATE GRAY ME.,1K4 ,1K9	07/2020 - 12/2999	1
69210-K0020J3	AXUH85 DK. BLUE MC.,8X8	07/2020 - 12/2999	1
69210-K0020C0	AXUH85 BLACK,202	07/2020 - 12/2999	1
69210-K0020A1	AXUH85 WHITE PEARL CS.,070	07/2020 - 12/2999	1
69210-K0020E2	AXUH85 STEEL BLONDE ME.,4X1	07/2020 - 12/2999	1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-47020	AXUH85	07/2020 - 12/2999	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-K0010B4	AXUH85 SLATE GRAY ME.,1K4 ,1K9	07/2020 - 12/2999	1
69210-K0010C0	AXUH85 BLACK,202	07/2020 - 12/2999	1
69210-K0010C2	AXUH85 PRECIOUS BLACK,219	07/2020 - 12/2999	1
69210-K0010A1	AXUH85 WHITE PEARL CS.,070	07/2020 - 12/2999	1
69210-K0010J3	AXUH85 DK. BLUE MC.,8X8	07/2020 - 12/2999	1
69210-K0010D1	AXUH85 RED MC.,3T3	07/2020 - 12/2999	1
69210-K0010E2	AXUH85 STEEL BLONDE ME.,4X1	07/2020 - 12/2999	1
69237A - NUT, FRONT DOOR HANDLE
69237-62010	AXUH85	07/2020 - 12/2999	2
69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69241-47020	AXUH85	07/2020 - 12/2999	1
69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69241-47020	AXUH85	07/2020 - 12/2999	1
69253C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69242-47030	AXUH85	07/2020 - 12/2999	1
69254C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69242-47030	AXUH85	07/2020 - 12/2999	1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-33030	AXUH85	07/2020 - 12/2999	1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-33040	AXUH85	07/2020 - 12/2999	1
69296 - SCREW, DOOR INSIDE HANDLE
69296-30010	AXUH85	07/2020 - 12/2999	2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-48090	AXUH85	07/2020 - 12/2999	1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-48090	AXUH85	07/2020 - 12/2999	1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	AXUH85	07/2020 - 12/2999	2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69239-47010	AXUH85	07/2020 - 12/2999	2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110	AXUH85	07/2020 - 12/2999	2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-48090	AXUH85	07/2020 - 12/2999	1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-48090	AXUH85	07/2020 - 12/2999	1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-48110	AXUH85	07/2020 - 01/2021	1
69750-48111	AXUH85	02/2021 - 12/2999	1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-48111	AXUH85	02/2021 - 12/2999	1
69750-48110	AXUH85	07/2020 - 01/2021	1
Common parts
90148-50003
90148-60083
90148-80066
90189-05003
93567-55020
